HD RAMPS

Low-Profile Semi-Truck Service Ramps

Up to 15,000 lb. per Axle

Request QuoteView Options

HD Ramps Low-Profile Aluminum Semi-Truck Service Ramps

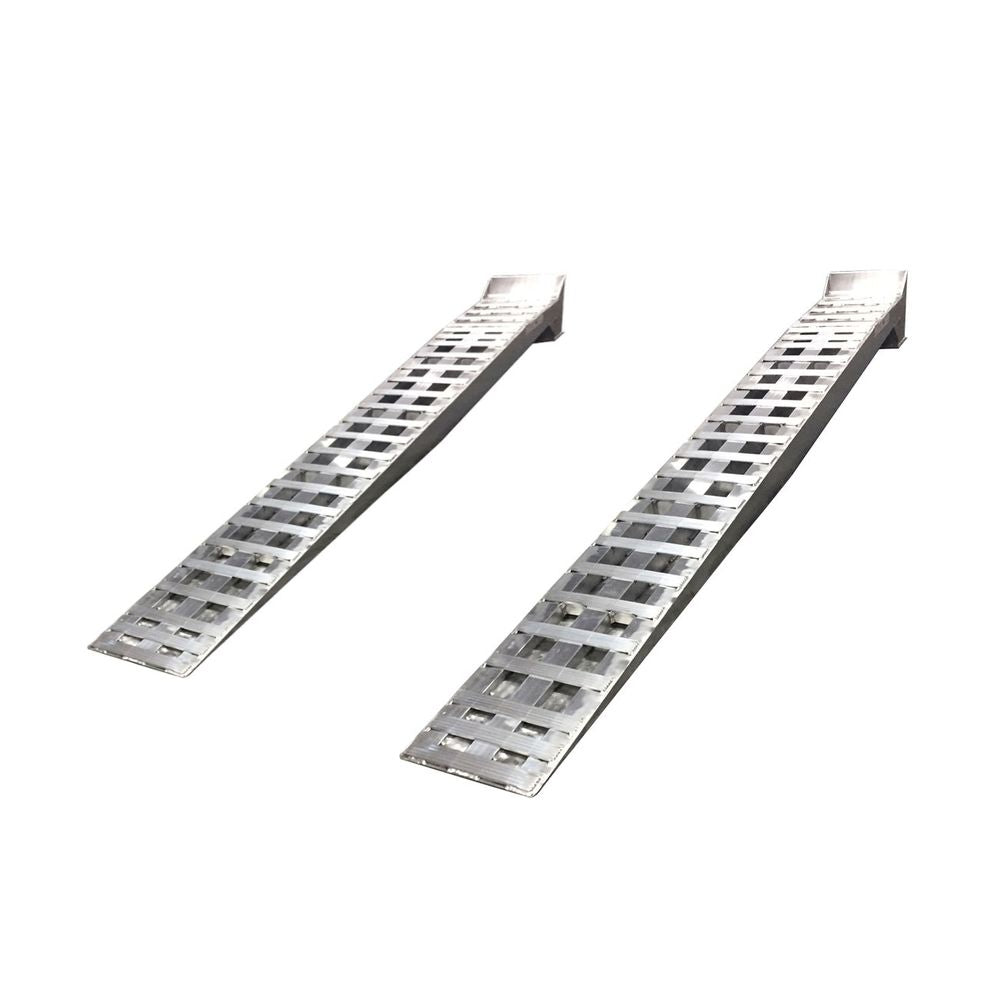

HD Ramps 15-15-137-RISER: product photograph

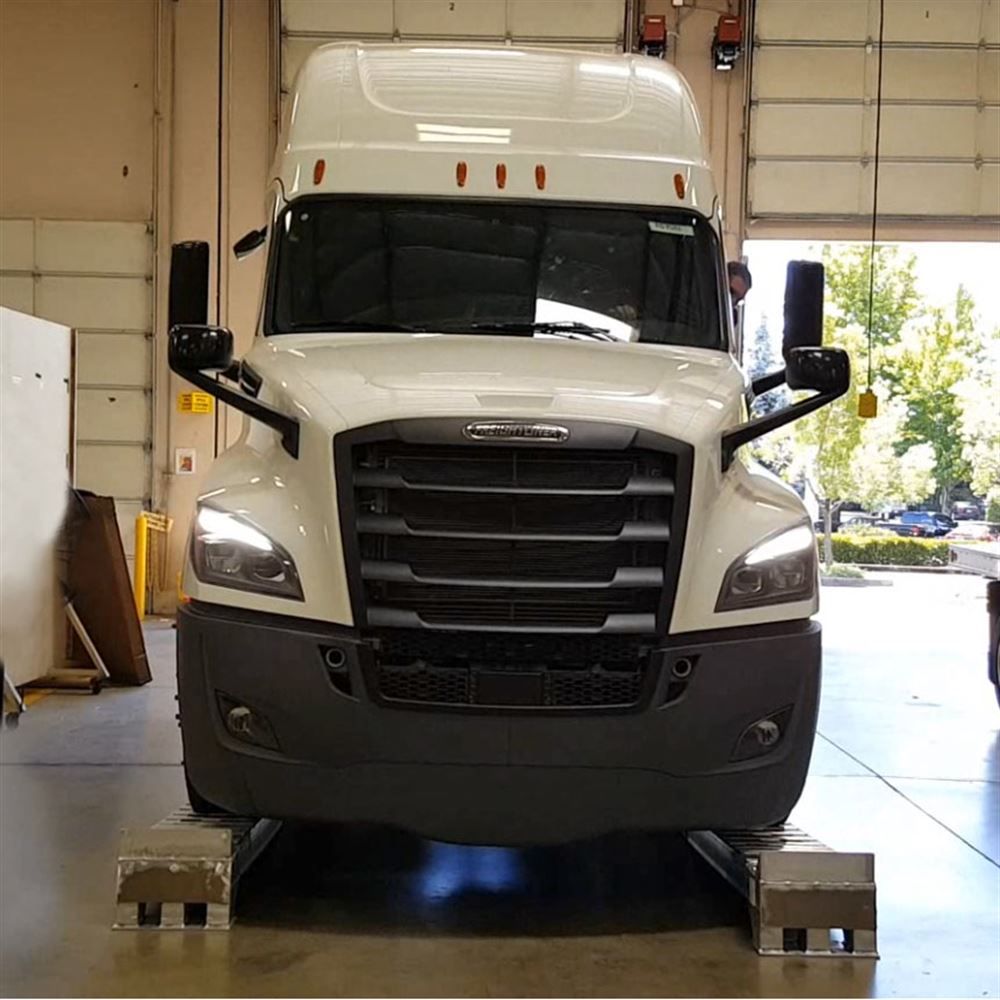

HD Ramps 15-15-137-RISER: detail view 1

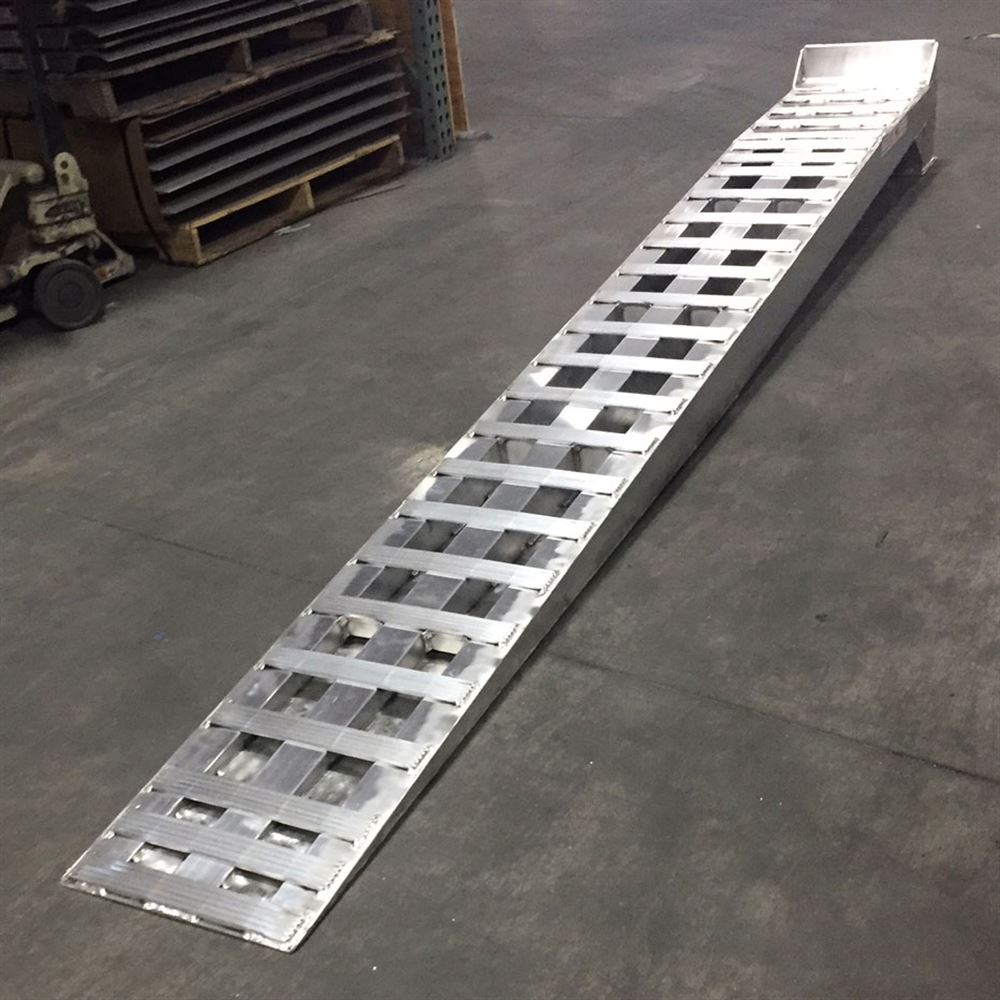

HD Ramps 15-15-137-RISER: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 15-15-137-RISER: product photographHD Ramps 15-15-137-RISER: detail view 1HD Ramps 15-15-137-RISER: detail view 2
Heavy Duty Ramps

HD Ramps Low-Profile Aluminum Semi-Truck Service Ramps

SKU: 15-15-137-RISER Currently In Stock

$3,394.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

PAIR; LOW-PROFILE APPROACH; 15,000 LB. PER AXLE

LOAD LIMITS

UP TO 15,000 LB. PER AXLE. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

MEASURE TIRE CONTACT WIDTH AND VERIFY APPROACH AND BUMPER CLEARANCE.

APPLICATION DETAILS

STATIONARY VEHICLE-SERVICE USE; NOT A TRAILER LOADING RAMP.

Description

Key Benefits

Technical Specs

Applications

Low-Profile Semi-Truck Service Ramps

The low-profile service ramps use an extended approach for suitable commercial vehicles with limited front clearance. They provide a gradual transition for stationary maintenance and inspection.

The pair is rated for 15,000 lb. per axle, with each ramp measuring approximately 138.375″ × 15″ overall. The manufacturer describes a 4.4-degree approach. Verify tire width, axle weight and bumper clearance before choosing this longer service ramp.

Check the heaviest axle, tire width and approach clearance before choosing a service ramp. Position the pair on a firm, level surface, apply the parking brake and chock the wheels that remain on the ground. Follow the manufacturer’s service procedure and use suitable jack stands before working beneath the vehicle. These ramps are not recommended for forklifts, tracked machines, road grinders or rollers.

Low-Profile Semi-Truck Service Ramps

  • The low-profile service ramps use an extended approach for suitable commercial vehicles with limited front clearance. They provide a gradual transition for stationary maintenance and inspection.
  • The pair is rated for 15,000 lb. per axle, with each ramp measuring approximately 138.375″ × 15″ overall. The manufacturer describes a 4.4-degree approach. Verify tire width, axle weight and bumper clearance before choosing this longer service ramp.
  • Pair; low-profile approach; 15,000 lb. per axle.

Low-Profile Semi-Truck Service Ramps

  • 15-15-137-RISER | Pair | Material: Aluminum; Dimensions (L × W × H): 138.375″ × 15″ × 13″; Rated capacity: 15,000 lb. per axle

Low-Profile Semi-Truck Service Ramps

  • Stationary vehicle-service use; not a trailer loading ramp.
  • Not recommended for forklifts, tracked machines, road grinders or rollers.
  • Overall ramp height and actual tire lift height are separate dimensions.
  • Check the vehicle’s heaviest axle against the pair’s rating.
  • Measure tire contact width and verify approach and bumper clearance.
  • Use on a firm, level surface and inspect both ramps before use.
  • Apply the parking brake and chock the wheels remaining on the ground.
  • Use suitable jack stands before anyone works beneath a vehicle, as directed by the manufacturer.

HD Ramps Product & Manufacturer Videos

Low-Profile Semi-Truck Service Ramps

BUILT FOR THE WORK:

  • Pair; low-profile approach; 15,000 lb. per axle.
  • Aluminum construction for the stated application.
  • Up to 15,000 lb. per Axle.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Check the vehicle’s heaviest axle against the pair’s rating.
  • Measure tire contact width and verify approach and bumper clearance.
  • Use on a firm, level surface and inspect both ramps before use.
  • Apply the parking brake and chock the wheels remaining on the ground.
  • Use suitable jack stands before anyone works beneath a vehicle, as directed by the manufacturer.

READY FOR THE FIELD:

  • Check the vehicle’s heaviest axle against the pair’s rating.
  • Measure tire contact width and verify approach and bumper clearance.
  • Use on a firm, level surface and inspect both ramps before use.
  • Apply the parking brake and chock the wheels remaining on the ground.
  • Use suitable jack stands before anyone works beneath a vehicle, as directed by the manufacturer.
