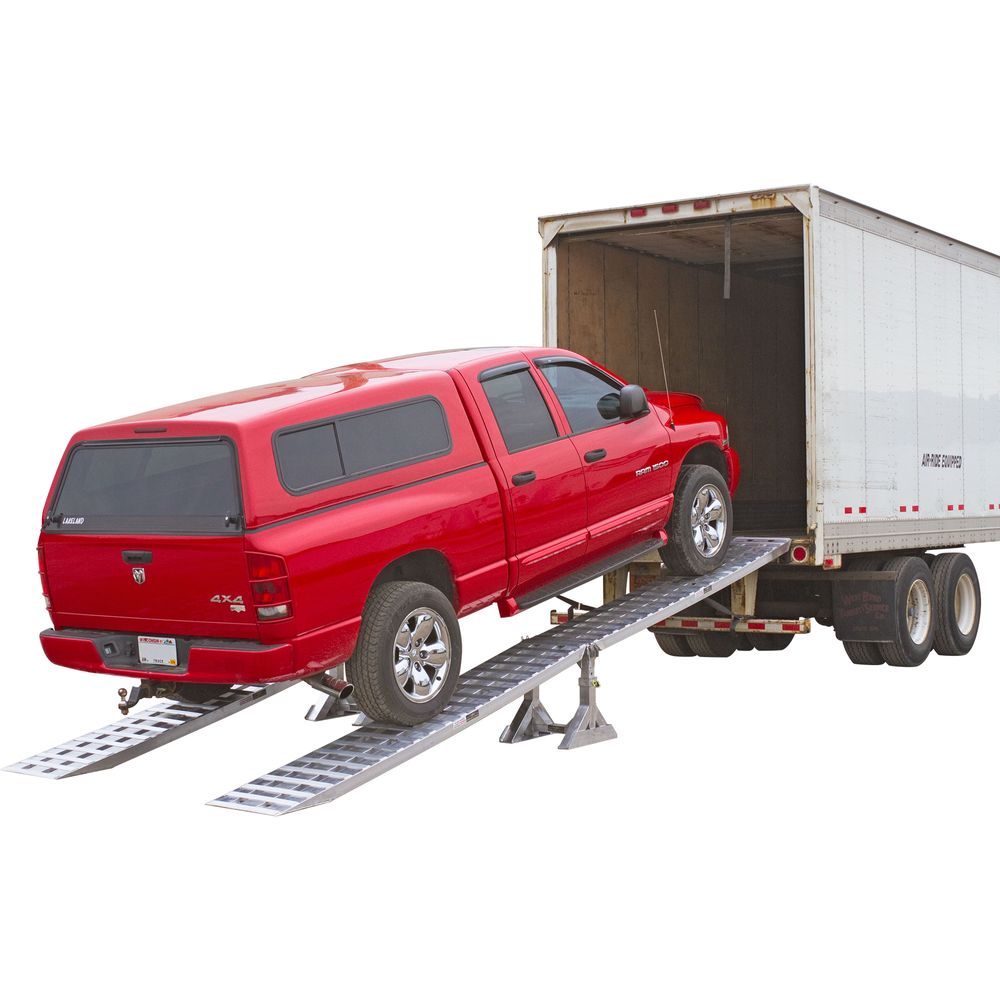

HD Ramps 05-20-240-02-06M-High-REV1: product photograph

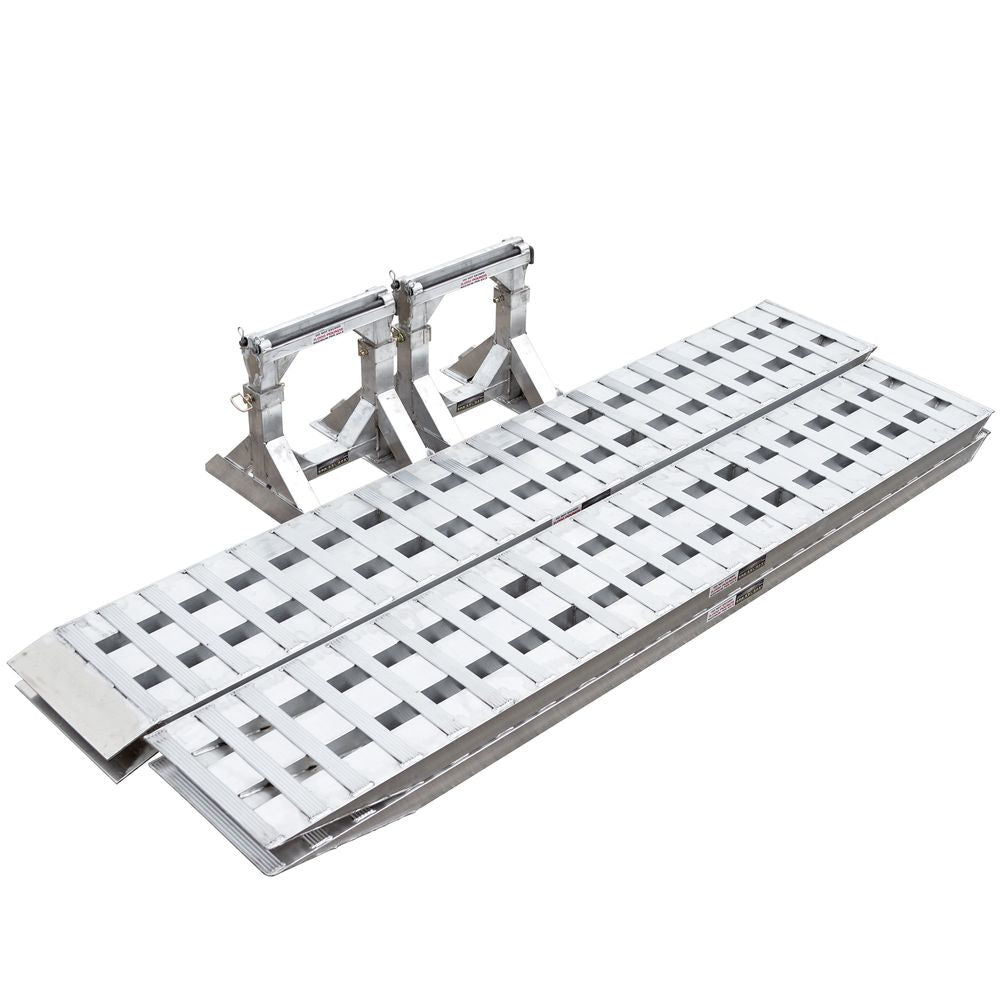

HD Ramps 05-20-240-02-06M-High-REV1: detail view 1

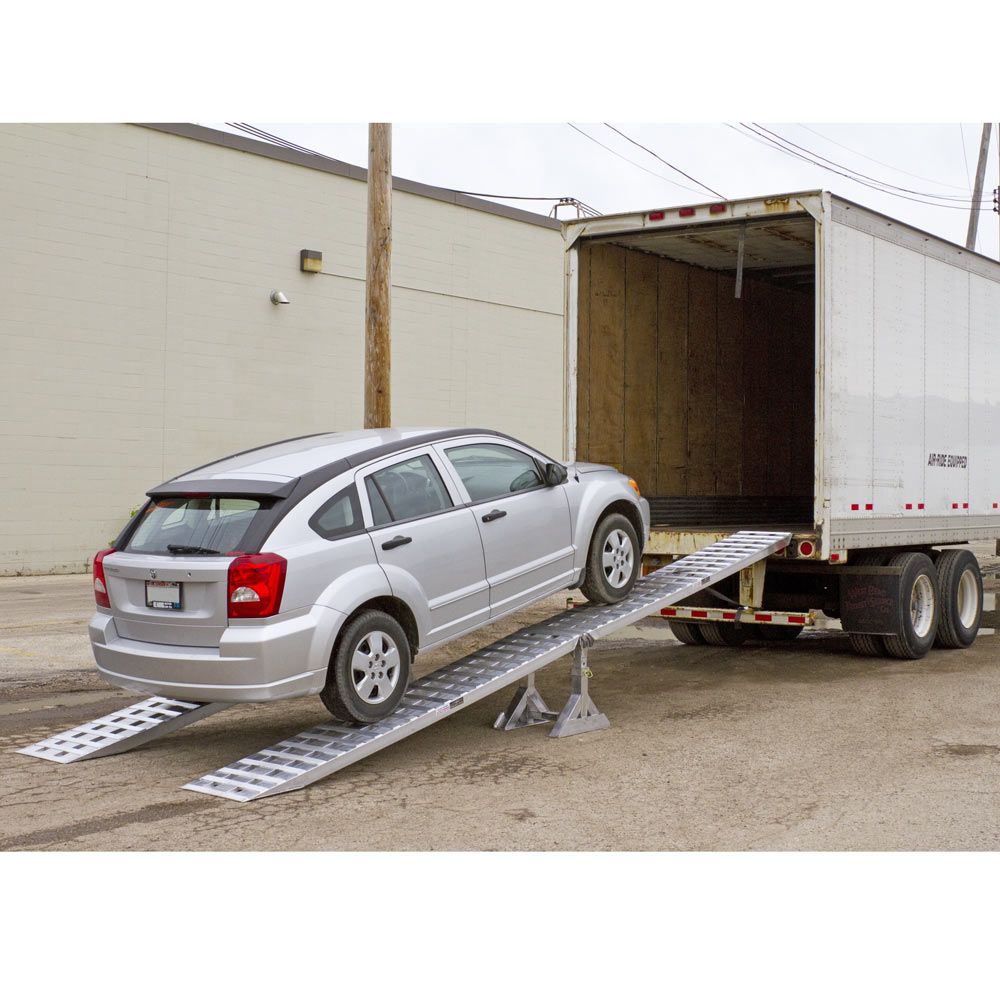

HD Ramps 05-20-240-02-06M-High-REV1: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 05-20-240-02-06M-High-REV1: product photographHD Ramps 05-20-240-02-06M-High-REV1: detail view 1HD Ramps 05-20-240-02-06M-High-REV1: detail view 2
Heavy Duty Ramps

Trailer Ramps | Aluminum Modular Dry Van Loading System

SKU: 05-20-240-02-06M-High-REV1 Currently In Stock

$5,828.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

MODULAR SYSTEM WITH SUPPORT STANDS; 5,000 LB. PER AXLE

LOAD LIMITS

UP TO 5,000 LB. PER AXLE. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

MEASURE TIRE WIDTH, WHEEL SPACING AND THE AVAILABLE LOADING APPROACH.

APPLICATION DETAILS

NO UNIVERSAL MACHINE COMPATIBILITY IS CLAIMED. FIT DEPENDS ON LOADING HEIGHT, AXLE WEIGHT, WHEEL CONTACT AND CONNECTION GEOMETRY.

Description

Key Benefits

Technical Specs

Applications

Modular Dry Van Loading System

The modular dry-van loading system creates a supported approach for compatible vehicles or equipment entering a high trailer deck. It combines ramp sections with support stands rather than relying on an unsupported long span.

The supplier lists a 240″ × 20″ ramp configuration with a 5,000 lb. per-axle capacity and a 40–54″ loading-height range. Confirm the complete arrangement against the dry van, wheel spacing and vehicle ground clearance. The stands and connecting points must be installed as a system.

Before ordering, measure the trailer rise and check the heaviest loaded axle, tire width, wheel spacing and ground clearance. Use the selected configuration only within its specified limits. Capacity is a per-axle rating, not a blanket approval for every machine with a lower total weight.

Modular Dry Van Loading System

  • The modular dry-van loading system creates a supported approach for compatible vehicles or equipment entering a high trailer deck. It combines ramp sections with support stands rather than relying on an unsupported long span.
  • The supplier lists a 240″ × 20″ ramp configuration with a 5,000 lb. per-axle capacity and a 40–54″ loading-height range. Confirm the complete arrangement against the dry van, wheel spacing and vehicle ground clearance. The stands and connecting points must be installed as a system.
  • Modular system with support stands; 5,000 lb. per axle.

Modular Dry Van Loading System

  • 05-20-240-02-06M-High-REV1 | System | Minimum Height: 40″; Maximum Height: 54″; Surface Type: Rung; Dimensions (L × W × H): 20′ × 20″ × 3.25″; Rated capacity: 5,000 lb. per axle

Modular Dry Van Loading System

  • No universal machine compatibility is claimed. Fit depends on loading height, axle weight, wheel contact and connection geometry.
  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

HD Ramps Product & Manufacturer Videos

Modular Dry Van Loading System

BUILT FOR THE WORK:

  • Modular system with support stands; 5,000 lb. per axle.
  • Aluminum construction for the stated application.
  • Up to 5,000 lb. per Axle.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

READY FOR THE FIELD:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.
