HD RAMPS

Modular Step Deck Loading System

Up to 10,000 lb. per Axle

Request QuoteView Options

Trailer Ramps | Aluminum Modular Step Deck Loading System

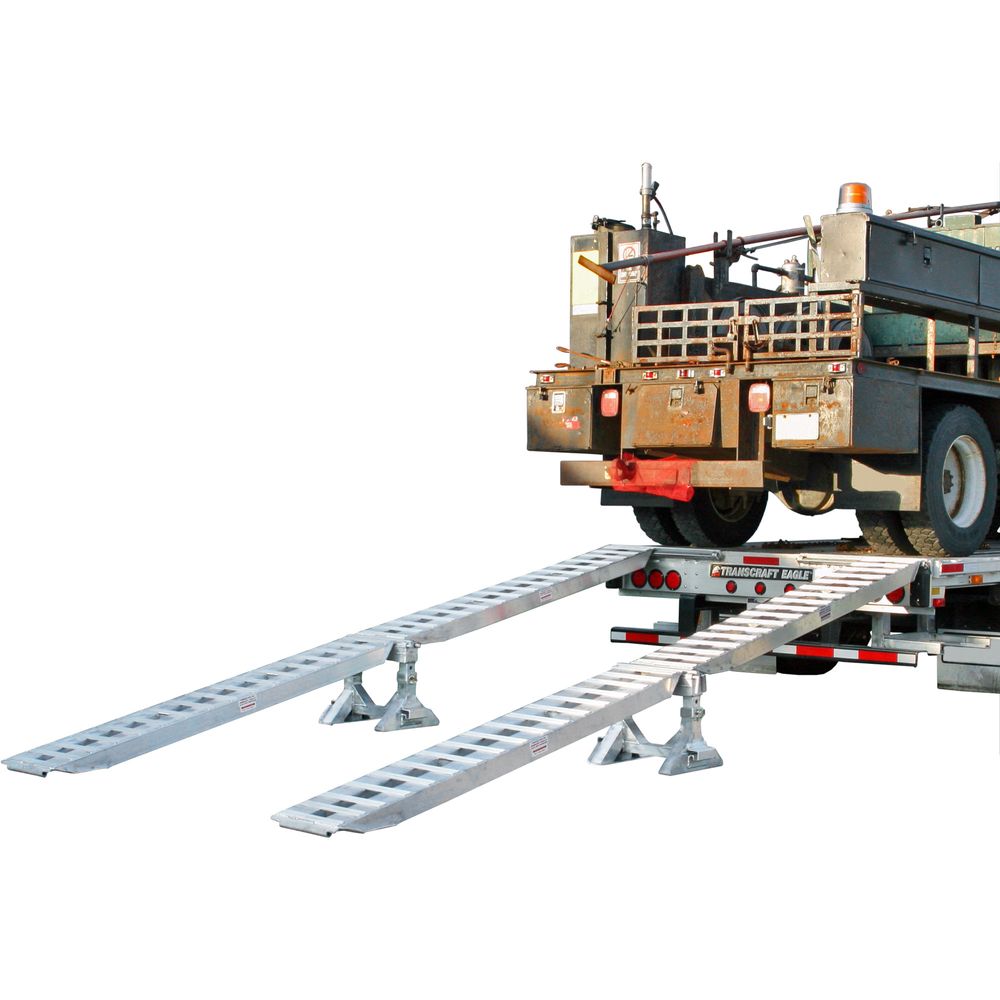

HD Ramps 10-16-192-02-02M-S: product photograph

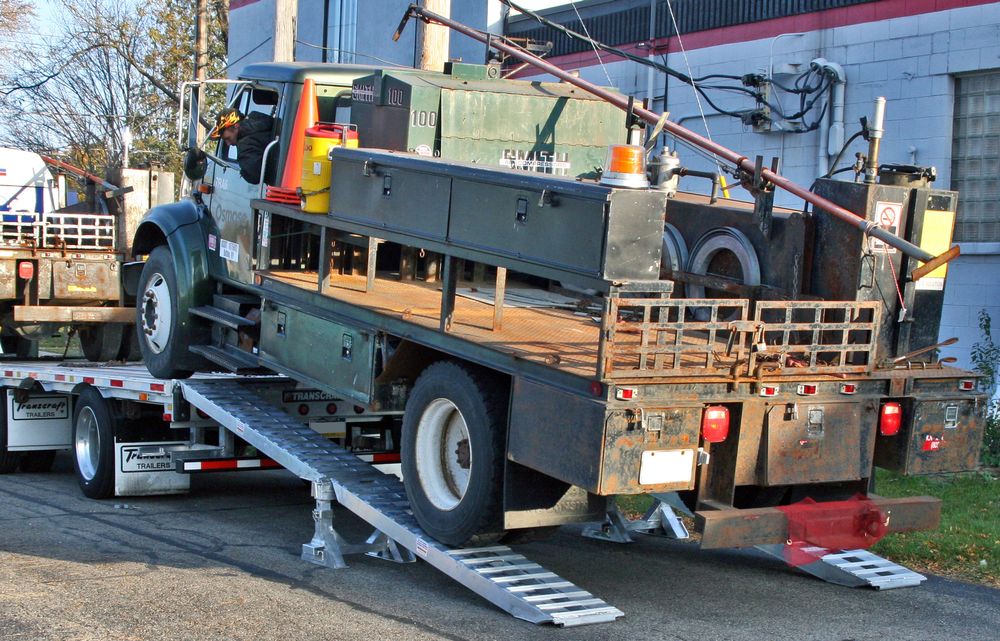

HD Ramps 10-16-192-02-02M-S: detail view 1

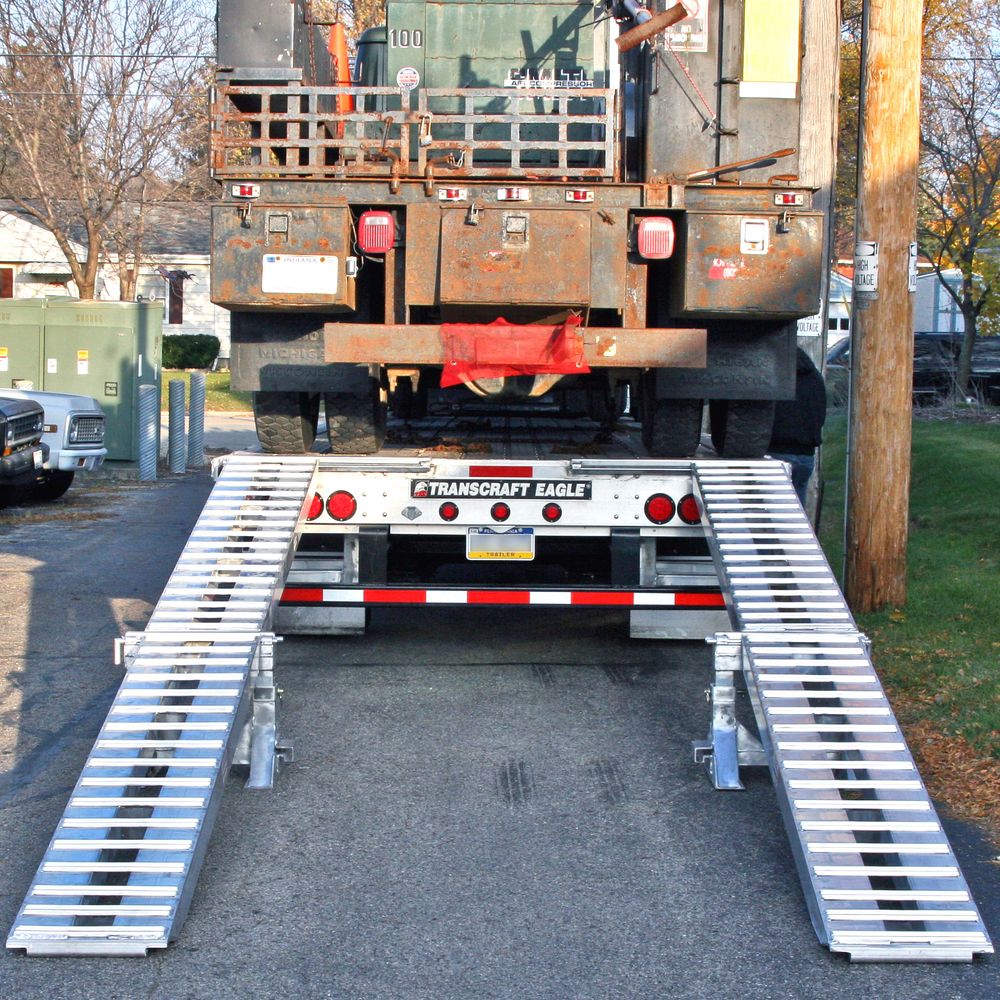

HD Ramps 10-16-192-02-02M-S: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 10-16-192-02-02M-S: product photographHD Ramps 10-16-192-02-02M-S: detail view 1HD Ramps 10-16-192-02-02M-S: detail view 2
Heavy Duty Ramps

Trailer Ramps | Aluminum Modular Step Deck Loading System

SKU: 10-16-192-02-02M-S Currently In Stock

$5,389.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

PIN-ON SYSTEM; VERIFY INCLUDED STANDS AND TRAILER MOUNTING

LOAD LIMITS

UP TO 10,000 LB. PER AXLE. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

MEASURE TIRE WIDTH, WHEEL SPACING AND THE AVAILABLE LOADING APPROACH.

APPLICATION DETAILS

NO UNIVERSAL MACHINE COMPATIBILITY IS CLAIMED. FIT DEPENDS ON LOADING HEIGHT, AXLE WEIGHT, WHEEL CONTACT AND CONNECTION GEOMETRY.

Description

Key Benefits

Technical Specs

Applications

Modular Step Deck Loading System

The modular step deck system uses separate ramp sections and support stands to create a loading path for wheeled equipment. It is intended for haulers who need a system that can be broken down and stored between loading operations.

Pin-on connections secure the sections to the appropriate mounting points. Choose capacity and dimensions around the heaviest axle, tire width and trailer loading height. A modular ramp system does not automatically include the components required for a load-leveling application.

Before ordering, measure the trailer rise and check the heaviest loaded axle, tire width, wheel spacing and ground clearance. For load-leveling use, also confirm trailer width, stake-pocket dimensions, deck drop, lumber and chain securement. Use the selected configuration only within its specified limits. Capacity is a per-axle rating, not a blanket approval for every machine with a lower total weight.

Modular Step Deck Loading System

  • The modular step deck system uses separate ramp sections and support stands to create a loading path for wheeled equipment. It is intended for haulers who need a system that can be broken down and stored between loading operations.
  • Pin-on connections secure the sections to the appropriate mounting points. Choose capacity and dimensions around the heaviest axle, tire width and trailer loading height. A modular ramp system does not automatically include the components required for a load-leveling application.
  • Pin-on system; verify included stands and trailer mounting.

Modular Step Deck Loading System

  • 10-16-192-02-02M-S | Kit | Maximum Capacity: 10,000 lbs. per axle; Length: 16′; Width: 16″; Height: 4-1/4″; Material: Aluminum; Step deck height: 16″; Ramp width: 16″

Modular Step Deck Loading System

  • No universal machine compatibility is claimed. Fit depends on loading height, axle weight, wheel contact and connection geometry.
  • Not recommended for forklifts, steel-tracked equipment or trucks with mounted cranes in this ramp family.
  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

HD Ramps Product & Manufacturer Videos

Modular Step Deck Loading System

BUILT FOR THE WORK:

  • Pin-on system; verify included stands and trailer mounting.
  • Aluminum construction for the stated application.
  • Up to 10,000 lb. per Axle.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

READY FOR THE FIELD:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.
