HD RAMPS

Pin-On Loading Ramps with Knife Feet

Up to 12,000 lb. per Axle

Request QuoteView Options

Trailer Ramps | Aluminum Pin-On Loading Ramps with Knife Feet

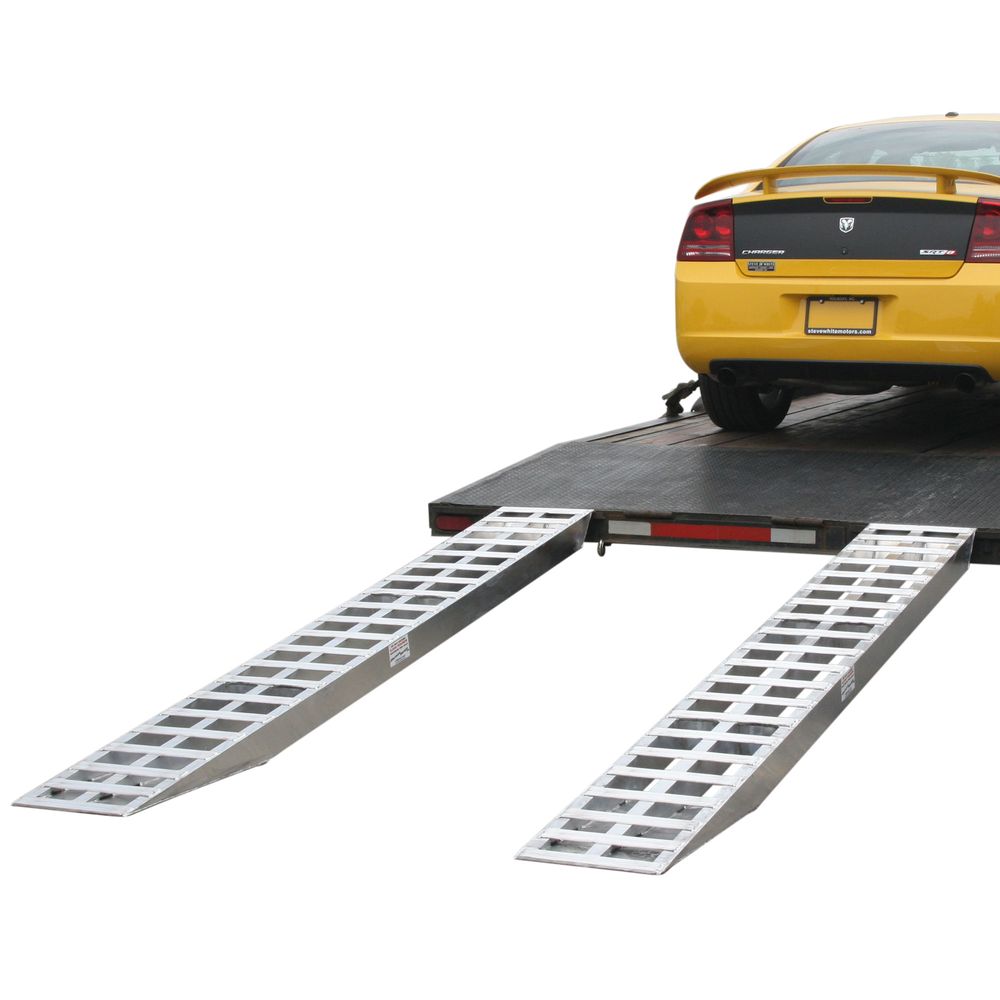

HD Ramps 05-20-120-01: product photograph

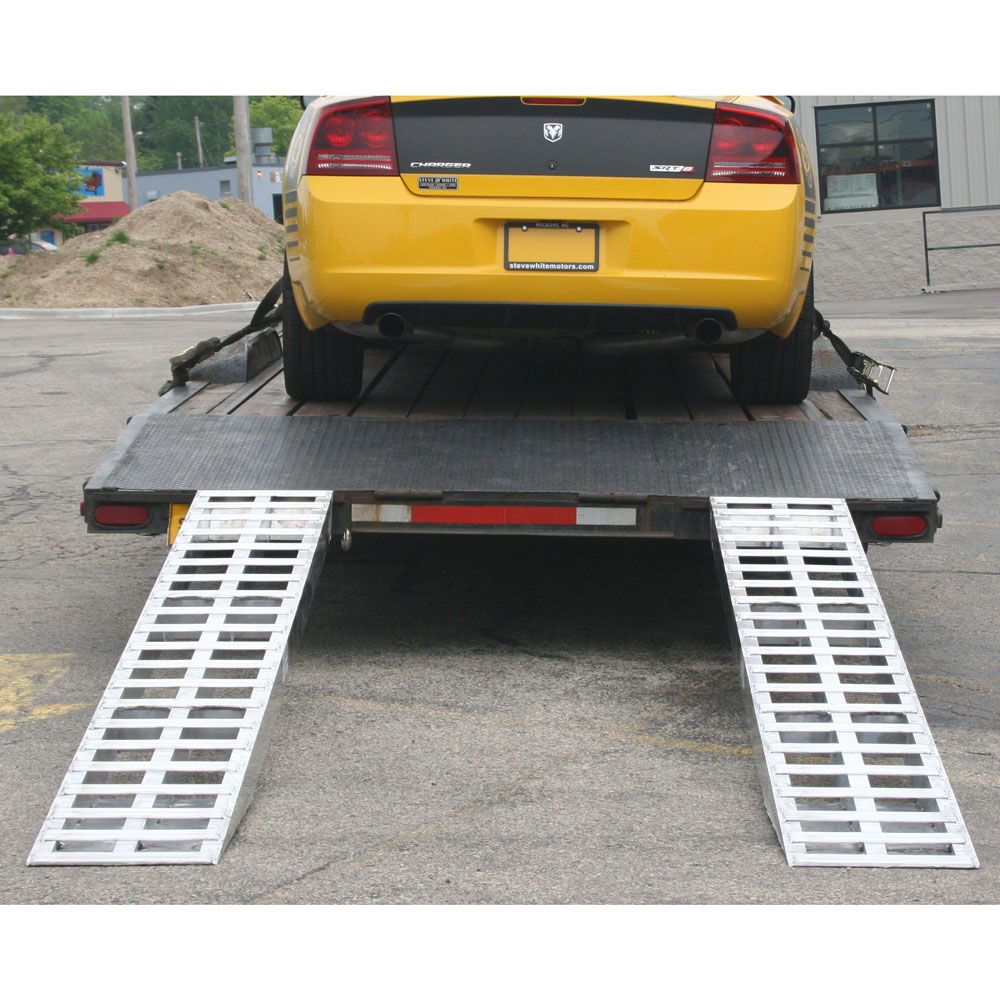

HD Ramps 05-20-120-01: detail view 1

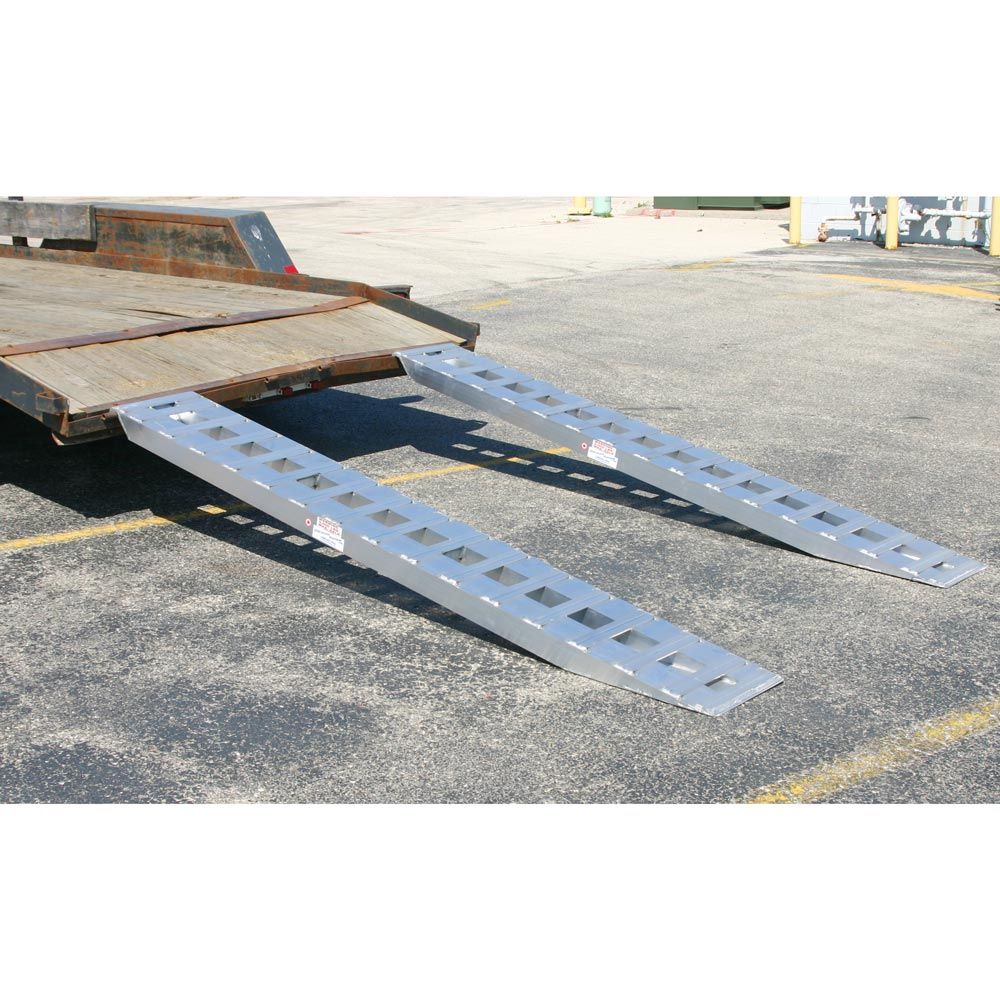

HD Ramps 05-20-120-01: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 05-20-120-01: product photographHD Ramps 05-20-120-01: detail view 1HD Ramps 05-20-120-01: detail view 2
Heavy Duty Ramps

Trailer Ramps | Aluminum Pin-On Loading Ramps with Knife Feet

SKU: 05-20-120-01 Currently In Stock

$2,656.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

PAIR; PIN-ON END; KNIFE FOOT; VARIANT-SPECIFIC AXLE RATING

LOAD LIMITS

UP TO 12,000 LB. PER AXLE. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

MEASURE TIRE WIDTH, WHEEL SPACING AND THE AVAILABLE LOADING APPROACH.

APPLICATION DETAILS

NO UNIVERSAL MACHINE COMPATIBILITY IS CLAIMED. FIT DEPENDS ON LOADING HEIGHT, AXLE WEIGHT, WHEEL CONTACT AND CONNECTION GEOMETRY.

Description

Key Benefits

Technical Specs

Applications

Pin-On Loading Ramps with Knife Feet

The pin-on, knife-foot ramps provide a secured trailer connection and a tapered approach from the ground. The knife foot is useful when a smooth ground transition matters, provided the selected ramp is used within its loading-height range.

Choose the size and per-axle capacity around the equipment, trailer rise and available approach. Pin-on ends require compatible skid seats and mechanical securement. The different widths and lengths are separate engineered configurations and should not be treated as interchangeable simply because their connection type is the same.

Before ordering, measure the trailer rise and check the heaviest loaded axle, tire width, wheel spacing and ground clearance. Use the selected configuration only within its specified limits. Capacity is a per-axle rating, not a blanket approval for every machine with a lower total weight.

Pin-On Loading Ramps with Knife Feet

  • The pin-on, knife-foot ramps provide a secured trailer connection and a tapered approach from the ground. The knife foot is useful when a smooth ground transition matters, provided the selected ramp is used within its loading-height range.
  • Choose the size and per-axle capacity around the equipment, trailer rise and available approach. Pin-on ends require compatible skid seats and mechanical securement. The different widths and lengths are separate engineered configurations and should not be treated as interchangeable simply because their connection type is the same.
  • Pair; pin-on end; knife foot; variant-specific axle rating.

Pin-On Loading Ramps with Knife Feet

  • 05-20-120-01 | Pair | Minimum Height: 24″; Maximum Height: 30″; Foot Type: Knife; Attaching End: Pin-On; Material: Aluminum; Surface Type: Rung; Dimensions (L × W × H): 10′ × 20″ × 3.25″; Rated capacity: 5,000 lb. per axle
  • 08-16-168-02 | Pair | Minimum Height: 36″; Maximum Height: 42″; Material: Aluminum; Foot Type: Knife; Attaching End: Pin-On; Dimensions (L × W × H): 14′ × 16″ × 3.25″; Rated capacity: 8,000 lb. per axle
  • 12-16-168-02 | Pair | Minimum Height: 36″; Maximum Height: 42″; Material: Aluminum; Foot Type: Knife; Attaching End: Pin-On; Dimensions (L × W × H): 14′ × 16″ × 6.25″; Rated capacity: 12,000 lb. per axle

Pin-On Loading Ramps with Knife Feet

  • No universal machine compatibility is claimed. Fit depends on loading height, axle weight, wheel contact and connection geometry.
  • Not recommended for forklifts, steel-tracked equipment or trucks with mounted cranes in this ramp family.
  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

HD Ramps Product & Manufacturer Videos

Pin-On Loading Ramps with Knife Feet

BUILT FOR THE WORK:

  • Pair; pin-on end; knife foot; variant-specific axle rating.
  • Aluminum construction for the stated application.
  • Up to 12,000 lb. per Axle.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

READY FOR THE FIELD:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.
