HD RAMPS

Pin-On Loading Ramps with Stub Feet

Up to 10,000 lb. per Axle

Request QuoteView Options

Trailer Ramps | Aluminum Pin-On Loading Ramps with Stub Feet

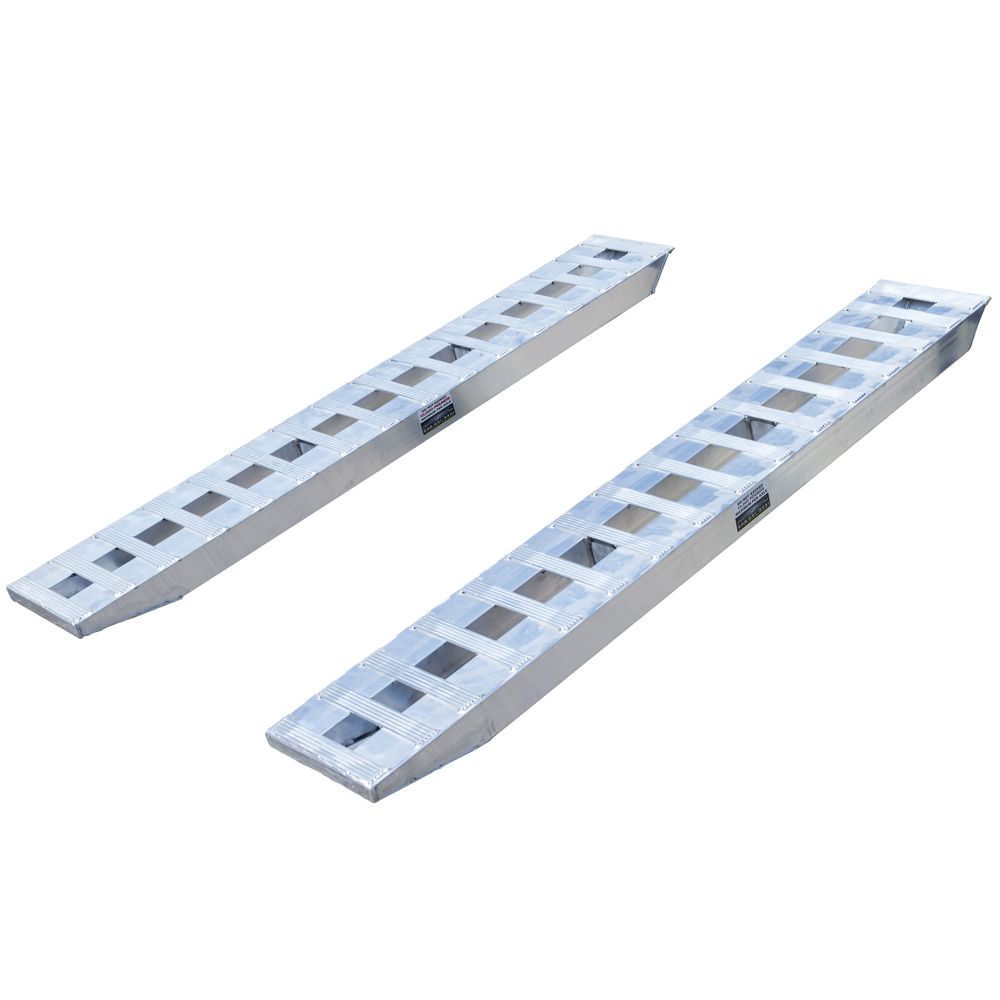

HD Ramps 10-14-090-02-S: product photograph

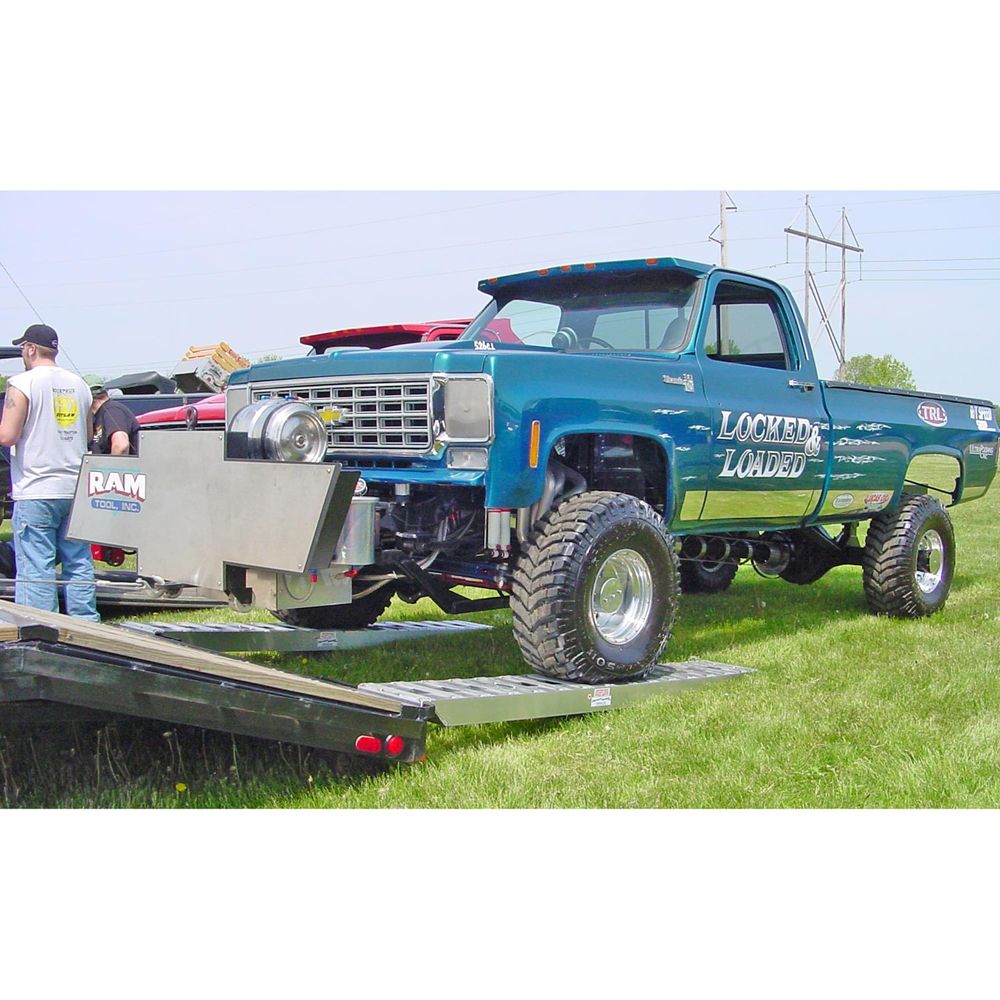

HD Ramps 10-14-090-02-S: detail view 1

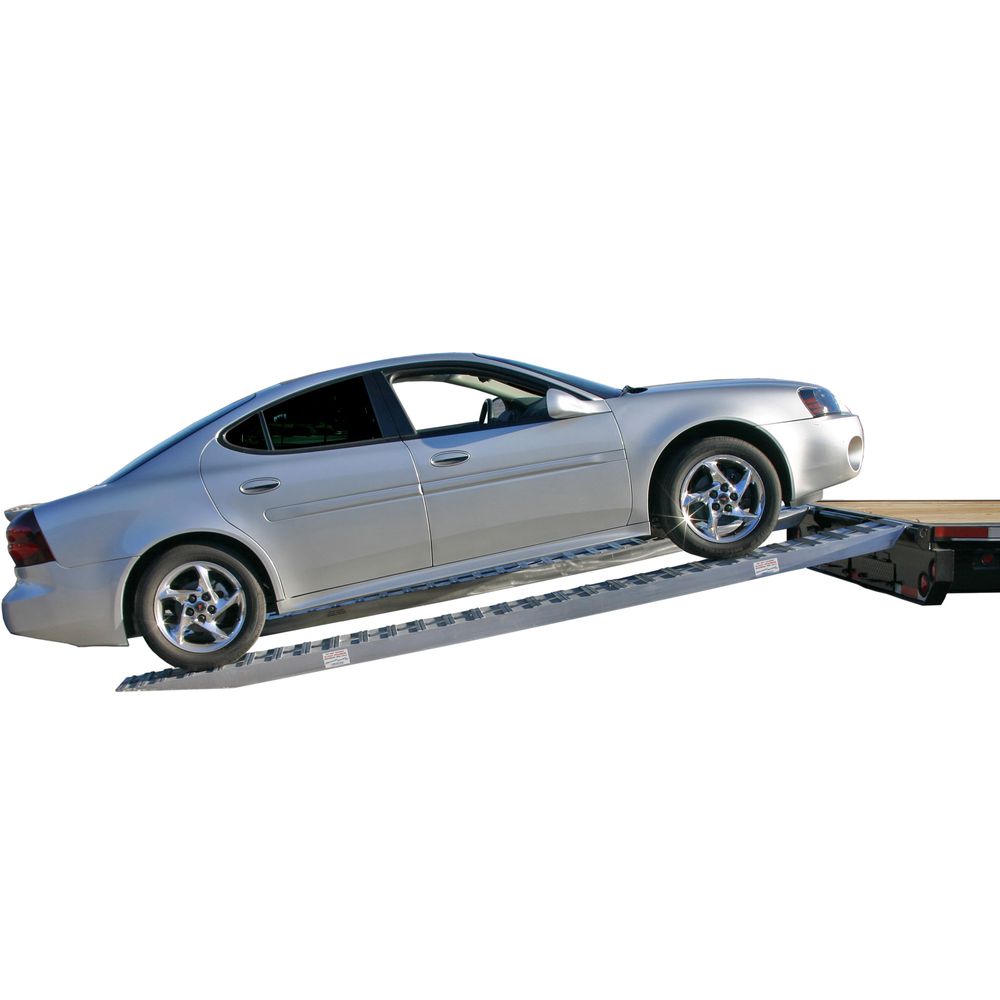

HD Ramps 10-14-090-02-S: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 10-14-090-02-S: product photographHD Ramps 10-14-090-02-S: detail view 1HD Ramps 10-14-090-02-S: detail view 2
Heavy Duty Ramps

Trailer Ramps | Aluminum Pin-On Loading Ramps with Stub Feet

SKU: 10-14-090-02-S Currently In Stock

$2,501.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

PAIR; PIN-ON END; STUB FOOT; 10,000 LB. PER AXLE

LOAD LIMITS

UP TO 10,000 LB. PER AXLE. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

MEASURE TIRE WIDTH, WHEEL SPACING AND THE AVAILABLE LOADING APPROACH.

APPLICATION DETAILS

NO UNIVERSAL MACHINE COMPATIBILITY IS CLAIMED. FIT DEPENDS ON LOADING HEIGHT, AXLE WEIGHT, WHEEL CONTACT AND CONNECTION GEOMETRY.

Description

Key Benefits

Technical Specs

Applications

Pin-On Loading Ramps with Stub Feet

These aluminum loading ramps combine a pin-on trailer connection with a stub foot for wheeled equipment loading. The connection is intended to keep the ramp mechanically secured to a suitable skid seat during use.

The two offered sizes share a 10,000 lb. per-axle rating but have different lengths and widths. Match the selected ramp to the trailer’s loading height, the equipment’s wheel spacing and the tire contact area. Required skid-seat brackets and securing pins must be specified for the trailer.

Before ordering, measure the trailer rise and check the heaviest loaded axle, tire width, wheel spacing and ground clearance. Use the selected configuration only within its specified limits. Capacity is a per-axle rating, not a blanket approval for every machine with a lower total weight.

Pin-On Loading Ramps with Stub Feet

  • These aluminum loading ramps combine a pin-on trailer connection with a stub foot for wheeled equipment loading. The connection is intended to keep the ramp mechanically secured to a suitable skid seat during use.
  • The two offered sizes share a 10,000 lb. per-axle rating but have different lengths and widths. Match the selected ramp to the trailer’s loading height, the equipment’s wheel spacing and the tire contact area. Required skid-seat brackets and securing pins must be specified for the trailer.
  • Pair; pin-on end; stub foot; 10,000 lb. per axle.

Pin-On Loading Ramps with Stub Feet

  • 10-14-090-02-S | Pair | Minimum Height: 24″; Maximum Height: 36″; Material: Aluminum; Foot Type: Stub; Attaching End: Pin-On; Dimensions (L × W × H): 7′6″ × 14″ × 4.25″; Rated capacity: 10,000 lb. per axle
  • 10-16-120-02-S | Pair | Minimum Height: 36″; Maximum Height: 42″; Material: Aluminum; Foot Type: Stub; Attaching End: Pin-On; Dimensions (L × W × H): 10′ × 16″ × 4.25″; Rated capacity: 10,000 lb. per axle

Pin-On Loading Ramps with Stub Feet

  • No universal machine compatibility is claimed. Fit depends on loading height, axle weight, wheel contact and connection geometry.
  • Not recommended for forklifts, steel-tracked equipment or trucks with mounted cranes in this ramp family.
  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

HD Ramps Product & Manufacturer Videos

Pin-On Loading Ramps with Stub Feet

BUILT FOR THE WORK:

  • Pair; pin-on end; stub foot; 10,000 lb. per axle.
  • Aluminum construction for the stated application.
  • Up to 10,000 lb. per Axle.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

READY FOR THE FIELD:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.
