HD RAMPS

Plate-End Loading Ramps with Knife Feet

Up to 5,000 lb. per Axle

Request QuoteView Options

Trailer Ramps | Aluminum Plate-End Loading Ramps with Knife Feet

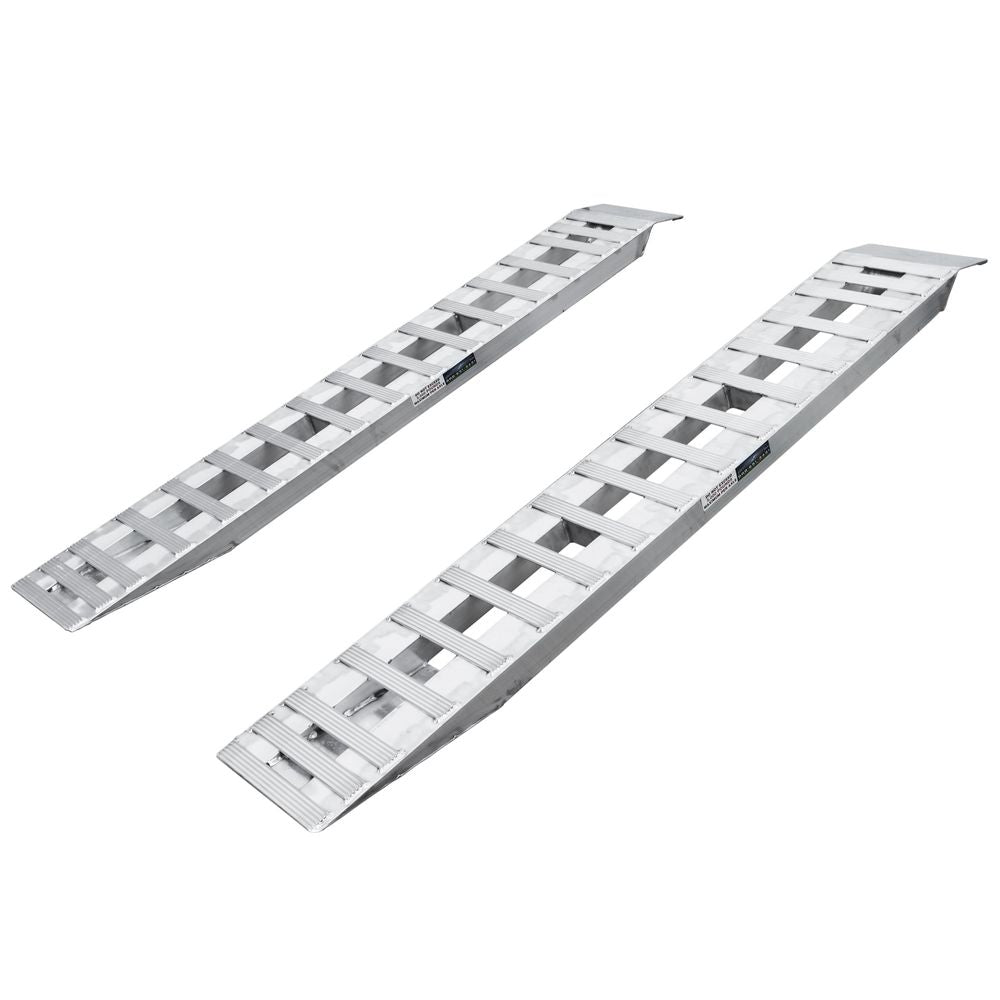

HD Ramps 05-15-094-06: product photograph

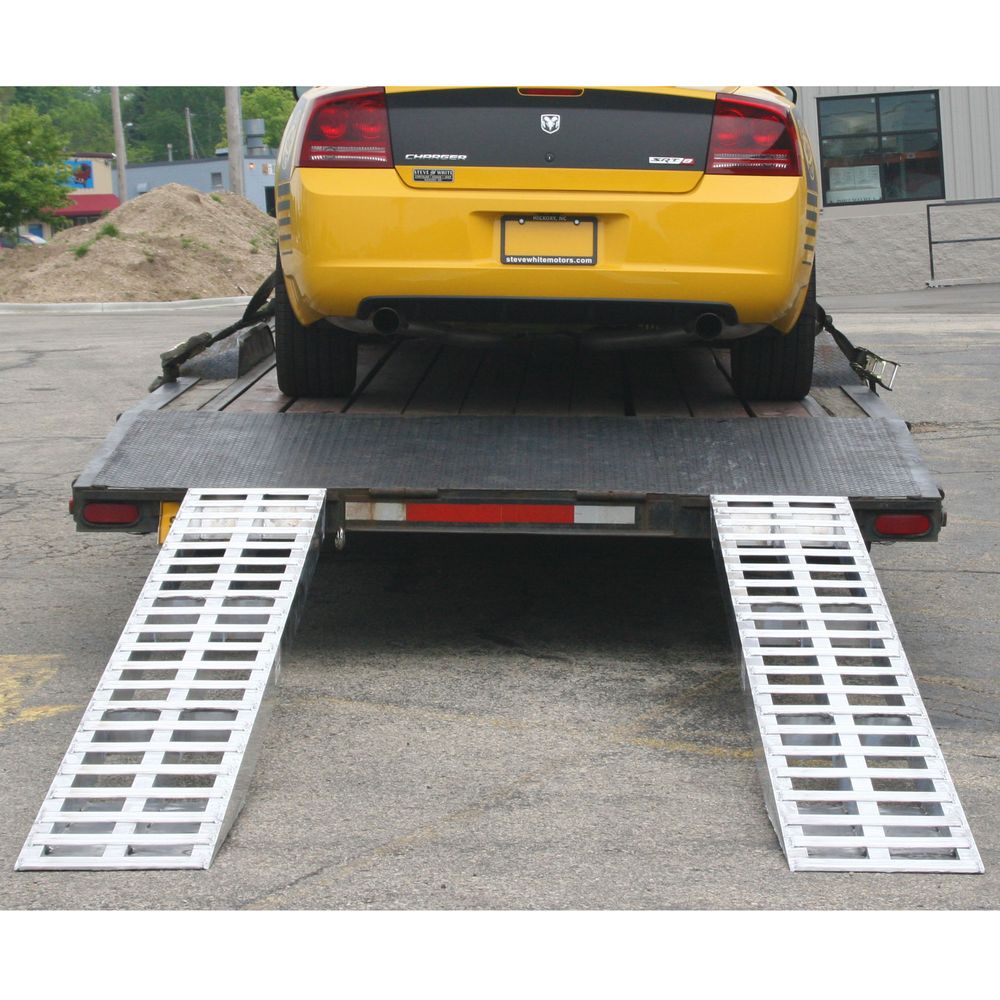

HD Ramps 05-15-094-06: detail view 1
HD Ramps 05-15-094-06: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 05-15-094-06: product photographHD Ramps 05-15-094-06: detail view 1HD Ramps 05-15-094-06: detail view 2
Heavy Duty Ramps

Trailer Ramps | Aluminum Plate-End Loading Ramps with Knife Feet

SKU: 05-15-094-06 Currently In Stock

$2,368.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

PAIR; PLATE END; KNIFE FOOT; SECUREMENT REQUIRED

LOAD LIMITS

UP TO 5,000 LB. PER AXLE. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

MEASURE TIRE WIDTH, WHEEL SPACING AND THE AVAILABLE LOADING APPROACH.

APPLICATION DETAILS

NO UNIVERSAL MACHINE COMPATIBILITY IS CLAIMED. FIT DEPENDS ON LOADING HEIGHT, AXLE WEIGHT, WHEEL CONTACT AND CONNECTION GEOMETRY.

Description

Key Benefits

Technical Specs

Applications

Plate-End Loading Ramps with Knife Feet

The plate-end loading ramps rest on an appropriate flat trailer surface and provide a tapered knife-foot transition at ground level. This layout suits compatible wheeled vehicle loading where a hook or permanent skid seat is unsuitable.

The aluminum ramps use serrated rungs for tire traction. Their plate ends require securement, and the selected size must match the trailer rise, wheel spacing and axle load. Plate ends are not intended for beavertail or dovetail trailers.

Before ordering, measure the trailer rise and check the heaviest loaded axle, tire width, wheel spacing and ground clearance. Use the selected configuration only within its specified limits. Capacity is a per-axle rating, not a blanket approval for every machine with a lower total weight.

Plate-End Loading Ramps with Knife Feet

  • The plate-end loading ramps rest on an appropriate flat trailer surface and provide a tapered knife-foot transition at ground level. This layout suits compatible wheeled vehicle loading where a hook or permanent skid seat is unsuitable.
  • The aluminum ramps use serrated rungs for tire traction. Their plate ends require securement, and the selected size must match the trailer rise, wheel spacing and axle load. Plate ends are not intended for beavertail or dovetail trailers.
  • Pair; plate end; knife foot; securement required.

Plate-End Loading Ramps with Knife Feet

  • 05-15-094-06 | Pair | Minimum Height: 16″; Maximum Height: 24″; Foot Type: Knife; Attaching End: Plate; Material: Aluminum; Surface Type: Rung; Dimensions (L × W × H): 7′10″ × 15″ × 3.25″; Rated capacity: 5,000 lb. per axle
  • 05-16-120-06 | Pair | Minimum Height: 20″; Maximum Height: 36″; Foot Type: Knife; Attaching End: Plate; Material: Aluminum; Surface Type: Rung; Dimensions (L × W × H): 10′ × 16″ × 4.75″; Rated capacity: 5,000 lb. per axle
  • 05-16-144-06 | Pair | Minimum Height: 24″; Maximum Height: 36″; Foot Type: Knife; Attaching End: Plate; Material: Aluminum; Surface Type: Rung; Dimensions (L × W × H): 12′ × 16″ × 4.25″; Rated capacity: 5,000 lb. per axle
  • 05-18-192-06 | Pair | Minimum Height: 36″; Maximum Height: 42″; Foot Type: Knife; Attaching End: Plate; Material: Aluminum; Surface Type: Rung; Dimensions (L × W × H): 16′ × 18″ × 5.25″; Rated capacity: 5,000 lb. per axle

Plate-End Loading Ramps with Knife Feet

  • No universal machine compatibility is claimed. Fit depends on loading height, axle weight, wheel contact and connection geometry.
  • Flat plate ends require suitable securement and are not for beavertail/dovetail trailers.
  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

HD Ramps Product & Manufacturer Videos

Plate-End Loading Ramps with Knife Feet

BUILT FOR THE WORK:

  • Pair; plate end; knife foot; securement required.
  • Aluminum construction for the stated application.
  • Up to 5,000 lb. per Axle.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

READY FOR THE FIELD:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.
