HD RAMPS

Two-Ramp Two-Load-Leveler Kits

Up to 23,500 lb. per Axle

Request QuoteView Options

Trailer Ramps | Aluminum Two-Ramp Two-Load-Leveler Kits

HD Ramps 23-20-096-02-02-MLL-2: product photograph
HD Ramps 23-20-096-02-02-MLL-2: detail view 1
HD Ramps 23-20-096-02-02-MLL-2: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps 23-20-096-02-02-MLL-2: product photographHD Ramps 23-20-096-02-02-MLL-2: detail view 1HD Ramps 23-20-096-02-02-MLL-2: detail view 2
Heavy Duty Ramps

Trailer Ramps | Aluminum Two-Ramp Two-Load-Leveler Kits

SKU: 23-20-096-02-02-MLL-2 Currently In Stock

$3,861.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

PIN-ON RAMPS; TWO LOAD LEVELERS; COMPATIBLE STAKE POCKETS AND SECUREMENT REQUIRED

LOAD LIMITS

UP TO 23,500 LB. PER AXLE. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

MEASURE TIRE WIDTH, WHEEL SPACING AND THE AVAILABLE LOADING APPROACH.

APPLICATION DETAILS

NO UNIVERSAL MACHINE COMPATIBILITY IS CLAIMED. FIT DEPENDS ON LOADING HEIGHT, AXLE WEIGHT, WHEEL CONTACT AND CONNECTION GEOMETRY.

Description

Key Benefits

Technical Specs

Applications

Two-Ramp Two-Load-Leveler Kits

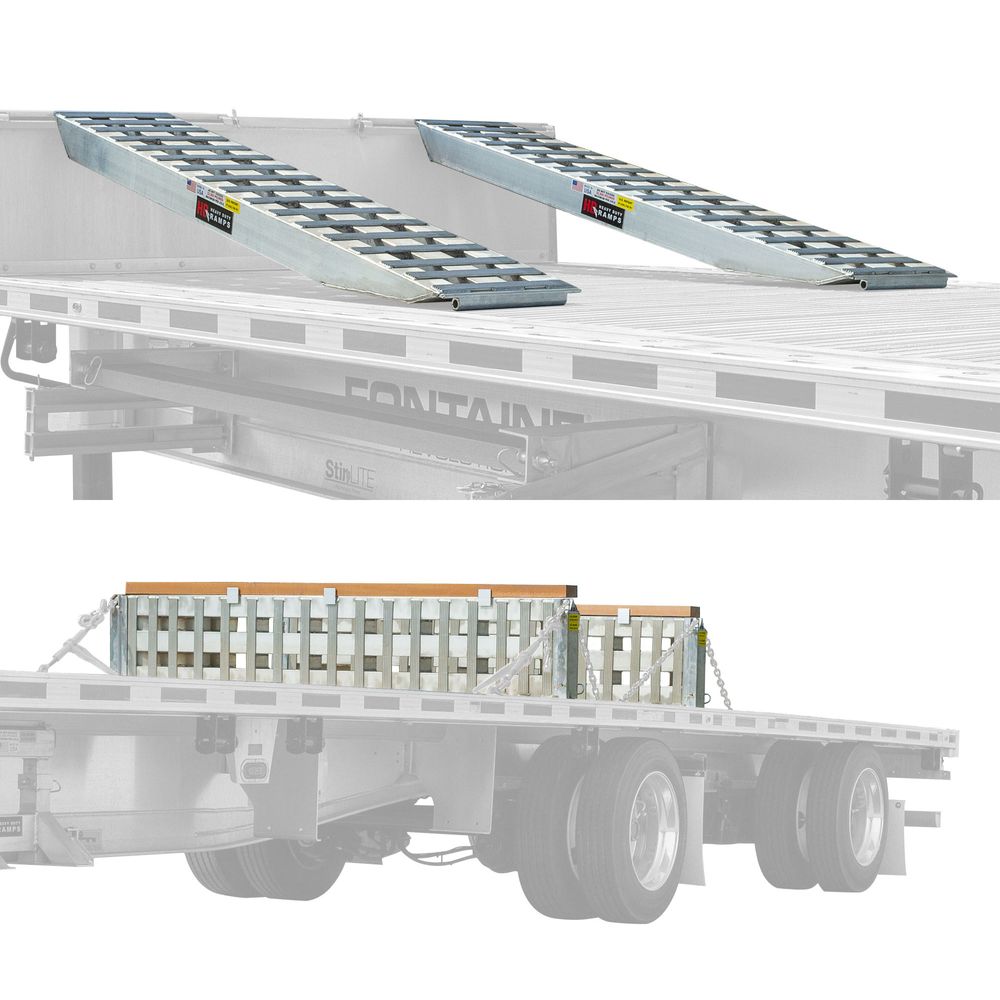

The two-ramp system combines equipment loading with two load-leveling positions on a suitable step deck trailer. Turning the ramps onto their sides lets the same hardware support long cargo across the deck step.

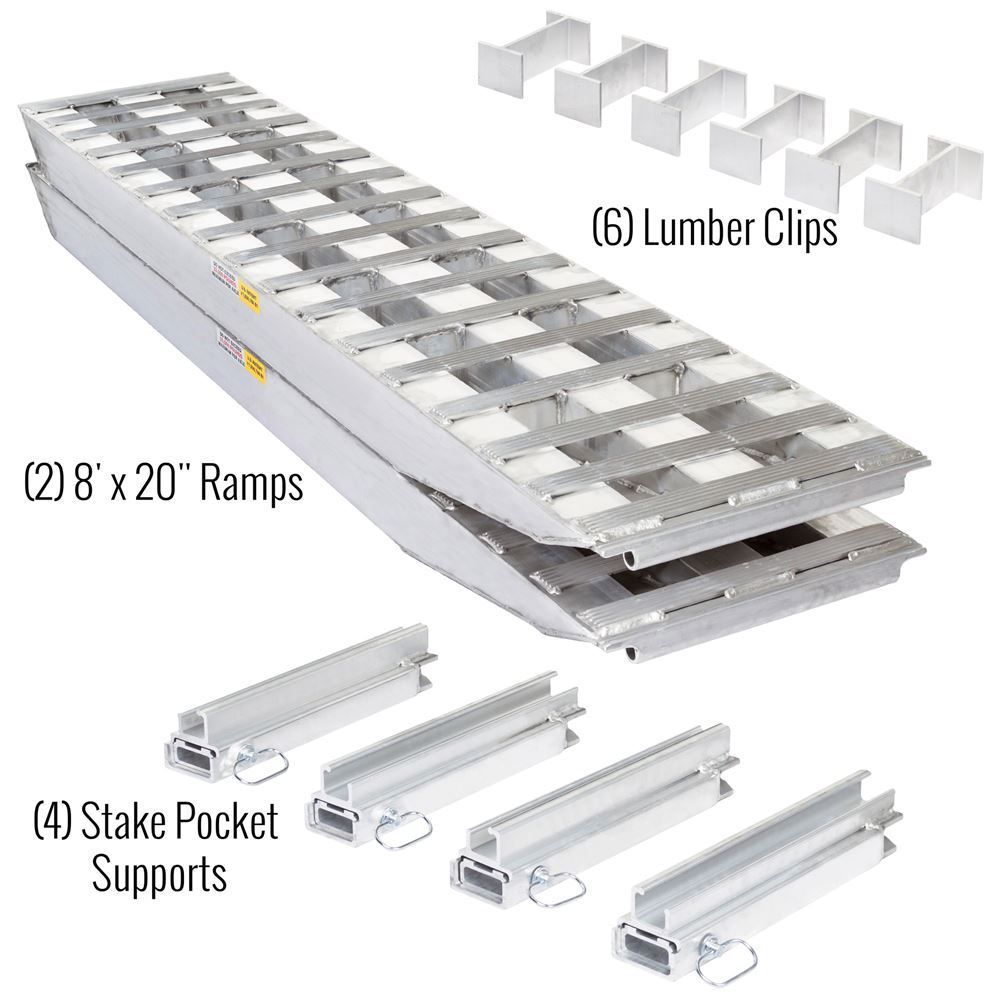

Each kit supplies two 8′ ramps, six lumber clips and four stake-pocket supports. The 24″ and 26″ step-height configurations also use two load-leveler spacers. Select the kit by the trailer’s upper-to-lower deck difference, rather than by ramp width alone.

Before ordering, measure the trailer rise and check the heaviest loaded axle, tire width, wheel spacing and ground clearance. For load-leveling use, also confirm trailer width, stake-pocket dimensions, deck drop, lumber and chain securement. Use the selected configuration only within its specified limits. Capacity is a per-axle rating, not a blanket approval for every machine with a lower total weight.

Two-Ramp Two-Load-Leveler Kits

  • The two-ramp system combines equipment loading with two load-leveling positions on a suitable step deck trailer. Turning the ramps onto their sides lets the same hardware support long cargo across the deck step.
  • Each kit supplies two 8′ ramps, six lumber clips and four stake-pocket supports. The 24″ and 26″ step-height configurations also use two load-leveler spacers. Select the kit by the trailer’s upper-to-lower deck difference, rather than by ramp width alone.
  • Pin-on ramps; two load levelers; compatible stake pockets and securement required.

Two-Ramp Two-Load-Leveler Kits

  • 23-20-096-02-02-MLL-2 | Kit | Maximum Capacity: 23,500 lbs. per axle; Length: 8′; Width: 20″; Height: 5″; Material: Aluminum; Step deck height: 20″; Ramp width: 20″
  • 23-24-096-02-02-MLL-2 | Kit | Maximum Capacity: 23,500 lbs. per axle; Length: 8′; Width: 18″; Height: 5″; Surface Type: Rung; Step deck height: 24″; Ramp width: 18″
  • 23-26-096-02-02-MLL-2 | Kit | Maximum Capacity: 23,500 lbs. per axle; Length: 8′; Width: 20″; Height: 5″; Surface Type: Rung; Step deck height: 26″; Ramp width: 20″

Two-Ramp Two-Load-Leveler Kits

  • No universal machine compatibility is claimed. Fit depends on loading height, axle weight, wheel contact and connection geometry.
  • Not recommended for forklifts, steel-tracked equipment or trucks with mounted cranes in this ramp family.
  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

HD Ramps Product & Manufacturer Videos

Two-Ramp Two-Load-Leveler Kits

BUILT FOR THE WORK:

  • Pin-on ramps; two load levelers; compatible stake pockets and securement required.
  • Aluminum construction for the stated application.
  • Up to 23,500 lb. per Axle.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.

READY FOR THE FIELD:

  • Verify the heaviest axle load with the equipment in its loading configuration.
  • Measure tire width, wheel spacing and the available loading approach.
  • Match the trailer rise to the selected ramp’s permitted loading height.
  • Confirm the connecting end and required skid seats, pins or securement.
  • Inspect the ramps and supports before each use; follow the supplied instructions.
