HD RAMPS

Walk Ramp and Under-Truck Storage Kits

Up to 1,750 lb. Capacity

Request QuoteView Options

HD Ramps Aluminum Walk Ramp and Under-Truck Storage Kits

HD Ramps WALKRAMP-SB-10-KIT: product photograph
HD Ramps WALKRAMP-SB-10-KIT: detail view 1
HD Ramps WALKRAMP-SB-10-KIT: detail view 2
Roll over image to zoom in Click on image to zoom
HD Ramps WALKRAMP-SB-10-KIT: product photographHD Ramps WALKRAMP-SB-10-KIT: detail view 1HD Ramps WALKRAMP-SB-10-KIT: detail view 2
Heavy Duty Ramps

HD Ramps Aluminum Walk Ramp and Under-Truck Storage Kits

SKU: WALKRAMP-SB-10-KIT Currently In Stock

$2,783.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Information Parts & Support

MOST IMPORTANT FEATURES

ALUMINUM CONSTRUCTION

SELECT THE ENGINEERED CONFIGURATION FOR THE WORK AND INSTALLATION.

CONFIGURATION CHOICE

RAMP AND STORAGE KIT; HAND TRUCKS AND FOOT TRAFFIC ONLY

LOAD LIMITS

UP TO 1,750 LB. CAPACITY. CHECK THE SELECTED SKU’S LIMITS BEFORE USE.

MEASURE BEFORE ORDERING

CHECK THE SELECTED RAMP CAPACITY WITH CARGO AND OPERATOR WEIGHT INCLUDED.

APPLICATION DETAILS

FOR FOOT TRAFFIC AND HAND TRUCKS ONLY. DO NOT USE PALLET JACKS OR POWERED EQUIPMENT.

Description

Key Benefits

Technical Specs

Applications

Walk Ramp and Under-Truck Storage Kits

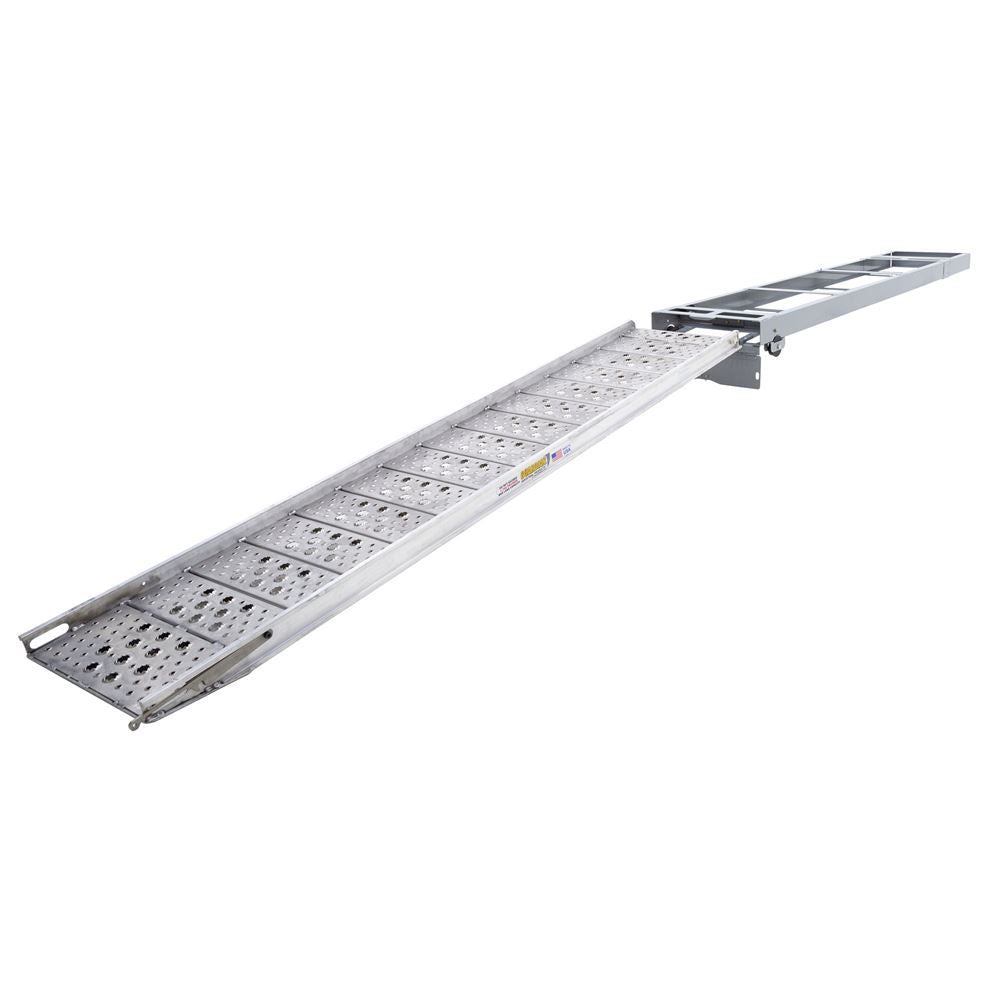

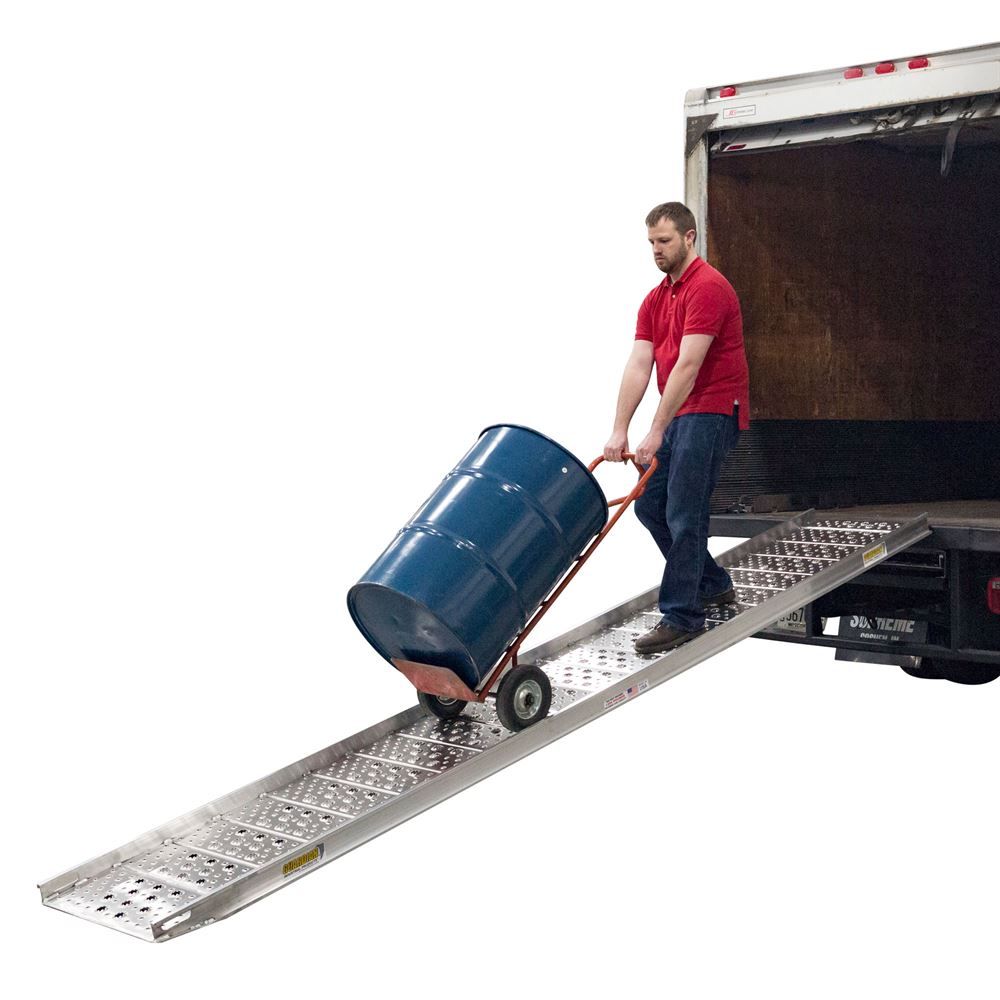

This kit combines an aluminum walk ramp with an under-truck storage bracket. It gives delivery crews a place to stow the ramp between stops and a loading path for hand trucks and foot traffic.

The ramp rolls out on track wheels and uses an anti-theft stop plate within the storage arrangement. Once removed, it is positioned at suitable sill slots for use. Nominal ramp length differs from the overall storage assembly length, which must fit beneath the truck.

Match the selected ramp to the deck height, usable width and combined person-and-cargo load. Hand trucks and foot traffic are the intended applications; these walk ramps are not for pallet jacks or powered equipment. Confirm the upper connection and, for a storage kit, the complete underbody installation space before ordering.

Walk Ramp and Under-Truck Storage Kits

  • This kit combines an aluminum walk ramp with an under-truck storage bracket. It gives delivery crews a place to stow the ramp between stops and a loading path for hand trucks and foot traffic.
  • The ramp rolls out on track wheels and uses an anti-theft stop plate within the storage arrangement. Once removed, it is positioned at suitable sill slots for use. Nominal ramp length differs from the overall storage assembly length, which must fit beneath the truck.
  • Ramp and storage kit; hand trucks and foot traffic only.

Walk Ramp and Under-Truck Storage Kits

  • WALKRAMP-SB-10-KIT | Kit | Minimum Height: 20″; Maximum Height: 34″; Material: Aluminum; Usable Width: 24-1/2″; Attaching End: Hook; Dimensions (L × W × H): 11′11.5″ × 28″ × 5.25″; Rated capacity: 1,750 lb.
  • WALKRAMP-SB-12-KIT | Kit | Minimum Height: 25″; Maximum Height: 40″; Material: Aluminum; Usable Width: 24-1/2″; Attaching End: Hook; Dimensions (L × W × H): 13′9.75″ × 28″ × 5.25″; Rated capacity: 1,500 lb.
  • WALKRAMP-SB-14-KIT | Kit | Minimum Height: 30″; Maximum Height: 48″; Material: Aluminum; Usable Width: 24-1/2″; Attaching End: Hook; Dimensions (L × W × H): 15′11.25″ × 28″ × 5.25″; Rated capacity: 1,250 lb.
  • WALKRAMP-SB-16-KIT | Kit | Minimum Height: 35″; Maximum Height: 56″; Material: Aluminum; Usable Width: 24-1/2″; Attaching End: Hook; Dimensions (L × W × H): 17′11.25″ × 28″ × 5.25″; Rated capacity: 1,000 lb.

Walk Ramp and Under-Truck Storage Kits

  • For foot traffic and hand trucks only. Do not use pallet jacks or powered equipment.
  • Check overall width separately from usable width; storage assembly length differs from nominal ramp length.
  • Use for hand trucks, dollies and foot traffic only.
  • Check the selected ramp capacity with cargo and operator weight included.
  • Measure the deck height and confirm the approved loading range.
  • Verify the hook or plate connection and the available usable width.
  • For storage kits, check underbody clearance and the sill attachment before installation.

HD Ramps Product & Manufacturer Videos

Walk Ramp and Under-Truck Storage Kits

BUILT FOR THE WORK:

  • Ramp and storage kit; hand trucks and foot traffic only.
  • Aluminum construction for the stated application.
  • Up to 1,750 lb. Capacity.
  • Dimensions and connection details vary by SKU.
  • Select the configuration before reviewing the technical specifications.

SET UP FOR YOUR APPLICATION:

  • Use for hand trucks, dollies and foot traffic only.
  • Check the selected ramp capacity with cargo and operator weight included.
  • Measure the deck height and confirm the approved loading range.
  • Verify the hook or plate connection and the available usable width.
  • For storage kits, check underbody clearance and the sill attachment before installation.

READY FOR THE FIELD:

  • Use for hand trucks, dollies and foot traffic only.
  • Check the selected ramp capacity with cargo and operator weight included.
  • Measure the deck height and confirm the approved loading range.
  • Verify the hook or plate connection and the available usable width.
  • For storage kits, check underbody clearance and the sill attachment before installation.
