LOFLIN FABRICATION

35-Ton Hydraulic Log Splitter

For Skid Steers & Track Loaders

35-Ton Splitting Force

Request QuoteAdd To Cart

Loflin Fabrication 35-Ton Hydraulic Log Splitter For Skid Steers & Track Loaders

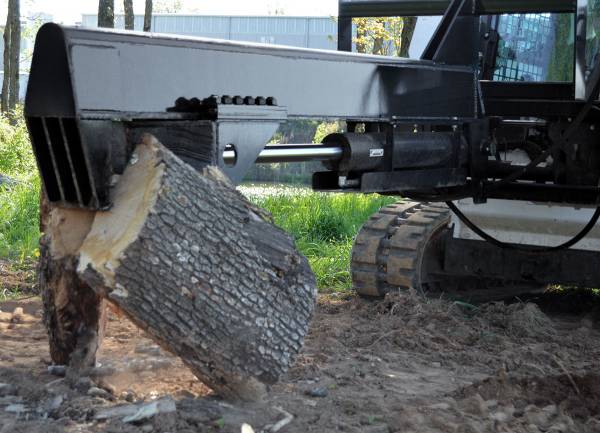

Loflin Fabrication 35-Ton Hydraulic Log Splitter For Skid Steers & Track Loaders - equipment in use; carrier not included

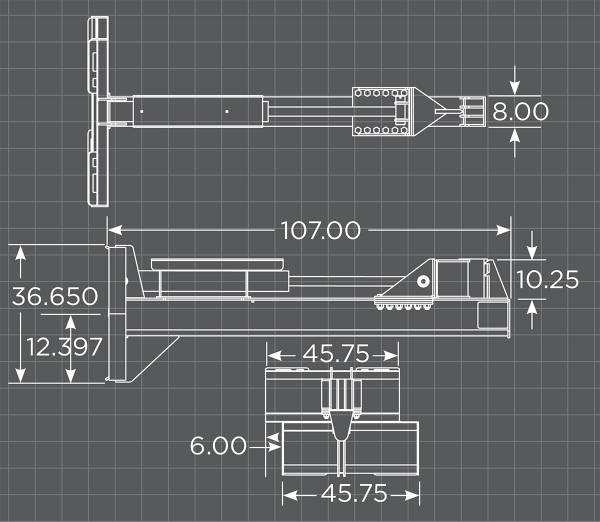

Loflin Fabrication 35-Ton Hydraulic Log Splitter For Skid Steers & Track Loaders - dimension drawing
Roll over image to zoom in Click on image to zoom
Loflin Fabrication 35-Ton Hydraulic Log Splitter For Skid Steers & Track Loaders - equipment in use; carrier not includedLoflin Fabrication 35-Ton Hydraulic Log Splitter For Skid Steers & Track Loaders - dimension drawing
Loflin Fabrication

Loflin Fabrication 35-Ton Hydraulic Log Splitter For Skid Steers & Track Loaders

SKU: 0070101032 Currently In Stock

$4,942.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

35-TON SPLITTING FORCE

A 35-TON SPLITTING-FORCE RATING SUPPORTS HYDRAULIC FIREWOOD PROCESSING WITH A SUITABLE CARRIER. THE CYLINDER DRIVES THE SPLITTING ACTION WHILE THE LOADER POSITIONS THE ATTACHMENT AT THE WORK AREA.

32-1/4-INCH OPENING

THE SPLITTING ASSEMBLY HAS A 32-1/4-INCH OPENING FOR POSITIONING WOOD BETWEEN THE WORKING COMPONENTS. MATCH EACH PIECE TO THE AVAILABLE SPACE AND OPERATING PROCEDURE BEFORE CYCLING THE SPLITTER.

5-INCH BORE HYDRAULIC CYLINDER

AN ENCLOSED CYLINDER USES A 5-INCH BORE AND 36-INCH STROKE TO OPERATE THE SPLITTING MECHANISM. THE SURROUNDING COVER SHIELDS THE CYLINDER FROM DIRECT CONTACT WITH LOGS AND LOOSE MATERIAL.

ROUND-TUBE MAIN BEAM

A ROUND-TUBE MAIN BEAM RESISTS TWISTING AS THE SPLITTER WORKS. REPLACEABLE NYLON GUIDES SUPPORT MOVEMENT ALONG THE BEAM AND HELP PREVENT METAL-TO-METAL GALLING.

UPRIGHT OR INVERTED OPERATION

TWO QUICK-ATTACH POSITIONS ALLOW UPRIGHT OPERATION OR INVERTED SPLITTING FROM THE CAB. THE INVERTED ARRANGEMENT LETS ONE OPERATOR POSITION THE ATTACHMENT OVER WOOD USING THE LOADER CONTROLS.

Description

Key Benefits

Technical Specs

Applications

Loflin 35-Ton Hydraulic Log Splitter

The Loflin Fabrication 35-Ton Hydraulic Log Splitter processes firewood using a suitable skid steer or compact track loader. A 32-1/4-inch opening provides space to position wood in the splitting assembly.

An enclosed hydraulic cylinder with a 5-inch bore and 36-inch stroke drives the splitting action. The round-tube main beam resists twist, while replaceable nylon guides help prevent galling along the beam.

Two quick-attach positions support upright operation or inverted splitting from the cab. Oversized, greasable 1-3/4-inch pins support the moving assembly, and Parker hoses, fittings, and couplers connect the splitter to the auxiliary circuit.

The operating flow range is 6–40 GPM, and the attachment weighs 1,130 pounds. Optional multi-way wedges and the table with hand control are sold separately. Confirm the mounting connection, hydraulic settings, machine capacity, and operating arrangement before use.

Loflin 35-Ton Hydraulic Log Splitter

  • A 35-ton splitting-force rating supports hydraulic firewood processing with a suitable carrier. The cylinder drives the splitting action while the loader positions the attachment at the work area.
  • The splitting assembly has a 32-1/4-inch opening for positioning wood between the working components. Match each piece to the available space and operating procedure before cycling the splitter.
  • An enclosed cylinder uses a 5-inch bore and 36-inch stroke to operate the splitting mechanism. The surrounding cover shields the cylinder from direct contact with logs and loose material.
  • A round-tube main beam resists twisting as the splitter works. Replaceable nylon guides support movement along the beam and help prevent metal-to-metal galling.
  • Two quick-attach positions allow upright operation or inverted splitting from the cab. The inverted arrangement lets one operator position the attachment over wood using the loader controls.

Loflin 35-Ton Hydraulic Log Splitter

  • Manufacturer: Loflin Fabrication
  • Part number: 0070101032
  • Splitting force: 35 tons
  • Opening: 32-1/4 inches
  • Hydraulic cylinder: 5-inch bore x 36-inch stroke, enclosed
  • Operating hydraulic flow: 6–40 GPM
  • Attachment weight: 1,130 lb
  • Main beam: round tubing
  • Pivot pins: 1-3/4 inches, oversized and greasable
  • Beam guides: replaceable nylon
  • Operating positions: upright or inverted
  • Hydraulic components: Parker hoses, fittings, and couplers
  • Optional wedges and table/hand control: sold separately

Loflin 35-Ton Hydraulic Log Splitter

  • On-site firewood splitting.
  • Wood processing after storm cleanup.
  • Farm and property firewood preparation.

Loflin Log Splitter Demonstrations & Brand Videos

Loflin 35-Ton Hydraulic Log Splitter

BUILT FOR FIREWOOD PROCESSING:

  • A 35-ton splitting-force rating supports hydraulic firewood processing with a suitable carrier. The cylinder drives the splitting action while the loader positions the attachment at the work area.
  • The splitting assembly has a 32-1/4-inch opening for positioning wood between the working components. Match each piece to the available space and operating procedure before cycling the splitter.
  • An enclosed cylinder uses a 5-inch bore and 36-inch stroke to operate the splitting mechanism. The surrounding cover shields the cylinder from direct contact with logs and loose material.
  • A round-tube main beam resists twisting as the splitter works. Replaceable nylon guides support movement along the beam and help prevent metal-to-metal galling.
  • Two quick-attach positions allow upright operation or inverted splitting from the cab. The inverted arrangement lets one operator position the attachment over wood using the loader controls.

TWO OPERATING POSITIONS:

  • Two quick-attach positions support upright or inverted use.
  • Inverted operation lets the loader position the splitter over wood.
  • The round main beam resists twist during splitting.
  • Replaceable nylon guides provide serviceable beam contact surfaces.
  • The optional table and hand-control assembly is sold separately.

READY FOR THE FIELD:

  • Inspect the splitting head, beam guides, and retaining hardware.
  • Confirm mounting engagement and hydraulic connections.
  • Match machine auxiliary flow to the 6–40 GPM operating range.
  • Account for the 1,130-pound attachment and handled wood.
  • Follow the carrier and attachment operating procedures.
