LOFLIN FABRICATION

42-Inch Mini Excavator Brush Cutter

For Mini Excavators

42" Cutting Width

Request QuoteAdd To Cart

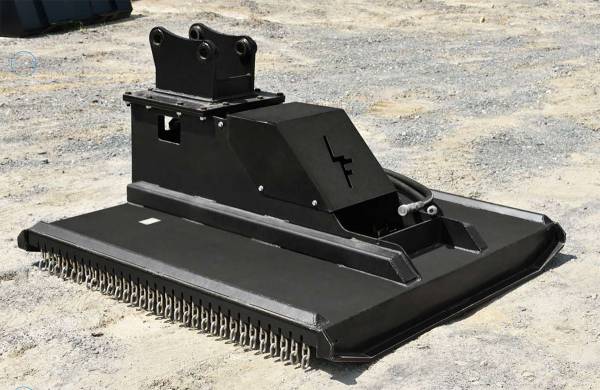

Loflin Fabrication 42-Inch Brush Cutter For Mini Excavators

Loflin Fabrication 42-Inch Mini Excavator Brush Cutter For Mini Excavators manufacturer family image 1; illustrated configuration may vary
Loflin Fabrication 42-Inch Mini Excavator Brush Cutter For Mini Excavators manufacturer family image 2; illustrated configuration may vary
Loflin Fabrication 42-Inch Mini Excavator Brush Cutter For Mini Excavators manufacturer family image 3; illustrated configuration may vary
Roll over image to zoom in Click on image to zoom
Loflin Fabrication 42-Inch Mini Excavator Brush Cutter For Mini Excavators manufacturer family image 1; illustrated configuration may varyLoflin Fabrication 42-Inch Mini Excavator Brush Cutter For Mini Excavators manufacturer family image 2; illustrated configuration may varyLoflin Fabrication 42-Inch Mini Excavator Brush Cutter For Mini Excavators manufacturer family image 3; illustrated configuration may vary
Loflin Fabrication

Loflin Fabrication 42-Inch Brush Cutter For Mini Excavators

SKU: 0024600042-80 Currently In Stock

$5,545.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

PROPRIETARY DIRECT DRIVE

A ONE-PIECE HEAT-TREATED FORGED STEEL AXLE TRANSFERS MOTOR POWER THROUGH LOFLIN’S PROPRIETARY DRIVE WITHOUT A GEARBOX.

BI-DIRECTIONAL CUTTING

FULLY HEAT-TREATED FORGED BLADES ARE DESIGNED FOR OPERATION IN BOTH DIRECTIONS OF ROTATION.

3/16-INCH REINFORCED DECK

A REINFORCED 3/16-INCH STEEL DECK FORMS THE CUTTER HOUSING.

ENCLOSED MOTOR AND DRIVE

THE MOTOR AND DRIVE ASSEMBLY ARE ENCLOSED TO REDUCE EXPOSURE OF THE WORKING COMPONENTS DURING BRUSH CUTTING.

GEROLER OR PISTON CONFIGURATION

THE 42-INCH CUTTER IS AVAILABLE WITH STANDARD GEROLER MOTORS OR A SEVERE DUTY 80 CC PISTON MOTOR.

Description

Key Benefits

Technical Specs

Applications

Loflin 42-Inch Mini Excavator Brush Cutter

The Loflin Fabrication 42-Inch Mini Excavator Brush Cutter is a mini-excavator rotary cutter for vegetation maintenance, overgrown areas, and access-route clearing. Its 42-inch working width is offered with the motor options in the selector.

Loflin’s proprietary direct drive combines a one-piece heat-treated forged steel axle, an iron housing, and oversized tapered roller bearings. A reinforced 3/16-inch deck surrounds an enclosed motor and drive assembly.

Bi-directional forged blades cut in either direction, with pressure relief in both directions of rotation. Choose a standard geroler motor or the Severe Duty 80 cc piston-motor configuration.

Confirm the required hydraulic flow and operating pressure for the selected motor before ordering. Factory blank mount plate; confirm required fabrication and coupler fit. Carrier lift capacity and attachment weight must also be checked separately.

Loflin 42-Inch Mini Excavator Brush Cutter

  • A one-piece heat-treated forged steel axle transfers motor power through Loflin’s proprietary drive without a gearbox.
  • Fully heat-treated forged blades are designed for operation in both directions of rotation.
  • A reinforced 3/16-inch steel deck forms the cutter housing.
  • The motor and drive assembly are enclosed to reduce exposure of the working components during brush cutting.
  • The 42-inch cutter is available with standard geroler motors or a Severe Duty 80 cc piston motor.

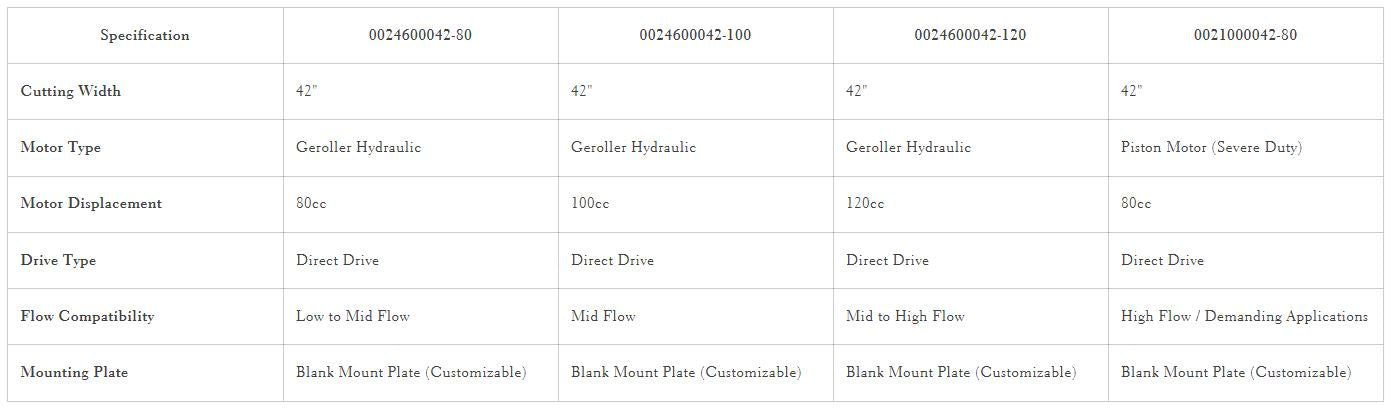

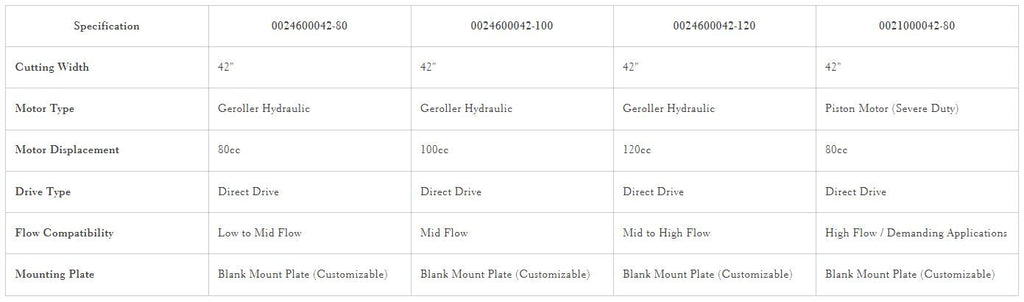

Loflin 42-Inch Mini Excavator Brush Cutter

  • Manufacturer: Loflin Fabrication
  • Family: 42-Inch Mini Excavator Brush Cutter
  • Carrier group: Mini Excavators
  • Mount: Factory blank mount plate; confirm required fabrication and coupler fit.
  • Hydraulic pressure: applicable operating limits require manufacturer verification.
  • 0024600042-80: 42" MINI EXCAVATOR BRUSHCUTTER W/80CC MOTOR; 750 lb weight; per-motor flow pending verification
  • 0024600042-100: 42" MINI EXCAVATOR BRUSHCUTTER W/100CC MOTOR; 750 lb weight; per-motor flow pending verification
  • 0024600042-120: 42" MINI EXCAVATOR BRUSHCUTTER W/120CC MOTOR; 750 lb weight; per-motor flow pending verification
  • 0021000042-80: 42"SEVERE DUTY MINI EXCAVATOR BRUSH CUTTER W/80CC PISTON MOTOR; weight pending verification; per-motor flow pending verification

Loflin 42-Inch Mini Excavator Brush Cutter

  • Vegetation and brush maintenance with a properly matched hydraulic carrier.
  • Maintaining access routes, trails, field edges, and overgrown areas.
  • Match the cutter configuration to vegetation, terrain, and the carrier’s hydraulic output.
  • Use the manufacturer’s guarding, operating procedure, and required exclusion area.

Loflin Fabrication: Brush Cutter Demonstrations & Brand Videos

Loflin 42-Inch Mini Excavator Brush Cutter

PURPOSE-BUILT CUTTING SYSTEM:

  • A one-piece heat-treated forged steel axle transfers motor power through Loflin’s proprietary drive without a gearbox.
  • Fully heat-treated forged blades are designed for operation in both directions of rotation.
  • A reinforced 3/16-inch steel deck forms the cutter housing.
  • The motor and drive assembly are enclosed to reduce exposure of the working components during brush cutting.
  • The 42-inch cutter is available with standard geroler motors or a Severe Duty 80 cc piston motor.

MATCH THE CUTTER TO THE MACHINE:

  • 42-inch cutting width.
  • Choose the exact motor configuration offered for this product family.
  • Factory blank mount plate; confirm required fabrication and coupler fit.
  • Confirm auxiliary pressure and any case-drain requirement.
  • Account for cutter weight and the carrier’s permitted load position.

READY FOR THE FIELD:

  • Choose the 42-inch mini excavator brush cutter configuration.
  • Confirm the machine’s auxiliary circuit against the selected motor.
  • Inspect the blades, mounting engagement, hoses, and guards.
  • Follow manufacturer requirements for operator protection and bystander separation.
  • Verify attachment weight, hydraulic settings, and required mounting hardware before operation.
