LOFLIN FABRICATION

6-Way Dozer Blade

For Skid Steers & Track Loaders

83"–94" Blade Widths

Request QuoteAdd To Cart

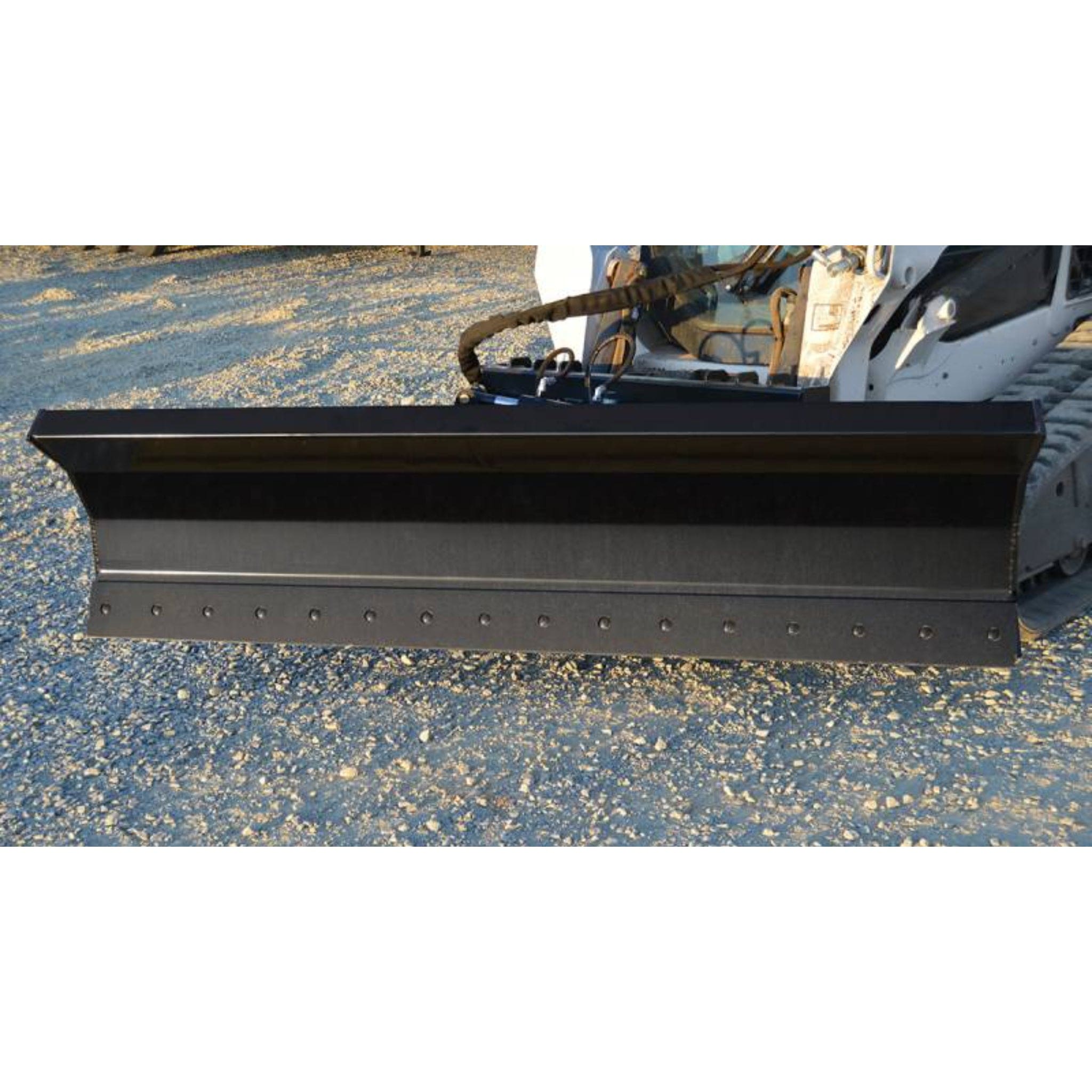

Loflin Fabrication 6-Way Dozer Blade For Skid Steers & Track Loaders

Loflin Fabrication 6-Way Dozer Blade For Skid Steers & Track Loaders; illustrated width or mount may vary
Loflin Fabrication 6-Way Dozer Blade For Skid Steers & Track Loaders; illustrated width or mount may vary
Roll over image to zoom in Click on image to zoom
Loflin Fabrication 6-Way Dozer Blade For Skid Steers & Track Loaders; illustrated width or mount may varyLoflin Fabrication 6-Way Dozer Blade For Skid Steers & Track Loaders; illustrated width or mount may vary
Loflin Fabrication

Loflin Fabrication 6-Way Dozer Blade For Skid Steers & Track Loaders

SKU: 0252401084 Currently In Stock

$6,303.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

HYDRAULIC ANGLE

HYDRAULIC ADJUSTMENT CHANGES THE BLADE ANGLE FOR MATERIAL PLACEMENT. CHANGING THE ANGLE DIRECTS LOOSE MATERIAL ACROSS THE BLADE RATHER THAN MOVING EVERY LOAD STRAIGHT AHEAD OF THE MACHINE.

HYDRAULIC TILT

HYDRAULIC TILT ADJUSTS THE BLADE FOR SHAPING AND GRADING. ADJUSTING TILT CHANGES THE RELATIONSHIP BETWEEN THE BLADE ENDS, GIVING THE OPERATOR ANOTHER CONTROL FOR SHAPING THE WORKING SURFACE.

REVERSIBLE CUTTING EDGE

THE BOLT-ON CUTTING EDGE REVERSES AS THE WORKING EDGE WEARS. THE REVERSIBLE DESIGN PROVIDES ANOTHER WORKING EDGE WHEN TURNED, WHILE THE BOLTED CONNECTION ALLOWS THE WEAR COMPONENT TO BE SERVICED.

5/8-INCH BY 6-INCH EDGE

THE CUTTING EDGE MEASURES 5/8 INCH THICK BY 6 INCHES WIDE. THIS STEEL STRIP FORMS THE BLADE'S GROUND-CONTACT WEAR SURFACE, SEPARATING THE REPLACEABLE CUTTING COMPONENT FROM THE MAIN BLADE BODY.

83-INCH OR 94-INCH BLADE

TWO BLADE WIDTHS SUIT DIFFERENT WORKING AREAS AND CARRIERS. CHOOSE THE 83-INCH OR 94-INCH BLADE TO SUIT THE CARRIER AND THE AMOUNT OF SURFACE COVERED IN EACH PASS.

Description

Key Benefits

Technical Specs

Applications

Loflin 6-Way Dozer Blade

The Loflin Fabrication 6-Way Dozer Blade pushes and grades loose material with hydraulic angle and tilt adjustment. Blade widths are 83 inches and 94 inches.

Hydraulic angle changes the direction of material movement, while hydraulic tilt helps shape the working surface. The loader controls blade height and overall attachment position.

A reversible 5/8 x 6-inch bolt-on edge provides a replaceable wear surface along the bottom of the blade. The blade and supporting frame handle grading passes across soil and gravel.

Match the blade to the carrier's handling capability and confirm the hydraulic and electrical control connections before operation. Verify any required control harness for the machine.

Loflin 6-Way Dozer Blade

  • Hydraulic adjustment changes the blade angle for material placement.
  • Hydraulic tilt adjusts the blade for shaping and grading.
  • The bolt-on cutting edge reverses as the working edge wears.
  • The cutting edge measures 5/8 inch thick by 6 inches wide.
  • Two blade widths suit different working areas and carriers.

Loflin 6-Way Dozer Blade

  • Manufacturer: Loflin Fabrication
  • Product: 6-Way Dozer Blade
  • Blade widths: 83 or 94 inches
  • Cutting edge: 5/8 x 6 inches, bolt-on and reversible
  • Adjustment: hydraulic angle and tilt
  • 0252401084: 83-inch blade; 730 lb
  • 0252401096: 94-inch blade; 835 lb

Loflin 6-Way Dozer Blade

  • Landscape and site preparation.
  • Soil and gravel surface maintenance.
  • Cleanup and material redistribution.

Loflin Fabrication: Brand & Attachment Videos

Loflin 6-Way Dozer Blade

BUILT FOR THE WORK:

  • Hydraulic adjustment changes the blade angle for material placement.
  • Hydraulic tilt adjusts the blade for shaping and grading.
  • The bolt-on cutting edge reverses as the working edge wears.
  • The cutting edge measures 5/8 inch thick by 6 inches wide.
  • Two blade widths suit different working areas and carriers.

CONTROLLED SURFACE WORK:

  • Landscape and site preparation.
  • Soil and gravel surface maintenance.
  • Cleanup and material redistribution.
  • Use controlled passes suited to the ground conditions.
  • Keep loads and working forces within the carrier ratings.

READY FOR THE FIELD:

  • Inspect the working edges or tines and retaining hardware.
  • Match the attachment width and weight to the carrier.
  • Inspect hydraulic connections, hoses, and cylinder movement.
  • Set the working position for the material and surface.
  • Follow the carrier and attachment operating procedures.
