LOFLIN FABRICATION

Grapple Bucket

For Compact Tractors

30" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Compact Tractor Grapple Bucket For Compact Tractors

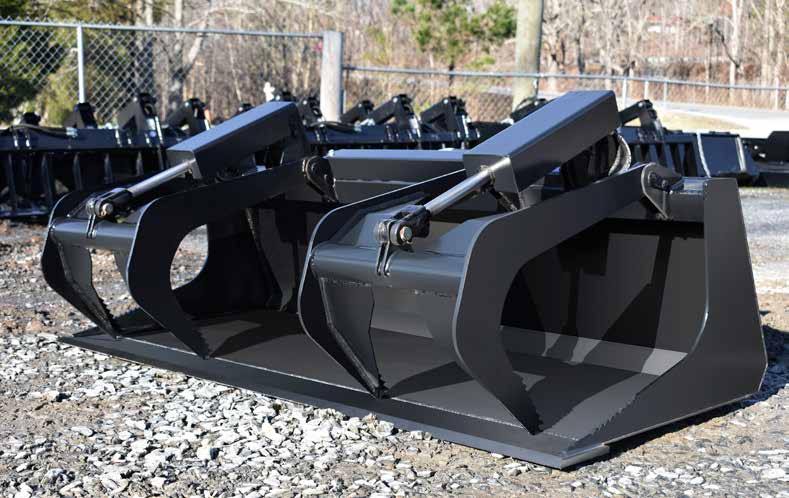

Loflin Fabrication Compact Tractor Grapple Bucket shown in manufacturer catalog

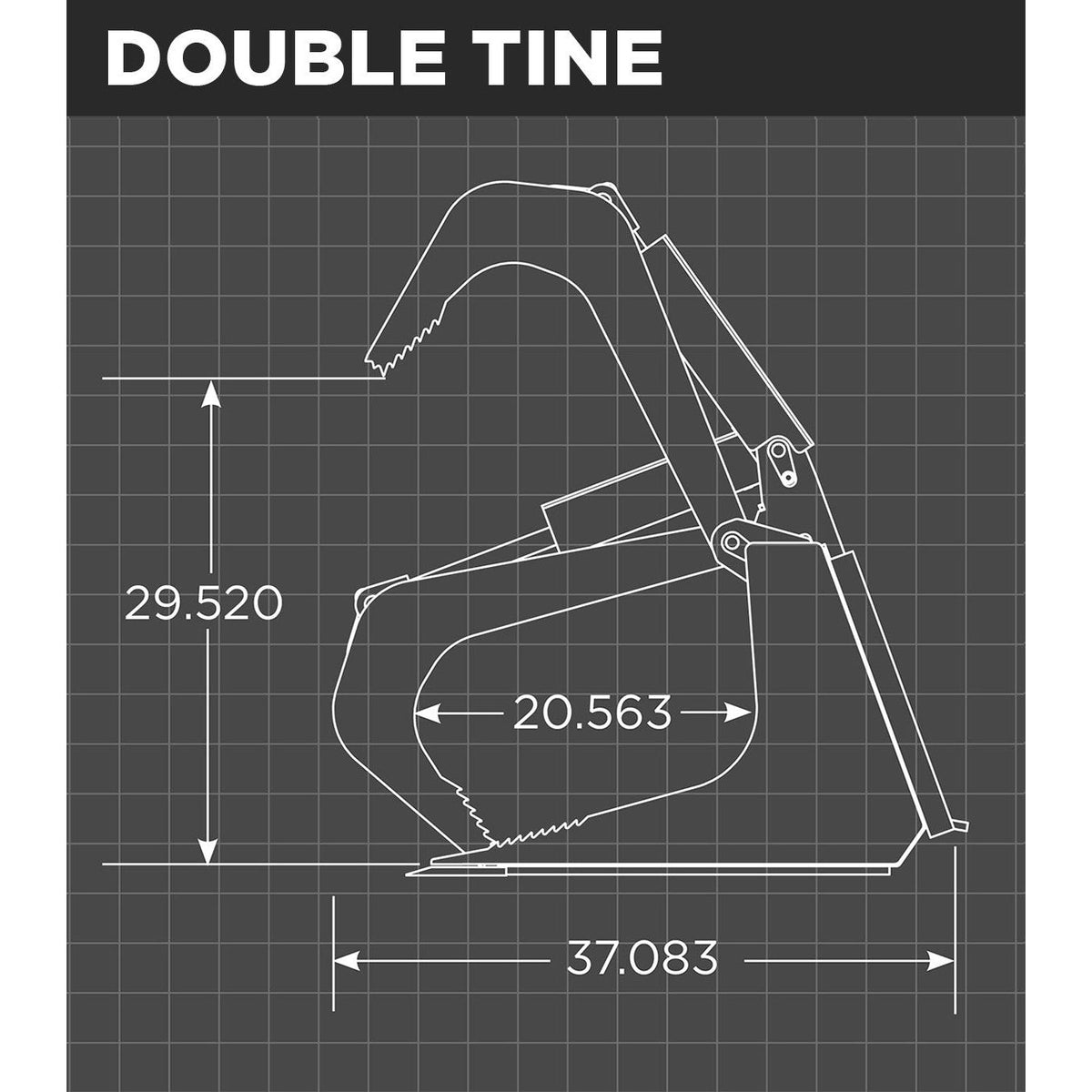

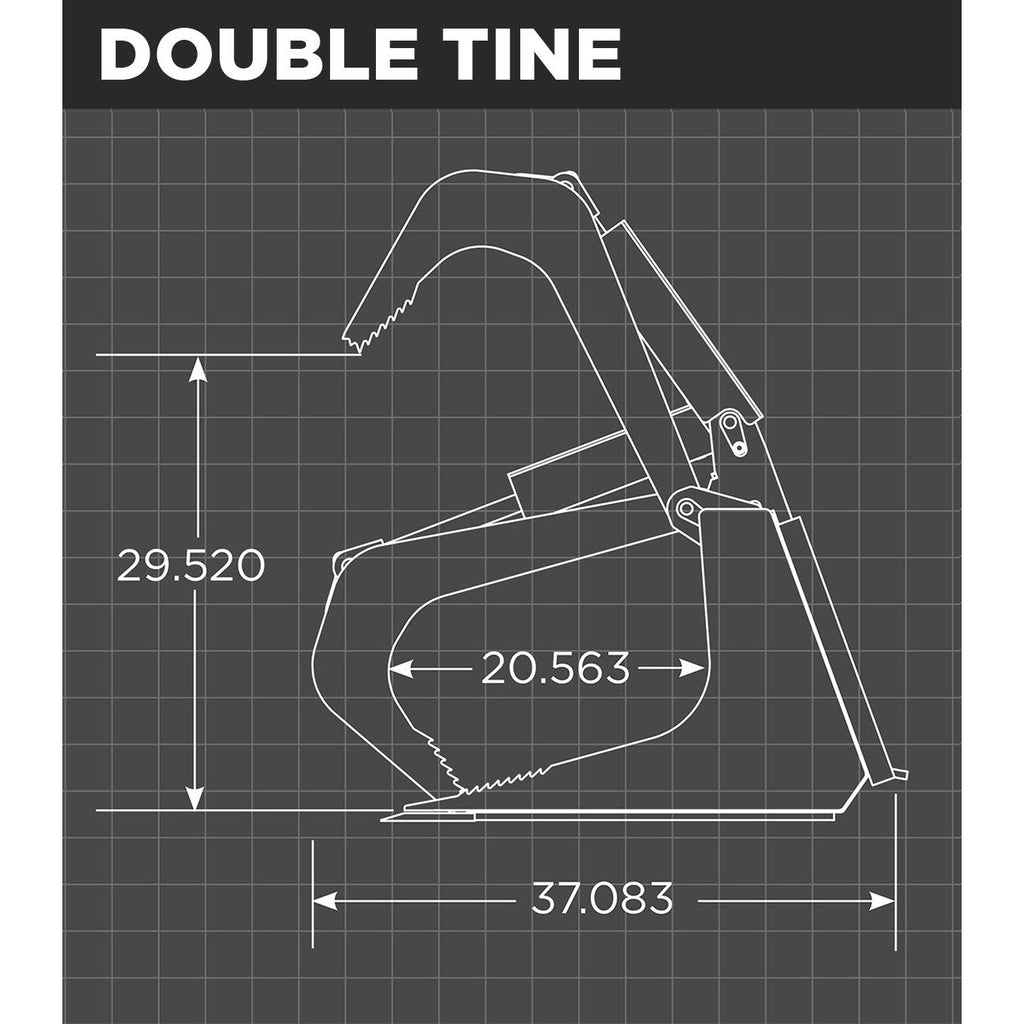

Loflin Fabrication Compact Tractor Grapple Bucket For Compact Tractors manufacturer double-tine family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Compact Tractor Grapple Bucket shown in manufacturer catalogLoflin Fabrication Compact Tractor Grapple Bucket For Compact Tractors manufacturer double-tine family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Compact Tractor Grapple Bucket For Compact Tractors

SKU: 0150301060 Currently In Stock

$3,399.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

INDEPENDENT 3/8 IN. UPPER GRAPPLES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

2 X 8 IN. AG CYLINDERS

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

3/16 IN. BOTTOM AND BACK

THE BUCKET BODY SUPPORTS LOOSE MATERIAL BENEATH THE UPPER GRAPPLE DURING LOADING AND TRANSFER.

1/2 X 6 IN. CUTTING EDGE

THE STATED CUTTING-EDGE DIMENSIONS DESCRIBE THE FRONT WORKING LIP OF THE GRAPPLE BUCKET.

GREASEABLE PIVOT POINTS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

Description

Key Benefits

Technical Specs

Applications

Loflin Compact Tractor Grapple Bucket

The Loflin Fabrication Compact Tractor Grapple Bucket gives compact tractors a dedicated attachment for loose material, brush, and farm cleanup. A solid bucket floor carries smaller material while two independent grapple tines secure uneven loads. Available working-width selections are 60", 66", 72".

Independent 3/8 in. upper grapples and 2 x 8 in. AG cylinders define the working arrangement. The attachment supports repeated pickup, transfer, and placement rather than manual handling. Keep material centered and account for the attachment's own weight when assessing the carrier's available lifting capacity.

3/16 in. bottom and back; 1/2 x 6 in. cutting edge; Greaseable pivot points support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Recommended carrier horsepower: 40 HP and below. Match the hydraulic circuit separately. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Compact Tractor Grapple Bucket

  • Independent 3/8 in. upper grapples
  • 2 x 8 in. AG cylinders
  • 3/16 in. bottom and back
  • 1/2 x 6 in. cutting edge
  • Greaseable pivot points

Loflin Compact Tractor Grapple Bucket

  • Manufacturer: Loflin Fabrication
  • Product family: Compact Tractor Grapple Bucket
  • Carrier group: compact tractors
  • Power source: carrier hydraulic actuation
  • Grapple opening: 30 in.
  • Width options: 60", 66", 72"
  • Recommended carrier horsepower: 40 HP and below
  • Independent 3/8 in. upper grapples
  • 2 x 8 in. AG cylinders
  • 3/16 in. bottom and back
  • 1/2 x 6 in. cutting edge
  • Greaseable pivot points
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0150301060: 60" COMPACT TRACTOR GRAPPLE BUCKET; weight 446 lb
  • 0150301066: 66" COMPACT TRACTOR GRAPPLE BUCKET; weight 460 lb
  • 0150301072: 72" COMPACT TRACTOR GRAPPLE BUCKET; weight 480 lb

Loflin Compact Tractor Grapple Bucket

  • Loose material, brush, and farm cleanup.
  • Material transfer with a properly matched compact tractor carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Compact Tractor Grapple Bucket

BUILT TO HANDLE THE LOAD:

  • A solid bucket floor carries smaller material while two independent grapple tines secure uneven loads.
  • Independent 3/8 in. upper grapples
  • 2 x 8 in. AG cylinders
  • 3/16 in. bottom and back
  • 1/2 x 6 in. cutting edge

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for loose material, brush, and farm cleanup.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for loose material, brush, and farm cleanup with a suitable compact tractor carrier.
  • Independent 3/8 in. upper grapples.
  • 2 x 8 in. AG cylinders.
  • 3/16 in. bottom and back.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
