Loflin Fabrication Compact Tractor Low Profile Bucket For Compact Tractors

Loflin Fabrication Compact Tractor Low Profile Bucket For Compact Tractors manufacturer family image 1; illustrated configuration may differ from selected option
Loflin Fabrication Compact Tractor Low Profile Bucket For Compact Tractors manufacturer family image 2; illustrated configuration may differ from selected option
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Compact Tractor Low Profile Bucket For Compact Tractors manufacturer family image 1; illustrated configuration may differ from selected optionLoflin Fabrication Compact Tractor Low Profile Bucket For Compact Tractors manufacturer family image 2; illustrated configuration may differ from selected option
Loflin Fabrication

Loflin Fabrication Compact Tractor Low Profile Bucket For Compact Tractors

SKU: 0140301048 Currently In Stock

$1,954.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

3/16 IN. STEEL SIDES

STEEL SIDE PLATES CONTAIN LOOSE MATERIAL AS THE LOADER SCOOPS AND CARRIES A LOAD.

3/16 IN. BOTTOM WITH WEAR BARS

WEAR BARS REINFORCE THE UNDERSIDE OF THE STEEL FLOOR WHERE THE BUCKET CONTACTS THE GROUND.

1/2 X 4 IN. CUTTING EDGE

THE HALF-INCH CUTTING LIP PROVIDES THE WORKING EDGE FOR SCOOPING AND SPREADING MATERIAL.

TREADED ENTRY STEP

A TREADED STEP PROVIDES A FOOTHOLD FOR CAB ACCESS WHEN USED ACCORDING TO THE CARRIER’S INSTRUCTIONS.

LOW PROFILE BUCKET DESIGN

A LOW-PROFILE BODY SUITS EVERYDAY LOADING AND GRADING WITH A CORRECTLY MATCHED COMPACT TRACTOR.

Description

Key Benefits

Technical Specs

Applications

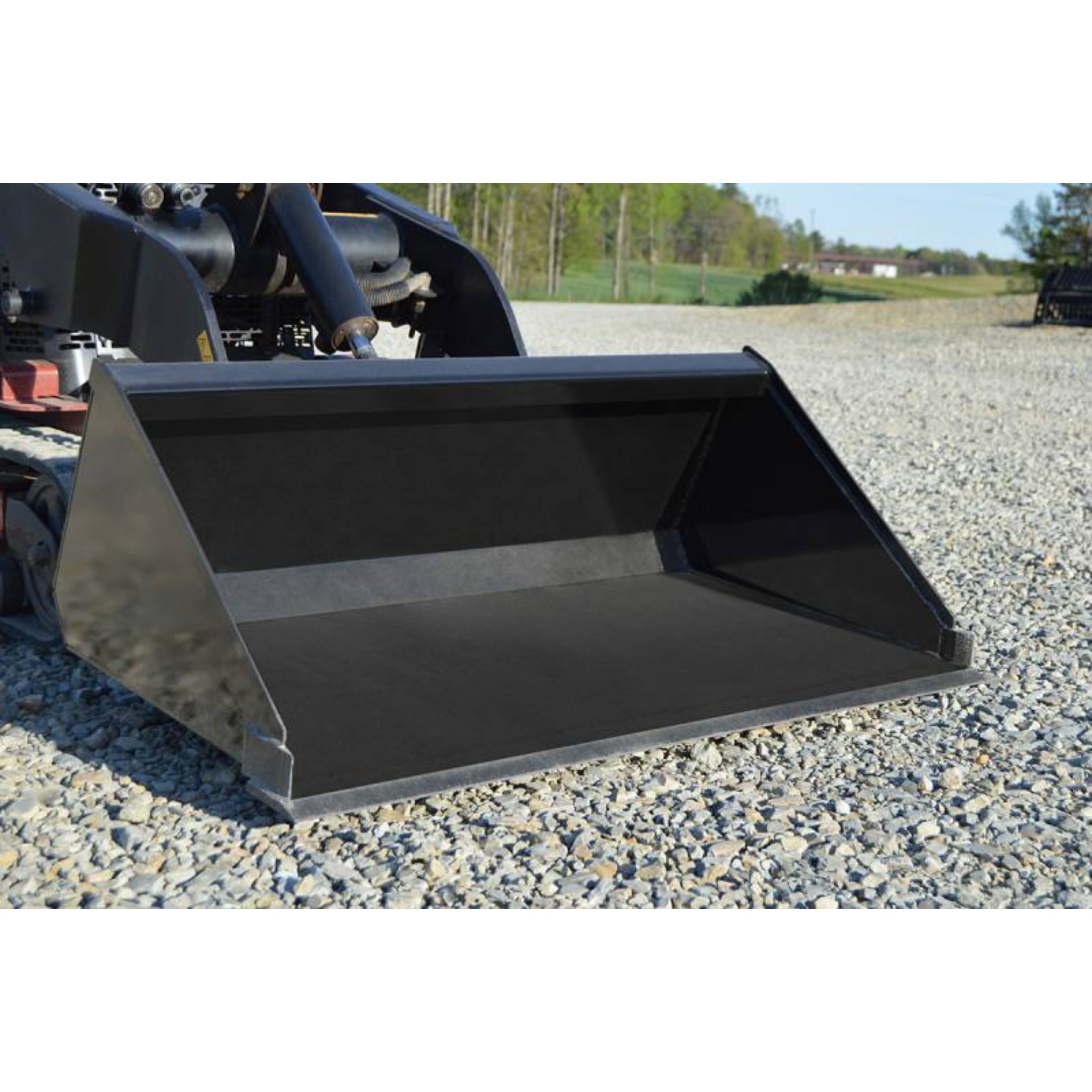

Loflin Compact Tractor Low Profile Bucket

The Loflin Fabrication Compact Tractor Low Profile Bucket For Compact Tractors is built for scooping, spreading, and moving loose material. Choose from 48", 54", 60", 66", 72", 78", 84" working widths to suit your loader and jobsite.

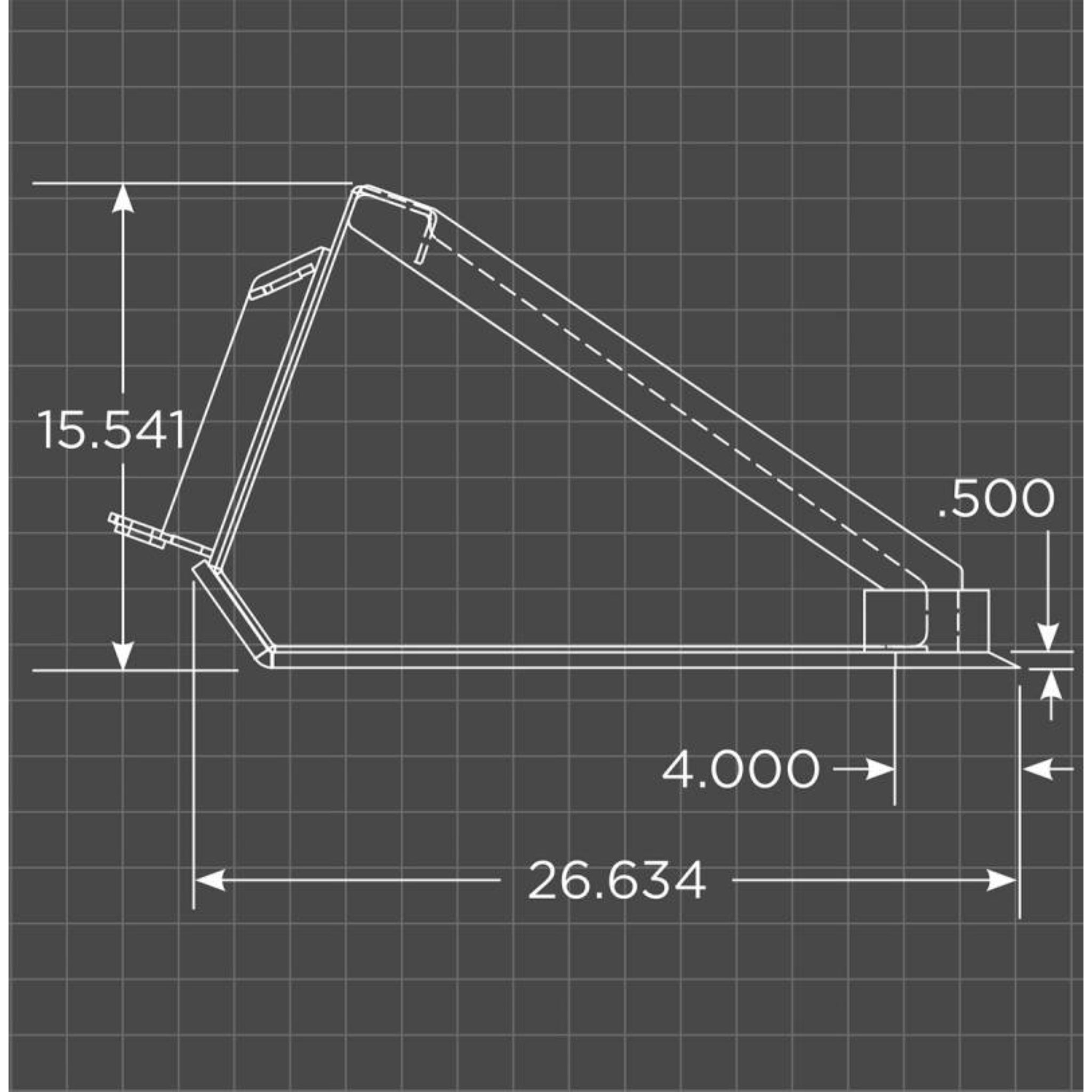

3/16 in. steel sides and 3/16 in. bottom with wear bars define the working construction. 1/2 x 4 in. cutting edge supports the bucket’s intended material-handling role. Keep each load centered and within the carrier’s operating limits.

Treaded entry step and low profile bucket design complete the family specification. Select the width, edge, and mount options before ordering. Available components depend on the selected configuration.

This bucket has no independent hydraulic motor or PTO power requirement. Verify the mounting interface, loader lift capacity, attachment weight, and loaded material weight before ordering. guidance: 50 HP and below.

Loflin Compact Tractor Low Profile Bucket

  • 3/16 in. steel sides
  • 3/16 in. bottom with wear bars
  • 1/2 x 4 in. cutting edge
  • Treaded entry step
  • Low profile bucket design

Loflin Compact Tractor Low Profile Bucket

  • Manufacturer: Loflin Fabrication
  • Product family: Compact Tractor Low Profile Bucket
  • Carrier group: Compact Tractors
  • Power requirement: Passive attachment; no separate hydraulic motor or PTO power input.
  • 3/16 in. steel sides
  • 3/16 in. bottom with wear bars
  • 1/2 x 4 in. cutting edge
  • Treaded entry step
  • Low profile bucket design
  • guidance: 50 HP and below.
  • Mount selection and loaded lift capacity must be verified separately.
  • 0140301048: 48" COMPACT TRACTOR LOW PRO BUCKET; weight 212 lb
  • 0140301054: 54" COMPACT TRACTOR LOW PRO BUCKET; weight 222 lb
  • 0140301060: 60" COMPACT TRACTOR LOW PRO BUCKET; weight 234 lb
  • 0140301066: 66" COMPACT TRACTOR LOW PRO BUCKET; weight 252 lb
  • 0140301072: 72" COMPACT TRACTOR LOW PRO BUCKET; weight 266 lb
  • 0140301078: 78" COMPACT TRACTOR LOW PRO BUCKET; weight 280 lb
  • 0140301084: 84" COMPACT TRACTOR LOW PRO BUCKET; weight 295 lb

Loflin Compact Tractor Low Profile Bucket

  • Scooping, spreading, and moving loose material.
  • Material handling with a correctly mounted compact tractors carrier.
  • Keep material density and load position within the carrier’s rated operating capacity.
  • Inspect the attachment and locking engagement before each use.

Loflin Fabrication: Bucket Demonstrations & Brand Videos

Loflin Compact Tractor Low Profile Bucket

BUILT FOR THE JOB:

  • 3/16 in. steel sides
  • 3/16 in. bottom with wear bars
  • 1/2 x 4 in. cutting edge
  • Treaded entry step
  • Low profile bucket design

CONTROLLED MATERIAL HANDLING:

  • Scooping, spreading, and moving loose material.
  • Select a width suited to the carrier and access area.
  • Keep the bucket load centered during travel.
  • Account for material density and the attachment’s own weight.
  • Check the carrier’s lift rating at the operating position.

READY FOR THE FIELD:

  • Designed for scooping, spreading, and moving loose material.
  • 3/16 in. steel sides.
  • 3/16 in. bottom with wear bars.
  • Choose the required width, cutting edge, and mounting interface.
  • Confirm attachment weight, loaded capacity, and mounting engagement before operation.
