LOFLIN FABRICATION

Rock Bucket Grapple

For Compact Tractors

36.5" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Compact Tractor Rock Bucket Grapple For Compact Tractors

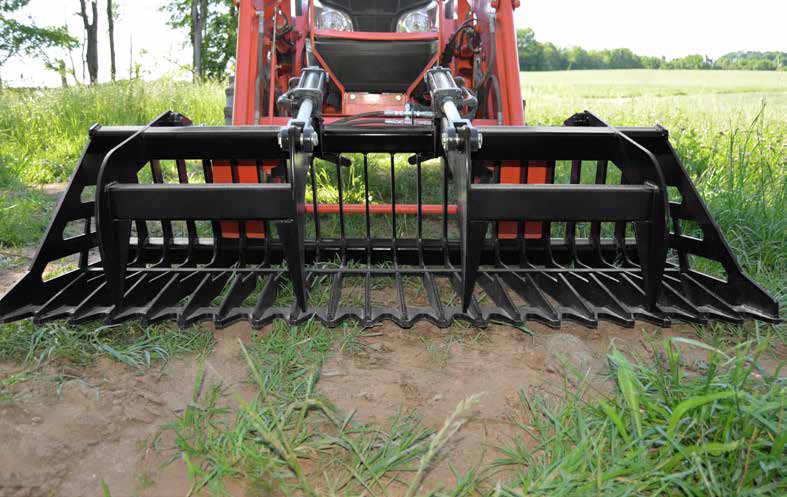

Loflin Fabrication Compact Tractor Rock Bucket Grapple shown in manufacturer catalog

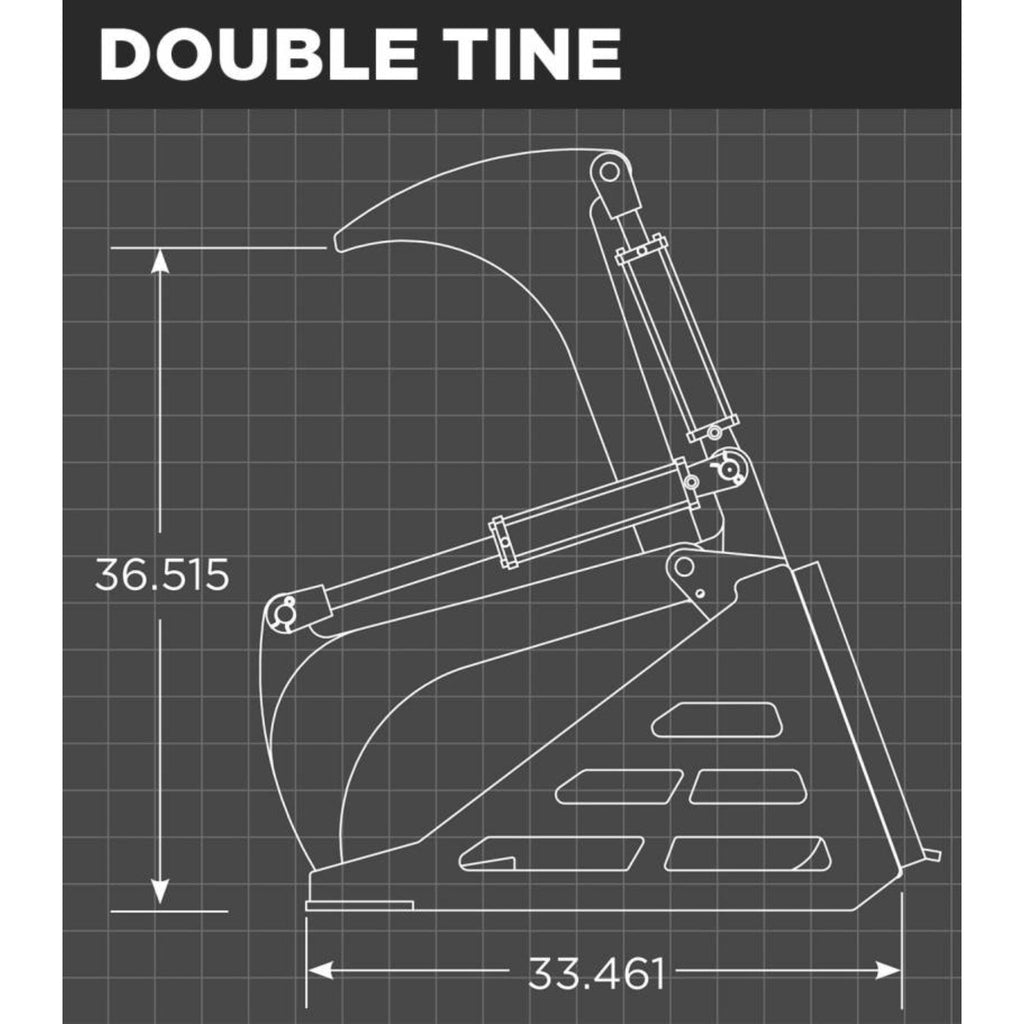

Loflin Fabrication Compact Tractor Rock Bucket Grapple For Compact Tractors manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Compact Tractor Rock Bucket Grapple shown in manufacturer catalogLoflin Fabrication Compact Tractor Rock Bucket Grapple For Compact Tractors manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Compact Tractor Rock Bucket Grapple For Compact Tractors

SKU: 0310301060 Currently In Stock

$3,599.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

3/8 IN. STEEL CONSTRUCTION

STEEL TINES SUPPORT AND RETAIN THE GRAPPLE LOAD.

3.375 IN. TINE SPACING

SPACES BETWEEN THE LOWER TINES LET LOOSE SOIL FALL THROUGH WHILE LARGER MATERIAL REMAINS SUPPORTED.

INDEPENDENT UPPER GRAPPLES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

GREASEABLE PINS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

PARKER HYDRAULIC HOSES, FITTINGS, AND COUPLERS

PARKER HYDRAULIC CONNECTION COMPONENTS. CONFIRM THE SUPPLIED COUPLER CONFIGURATION AGAINST THE CARRIER.

Description

Key Benefits

Technical Specs

Applications

Loflin Compact Tractor Rock Bucket Grapple

The Loflin Fabrication Compact Tractor Rock Bucket Grapple gives compact tractors a dedicated attachment for rock sorting and mixed material cleanup. The skeleton bucket separates loose dirt from larger material, while independent grapples help secure irregular loads. Available working-width selections are 60", 66", 72", 78", 84".

3/8 in. steel construction and 3.375 in. tine spacing define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

Independent upper grapples; Greaseable pins; Parker hydraulic hoses, fittings, and couplers support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Compact Tractor Rock Bucket Grapple

  • 3/8 in. steel construction
  • 3.375 in. tine spacing
  • Independent upper grapples
  • Greaseable pins
  • Parker hydraulic hoses, fittings, and couplers

Loflin Compact Tractor Rock Bucket Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: Compact Tractor Rock Bucket Grapple
  • Carrier group: compact tractors
  • Power source: carrier hydraulic actuation
  • Grapple opening: 36.5 in.
  • Width options: 60", 66", 72", 78", 84"
  • 3/8 in. steel construction
  • 3.375 in. tine spacing
  • Independent upper grapples
  • Greaseable pins
  • Parker hydraulic hoses, fittings, and couplers
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0310301060: 60" COMPACT TRACTOR ROCK BUCKET GRAPPLE; weight 605 lb
  • 0310301066: 66" COMPACT TRACTOR ROCK BUCKET GRAPPLE; weight 595 lb
  • 0310301072: 72" COMPACT TRACTOR ROCK BUCKET GRAPPLE; weight 645 lb
  • 0310301078: 78" COMPACT TRACTOR ROCK BUCKET GRAPPLE; weight 652 lb
  • 0310301084: 84" COMPACT TRACTOR ROCK BUCKET GRAPPLE; weight 677 lb

Loflin Compact Tractor Rock Bucket Grapple

  • Rock sorting and mixed material cleanup.
  • Material transfer with a properly matched compact tractor carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Compact Tractor Rock Bucket Grapple

BUILT TO HANDLE THE LOAD:

  • The skeleton bucket separates loose dirt from larger material, while independent grapples help secure irregular loads.
  • 3/8 in. steel construction
  • 3.375 in. tine spacing
  • Independent upper grapples
  • Greaseable pins

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for rock sorting and mixed material cleanup.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for rock sorting and mixed material cleanup with a suitable compact tractor carrier.
  • 3/8 in. steel construction.
  • 3.375 in. tine spacing.
  • Independent upper grapples.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
