LOFLIN FABRICATION

Root Grapple

For Compact Tractors

28" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Compact Tractor Root Grapple For Compact Tractors

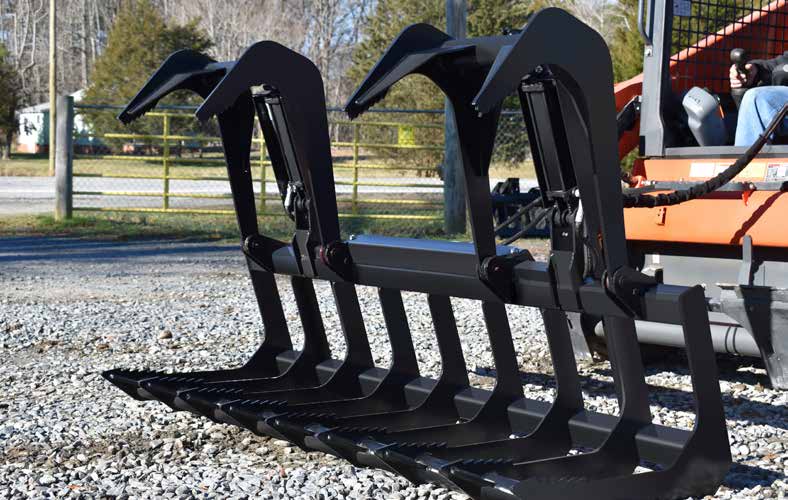

Loflin Fabrication Compact Tractor Root Grapple shown in manufacturer catalog

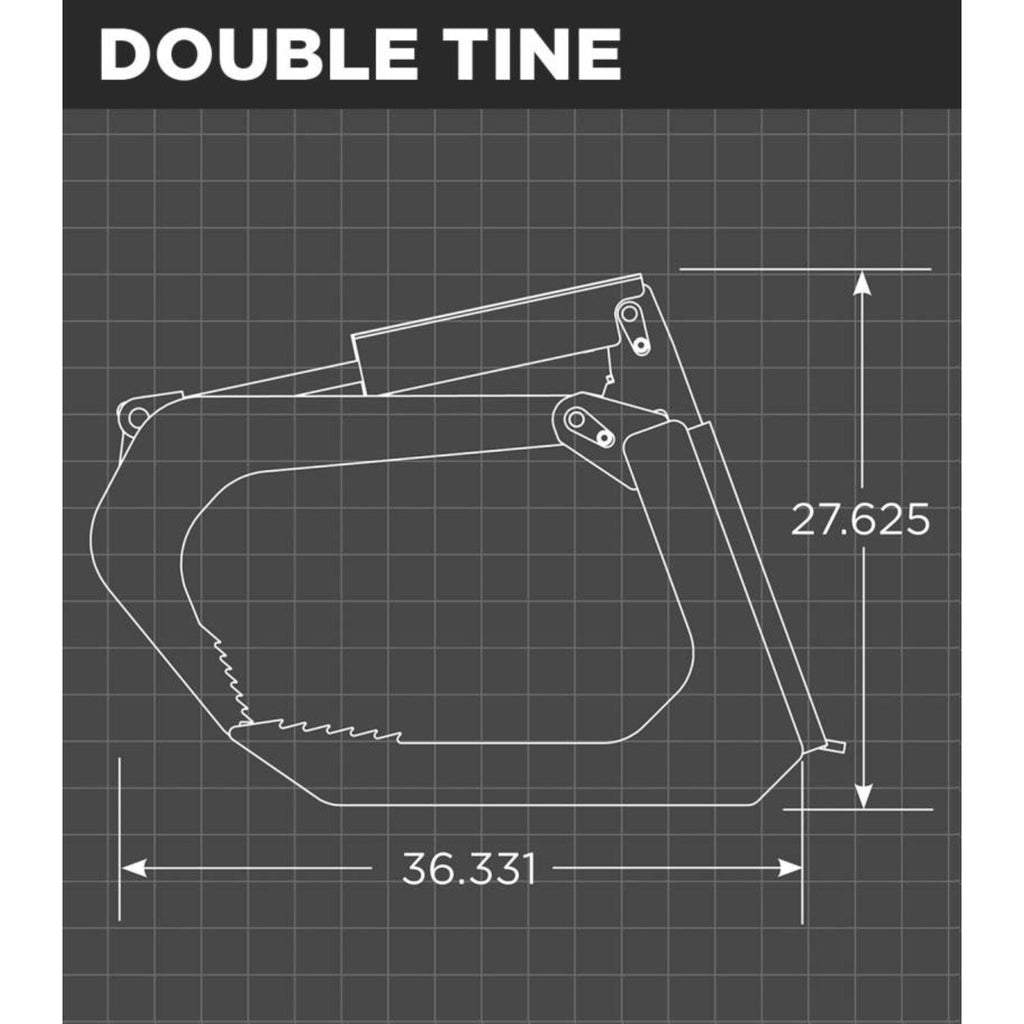

Loflin Fabrication Compact Tractor Root Grapple For Compact Tractors manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Compact Tractor Root Grapple shown in manufacturer catalogLoflin Fabrication Compact Tractor Root Grapple For Compact Tractors manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Compact Tractor Root Grapple For Compact Tractors

SKU: 0010301054 Currently In Stock

$2,196.33 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

2 X 8 IN. AG CYLINDERS

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

DUAL 3/8 IN. GRAPPLE TINES

STEEL TINES SUPPORT AND RETAIN THE GRAPPLE LOAD.

3/8 IN. BOTTOM TINES

THE LOWER TINES SUPPORT THE COLLECTED MATERIAL AND LEAVE AN OPEN FLOOR FOR LOOSE SOIL TO FALL THROUGH.

8.5-9 IN. TINE SPACING

SPACES BETWEEN THE LOWER TINES LET LOOSE SOIL FALL THROUGH WHILE LARGER MATERIAL REMAINS SUPPORTED.

GREASEABLE PIVOT POINTS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

Description

Key Benefits

Technical Specs

Applications

Loflin Compact Tractor Root Grapple

The Loflin Fabrication Compact Tractor Root Grapple gives compact tractors a dedicated attachment for brush, roots, and uneven woody debris. A lighter double-tine design gathers brush while the open bottom lets loose soil fall through. Available working-width selections are 54", 60", 66", 72".

2 x 8 in. AG cylinders and dual 3/8 in. grapple tines define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

3/8 in. bottom tines; 8.5-9 in. tine spacing; Greaseable pivot points support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Recommended carrier horsepower: 40 HP and below. Match the hydraulic circuit separately. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Compact Tractor Root Grapple

  • 2 x 8 in. AG cylinders
  • Dual 3/8 in. grapple tines
  • 3/8 in. bottom tines
  • 8.5-9 in. tine spacing
  • Greaseable pivot points

Loflin Compact Tractor Root Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: Compact Tractor Root Grapple
  • Carrier group: compact tractors
  • Power source: carrier hydraulic actuation
  • Grapple opening: 28 in.
  • Width options: 54", 60", 66", 72"
  • Recommended carrier horsepower: 40 HP and below
  • 2 x 8 in. AG cylinders
  • Dual 3/8 in. grapple tines
  • 3/8 in. bottom tines
  • 8.5-9 in. tine spacing
  • Greaseable pivot points
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0010301054: 54" COMPACT TRACTOR ROOT GRAPPLE; weight 405 lb
  • 0010301060: 60" COMPACT TRACTOR ROOT GRAPPLE; weight 430 lb
  • 0010301066: 66" COMPACT TRACTOR ROOT GRAPPLE; weight 454 lb
  • 0010301072: 72" COMPACT TRACTOR ROOT GRAPPLE; weight 490 lb

Loflin Compact Tractor Root Grapple

  • Brush, roots, and uneven woody debris.
  • Material transfer with a properly matched compact tractor carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Compact Tractor Root Grapple

BUILT TO HANDLE THE LOAD:

  • A lighter double-tine design gathers brush while the open bottom lets loose soil fall through.
  • 2 x 8 in. AG cylinders
  • Dual 3/8 in. grapple tines
  • 3/8 in. bottom tines
  • 8.5-9 in. tine spacing

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for brush, roots, and uneven woody debris.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for brush, roots, and uneven woody debris with a suitable compact tractor carrier.
  • 2 x 8 in. AG cylinders.
  • Dual 3/8 in. grapple tines.
  • 3/8 in. bottom tines.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
