Loflin Fabrication Compact Tractor Vertical Root Grapple For Compact Tractors

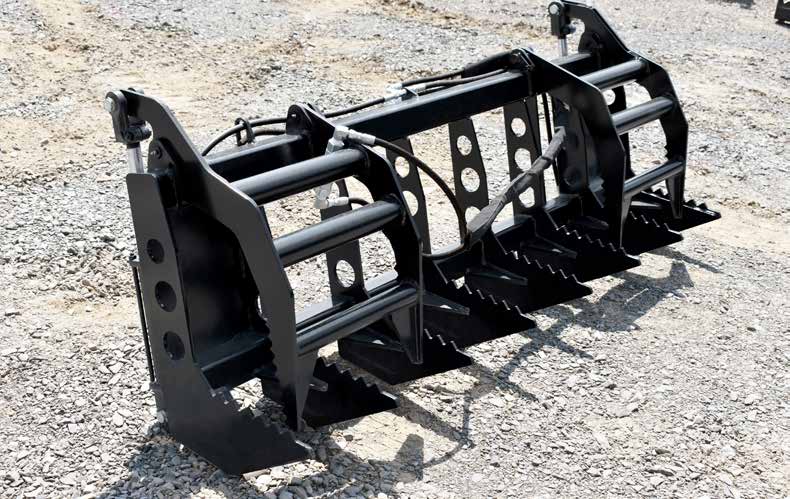

Loflin Fabrication Compact Tractor Vertical Root Grapple shown in manufacturer catalog

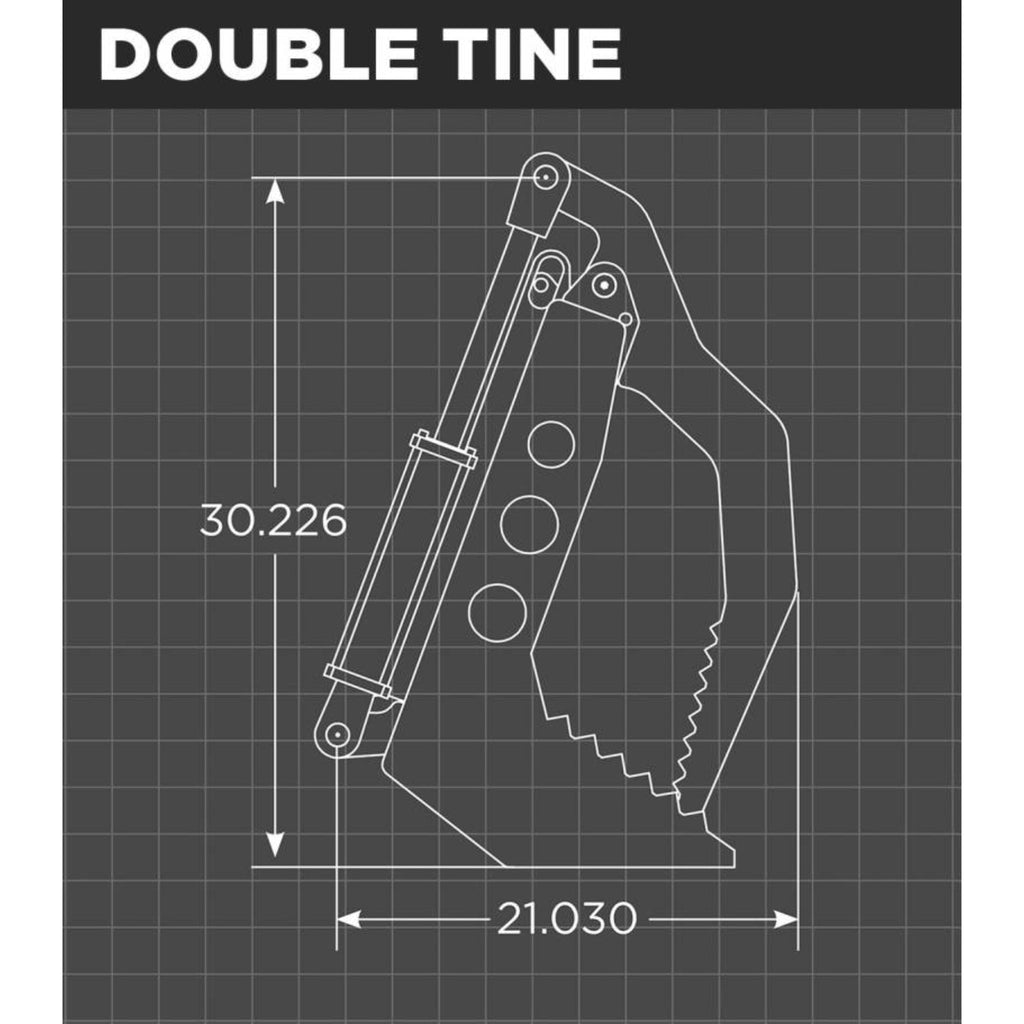

Loflin Fabrication Compact Tractor Vertical Root Grapple For Compact Tractors manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Compact Tractor Vertical Root Grapple shown in manufacturer catalogLoflin Fabrication Compact Tractor Vertical Root Grapple For Compact Tractors manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Compact Tractor Vertical Root Grapple For Compact Tractors

SKU: 0660301060 Currently In Stock

$2,294.78 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

INDEPENDENT UPPER GRAPPLES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

2 X 8 IN. CYLINDERS

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

3/8 IN. STEEL TINES

STEEL TINES SUPPORT AND RETAIN THE GRAPPLE LOAD.

9-12 IN. TINE SPACING

SPACES BETWEEN THE LOWER TINES LET LOOSE SOIL FALL THROUGH WHILE LARGER MATERIAL REMAINS SUPPORTED.

GREASEABLE HINGE POINTS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

Description

Key Benefits

Technical Specs

Applications

Loflin Compact Tractor Vertical Root Grapple

The Loflin Fabrication Compact Tractor Vertical Root Grapple gives compact tractors a dedicated attachment for raking, brush gathering, and property cleanup. The upright rake-style frame lets dirt fall through while independent tines close around the gathered material. Available working-width selections are 60", 66", 72".

Independent upper grapples and 2 x 8 in. cylinders define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

3/8 in. steel tines; 9-12 in. tine spacing; Greaseable hinge points support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Compact Tractor Vertical Root Grapple

  • Independent upper grapples
  • 2 x 8 in. cylinders
  • 3/8 in. steel tines
  • 9-12 in. tine spacing
  • Greaseable hinge points

Loflin Compact Tractor Vertical Root Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: Compact Tractor Vertical Root Grapple
  • Carrier group: compact tractors
  • Power source: carrier hydraulic actuation
  • Grapple opening: 33.25 in.
  • Width options: 60", 66", 72"
  • Independent upper grapples
  • 2 x 8 in. cylinders
  • 3/8 in. steel tines
  • 9-12 in. tine spacing
  • Greaseable hinge points
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0660301060: 60" COMPACT TRACTOR VERTICAL ROOT GRAPPLE; weight 348 lb
  • 0660301066: 66" COMPACT TRACTOR VERTICAL ROOT GRAPPLE; weight 385 lb
  • 0660301072: 72" COMPACT TRACTOR VERTICAL ROOT GRAPPLE; weight 414 lb

Loflin Compact Tractor Vertical Root Grapple

  • Raking, brush gathering, and property cleanup.
  • Material transfer with a properly matched compact tractor carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Compact Tractor Vertical Root Grapple

BUILT TO HANDLE THE LOAD:

  • The upright rake-style frame lets dirt fall through while independent tines close around the gathered material.
  • Independent upper grapples
  • 2 x 8 in. cylinders
  • 3/8 in. steel tines
  • 9-12 in. tine spacing

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for raking, brush gathering, and property cleanup.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for raking, brush gathering, and property cleanup with a suitable compact tractor carrier.
  • Independent upper grapples.
  • 2 x 8 in. cylinders.
  • 3/8 in. steel tines.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
