LOFLIN FABRICATION

Front Dump High Tip Bucket

For Skid Steers

72"–96" Width Options

Request QuoteAdd To Cart

Loflin Fabrication Front Dump High Tip Bucket For Skid Steers

Loflin Fabrication Front Dump High Tip Bucket For Skid Steers manufacturer family image 1; illustrated configuration may differ from selected option

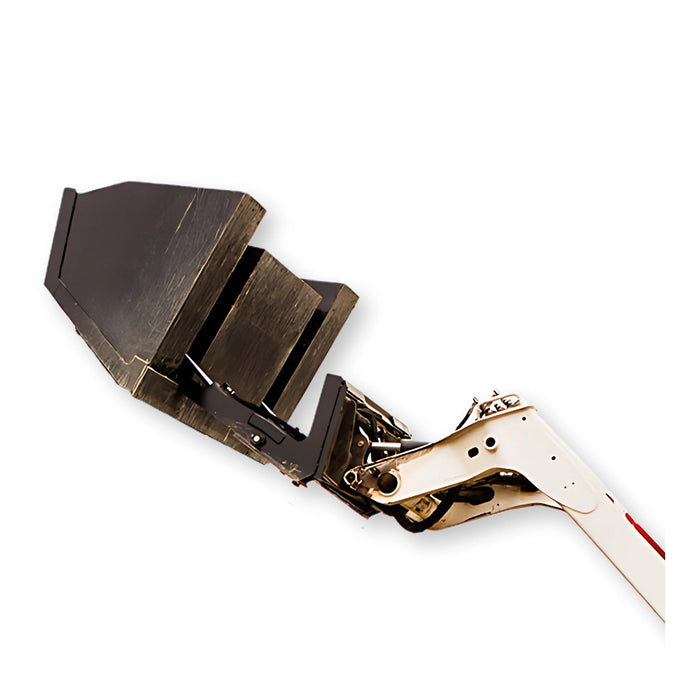

Loflin Fabrication Front Dump High Tip Bucket For Skid Steers manufacturer family image 2; illustrated configuration may differ from selected option

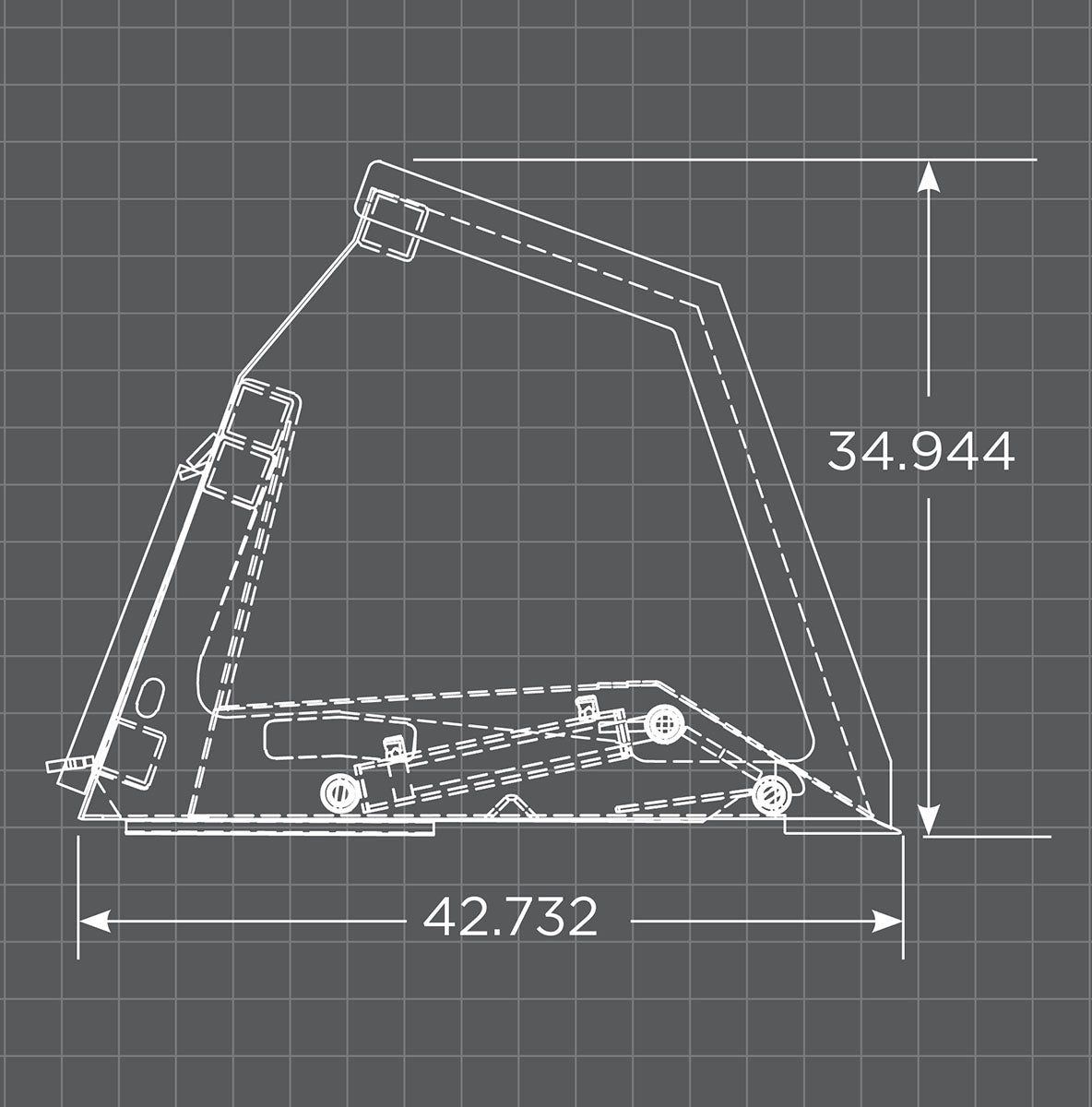

Loflin Fabrication Front Dump High Tip Bucket For Skid Steers manufacturer family image 3; illustrated configuration may differ from selected option
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Front Dump High Tip Bucket For Skid Steers manufacturer family image 1; illustrated configuration may differ from selected optionLoflin Fabrication Front Dump High Tip Bucket For Skid Steers manufacturer family image 2; illustrated configuration may differ from selected optionLoflin Fabrication Front Dump High Tip Bucket For Skid Steers manufacturer family image 3; illustrated configuration may differ from selected option
Loflin Fabrication

Loflin Fabrication Front Dump High Tip Bucket For Skid Steers

SKU: 0130101072 Currently In Stock

$5,601.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

TWO 2 X 10 IN. HYDRAULIC CYLINDERS

TWO 2 X 10-INCH CYLINDERS OPERATE THE FRONT-DUMP MECHANISM USING THE LOADER’S HYDRAULICS.

5 FT. ADDITIONAL HEIGHT

UP TO FIVE FEET OF ADDED LOADING HEIGHT OVER A STANDARD BUCKET. ACTUAL PLACEMENT DEPENDS ON THE CARRIER.

3 FT. ADDITIONAL REACH

THE DESIGN ADDS THREE FEET OF REACH. CHECK THE LIFT CHART AT THE EXTENDED LOAD POSITION.

1.25 IN. GREASABLE PINS

GREASABLE 1.25-INCH PIVOT PINS PROVIDE SERVICE POINTS AT THE MOVING JOINTS.

3/4 X 6 IN. CUTTING EDGE

A 3/4 X 6-INCH CUTTING EDGE FORMS THE BUCKET’S FRONT LOADING LIP.

Description

Key Benefits

Technical Specs

Applications

Loflin Front Dump High Tip Bucket

The Loflin Fabrication Front Dump High Tip Bucket For Skid Steers is built for loading into taller trucks and elevated receiving areas. Choose from 72", 78", 84", 90", 96" working widths to suit your loader and jobsite.

Two 2 x 10 in. hydraulic cylinders and 5 ft. additional height define the working construction. 3 ft. additional reach supports the bucket’s intended material-handling role. Keep each load centered and within the carrier’s operating limits.

1.25 in. greasable pins and 3/4 x 6 in. cutting edge complete the family specification. Select the width, edge, and mount options before ordering. Available components depend on the selected configuration.

This bucket uses the carrier’s auxiliary hydraulics for actuation. Confirm the auxiliary circuit pressure, controls, hoses, and couplers for the selected configuration before ordering. Additional reach changes the load center. Confirm the carrier lift chart and rated capacity at the intended dump position.

Loflin Front Dump High Tip Bucket

  • Two 2 x 10 in. hydraulic cylinders
  • 5 ft. additional height
  • 3 ft. additional reach
  • 1.25 in. greasable pins
  • 3/4 x 6 in. cutting edge

Loflin Front Dump High Tip Bucket

  • Manufacturer: Loflin Fabrication
  • Product family: Front Dump High Tip Bucket
  • Carrier group: Skid Steers
  • Power requirement: Carrier hydraulic actuation; applicable pressure and flow requirements need confirmation.
  • Two 2 x 10 in. hydraulic cylinders
  • 5 ft. additional height
  • 3 ft. additional reach
  • 1.25 in. greasable pins
  • 3/4 x 6 in. cutting edge
  • Additional reach changes the load center. Confirm the carrier lift chart and rated capacity at the intended dump position.
  • Mount selection and loaded lift capacity must be verified separately.
  • 0130101072: 72" FRONT DUMP BUCKET (1.270CUYD); weight 935 lb
  • 0130101078: 78" FRONT DUMP BUCKET (1.392CUYD); weight 965 lb
  • 0130101084: 84" FRONT DUMP BUCKET (1.515CUYD); weight 1009 lb
  • 0130101090: 90" FRONT DUMP BUCKET (1.638CUYD); weight 1060 lb
  • 0130101096: 96" FRONT DUMP BUCKET (1.760CUYD); weight 1100 lb

Loflin Front Dump High Tip Bucket

  • Loading into taller trucks and elevated receiving areas.
  • Material handling with a correctly mounted skid steers carrier.
  • Keep material density and load position within the carrier’s rated operating capacity.
  • Inspect the attachment and locking engagement before each use.

Loflin Fabrication: Bucket Demonstrations & Brand Videos

Loflin Front Dump High Tip Bucket

BUILT FOR THE JOB:

  • Two 2 x 10 in. hydraulic cylinders
  • 5 ft. additional height
  • 3 ft. additional reach
  • 1.25 in. greasable pins
  • 3/4 x 6 in. cutting edge

CONTROLLED MATERIAL HANDLING:

  • Loading into taller trucks and elevated receiving areas.
  • Select a width suited to the carrier and access area.
  • Keep the bucket load centered during travel.
  • Account for material density and the attachment’s own weight.
  • Check the carrier’s lift rating at the operating position.

READY FOR THE FIELD:

  • Designed for loading into taller trucks and elevated receiving areas.
  • Two 2 x 10 in. hydraulic cylinders.
  • 5 ft. additional height.
  • Choose the required width, cutting edge, and mounting interface.
  • Confirm attachment weight, loaded capacity, and auxiliary hydraulic requirements.
