MOST IMPORTANT FEATURES

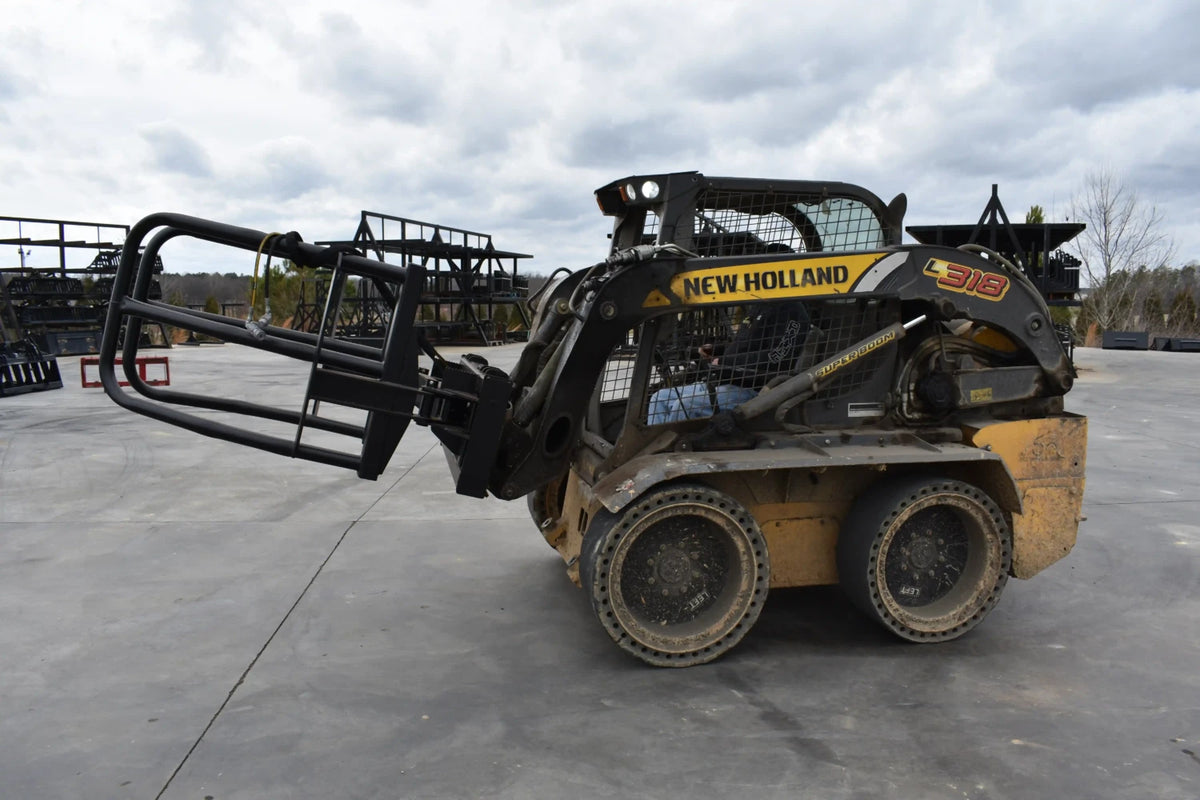

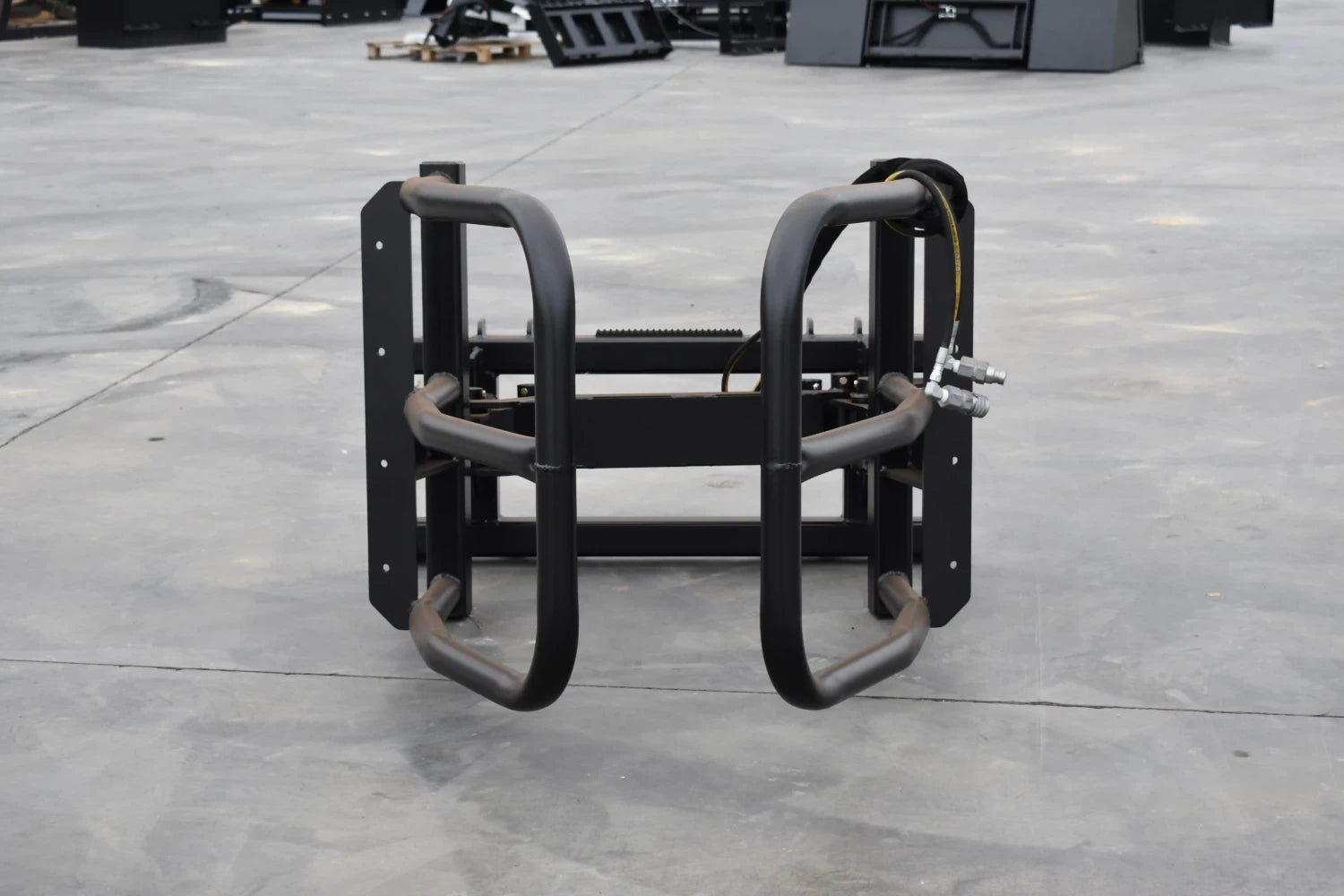

69-INCH CLAMP OPENING
THE BALE SQUEEZER OPENS TO A 69-INCH SPAN TO POSITION ITS ARMS AROUND THE LOAD. THE OPENING IS A PHYSICAL DIMENSION RATHER THAN A LOAD-CAPACITY RATING.

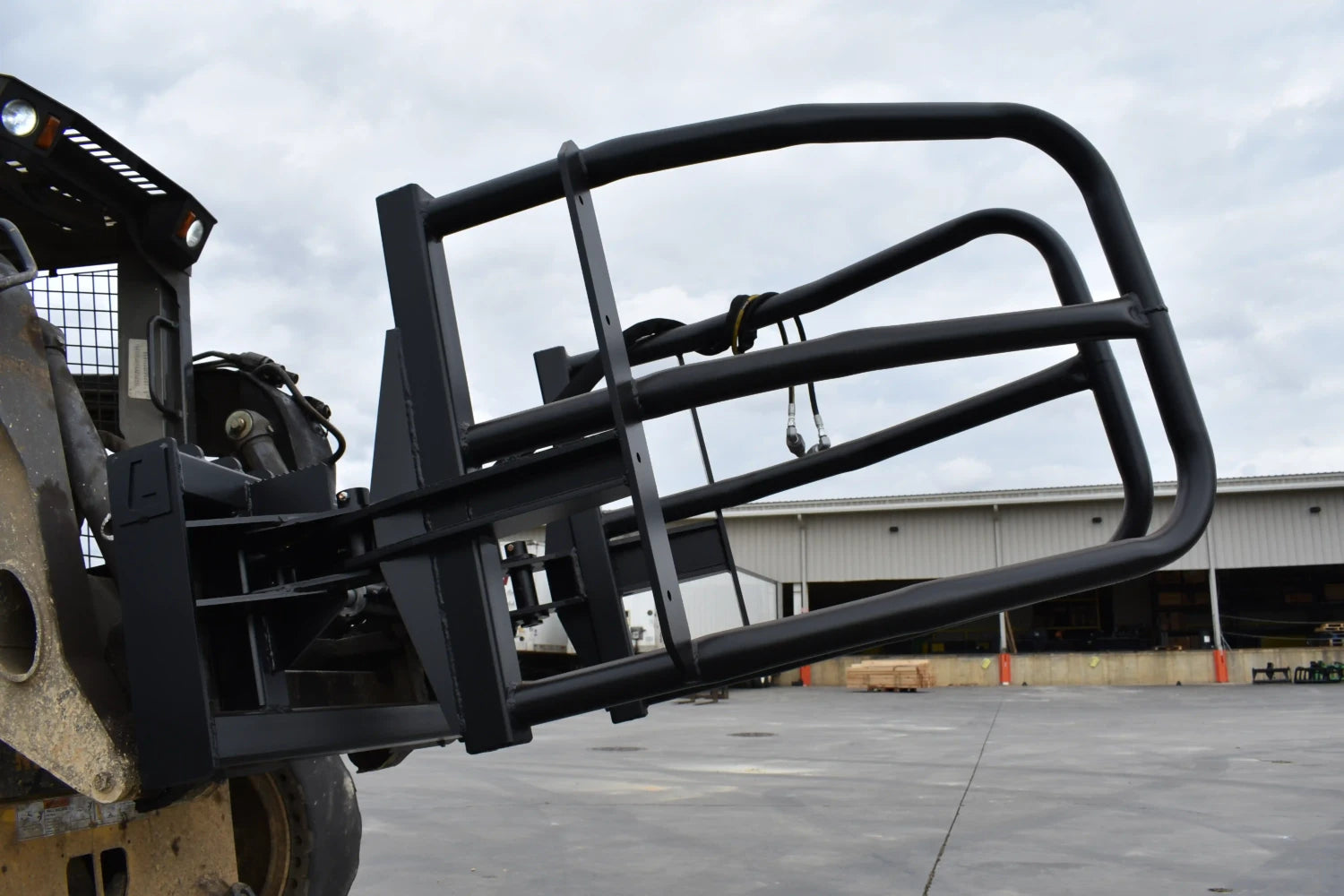

2-3/8-INCH ROUND TUBING
THE CLAMPING STRUCTURE USES 2-3/8-INCH ROUND TUBING. ITS SMOOTH CONTACT FORM HANDLES BALES WITHOUT DELIBERATELY PIERCING THE WRAP WITH A WORKING SPEAR.

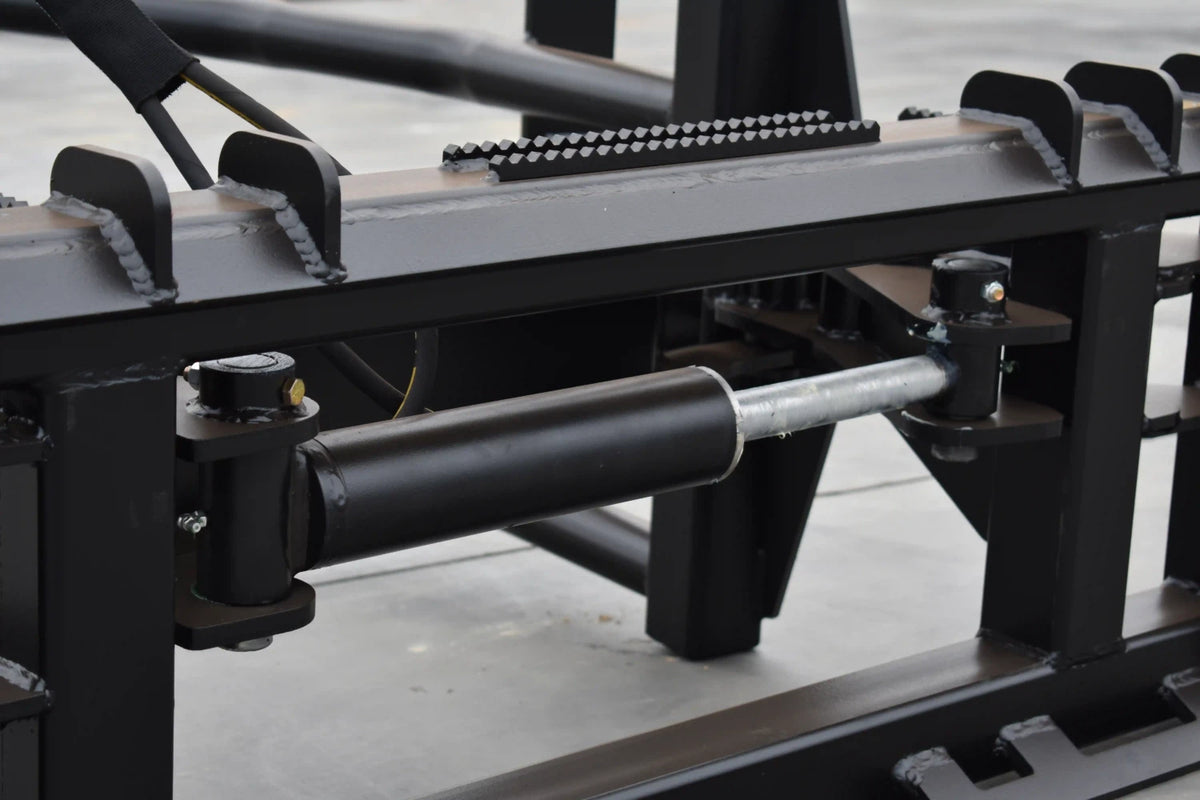

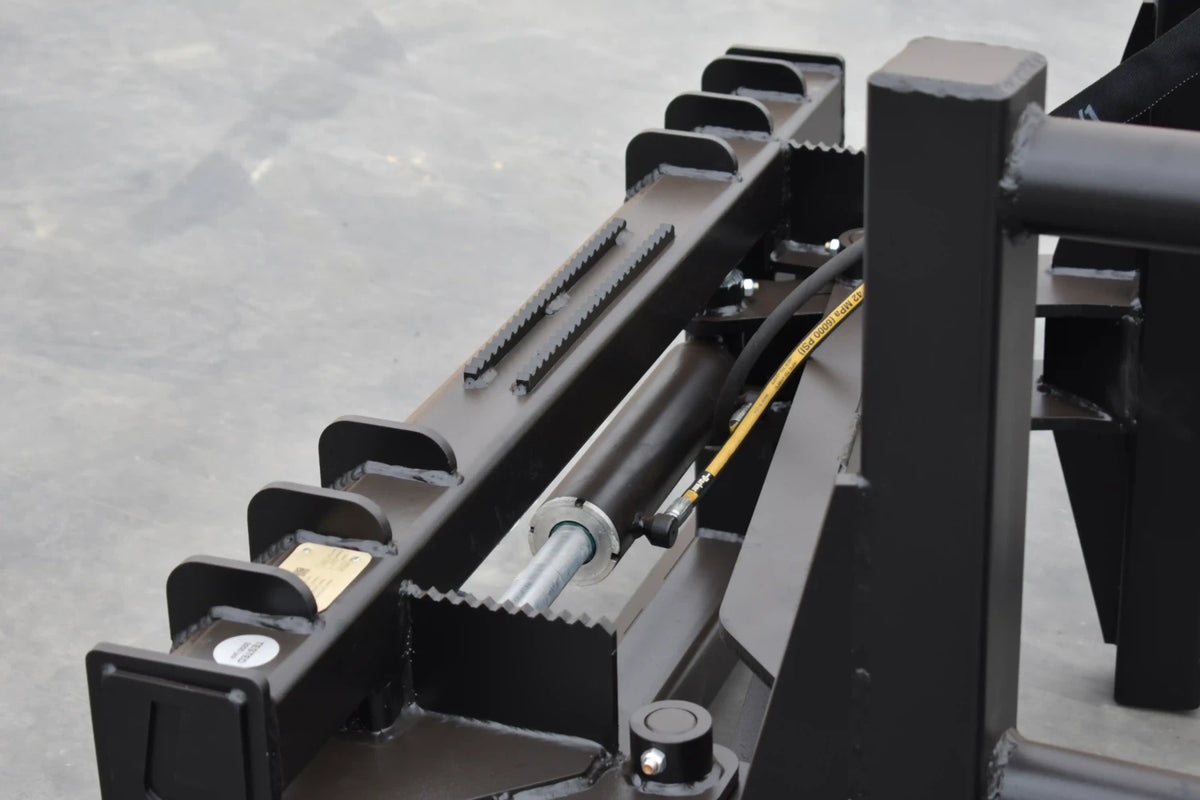

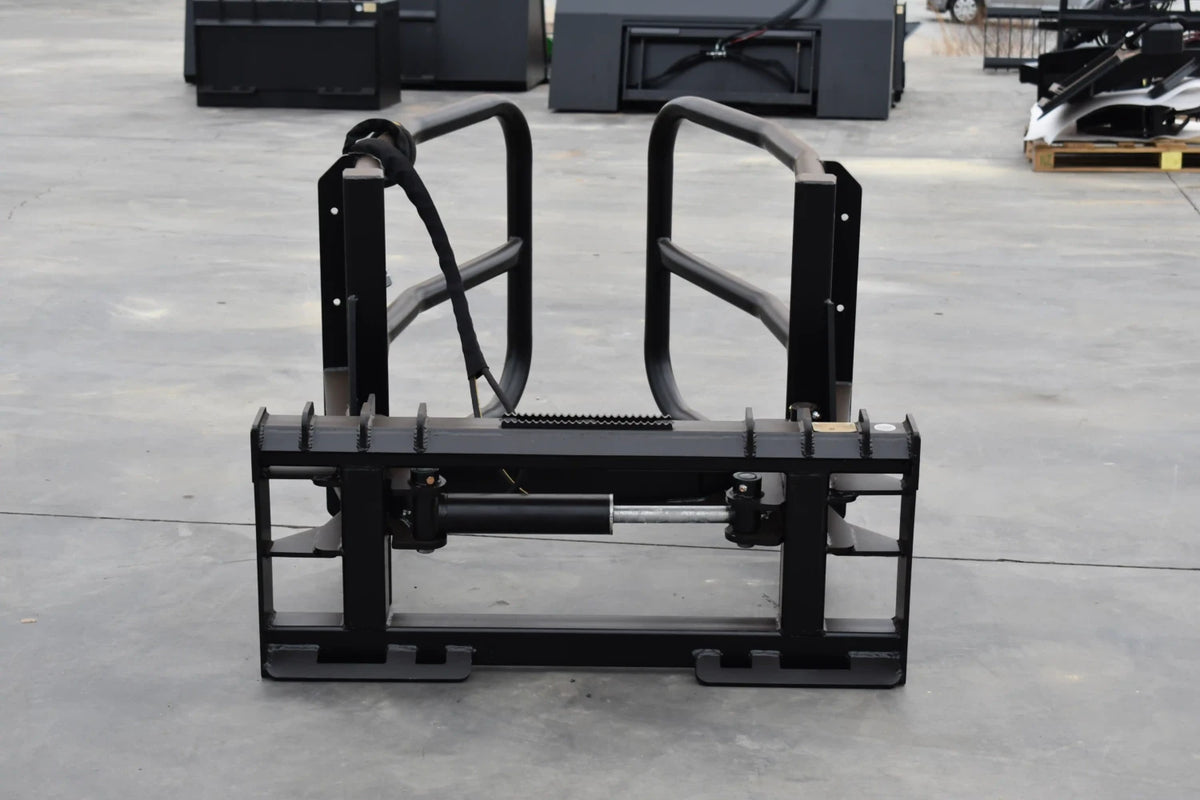

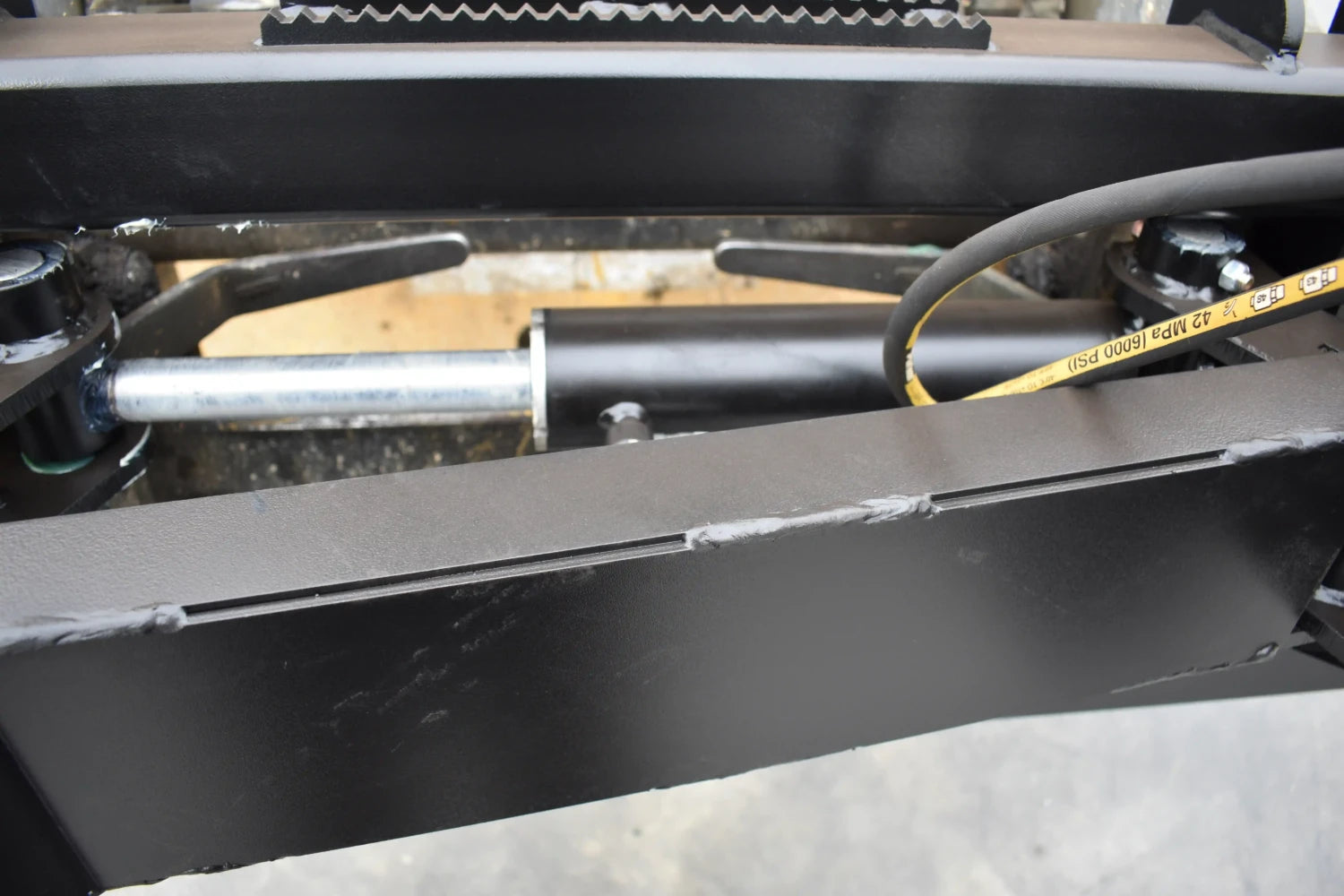

2-1/2 × 8-INCH CYLINDER
A 2-1/2-INCH BORE AND 8-INCH STROKE HYDRAULIC CYLINDER OPERATES THE ARMS. CYLINDER ACTION PROVIDES THE OPENING AND CLOSING MOVEMENT USED TO CLAMP THE BALE.

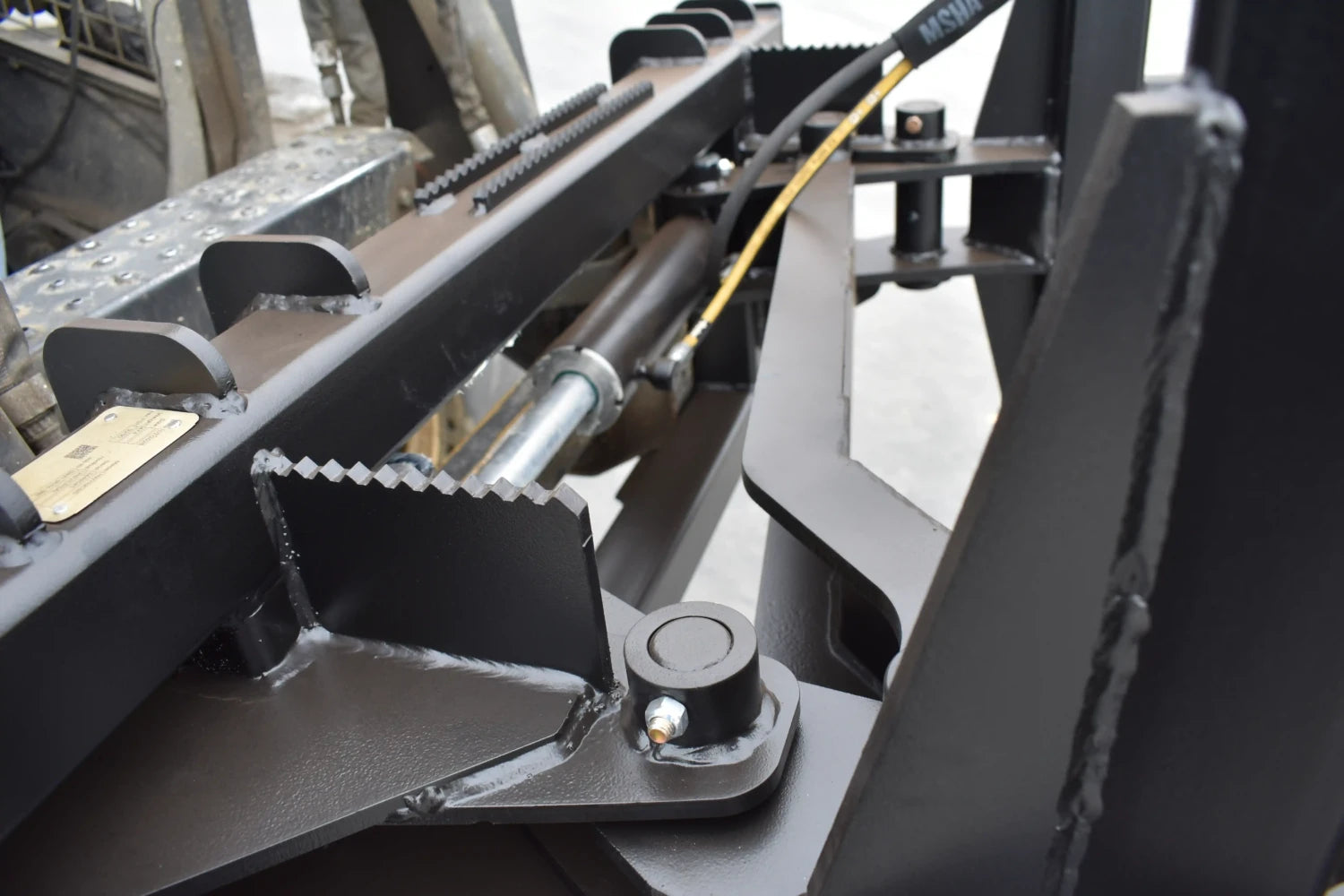

LINKED CLAMP ARMS

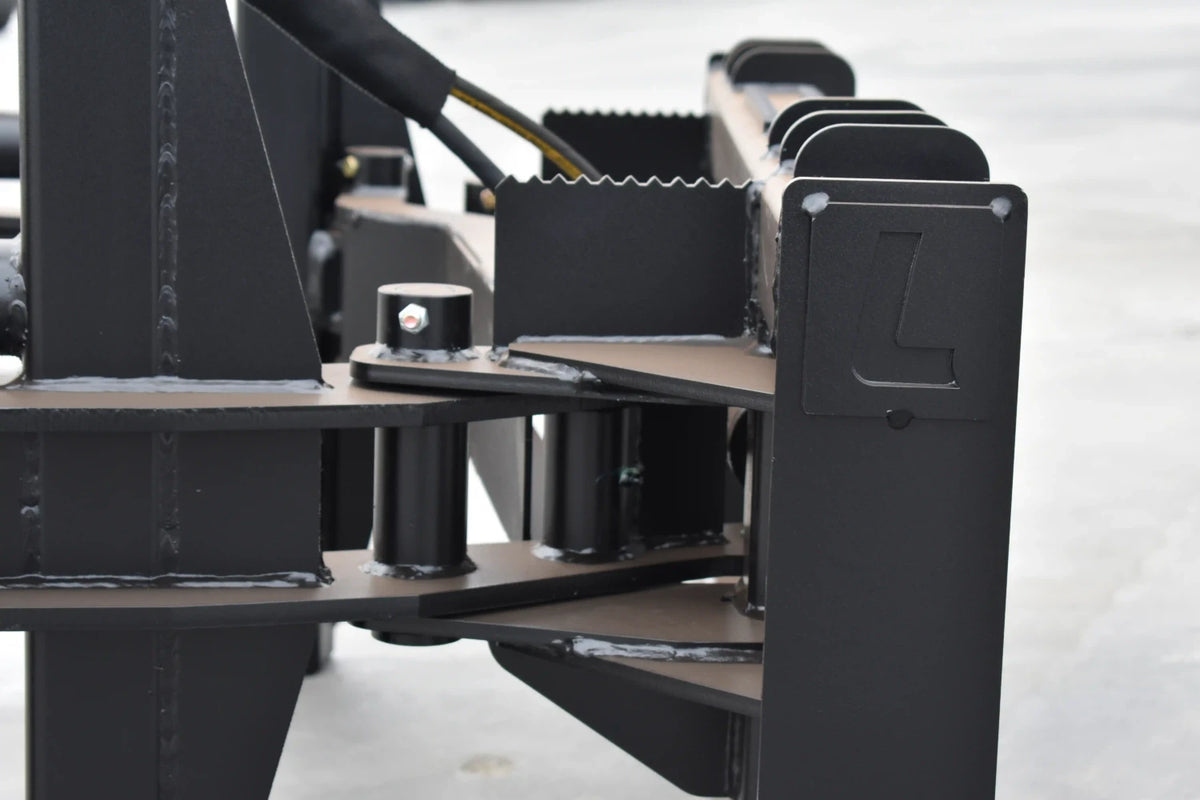

LINKED ARMS HELP PREVENT UNWANTED ARM SWAY DURING OPERATION. OVERSIZED, GREASABLE PIVOT PINS SUPPORT THE MOVING CLAMPING ARRANGEMENT THROUGH OPENING AND CLOSING CYCLES.
PARKER HYDRAULIC CONNECTIONS
PARKER HOSES, FITTINGS, AND COUPLERS CONNECT THE CLAMP TO THE CARRIER HYDRAULIC CIRCUIT. THE ATTACHMENT USES HYDRAULIC ACTUATION WITHOUT A CONTINUOUS ROTATING MOTOR.
Loflin Fabrication: Brand & Attachment Videos

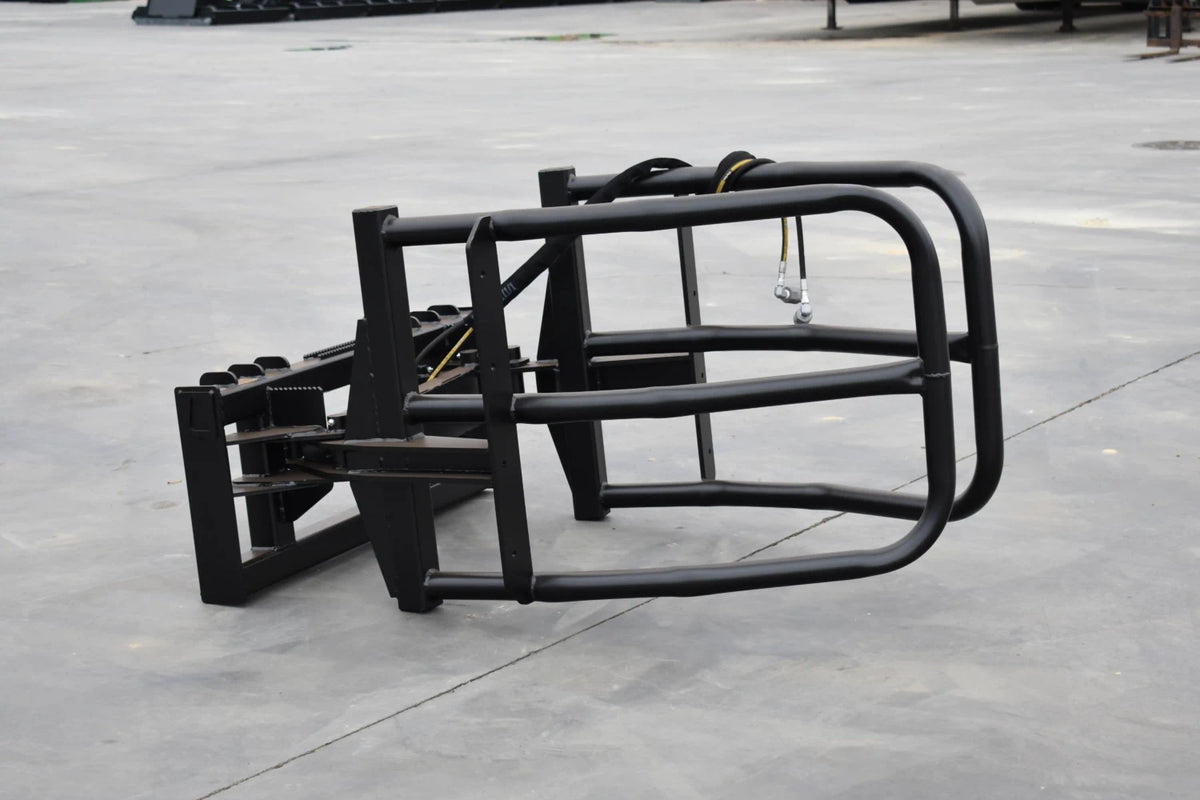

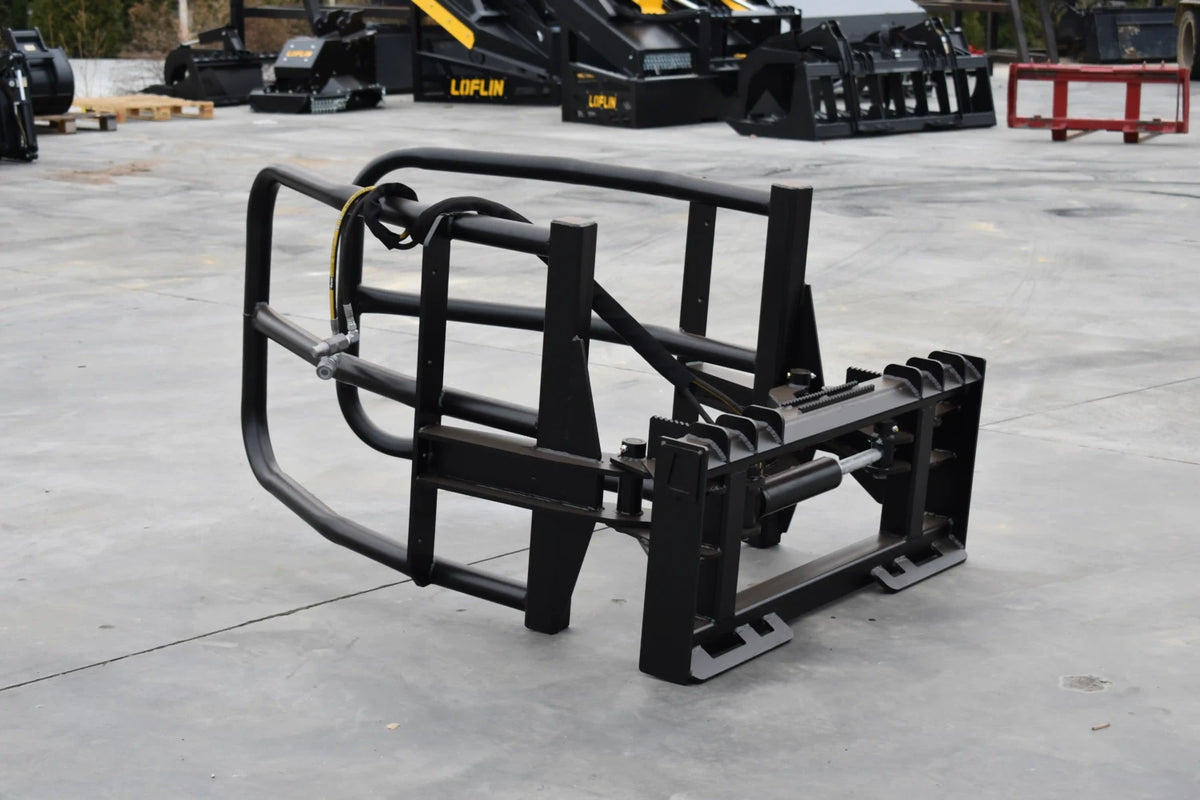

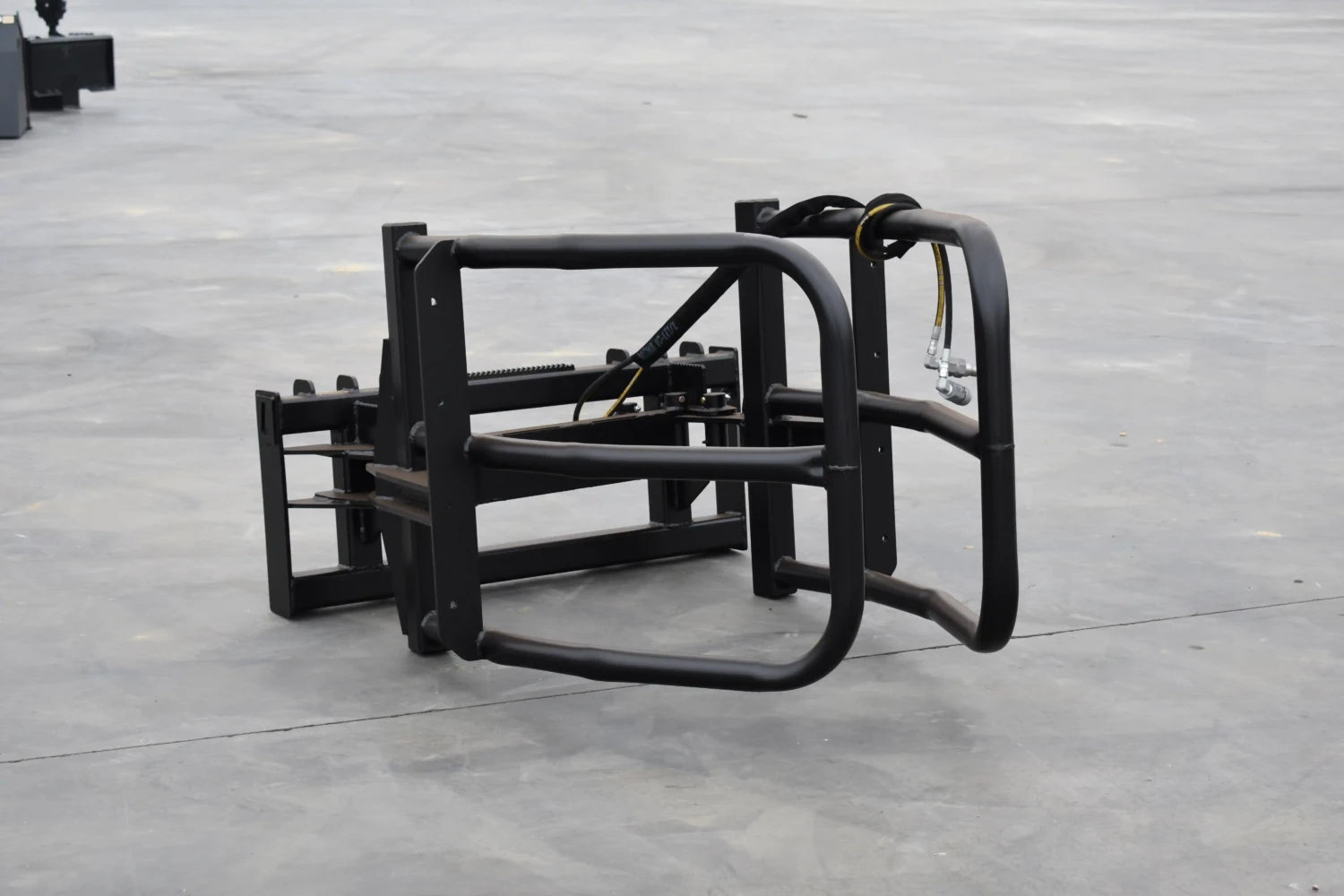

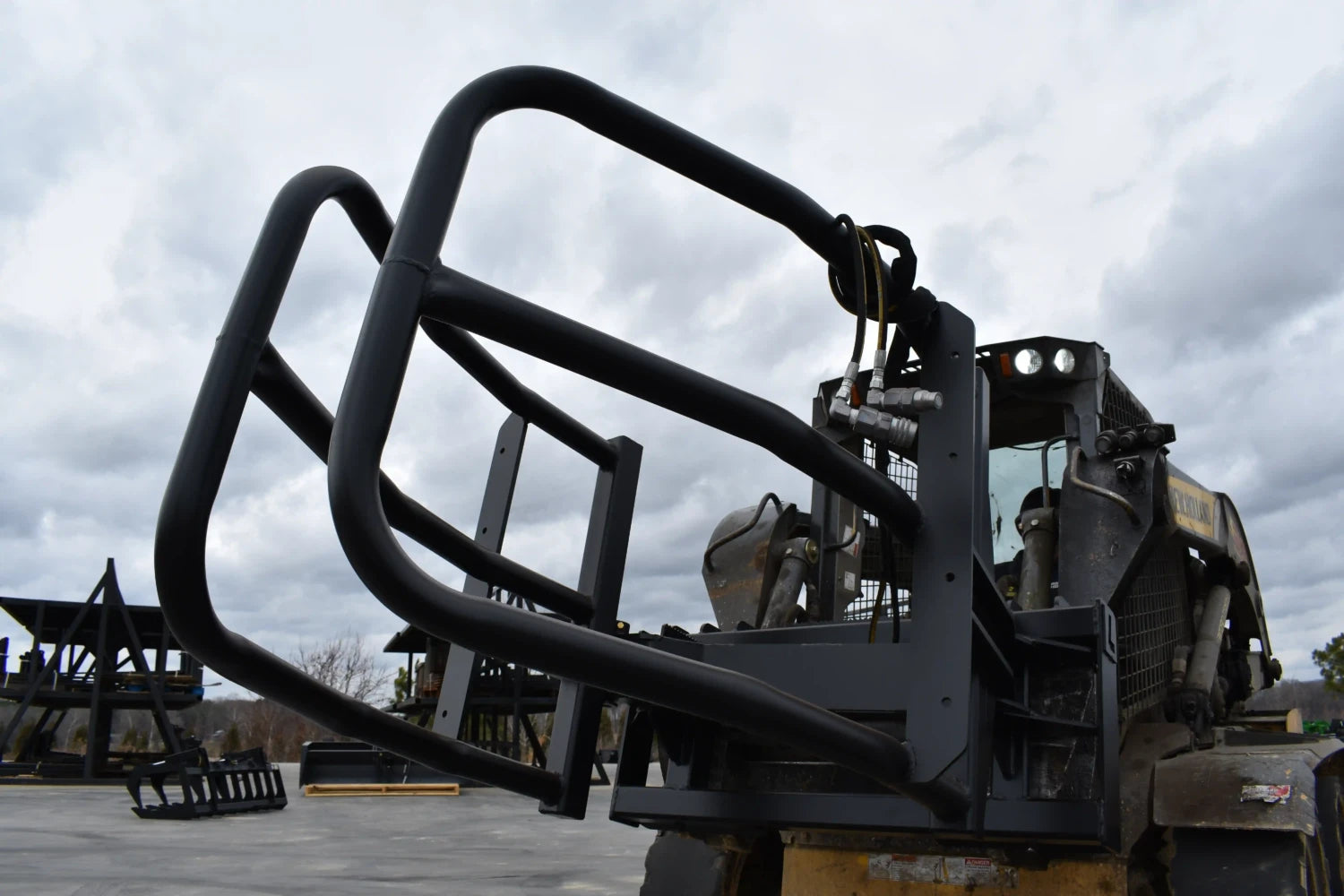

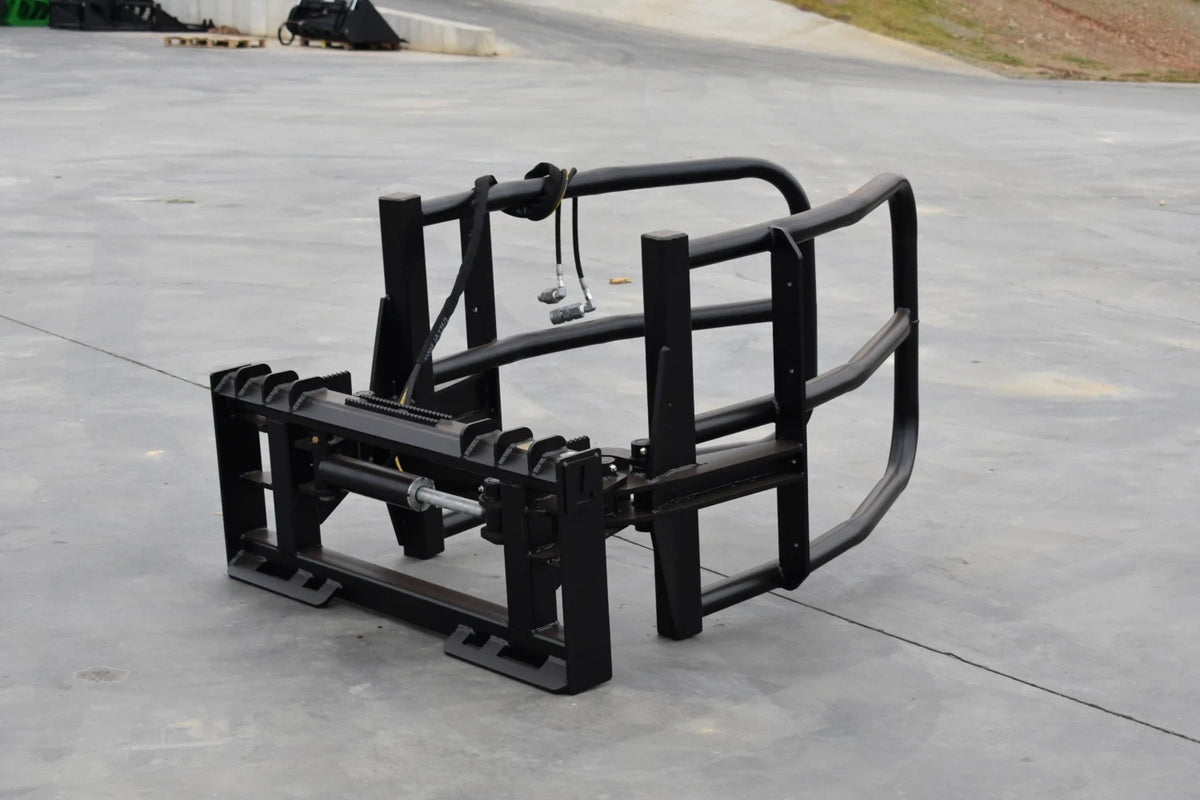

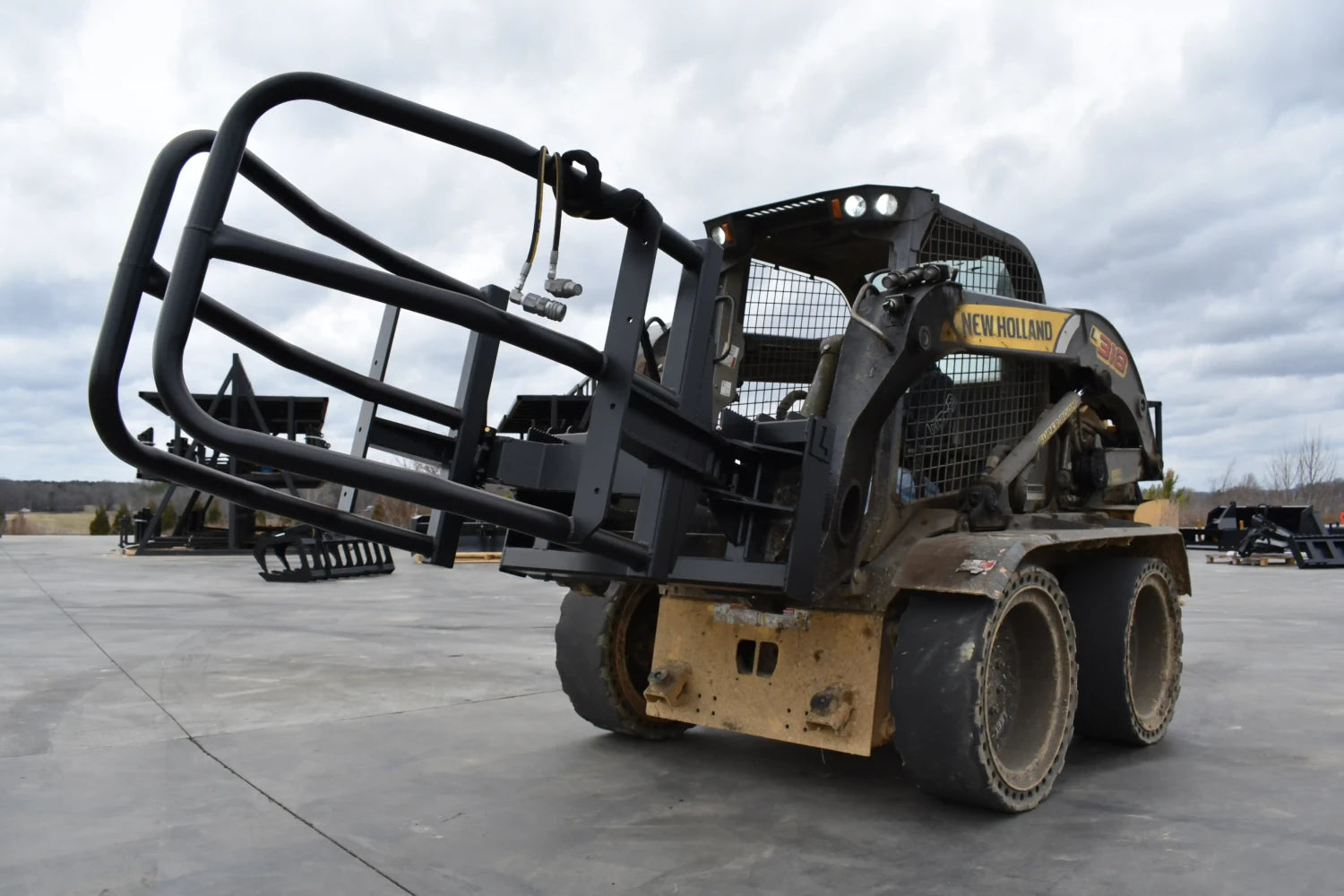

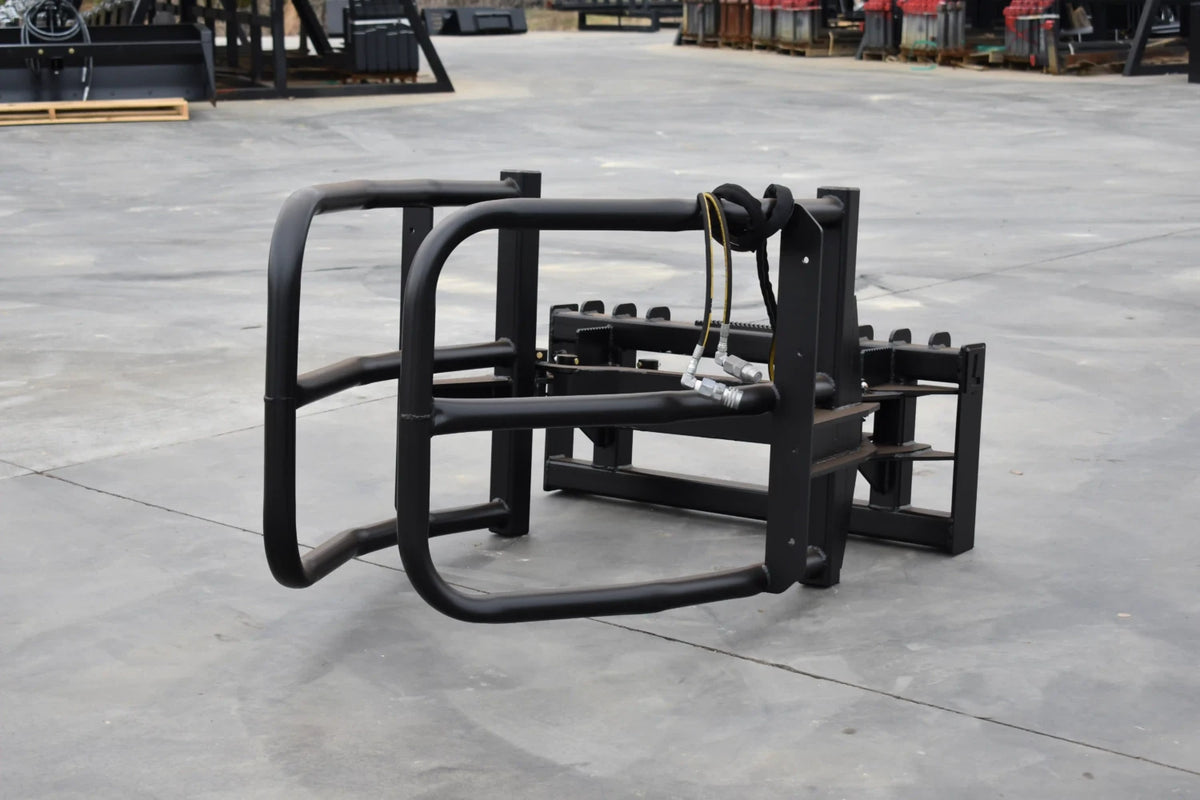

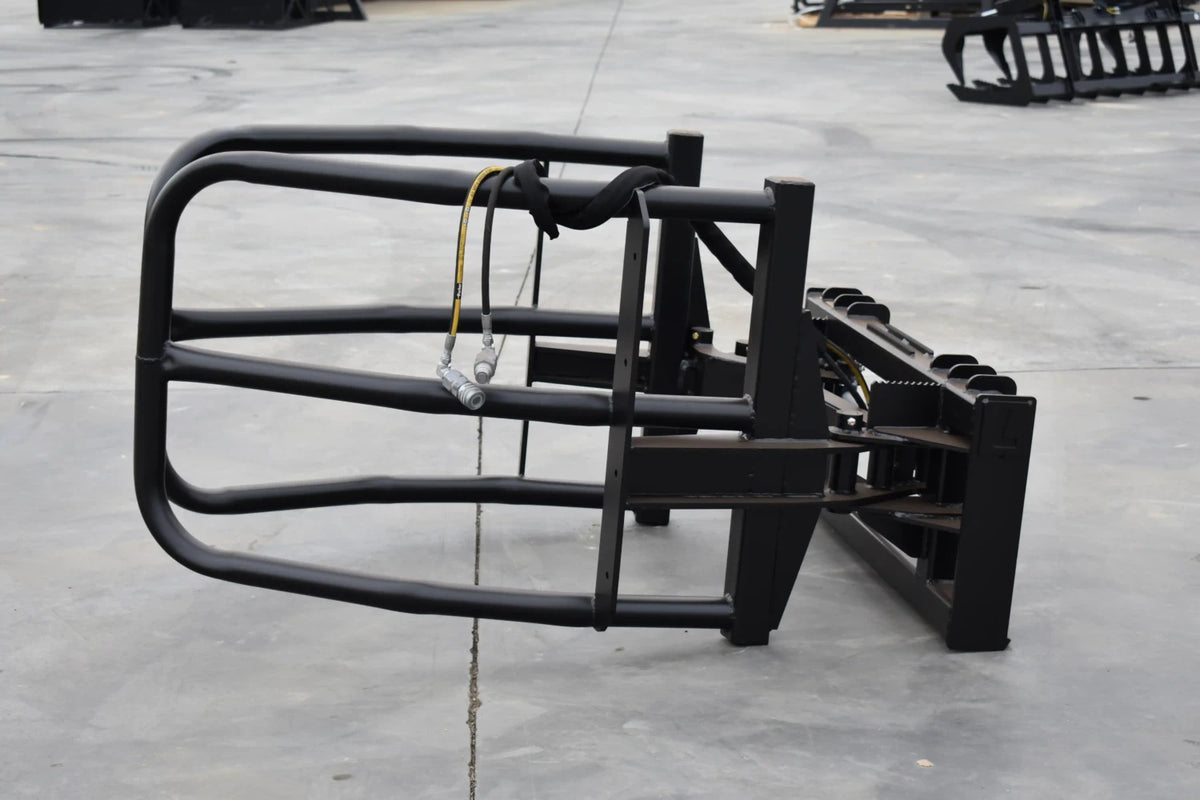

Loflin Hydraulic Bale Squeezer
