LOFLIN FABRICATION

Hydraulic Rotary Tiller

For Skid Steers & Track Loaders

72"–80" Tilling Widths

Request QuoteAdd To Cart

Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders

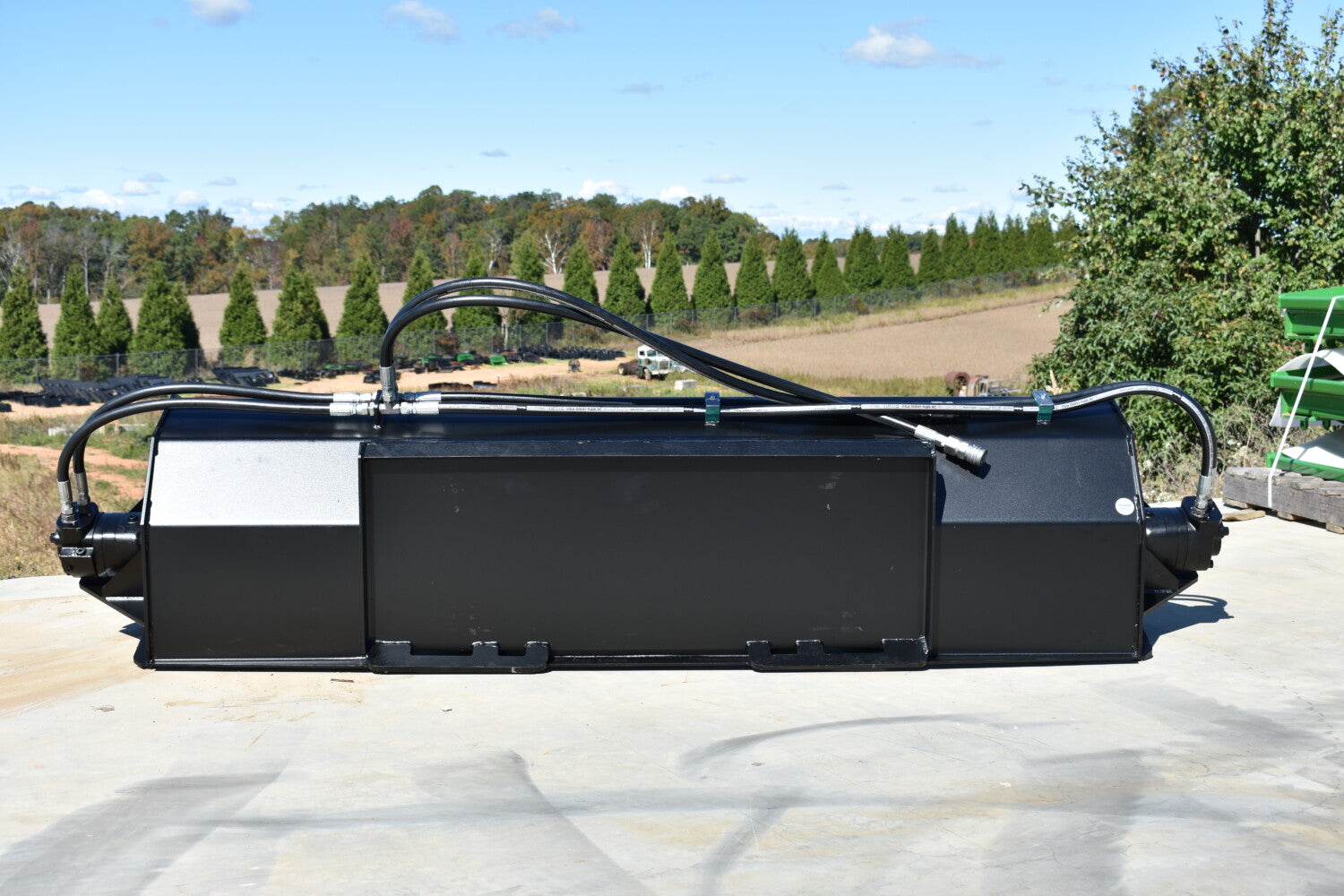

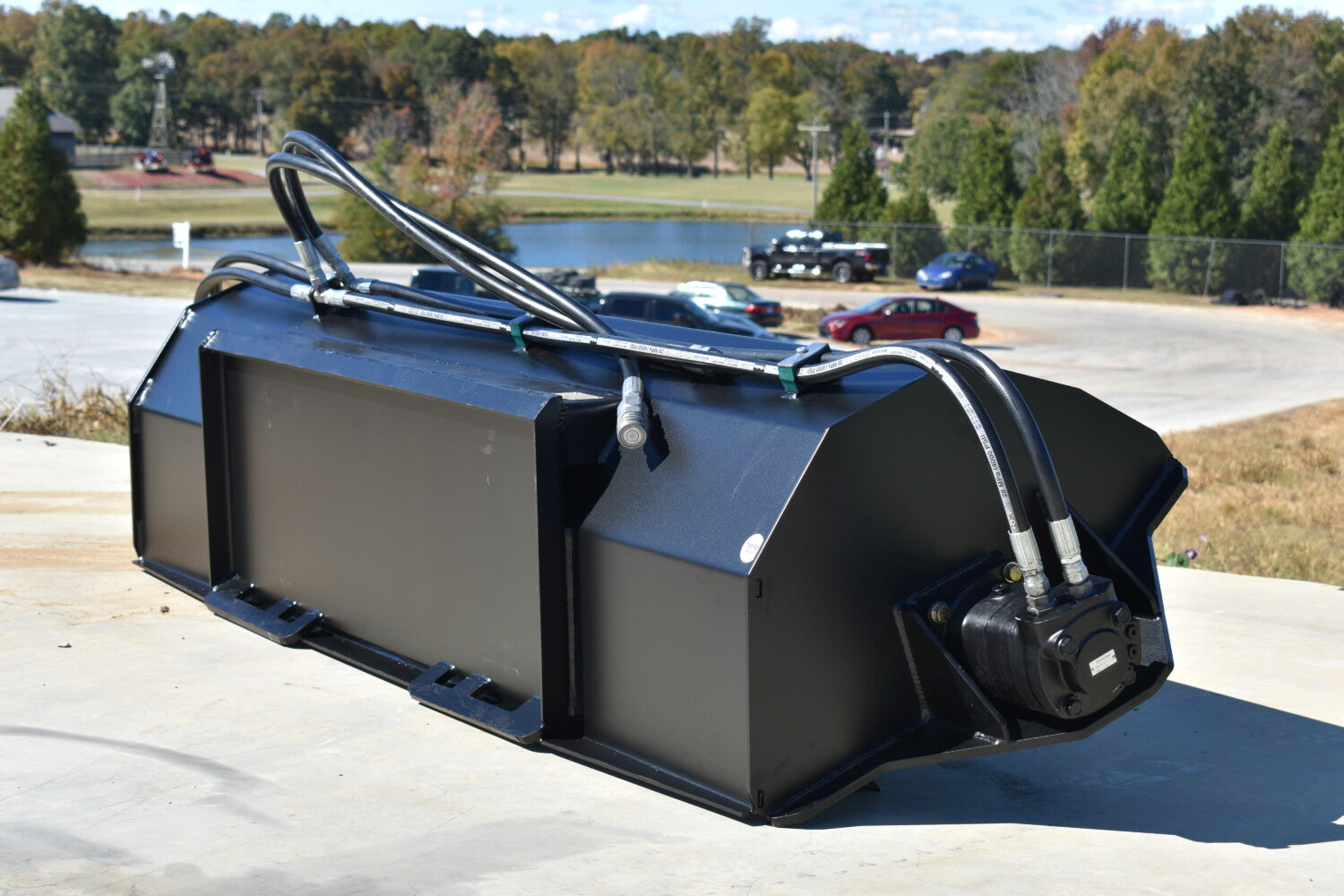

Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.

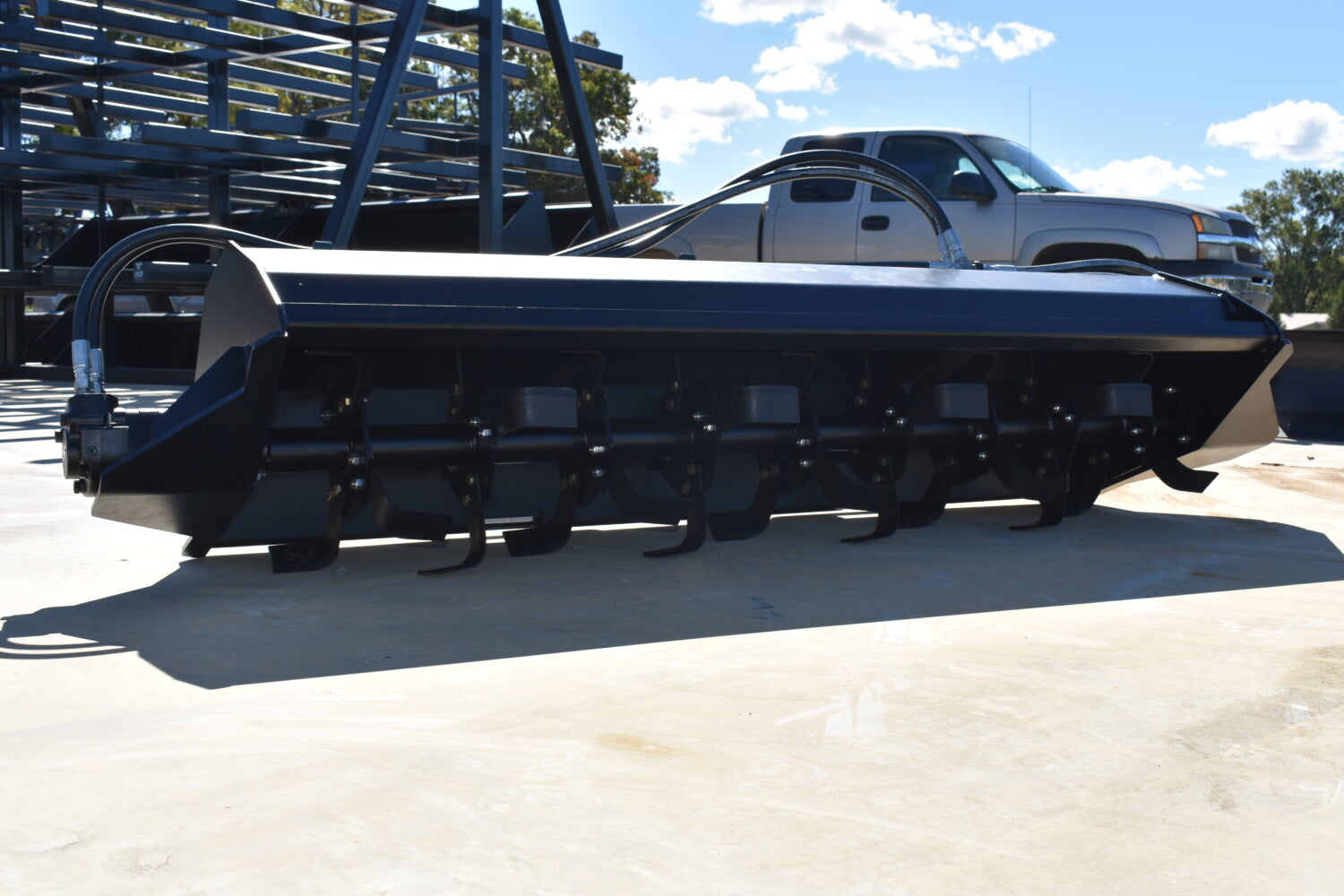

Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.

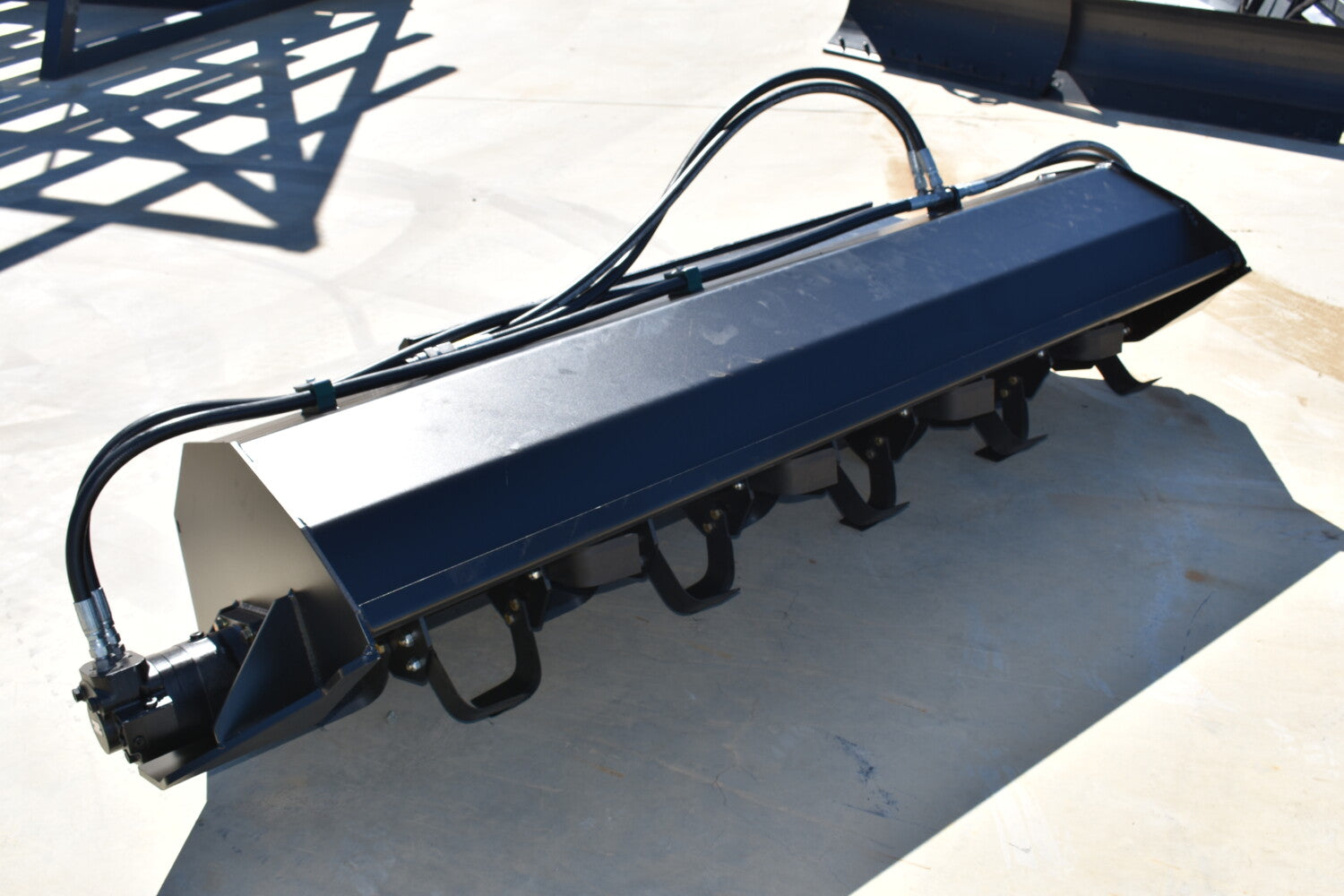

Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.

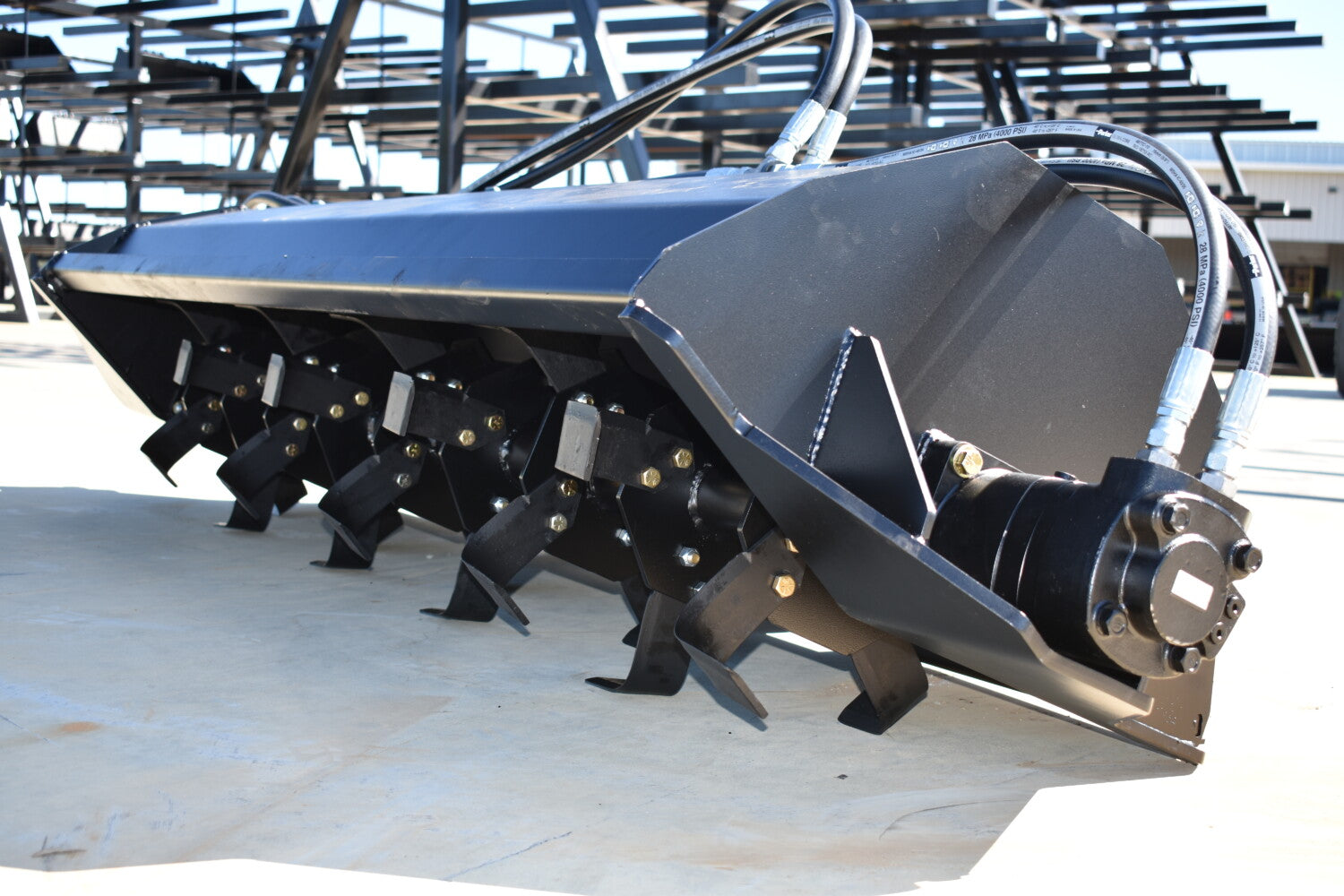

Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.

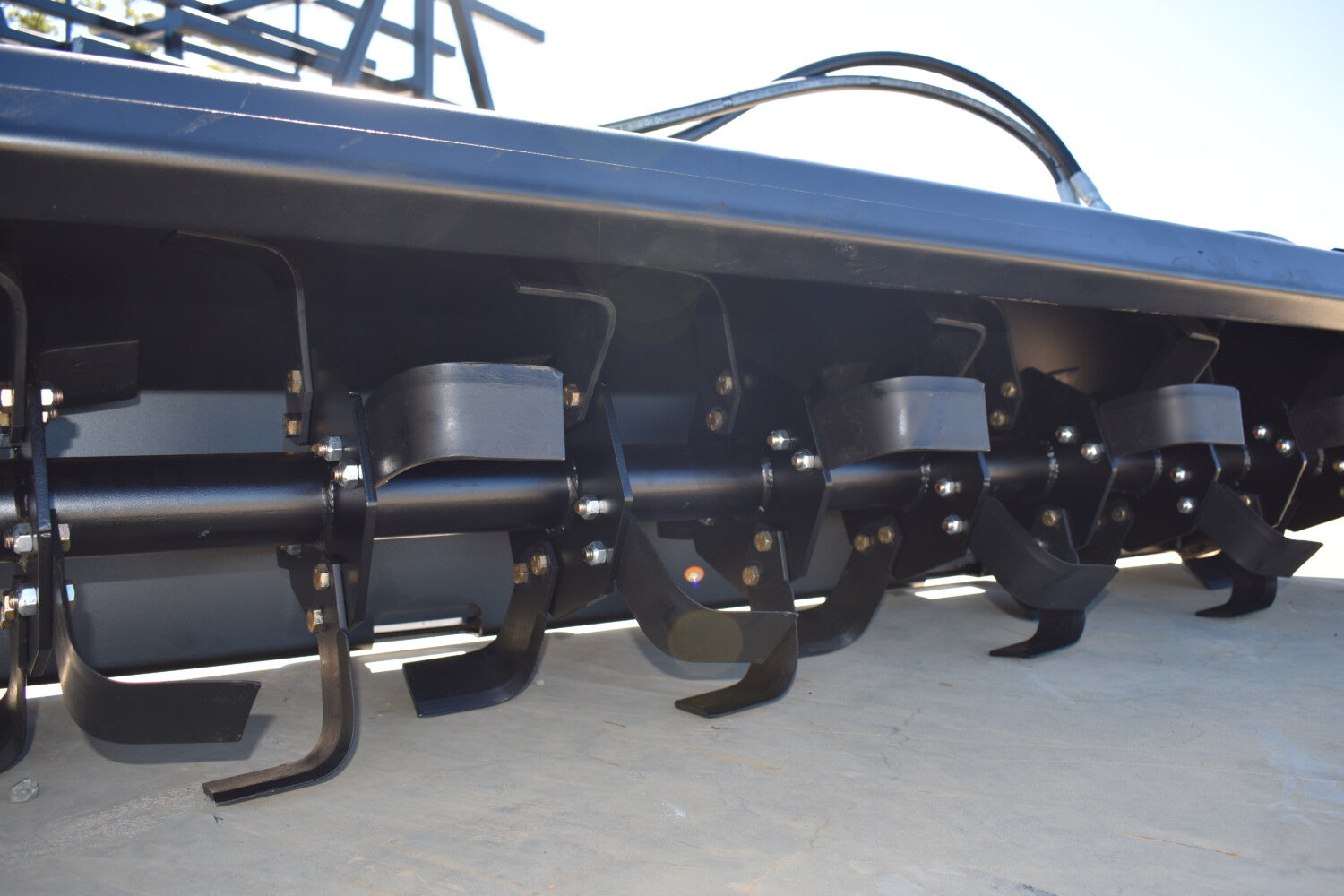

Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.

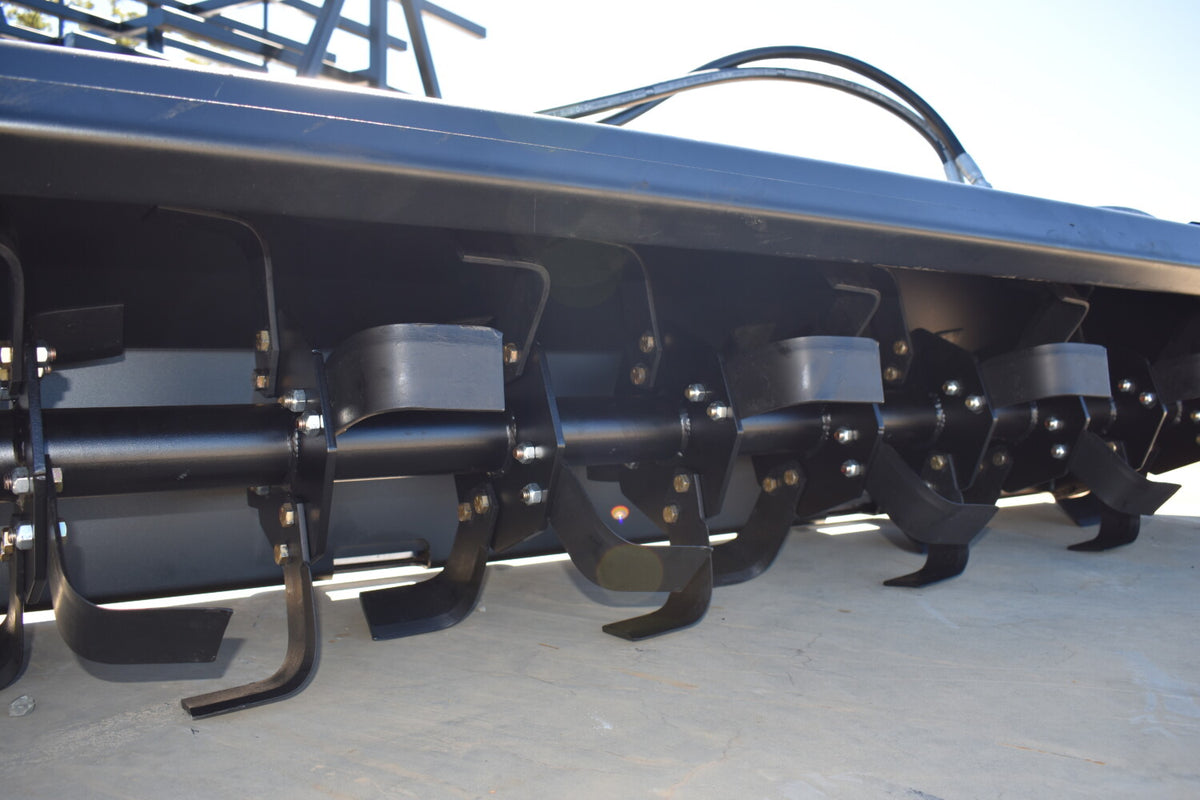

Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.
Loflin Fabrication

Loflin Fabrication Hydraulic Rotary Tiller For Skid Steers & Track Loaders

SKU: 0690101072 Currently In Stock

$4,931.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

72- OR 80-INCH WORKING WIDTH

CHOOSE A 72-INCH OR 80-INCH TILLING WIDTH FOR THE AREA BEING PREPARED. OVERALL ATTACHMENT WIDTHS ARE 90 AND 98 INCHES RESPECTIVELY, INCLUDING THE SURROUNDING ASSEMBLY.

6-INCH TILLING DEPTH

THE ROTOR WORKS SOIL TO A TILLING DEPTH OF 6 INCHES. CONTROLLED PASSES BREAK UP THE SURFACE LAYER AND BLEND LOOSE MATERIAL INTO THE PREPARED SOIL.

32 OR 36 WORKING TINES

THE 72-INCH TILLER HAS 32 TINES, AND THE 80-INCH MODEL HAS 36. THE ROTATING TINE ARRANGEMENT BREAKS AND MIXES SOIL ACROSS THE SELECTED WORKING WIDTH.

BI-DIRECTIONAL DIRECT DRIVE

THE HYDRAULIC MOTOR DRIVES THE TILLING ROTOR DIRECTLY IN EITHER DIRECTION. THE DIRECT-DRIVE ARRANGEMENT TURNS THE WORKING TINES WITHOUT A SEPARATE PTO DRIVELINE.

REPLACEABLE WORKING BLADES

LEFT-HAND AND RIGHT-HAND BLADES ARE AVAILABLE AS SEPARATE SERVICE PARTS. REPLACING WORN BLADES RENEWS THE SOIL-CONTACTING CUTTING SURFACES ON THE EXISTING ROTOR.

Description

Key Benefits

Technical Specs

Applications

Loflin Hydraulic Rotary Tiller

The Loflin Fabrication Hydraulic Rotary Tiller prepares soil for landscaping, seedbeds, lawn installation, and garden work with a suitable skid steer or compact track loader. Choose a 72-inch or 80-inch working width for the size of the site.

The tiller works to a depth of 6 inches, using 32 tines on the 72-inch model and 36 on the 80-inch model. Bi-directional direct drive rotates the working assembly to break up soil and incorporate loose organic material.

The 72-inch configuration requires 14–22 GPM and weighs 580 pounds. The 80-inch configuration requires 16–28 GPM and weighs 640 pounds; their overall widths are 90 and 98 inches respectively.

Select the width that matches the available hydraulic flow and carrier capacity. Left-hand and right-hand replacement blades, the 80-inch rotor shaft, and the 250cc hydraulic motor are available separately for service.

Loflin Hydraulic Rotary Tiller

  • Choose a 72-inch or 80-inch tilling width for the area being prepared. Overall attachment widths are 90 and 98 inches respectively, including the surrounding assembly.
  • The rotor works soil to a tilling depth of 6 inches. Controlled passes break up the surface layer and blend loose material into the prepared soil.
  • The 72-inch tiller has 32 tines, and the 80-inch model has 36. The rotating tine arrangement breaks and mixes soil across the selected working width.
  • The hydraulic motor drives the tilling rotor directly in either direction. The direct-drive arrangement turns the working tines without a separate PTO driveline.
  • Left-hand and right-hand blades are available as separate service parts. Replacing worn blades renews the soil-contacting cutting surfaces on the existing rotor.

Loflin Hydraulic Rotary Tiller

  • Manufacturer: Loflin Fabrication
  • Tilling widths: 72 or 80 inches
  • Overall widths: 90 inches (72-inch model), 98 inches (80-inch model)
  • Tilling depth: 6 inches
  • Tines: 32 (72-inch), 36 (80-inch)
  • 72-inch hydraulic flow: 14–22 GPM
  • 80-inch hydraulic flow: 16–28 GPM
  • Drive: hydraulic, direct, bi-directional
  • Weights: 580 lb (72-inch), 640 lb (80-inch)

Loflin Hydraulic Rotary Tiller

  • Seedbed and garden preparation.
  • Soil conditioning before lawn or sod installation.
  • Incorporating loose organic material into soil.

Loflin Fabrication: Brand & Attachment Videos

Loflin Hydraulic Rotary Tiller

BUILT FOR THE WORK:

  • Choose a 72-inch or 80-inch tilling width for the area being prepared. Overall attachment widths are 90 and 98 inches respectively, including the surrounding assembly.
  • The rotor works soil to a tilling depth of 6 inches. Controlled passes break up the surface layer and blend loose material into the prepared soil.
  • The 72-inch tiller has 32 tines, and the 80-inch model has 36. The rotating tine arrangement breaks and mixes soil across the selected working width.
  • The hydraulic motor drives the tilling rotor directly in either direction. The direct-drive arrangement turns the working tines without a separate PTO driveline.
  • Left-hand and right-hand blades are available as separate service parts. Replacing worn blades renews the soil-contacting cutting surfaces on the existing rotor.

MATCH YOUR WORKING SETUP:

  • Seedbed and garden preparation.
  • Soil conditioning before lawn or sod installation.
  • Incorporating loose organic material into soil.
  • Match the mounting or component interface to the installed equipment.
  • Account for attachment weight within carrier handling limits.

READY FOR THE FIELD:

  • Inspect working components and retaining hardware.
  • Secure the attachment or replacement part to the correct interface.
  • Inspect hydraulic connections where the assembly uses them.
  • Check the work area for obstructions and locate buried utilities.
  • Follow the carrier and attachment operating or service procedures.
