LOFLIN FABRICATION

Manual Teleboom

For Skid Steers & Track Loaders

22 ft Maximum Extension

Request QuoteAdd To Cart

Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders

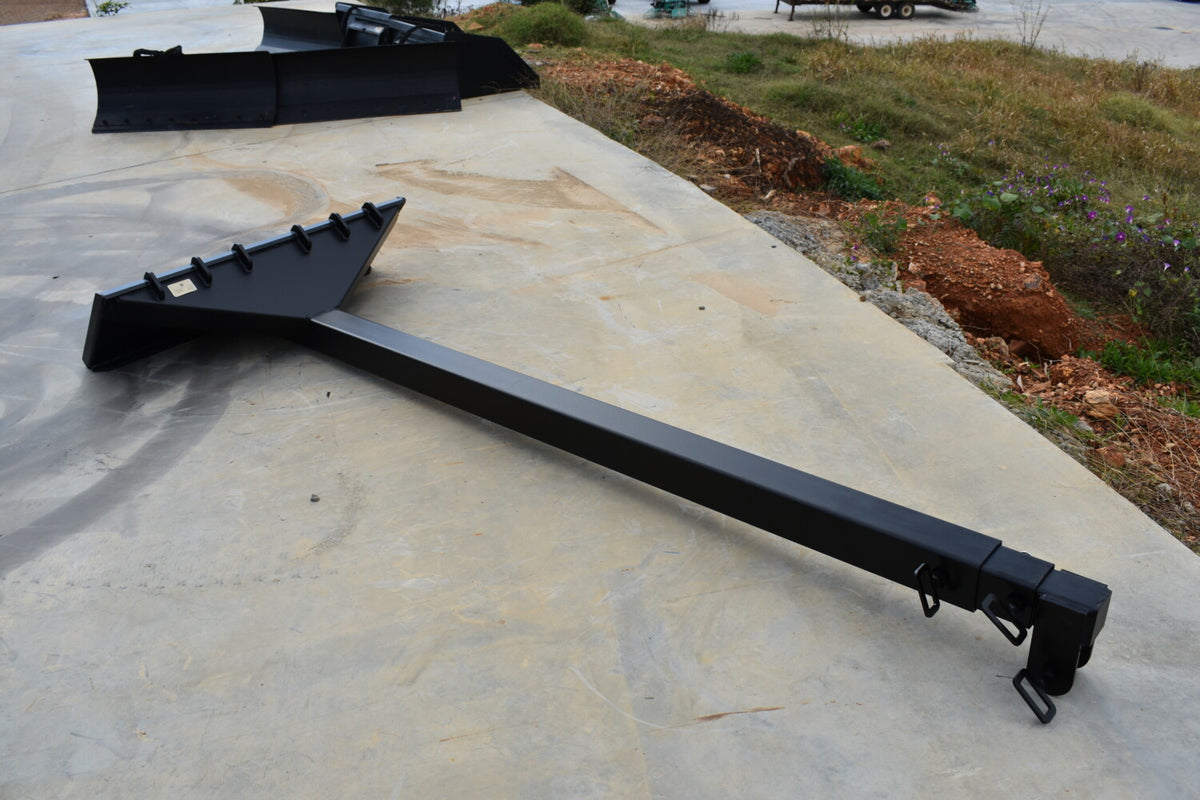

Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.

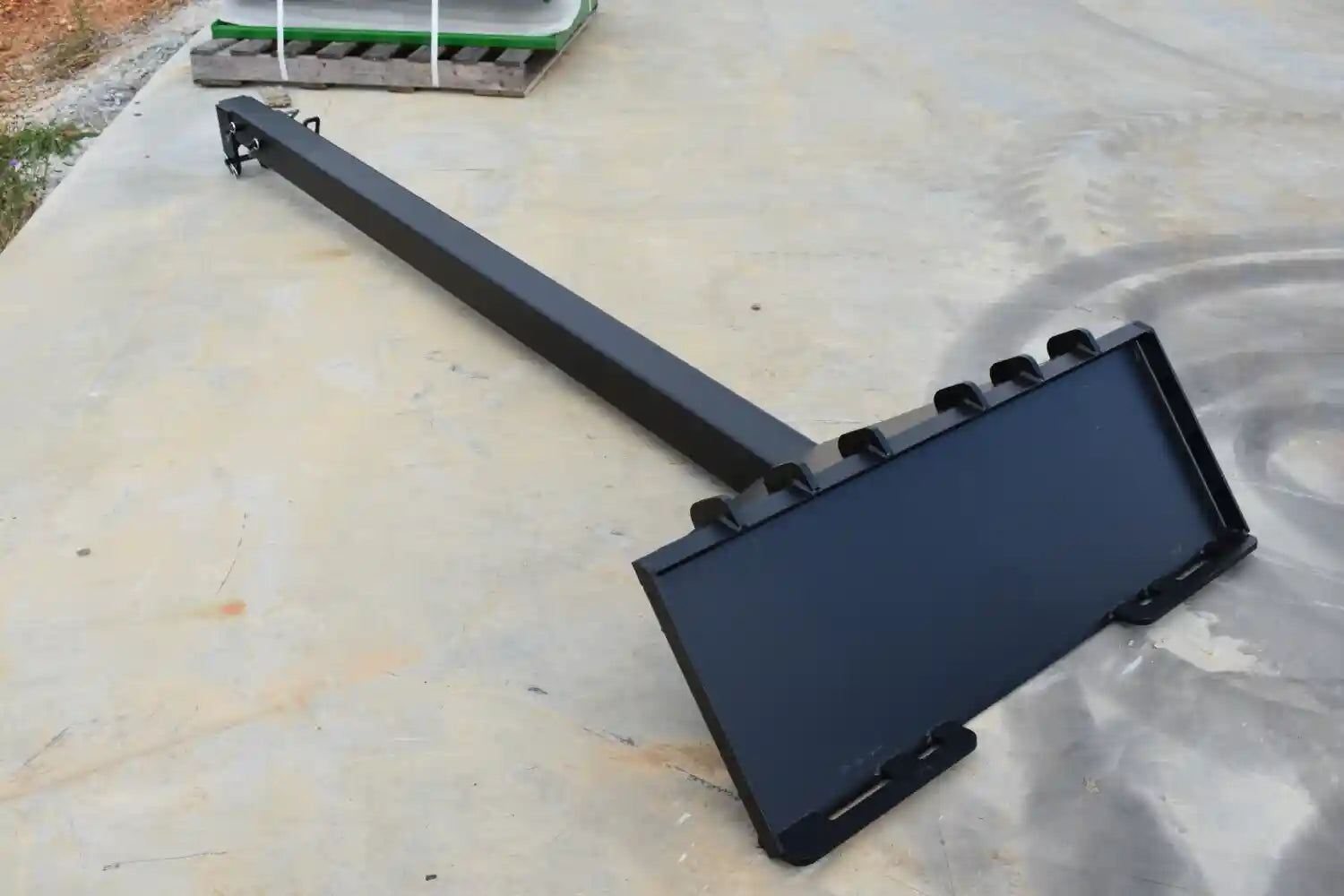

Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.

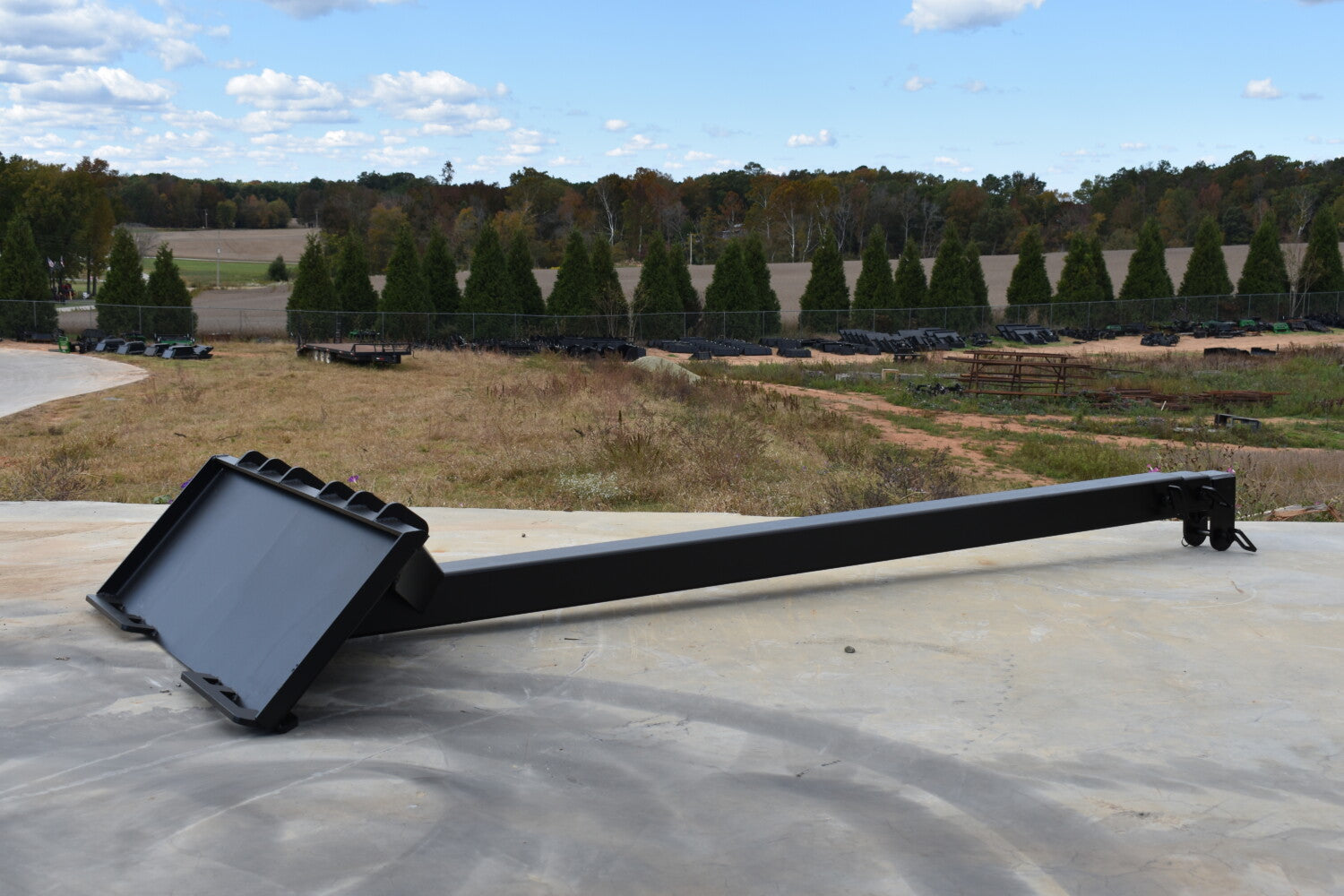

Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.

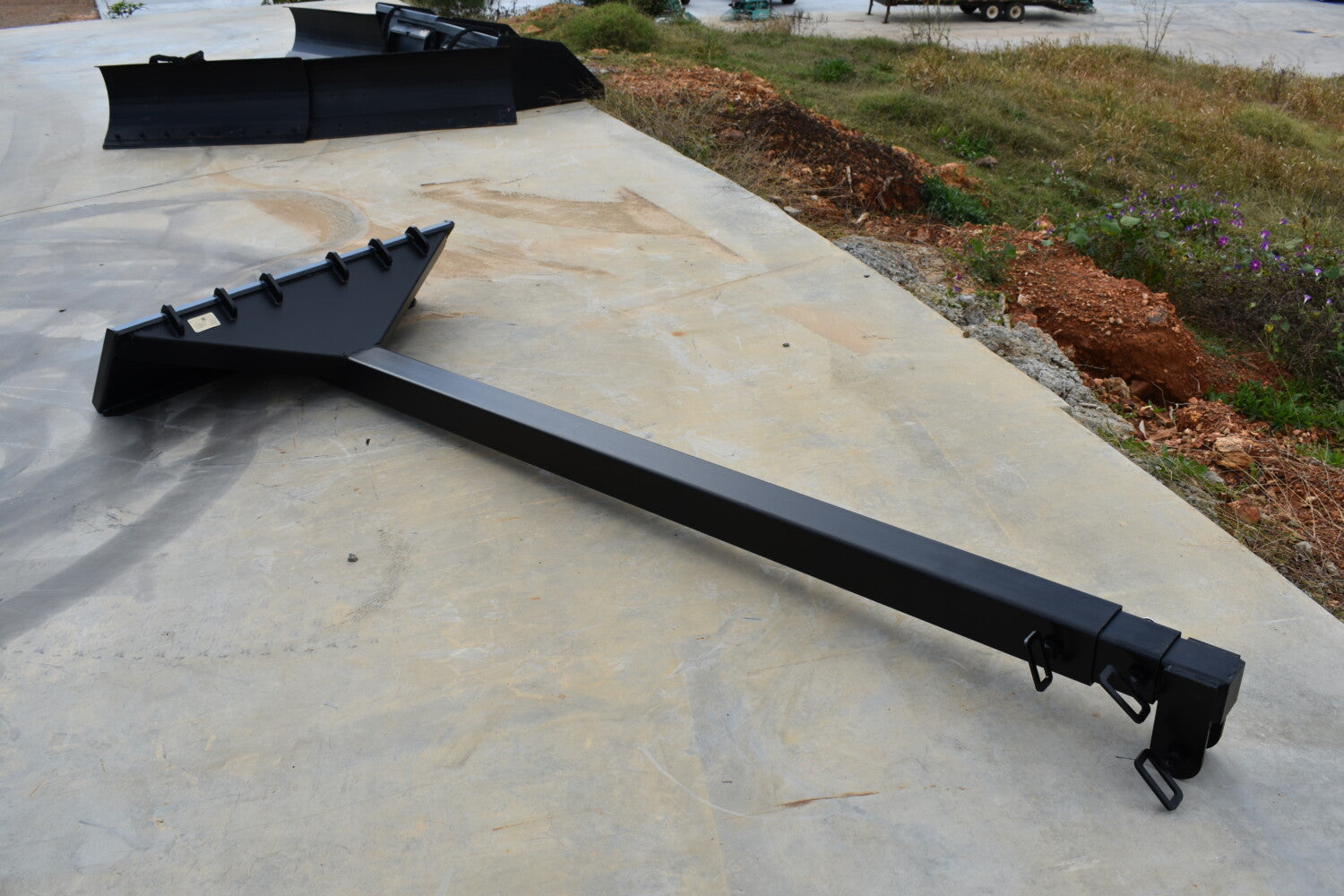

Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.

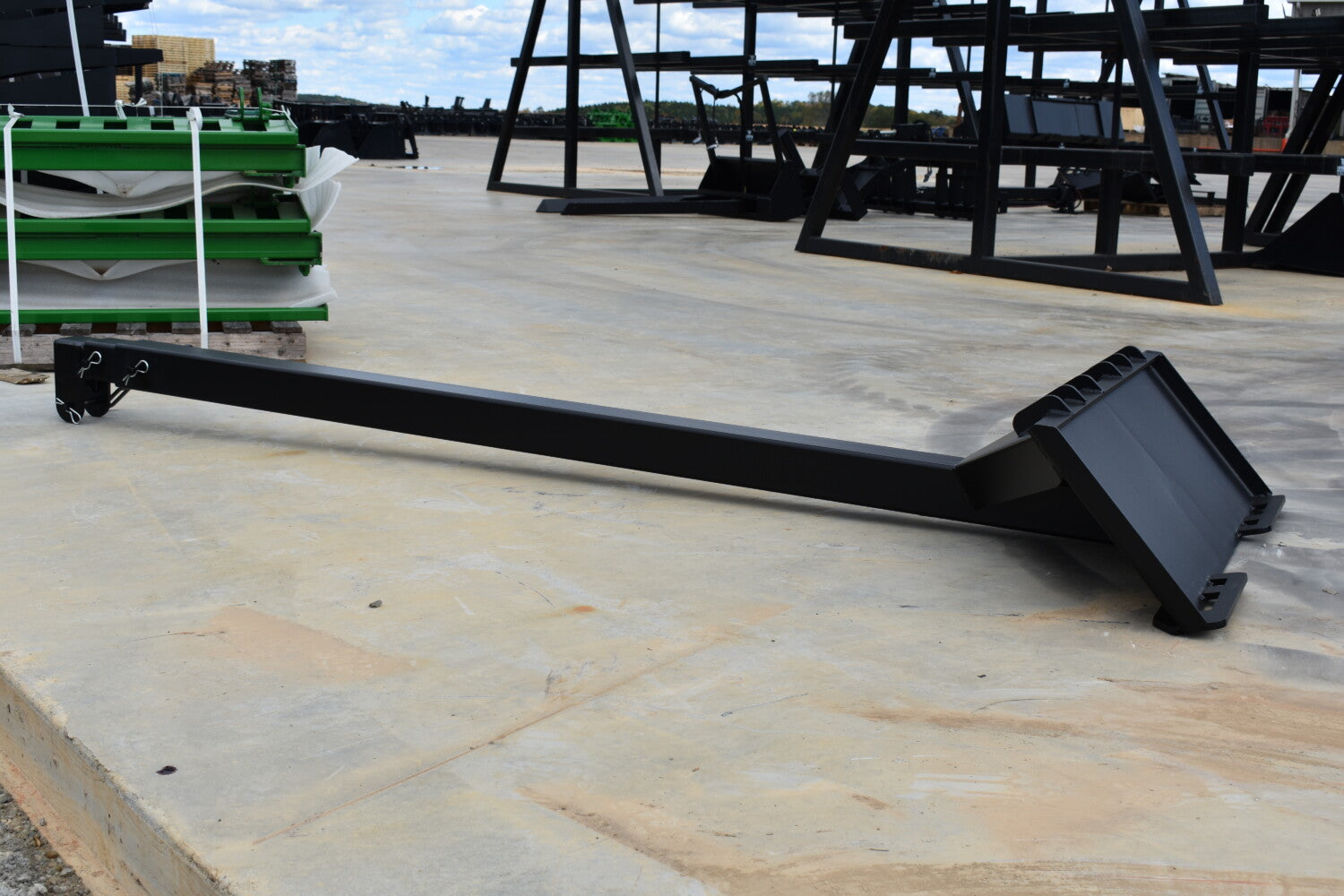

Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.
Roll over image to zoom in Click on image to zoom

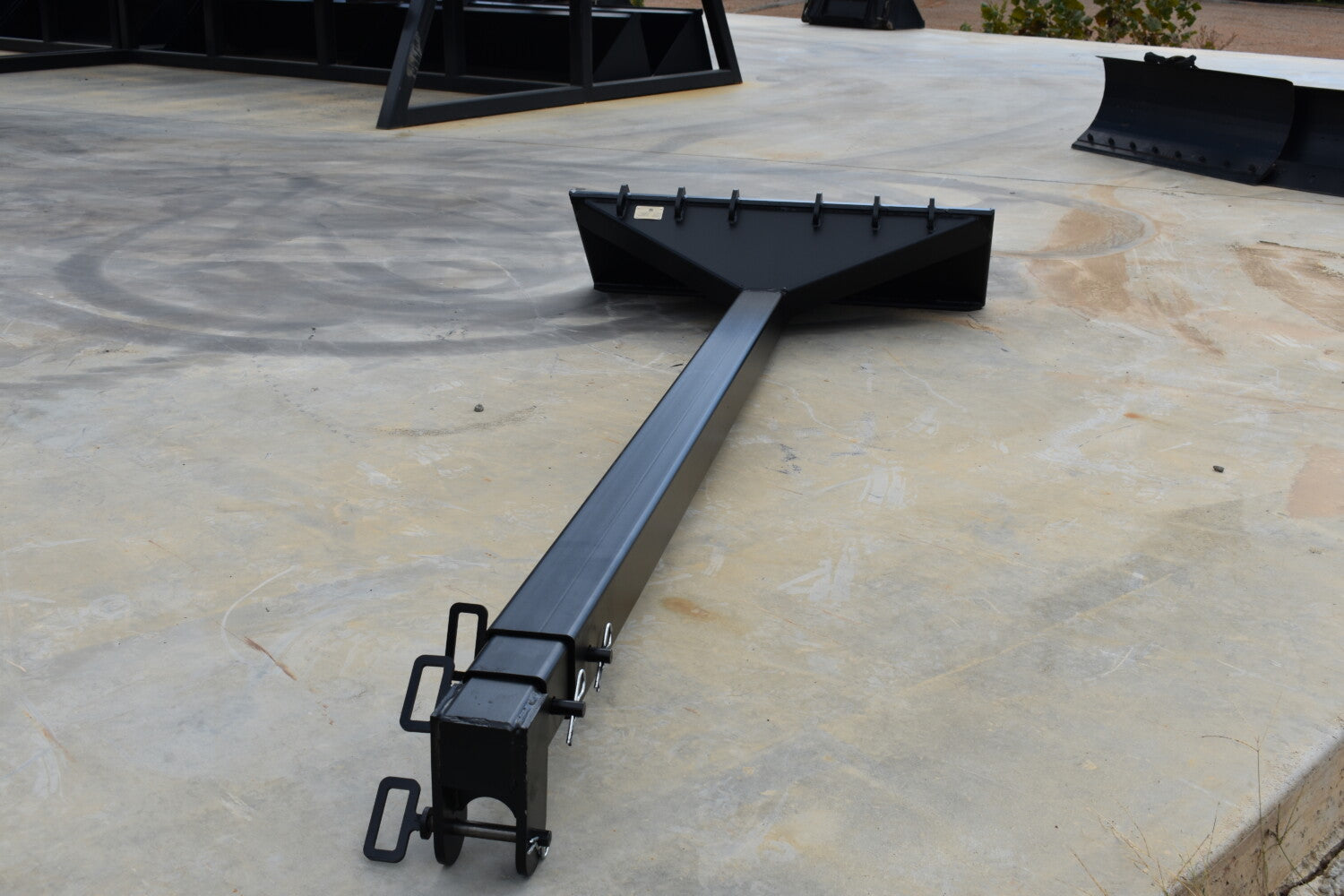

Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders; manufacturer family image, illustrated configuration may differ.
Loflin Fabrication

Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders

SKU: 0640101264 Currently In Stock

$2,931.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

22-FOOT FULL EXTENSION

THE TELESCOPING BOOM REACHES 22 FEET AT FULL EXTENSION. THE WORKING LOAD MUST BE MATCHED TO THE SELECTED EXTENSION AND THE CARRIER LIFT GEOMETRY.

340-POUND FULL-REACH RATING

THE ATTACHMENT RATING IS 340 POUNDS AT FULL EXTENSION. THIS REDUCED END-OF-REACH RATING MUST BE OBSERVED EVEN WHEN THE CARRIER HAS A HIGHER NOMINAL LIFTING CAPACITY.

800-POUND RETRACTED RATING

THE FULLY CONTRACTED ATTACHMENT RATING IS 800 POUNDS. AVAILABLE WORKING LOAD DECREASES AS THE BOOM EXTENDS, SO USE THE RATING FOR THE ACTUAL BOOM POSITION.

MANUAL EXTENSION ADJUSTMENT

THE TELESCOPING LENGTH IS SET MANUALLY FOR THE WORKING TASK. SECURE THE EXTENSION IN THE CORRECT POSITION BEFORE LIFTING AND FOLLOW THE ATTACHMENT ADJUSTMENT PROCEDURE.

NESTED SQUARE-TUBE SECTIONS

THE BOOM USES NESTED SQUARE-TUBE SECTIONS TO PROVIDE TELESCOPING MOVEMENT. THE CORRESPONDING STRUCTURAL SECTIONS TRANSFER THE SUSPENDED LOAD BACK TOWARD THE LOADER MOUNTING FRAME.

Description

Key Benefits

Technical Specs

Applications

Loflin Manual Teleboom

The Loflin Fabrication Manual Teleboom For Skid Steers & Track Loaders extends the working lift point for controlled material positioning. Its telescoping structure reaches 22 feet at full extension for suitable construction, landscaping, and placement tasks.

The attachment rating is 800 pounds fully contracted and 340 pounds fully extended. The working load must follow the rating at the actual extension and remain within the carrier and rigging limits.

The manual teleboom uses a manually adjusted telescoping arrangement and weighs 420 pounds. Set and secure the extension using the attachment procedure before applying a lifting load.

Use a skid steer or compact track loader meeting the 1,750-pound minimum rated lift-capacity requirement, while accounting for the actual attachment and load geometry. Follow the applicable lifting procedures and keep the work area clear during placement.

Loflin Manual Teleboom

  • The telescoping boom reaches 22 feet at full extension. The working load must be matched to the selected extension and the carrier lift geometry.
  • The attachment rating is 340 pounds at full extension. This reduced end-of-reach rating must be observed even when the carrier has a higher nominal lifting capacity.
  • The fully contracted attachment rating is 800 pounds. Available working load decreases as the boom extends, so use the rating for the actual boom position.
  • The telescoping length is set manually for the working task. Secure the extension in the correct position before lifting and follow the attachment adjustment procedure.
  • The boom uses nested square-tube sections to provide telescoping movement. The corresponding structural sections transfer the suspended load back toward the loader mounting frame.

Loflin Manual Teleboom

  • Manufacturer: Loflin Fabrication
  • Maximum extension: 22 feet
  • Fully extended attachment rating: 340 lb
  • Fully contracted attachment rating: 800 lb
  • Attachment weight: 420 lb
  • Minimum carrier rated lift capacity: 1,750 lb
  • Extension control: manual adjustment
  • Carrier lift capacity and rigging may limit working load below attachment ratings

Loflin Manual Teleboom

  • Positioning suitable rigged construction materials.
  • Tree and landscape-material placement.
  • Controlled installation and site-staging tasks.

Loflin Fabrication: Brand & Attachment Videos

Loflin Manual Teleboom

BUILT FOR THE WORK:

  • The telescoping boom reaches 22 feet at full extension. The working load must be matched to the selected extension and the carrier lift geometry.
  • The attachment rating is 340 pounds at full extension. This reduced end-of-reach rating must be observed even when the carrier has a higher nominal lifting capacity.
  • The fully contracted attachment rating is 800 pounds. Available working load decreases as the boom extends, so use the rating for the actual boom position.
  • The telescoping length is set manually for the working task. Secure the extension in the correct position before lifting and follow the attachment adjustment procedure.
  • The boom uses nested square-tube sections to provide telescoping movement. The corresponding structural sections transfer the suspended load back toward the loader mounting frame.

MATCH YOUR WORKING SETUP:

  • Positioning suitable rigged construction materials.
  • Tree and landscape-material placement.
  • Controlled installation and site-staging tasks.
  • Match the mounting or component interface to the installed equipment.
  • Account for attachment weight within carrier handling limits.

READY FOR THE FIELD:

  • Inspect working components and retaining hardware.
  • Secure the attachment or replacement part to the correct interface.
  • Inspect hydraulic connections where the assembly uses them.
  • Check the work area for obstructions and locate buried utilities.
  • Follow the carrier and attachment operating or service procedures.
