LOFLIN FABRICATION

Medium Duty Root Grapple

For Skid Steers

34.25" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Medium Duty Root Grapple For Skid Steers

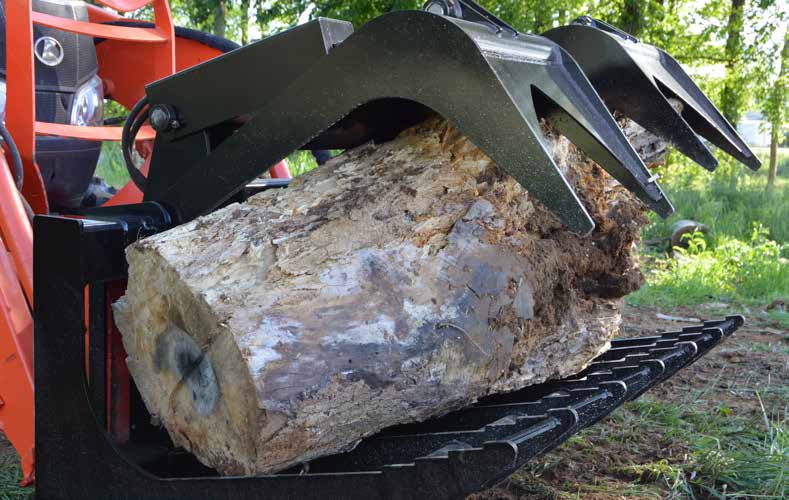

Loflin Fabrication Medium Duty Root Grapple shown in manufacturer catalog

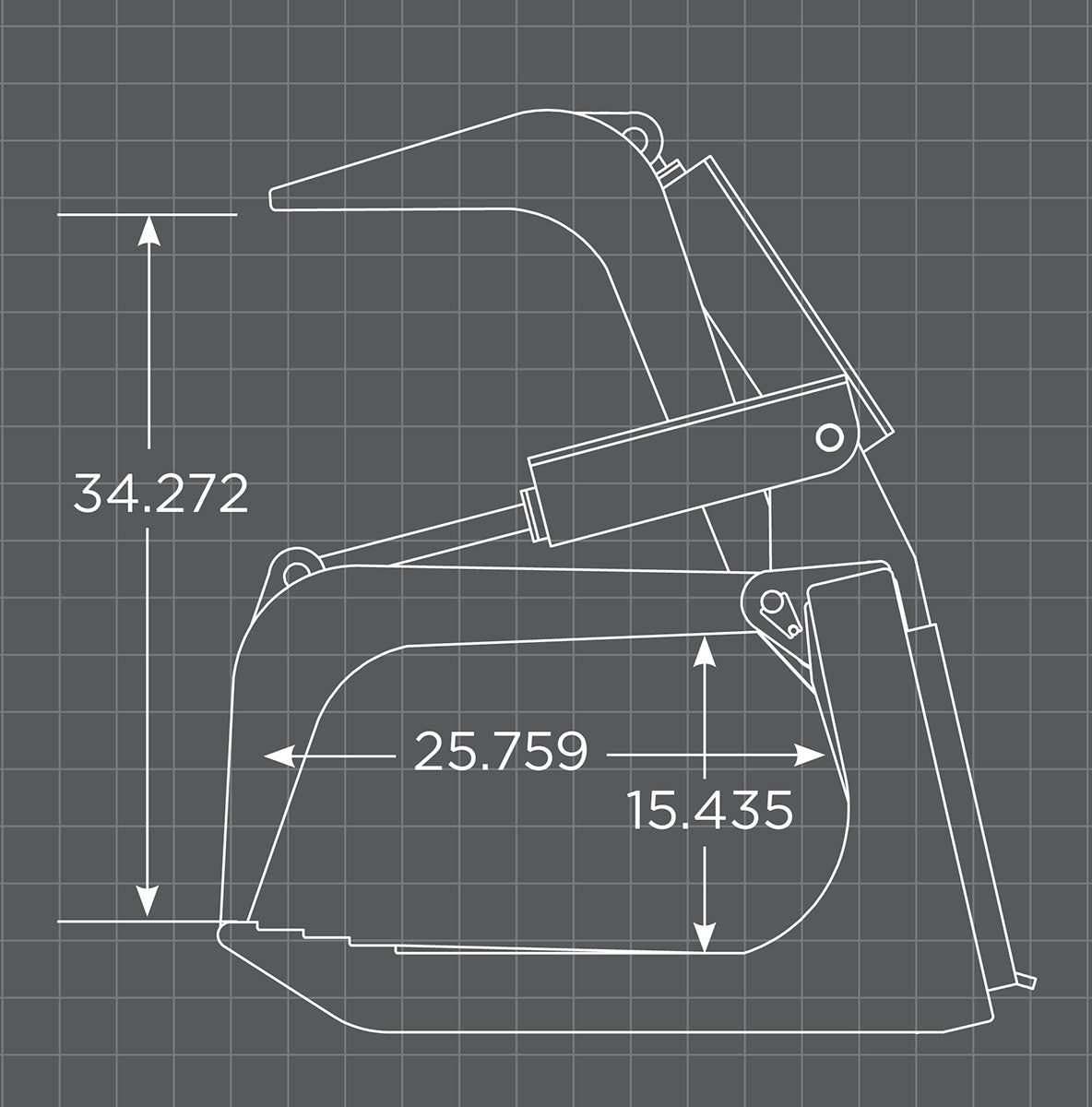

Loflin Fabrication Medium Duty Root Grapple For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Medium Duty Root Grapple shown in manufacturer catalogLoflin Fabrication Medium Duty Root Grapple For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Medium Duty Root Grapple For Skid Steers

SKU: 0010501060 Currently In Stock

$3,599.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

2 X 10 IN. COVERED CYLINDERS

CYLINDER COVERS SHIELD THE ACTUATOR AREA FROM DIRECT CONTACT WITH THE MATERIAL BEING HANDLED.

3/8 IN. STEEL TINES

STEEL TINES SUPPORT AND RETAIN THE GRAPPLE LOAD.

INDEPENDENT GRAPPLE TINES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

1.25 IN. GREASEABLE PINS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

REINFORCED QUICK ATTACH

THE REINFORCED MOUNTING AREA SUPPORTS THE CONNECTION BETWEEN THE GRAPPLE AND THE LOADER’S ATTACHMENT INTERFACE.

Description

Key Benefits

Technical Specs

Applications

Loflin Medium Duty Root Grapple

The Loflin Fabrication Medium Duty Root Grapple gives skid steer loaders a dedicated attachment for landscape cleanup and brush handling. Its lighter frame is intended for smaller machines without giving up independent control over uneven loads. Available working-width selections are 60", 66", 72".

2 x 10 in. covered cylinders and 3/8 in. steel tines define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

Independent grapple tines; 1.25 in. greaseable pins; Reinforced quick attach support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Recommended carrier horsepower: 50 HP and below. Match the hydraulic circuit separately. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Medium Duty Root Grapple

  • 2 x 10 in. covered cylinders
  • 3/8 in. steel tines
  • Independent grapple tines
  • 1.25 in. greaseable pins
  • Reinforced quick attach

Loflin Medium Duty Root Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: Medium Duty Root Grapple
  • Carrier group: skid steer loaders
  • Power source: carrier hydraulic actuation
  • Grapple opening: 34.25 in.
  • Width options: 60", 66", 72"
  • Recommended carrier horsepower: 50 HP and below
  • 2 x 10 in. covered cylinders
  • 3/8 in. steel tines
  • Independent grapple tines
  • 1.25 in. greaseable pins
  • Reinforced quick attach
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0010501060: 60" MEDIUM DUTY ROOT GRAPPLE; weight 564 lb
  • 0010501066: 66" MEDIUM DUTY ROOT GRAPPLE; weight 599 lb
  • 0010501072: 72" MEDIUM DUTY ROOT GRAPPLE; weight 633 lb

Loflin Medium Duty Root Grapple

  • Landscape cleanup and brush handling.
  • Material transfer with a properly matched skid steer loader carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Medium Duty Root Grapple

BUILT TO HANDLE THE LOAD:

  • Its lighter frame is intended for smaller machines without giving up independent control over uneven loads.
  • 2 x 10 in. covered cylinders
  • 3/8 in. steel tines
  • Independent grapple tines
  • 1.25 in. greaseable pins

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for landscape cleanup and brush handling.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for landscape cleanup and brush handling with a suitable skid steer loader carrier.
  • 2 x 10 in. covered cylinders.
  • 3/8 in. steel tines.
  • Independent grapple tines.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
