LOFLIN FABRICATION

Hydraulic Angle Dozer Blade

For Mini Skid Steers

48" Blade Width

Request QuoteAdd To Cart

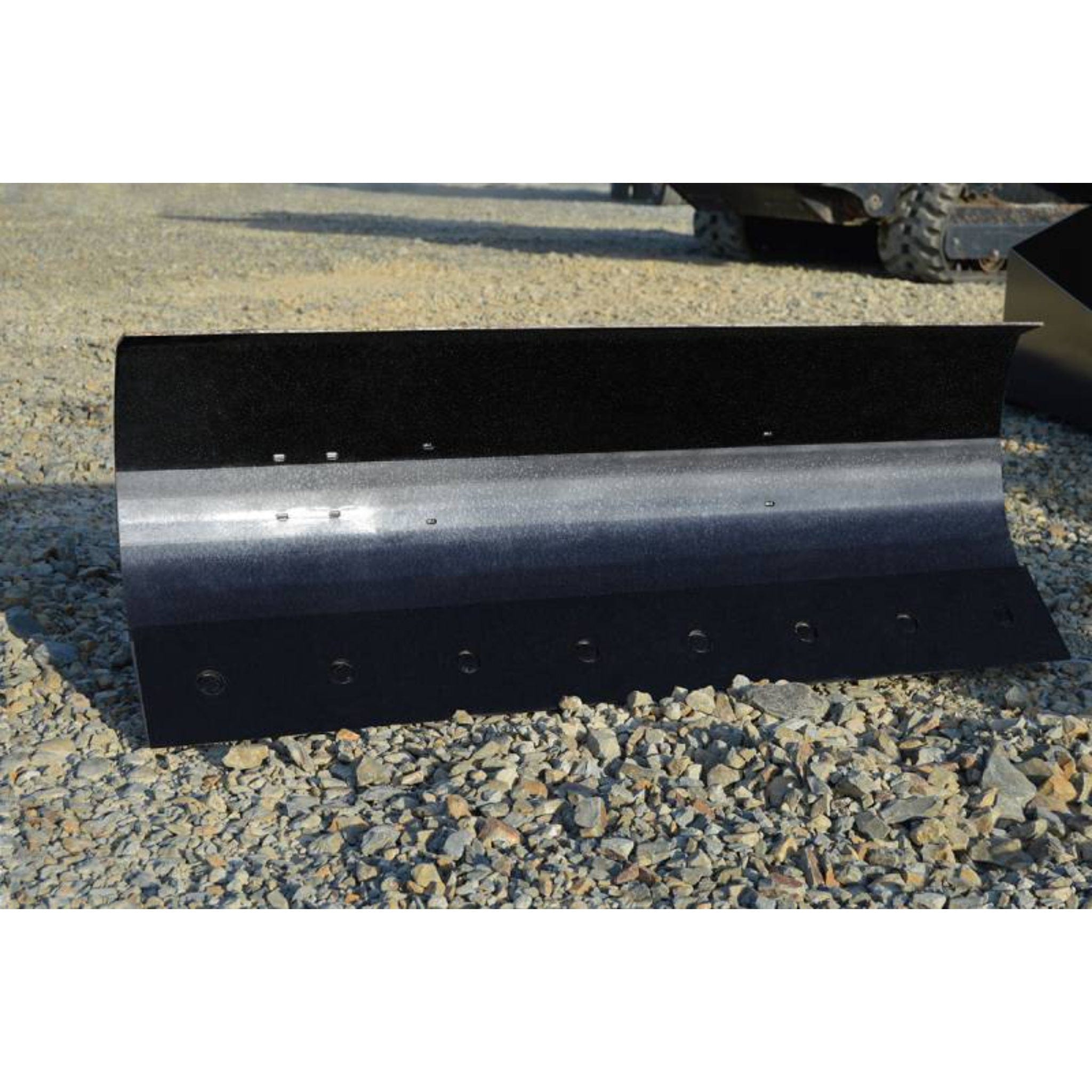

Loflin Fabrication Hydraulic Angle Dozer Blade For Mini Skid Steers

Loflin Fabrication Hydraulic Angle Dozer Blade For Mini Skid Steers; illustrated width or mount may vary
Loflin Fabrication Hydraulic Angle Dozer Blade For Mini Skid Steers; illustrated width or mount may vary
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Hydraulic Angle Dozer Blade For Mini Skid Steers; illustrated width or mount may varyLoflin Fabrication Hydraulic Angle Dozer Blade For Mini Skid Steers; illustrated width or mount may vary
Loflin Fabrication

Loflin Fabrication Hydraulic Angle Dozer Blade For Mini Skid Steers

SKU: 0252006048 Currently In Stock

$1,449.18 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

48-INCH SCRAPE BLADE

THE SCRAPE BLADE IS 48 INCHES WIDE AND 17 INCHES TALL. THE COMPACT BLADE PROVIDES A DEFINED PUSHING SURFACE FOR SMALLER GRADING AREAS, PATHS, AND LANDSCAPE PROJECTS.

HYDRAULIC PIVOT CYLINDER

A 2-INCH-BORE CYLINDER WITH A 10-INCH STROKE PIVOTS THE BLADE. THE CYLINDER CHANGES BLADE ANGLE THROUGH THE AUXILIARY HYDRAULIC CIRCUIT, ALLOWING THE OPERATOR TO DIRECT MATERIAL DURING A PASS.

REVERSIBLE BOLT-ON EDGE

THE STEEL EDGE MEASURES 5/8 INCH THICK BY 6 INCHES WIDE. ITS REVERSIBLE, BOLT-ON LAYOUT PROVIDES A SERVICEABLE WEAR SURFACE ALONG THE BOTTOM OF THE BLADE FOR SCRAPING AND GRADING.

PARKER HYDRAULIC COMPONENTS

PARKER HOSES, FITTINGS, AND COUPLERS CONNECT THE PIVOT CIRCUIT. THESE COMPONENTS LINK THE CYLINDER TO THE LOADER'S AUXILIARY HYDRAULICS SO THE BLADE CAN BE ANGLED DURING OPERATION.

POWDER-COATED STEEL

A POWDER-COATED FINISH PROTECTS THE STEEL BLADE ASSEMBLY. THE COATING COVERS THE BLADE'S EXPOSED STEEL SURFACES, HELPING PROTECT THE ASSEMBLY FROM MOISTURE AND OUTDOOR EXPOSURE.

Description

Key Benefits

Technical Specs

Applications

Loflin Hydraulic Angle Dozer Blade

The Loflin Fabrication Mini Skid Steer Dozer Blade pushes and grades material with a 48-inch-wide, 17-inch-tall scrape blade. Select the Toro Dingo or Bobcat MT mounting configuration.

A hydraulic pivot cylinder with a 2-inch bore and 10-inch stroke changes the blade angle. The loader controls height and tilt while the pivot directs material across the work area.

The blade uses a reversible 5/8 x 6-inch bolt-on steel edge. Parker hoses, fittings, and couplers connect the hydraulic circuit, and the assembly has a powder-coated finish.

Check the selected mounting interface, auxiliary connections, and machine capacity before work. A 1-1/2 x 10-inch rubber edge is an optional alternative and is not included in the standard steel-edge configuration.

Loflin Hydraulic Angle Dozer Blade

  • The scrape blade is 48 inches wide and 17 inches tall.
  • A 2-inch-bore cylinder with a 10-inch stroke pivots the blade.
  • The steel edge measures 5/8 inch thick by 6 inches wide.
  • Parker hoses, fittings, and couplers connect the pivot circuit.
  • A powder-coated finish protects the steel blade assembly.

Loflin Hydraulic Angle Dozer Blade

  • Manufacturer: Loflin Fabrication
  • Product: Hydraulic Angle Dozer Blade

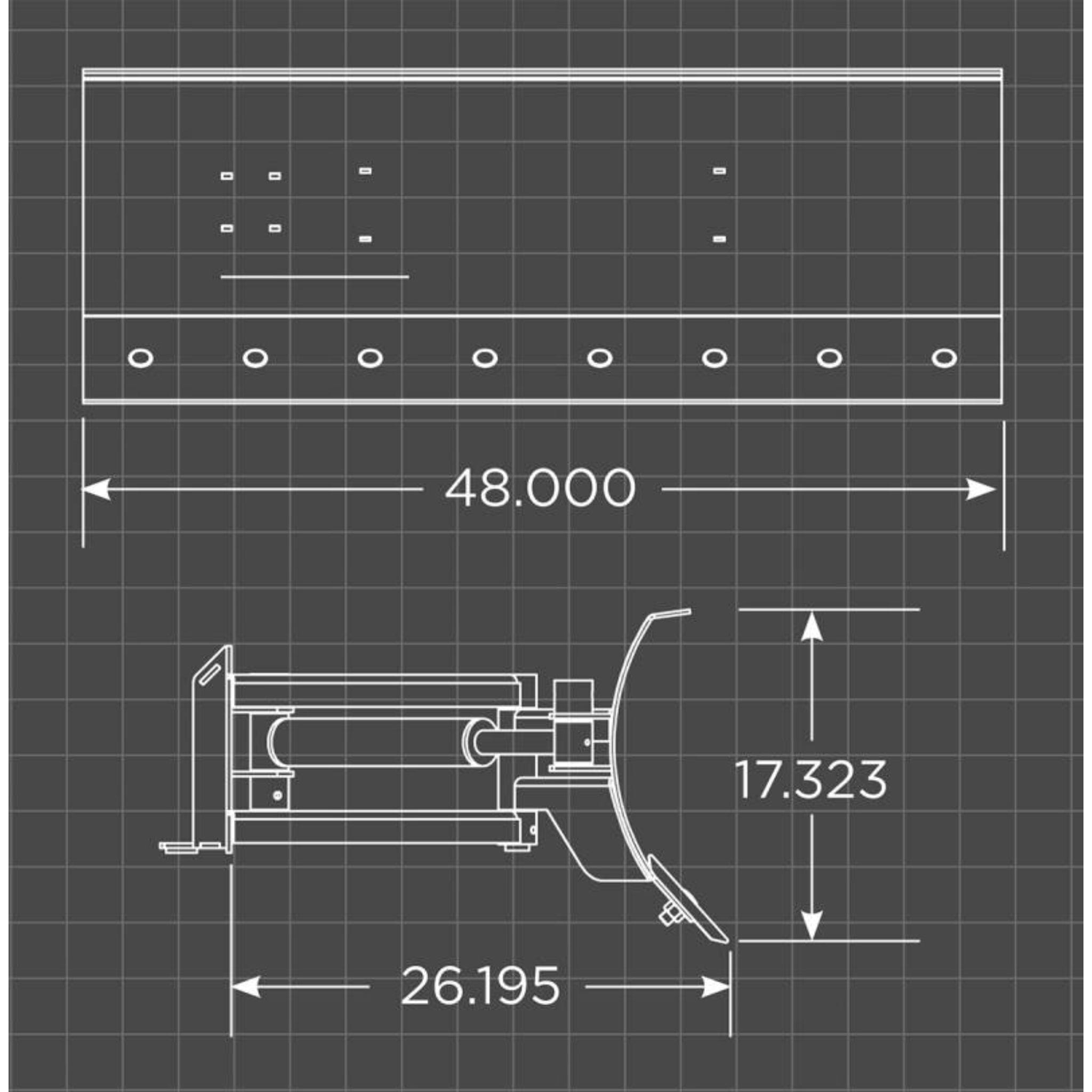

  • Blade: 48 inches wide x 17 inches tall
  • Cylinder: 2-inch bore x 10-inch stroke
  • Standard cutting edge: 5/8 x 6 inches, steel
  • Optional rubber edge: 1-1/2 x 10 inches, sold separately
  • 0252006048: 48" MINI HYDRAULIC ANGLE DOZER BLADE W/TORO DINGO MT; 203 lb
  • 0252008048: 48" MINI HYDRAULIC ANGLE DOZER BLADE W/BOBCAT MT

Loflin Hydraulic Angle Dozer Blade

  • Landscape and site preparation.
  • Soil and gravel surface maintenance.
  • Cleanup and material redistribution.

Loflin Fabrication: Brand & Attachment Videos

Loflin Hydraulic Angle Dozer Blade

BUILT FOR THE WORK:

  • The scrape blade is 48 inches wide and 17 inches tall.
  • A 2-inch-bore cylinder with a 10-inch stroke pivots the blade.
  • The steel edge measures 5/8 inch thick by 6 inches wide.
  • Parker hoses, fittings, and couplers connect the pivot circuit.
  • A powder-coated finish protects the steel blade assembly.

CONTROLLED SURFACE WORK:

  • Landscape and site preparation.
  • Soil and gravel surface maintenance.
  • Cleanup and material redistribution.
  • Use controlled passes suited to the ground conditions.
  • Keep loads and working forces within the carrier ratings.

READY FOR THE FIELD:

  • Inspect the working edges or tines and retaining hardware.
  • Match the attachment width and weight to the carrier.
  • Inspect hydraulic connections, hoses, and cylinder movement.
  • Set the working position for the material and surface.
  • Follow the carrier and attachment operating procedures.
