Mini Excavator Bucket

For Mini Excavators

18"–36" Width Options

Request QuoteAdd To Cart

Loflin Fabrication Bucket For Mini Excavators

Loflin Fabrication Mini Excavator Bucket For Mini Excavators manufacturer family image 2; illustrated configuration may differ from selected option
Loflin Fabrication Mini Excavator Bucket For Mini Excavators manufacturer family image 1; illustrated configuration may differ from selected option

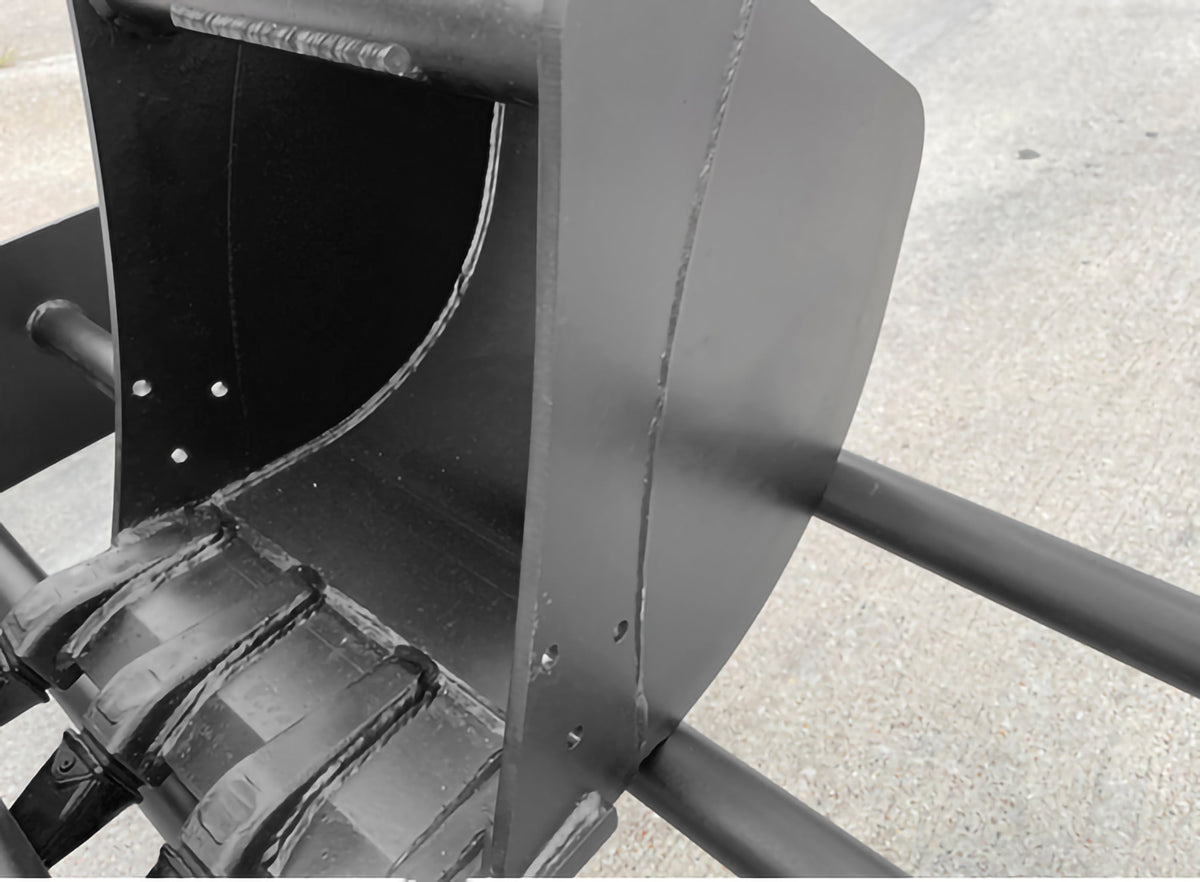

Loflin Fabrication Mini Excavator Bucket For Mini Excavators manufacturer family image 3; illustrated configuration may differ from selected option

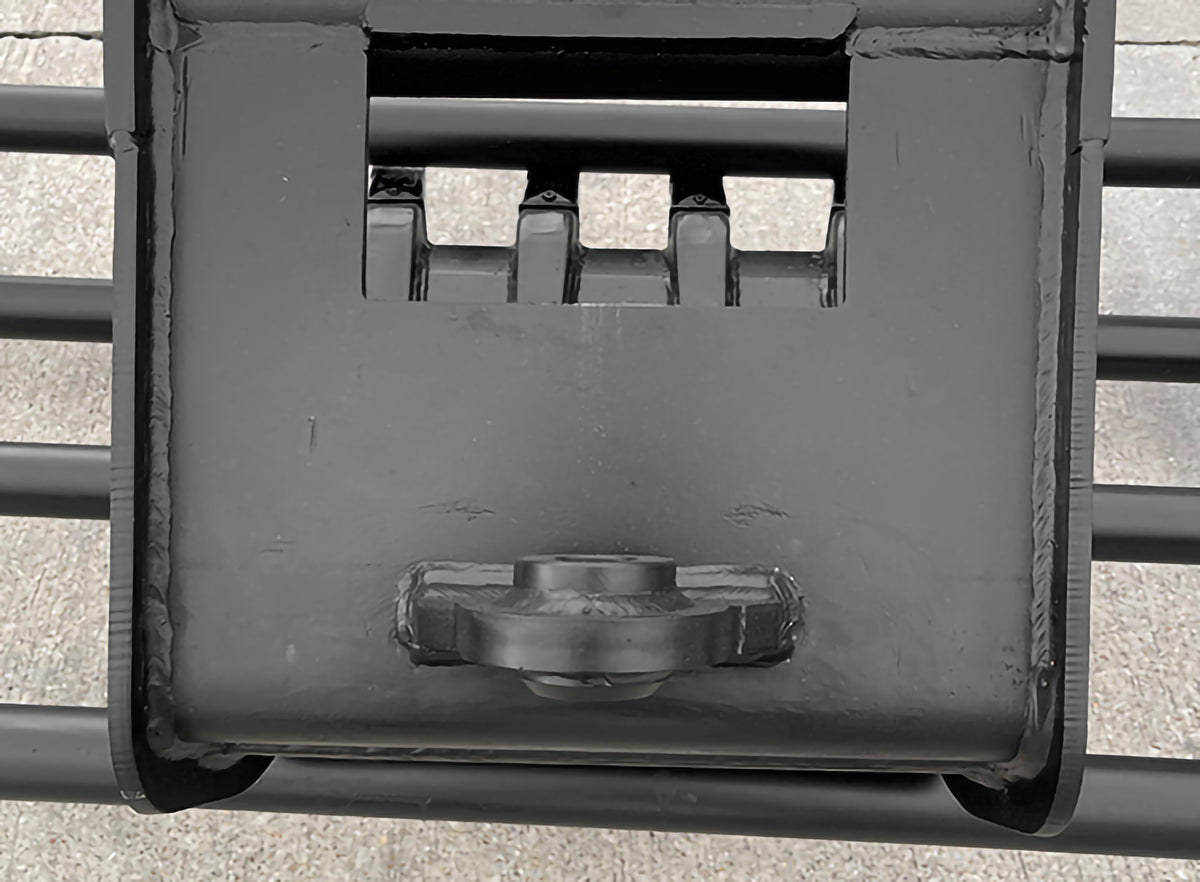

Loflin Fabrication Mini Excavator Bucket For Mini Excavators manufacturer family image 4; illustrated configuration may differ from selected option

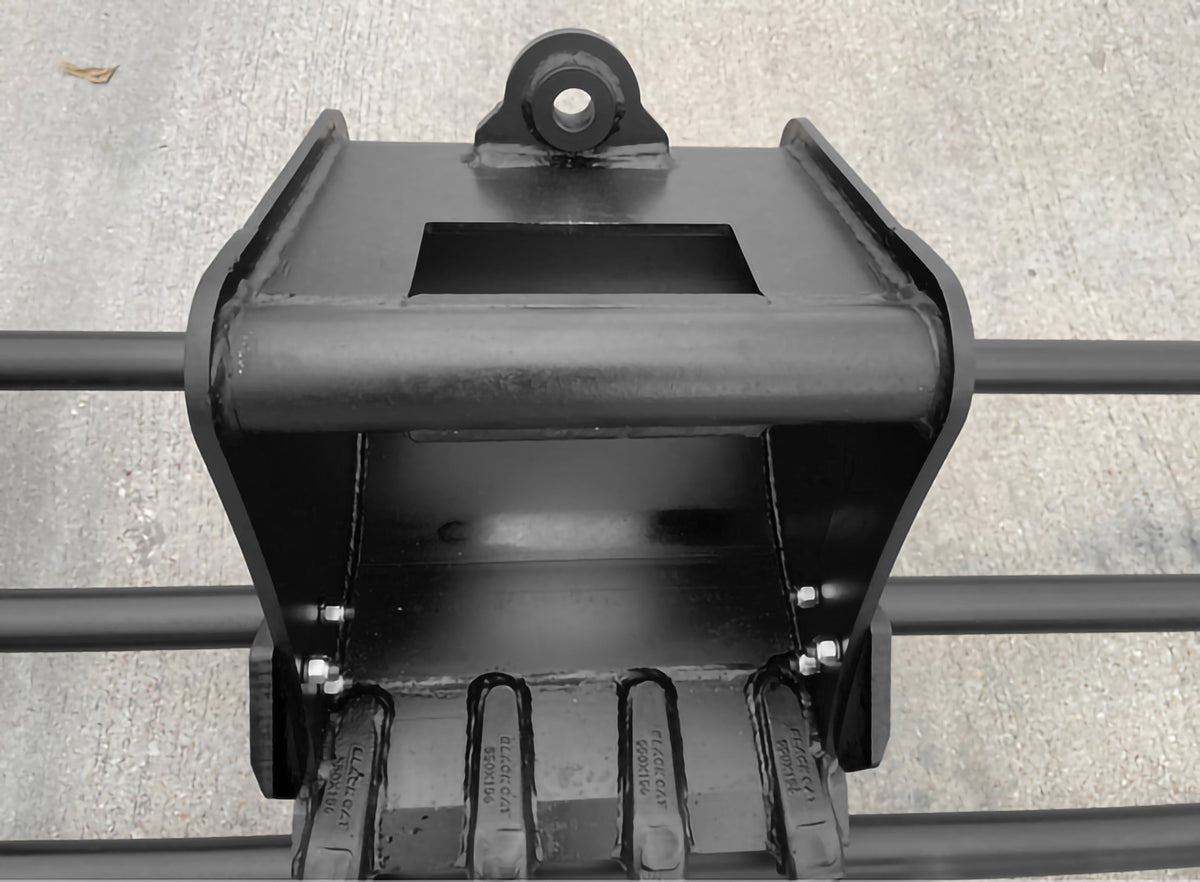

Loflin Fabrication Mini Excavator Bucket For Mini Excavators manufacturer family image 5; illustrated configuration may differ from selected option
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Mini Excavator Bucket For Mini Excavators manufacturer family image 2; illustrated configuration may differ from selected optionLoflin Fabrication Mini Excavator Bucket For Mini Excavators manufacturer family image 1; illustrated configuration may differ from selected optionLoflin Fabrication Mini Excavator Bucket For Mini Excavators manufacturer family image 3; illustrated configuration may differ from selected optionLoflin Fabrication Mini Excavator Bucket For Mini Excavators manufacturer family image 4; illustrated configuration may differ from selected optionLoflin Fabrication Mini Excavator Bucket For Mini Excavators manufacturer family image 5; illustrated configuration may differ from selected option
Loflin Fabrication

Loflin Fabrication Bucket For Mini Excavators

SKU: 0541565018 Currently In Stock

$2,399.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

18–36-INCH WIDTH RANGE

WORKING WIDTHS SPAN 18–36 INCHES ACROSS THE AVAILABLE BUCKET CONFIGURATIONS. SELECT A WIDTH SUITED TO TRENCH SIZE, MATERIAL VOLUME, AND THE HANDLING CAPACITY OF YOUR EXCAVATOR.

SMOOTH OR TOOTHED EDGE

TOOTHED BUCKETS ARE AVAILABLE IN 18-, 24-, 30-, AND 36-INCH WIDTHS. SMOOTH-EDGE CONFIGURATIONS COME IN 30 AND 36 INCHES FOR GRADING AND LOOSE-MATERIAL WORK.

BOBCAT X-CHANGE CONNECTION

THE BUCKET USES THE BOBCAT X-CHANGE MOUNTING INTERFACE. MATCH THE EXCAVATOR'S INSTALLED COUPLER TO THIS CONNECTION RATHER THAN ASSUMING THE BUCKET FITS EVERY MINI EXCAVATOR.

CARRIER-DRIVEN DIGGING

THE EXCAVATOR BOOM, STICK, AND CURL LINKAGE SUPPLY THE WORKING MOVEMENT. THIS PASSIVE BUCKET DOES NOT NEED A SEPARATE HYDRAULIC MOTOR, PTO DRIVE, OR AUXILIARY HOSE CIRCUIT.

285–425-POUND CONFIGURATIONS

ATTACHMENT WEIGHTS RANGE FROM 285 TO 425 POUNDS ACROSS THE SIX CONFIGURATIONS. INCLUDE BUCKET WEIGHT AND THE MATERIAL LOAD WHEN EVALUATING THE EXCAVATOR'S LIFTING AND HANDLING LIMITS.

Description

Key Benefits

Technical Specs

Applications

Loflin Mini Excavator Bucket

The Loflin Fabrication Mini Excavator Bucket For Mini Excavators is built for trenching, digging, and cleanup with a matching mini excavator. Choose from 18", 24", 30", 36" working widths to suit your loader and jobsite.

Bobcat X-Change mount and smooth and tooth edge choices define the working construction. 18–36 in. width range supports the bucket’s intended material-handling role. Keep each load centered and within the carrier’s operating limits.

Bobcat X-Change interface and Smooth or toothed cutting edges complete the family specification. Select the width, edge, and mount options before ordering. Available components depend on the selected configuration.

This bucket has no independent hydraulic motor or PTO power requirement. Verify the mounting interface, loader lift capacity, attachment weight, and loaded material weight before ordering. This bucket uses the Bobcat X-Change mount. Contact us for other mounting interfaces.

Loflin Mini Excavator Bucket

  • Working widths span 18–36 inches across the available bucket configurations. Select a width suited to trench size, material volume, and the handling capacity of your excavator.
  • Toothed buckets are available in 18-, 24-, 30-, and 36-inch widths. Smooth-edge configurations come in 30 and 36 inches for grading and loose-material work.
  • The bucket uses the Bobcat X-Change mounting interface. Match the excavator's installed coupler to this connection rather than assuming the bucket fits every mini excavator.
  • The excavator boom, stick, and curl linkage supply the working movement. This passive bucket does not need a separate hydraulic motor, PTO drive, or auxiliary hose circuit.
  • Attachment weights range from 285 to 425 pounds across the six configurations. Include bucket weight and the material load when evaluating the excavator's lifting and handling limits.

Loflin Mini Excavator Bucket

  • Manufacturer: Loflin Fabrication
  • Product family: Mini Excavator Bucket
  • Carrier group: Mini Excavators
  • Power requirement: Passive attachment; no separate hydraulic motor or PTO power input.
  • Bobcat X-Change mount
  • Smooth and tooth edge choices
  • 18–36 in. width range
  • Bobcat X-Change interface
  • Smooth or toothed cutting edges
  • This bucket uses the Bobcat X-Change mount. Contact us for other mounting interfaces.
  • Mount selection and loaded lift capacity must be verified separately.
  • 0541565018: 18"MINI EX BUCKET W/TEETH W/BOBCAT XCHANGE; weight 285 lb
  • 0541565024: 24"MINI EX BUCKET W/TEETH W/BOBCAT XCHANGE; weight 315 lb
  • 0541565030: 30"MINI EX BUCKET W/TEETH W/BOBCAT XCHANGE; weight 360 lb
  • 0541565036: 36"MINI EX BUCKET W/TEETH W/BOBCAT XCHANGE; weight 425 lb
  • 0540165030: 30"MINI EX BUCKET SMOOTH W/BOBCAT XCHANGE; weight 320 lb
  • 0540165036: 36"MINI EX BUCKET SMOOTH W/BOBCAT XCHANGE; weight 375 lb

Loflin Mini Excavator Bucket

  • Trenching, digging, and cleanup with a matching mini excavator.
  • Material handling with a correctly mounted mini excavators carrier.
  • Keep material density and load position within the carrier’s rated operating capacity.
  • Inspect the attachment and locking engagement before each use.

Loflin Fabrication: Bucket Demonstrations & Brand Videos

Loflin Mini Excavator Bucket

BUILT FOR THE JOB:

  • Bobcat X-Change mount
  • Smooth and tooth edge choices
  • 18–36 in. width range
  • Bobcat X-Change interface
  • Smooth or toothed cutting edges

CONTROLLED MATERIAL HANDLING:

  • Trenching, digging, and cleanup with a matching mini excavator.
  • Select a width suited to the carrier and access area.
  • Keep the bucket load centered during travel.
  • Account for material density and the attachment’s own weight.
  • Check the carrier’s lift rating at the operating position.

READY FOR THE FIELD:

  • Designed for trenching, digging, and cleanup with a matching mini excavator.
  • Bobcat X-Change mount.
  • Smooth and tooth edge choices.
  • Choose the required width, cutting edge, and mounting interface.
  • Confirm attachment weight, loaded capacity, and mounting engagement before operation.
