LOFLIN FABRICATION

Grapple Bucket

For Mini Skid Steers

36.5" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Mini Grapple Bucket For Mini Skid Steers

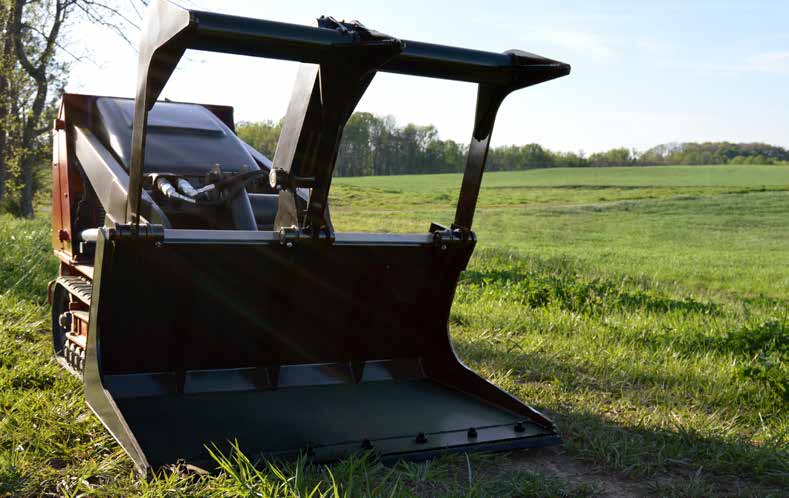

Loflin Fabrication Mini Grapple Bucket shown in manufacturer catalog

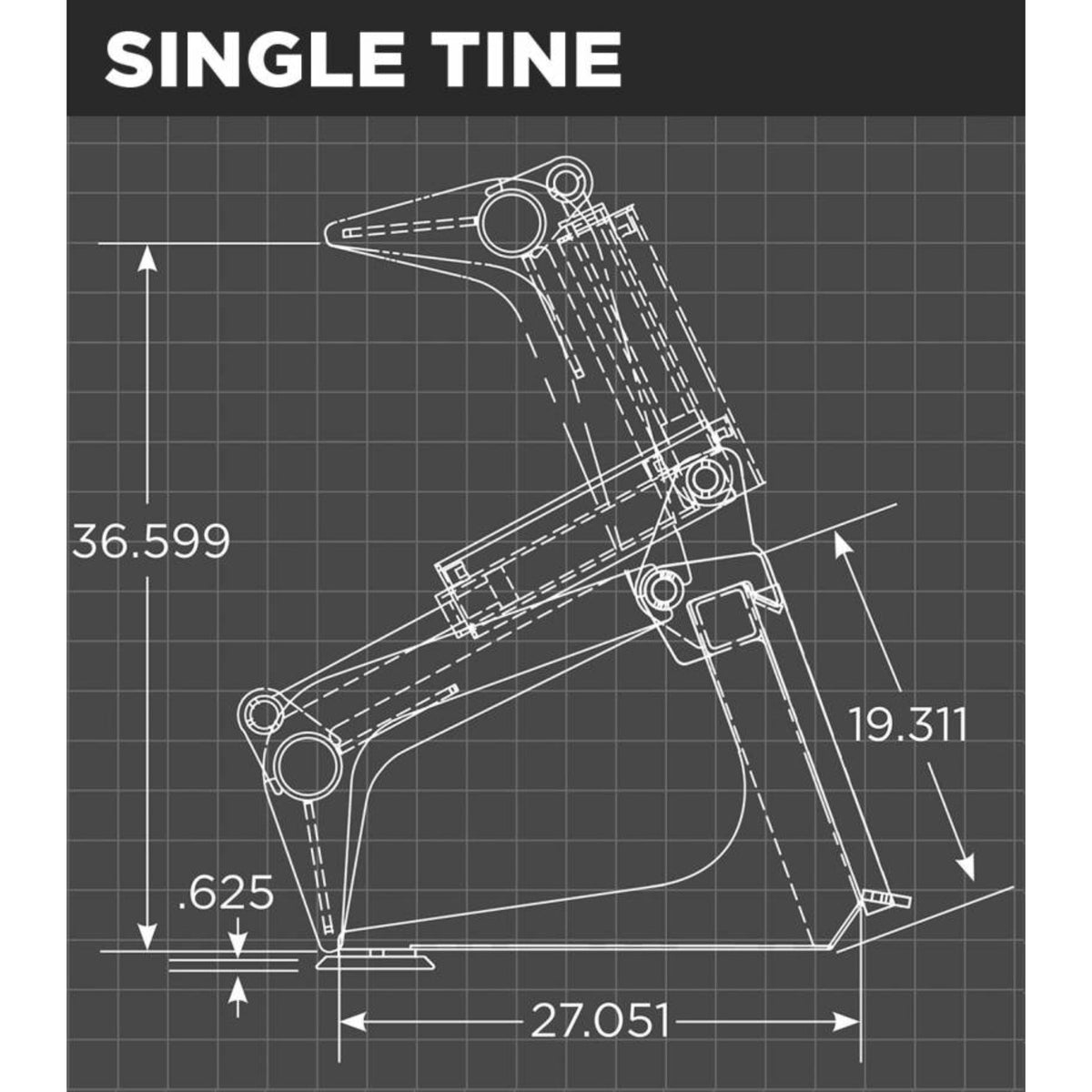

Loflin Fabrication Mini Grapple Bucket For Mini Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Mini Grapple Bucket shown in manufacturer catalogLoflin Fabrication Mini Grapple Bucket For Mini Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Mini Grapple Bucket For Mini Skid Steers

SKU: 0156506036 Currently In Stock

$1,864.73 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

SINGLE 3/8 IN. UPPER TINE

A SINGLE UPPER GRAPPLE CLOSES TOWARD THE LOWER BODY TO RETAIN MATERIAL ON THE COMPACT ATTACHMENT.

2 X 10 IN. HYDRAULIC CYLINDER

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

3/16 IN. REINFORCED BOTTOM

THE BUCKET BODY SUPPORTS LOOSE MATERIAL BENEATH THE UPPER GRAPPLE DURING LOADING AND TRANSFER.

1/2 X 4 IN. CUTTING EDGE

THE STATED CUTTING-EDGE DIMENSIONS DESCRIBE THE FRONT WORKING LIP OF THE GRAPPLE BUCKET.

BOLT-ON REVERSIBLE EDGE

THE REVERSIBLE BOLT-ON EDGE CAN BE REMOVED FOR SERVICE OR TURNED TO EXPOSE ITS OTHER WORKING EDGE.

Description

Key Benefits

Technical Specs

Applications

Loflin Mini Grapple Bucket

The Loflin Fabrication Mini Grapple Bucket gives mini skid steers a dedicated attachment for compact-access debris pickup and landscaping cleanup. The solid floor and single upper grapple help carry loose material and secure brush with a compact loader. Available working-width selections are 36", 38", 42", 44", 48", 50".

Single 3/8 in. upper tine and 2 x 10 in. hydraulic cylinder define the working arrangement. The attachment supports repeated pickup, transfer, and placement rather than manual handling. Keep material centered and account for the attachment's own weight when assessing the carrier's available lifting capacity.

3/16 in. reinforced bottom; 1/2 x 4 in. cutting edge; Bolt-on reversible edge support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Mini Grapple Bucket

  • Single 3/8 in. upper tine
  • 2 x 10 in. hydraulic cylinder
  • 3/16 in. reinforced bottom
  • 1/2 x 4 in. cutting edge
  • Bolt-on reversible edge

Loflin Mini Grapple Bucket

  • Manufacturer: Loflin Fabrication
  • Product family: Mini Grapple Bucket
  • Carrier group: mini skid steers
  • Power source: carrier hydraulic actuation
  • Grapple opening: 36.5 in.
  • Width options: 36", 38", 42", 44", 48", 50"
  • Single 3/8 in. upper tine
  • 2 x 10 in. hydraulic cylinder
  • 3/16 in. reinforced bottom
  • 1/2 x 4 in. cutting edge
  • Bolt-on reversible edge
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0156506036: 36" MINI GRAPPLE BUCKET W/BOE W/TORO DINGO MT; weight 345 lb
  • 0156508036: 36" MINI GRAPPLE BUCKET W/BOE W/BOBCAT MT
  • 0156506038: 38" MINI GRAPPLE BUCKET W/BOE W/TORO DINGO MT
  • 0156508038: 38" MINI GRAPPLE BUCKET W/BOE W/BOBCAT MT
  • 0156506042: 42" MINI GRAPPLE BUCKET W/BOE W/TORO DINGO MT; weight 380 lb
  • 0156508042: 42" MINI GRAPPLE BUCKET W/BOE W/BOBCAT MT
  • 0156506044: 44" MINI GRAPPLE BUCKET W/BOE W/TORO DINGO MT
  • 0156508044: 44" MINI GRAPPLE BUCKET W/BOE W/BOBCAT MT
  • 0156506048: 48" MINI GRAPPLE BUCKET W/BOE W/TORO DINGO MT
  • 0156508048: 48" MINI GRAPPLE BUCKET W/BOE W/BOBCAT MT; weight 415 lb
  • 0156506050: 50" MINI GRAPPLE BUCKET W/BOE W/TORO DINGO MT
  • 0156508050: 50" MINI GRAPPLE BUCKET W/BOE W/BOBCAT MT; weight 425 lb

Loflin Mini Grapple Bucket

  • Compact-access debris pickup and landscaping cleanup.
  • Material transfer with a properly matched mini skid steer carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Mini Grapple Bucket

BUILT TO HANDLE THE LOAD:

  • The solid floor and single upper grapple help carry loose material and secure brush with a compact loader.
  • Single 3/8 in. upper tine
  • 2 x 10 in. hydraulic cylinder
  • 3/16 in. reinforced bottom
  • 1/2 x 4 in. cutting edge

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for compact-access debris pickup and landscaping cleanup.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for compact-access debris pickup and landscaping cleanup with a suitable mini skid steer carrier.
  • Single 3/8 in. upper tine.
  • 2 x 10 in. hydraulic cylinder.
  • 3/16 in. reinforced bottom.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
