LOFLIN FABRICATION

Land Plane

For Mini Skid Steers

49" Working Width

Request QuoteAdd To Cart

Loflin Fabrication Land Plane For Mini Skid Steers

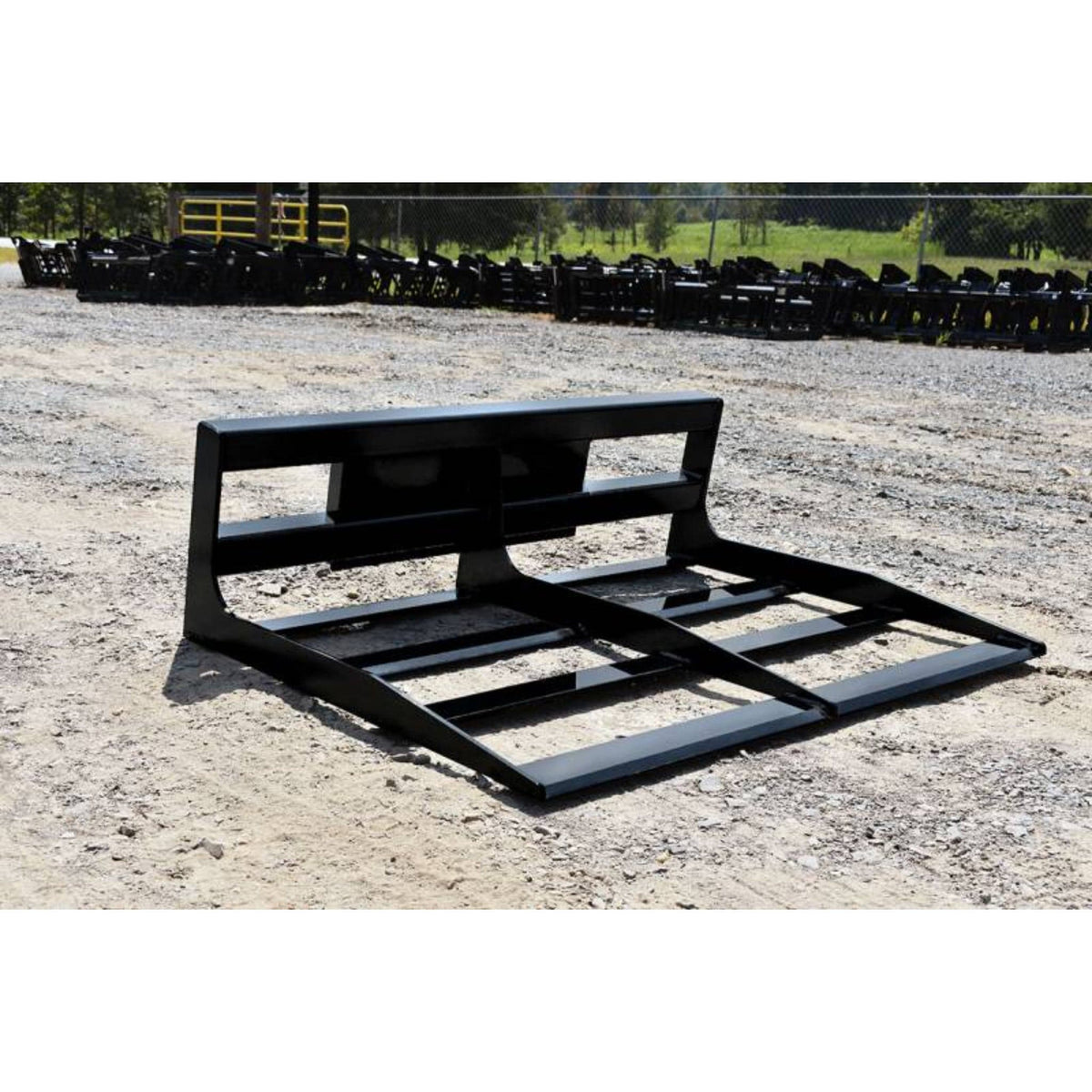

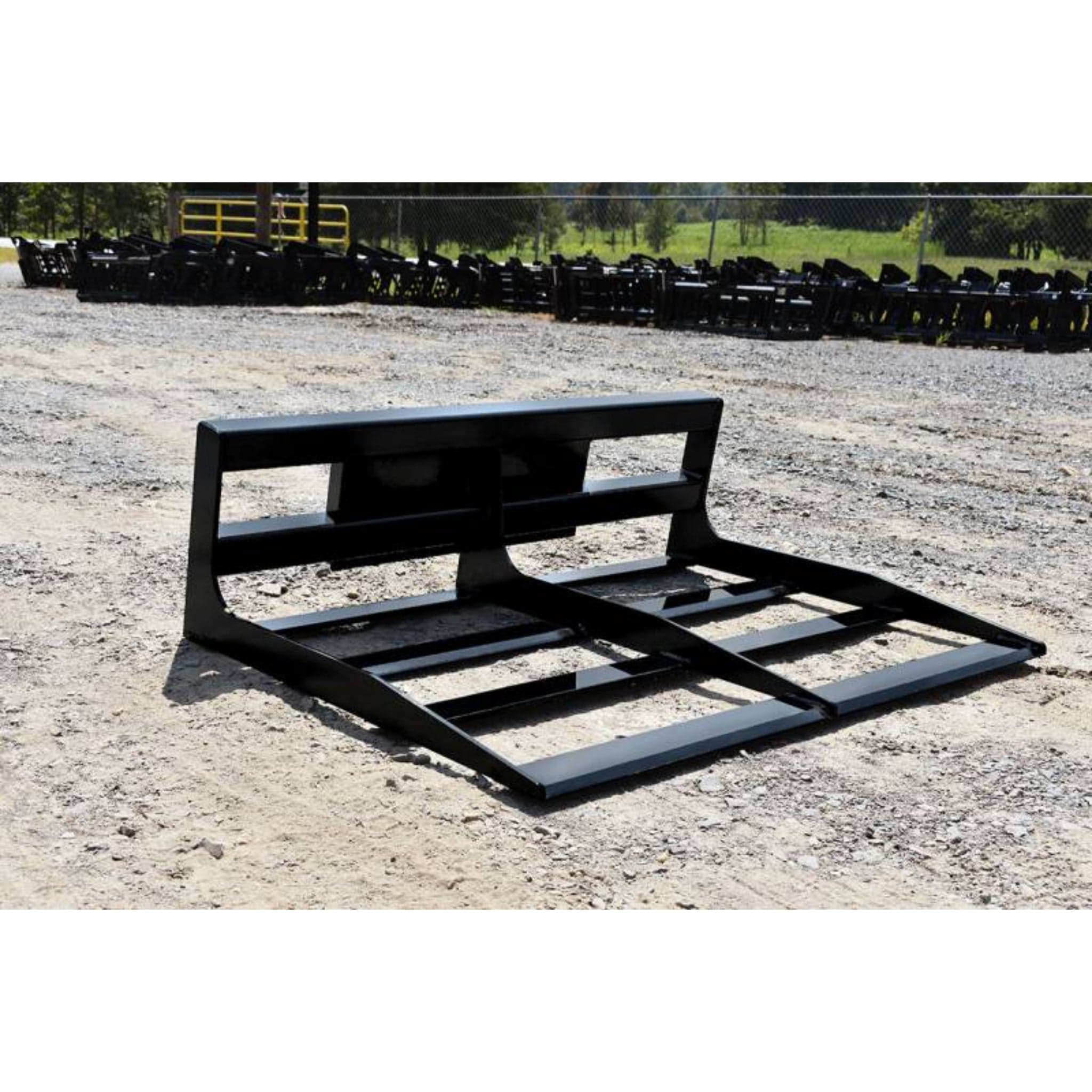

Loflin Fabrication Land Plane For Mini Skid Steers; illustrated width or mount may vary
Loflin Fabrication Land Plane For Mini Skid Steers; illustrated width or mount may vary
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Land Plane For Mini Skid Steers; illustrated width or mount may varyLoflin Fabrication Land Plane For Mini Skid Steers; illustrated width or mount may vary
Loflin Fabrication

Loflin Fabrication Land Plane For Mini Skid Steers

SKU: 0512006049 Currently In Stock

$1,269.91 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

49-INCH WORKING WIDTH

A 49-INCH FRAME GRADES COMPACT WORK AREAS. ITS COMPACT FOOTPRINT SUITS SMALLER PADS, WALKWAYS, AND LANDSCAPE AREAS WHERE A FULL-SIZE GRADING ATTACHMENT WOULD TAKE MORE ROOM.

1/2-INCH CUTTING EDGE

THE CUTTING EDGE MEASURES 1/2 INCH THICK BY 4 INCHES WIDE. THIS GROUND-CONTACT EDGE SCRAPES AND REDISTRIBUTES LOOSE SOIL OR GRAVEL AS THE LOADER MOVES THE PLANE ACROSS THE SURFACE.

3/8-INCH FRAME

A 3/8-INCH-THICK FRAME SUPPORTS THE GRADING ASSEMBLY. THE FRAME CARRIES THE CUTTING ASSEMBLY ACROSS THE WORKING WIDTH AND CONNECTS IT TO THE LOADER MOUNTING STRUCTURE.

3-INCH SQUARE TUBING

THE BACKBONE USES 3 X 3-INCH SQUARE STEEL TUBING. THE TUBULAR BACKBONE TIES THE GRADING FRAME TOGETHER, SUPPORTING THE ASSEMBLY AS THE LOADER GUIDES IT OVER UNEVEN MATERIAL.

POWDER-COATED FINISH

A POWDER-COATED FINISH PROTECTS THE STEEL SURFACES. THE COATING COVERS EXPOSED STEEL COMPONENTS, HELPING SHIELD THEM FROM MOISTURE AND ROUTINE OUTDOOR EXPOSURE BETWEEN GRADING JOBS.

Description

Key Benefits

Technical Specs

Applications

Loflin Land Plane

The Loflin Fabrication Mini Land Plane smooths soil and gravel with a 49-inch working width. Its compact grading frame suits tight-access landscape work, walkways, and small pads.

A 3/8-inch frame and 3 x 3-inch square steel tubing support a 1/2 x 4-inch cutting edge. The open assembly redistributes loose material while the loader controls the working position.

Separate Toro Dingo and Bobcat MT mounting configurations match the selected mini loader. The attachment has a powder-coated finish and works through the loader's lift and tilt movements.

Choose the mounting configuration for the carrier and account for attachment weight. Use controlled passes to shape the surface without overloading the loader.

Loflin Land Plane

  • A 49-inch frame grades compact work areas.
  • The cutting edge measures 1/2 inch thick by 4 inches wide.
  • A 3/8-inch-thick frame supports the grading assembly.
  • The backbone uses 3 x 3-inch square steel tubing.
  • A powder-coated finish protects the steel surfaces.

Loflin Land Plane

  • Manufacturer: Loflin Fabrication
  • Product: Land Plane

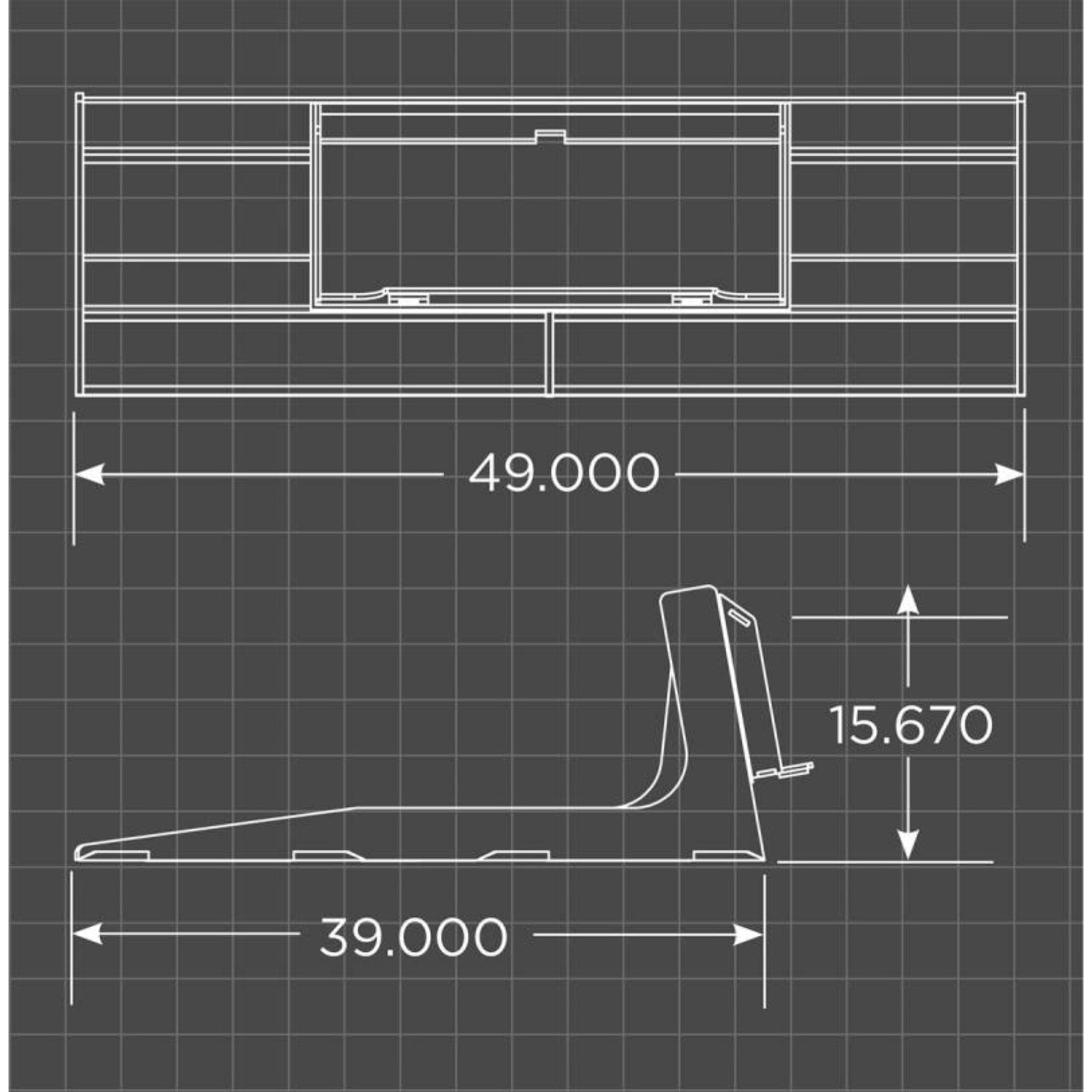

  • Working width: 49 inches
  • Cutting edge: 1/2 x 4 inches
  • Frame plate: 3/8 inch
  • Tubing: 3 x 3 inches
  • 0512006049: 49" MINI LAND PLANE W/TORO DINGO MT; 250 lb
  • 0512008049: 49" MINI LAND PLANE W/BOBCAT MT; 270 lb

Loflin Land Plane

  • Landscape and site preparation.
  • Soil and gravel surface maintenance.
  • Cleanup and material redistribution.

Loflin Fabrication: Brand & Attachment Videos

Loflin Land Plane

BUILT FOR THE WORK:

  • A 49-inch frame grades compact work areas.
  • The cutting edge measures 1/2 inch thick by 4 inches wide.
  • A 3/8-inch-thick frame supports the grading assembly.
  • The backbone uses 3 x 3-inch square steel tubing.
  • A powder-coated finish protects the steel surfaces.

CONTROLLED SURFACE WORK:

  • Landscape and site preparation.
  • Soil and gravel surface maintenance.
  • Cleanup and material redistribution.
  • Use controlled passes suited to the ground conditions.
  • Keep loads and working forces within the carrier ratings.

READY FOR THE FIELD:

  • Inspect the working edges or tines and retaining hardware.
  • Match the attachment width and weight to the carrier.
  • Check the mounting connection before operation.
  • Set the working position for the material and surface.
  • Follow the carrier and attachment operating procedures.
