LOFLIN FABRICATION

Rock Bucket Grapple

For Mini Skid Steers

36" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Mini Rock Bucket Grapple For Mini Skid Steers

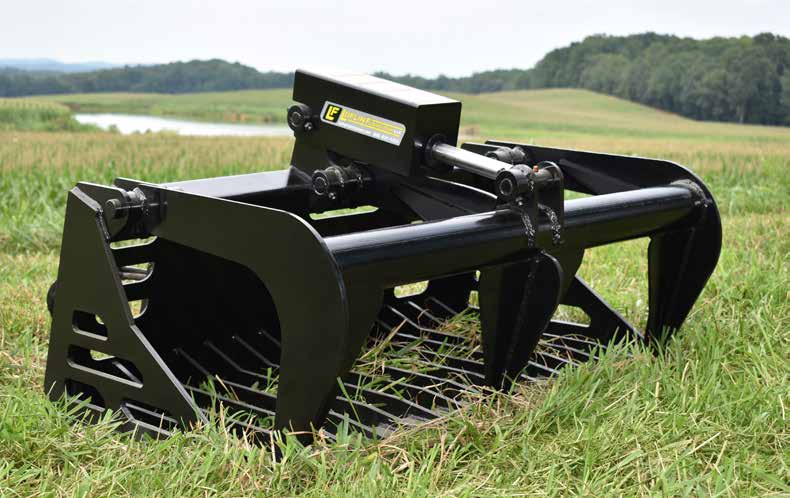

Loflin Fabrication Mini Rock Bucket Grapple shown in manufacturer catalog

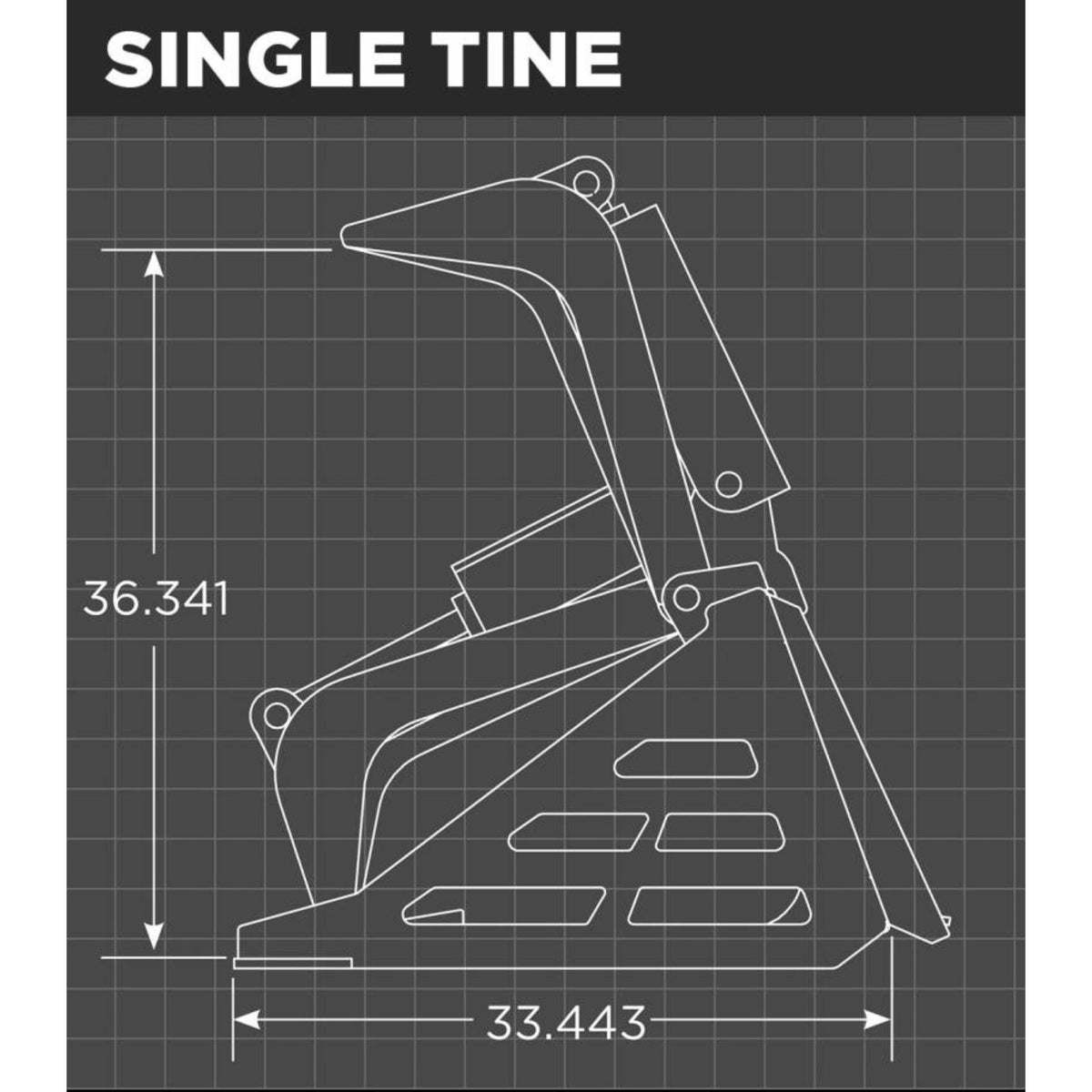

Loflin Fabrication Mini Rock Bucket Grapple For Mini Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Mini Rock Bucket Grapple shown in manufacturer catalogLoflin Fabrication Mini Rock Bucket Grapple For Mini Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Mini Rock Bucket Grapple For Mini Skid Steers

SKU: 0312006036 Currently In Stock

$3,299.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

3/8 IN. STEEL CONSTRUCTION

STEEL TINES SUPPORT AND RETAIN THE GRAPPLE LOAD.

3.375 IN. TINE SPACING

SPACES BETWEEN THE LOWER TINES LET LOOSE SOIL FALL THROUGH WHILE LARGER MATERIAL REMAINS SUPPORTED.

SINGLE UPPER GRAPPLE

A SINGLE UPPER GRAPPLE CLOSES TOWARD THE LOWER BODY TO RETAIN MATERIAL ON THE COMPACT ATTACHMENT.

GREASEABLE PINS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

TORO DINGO OR BOBCAT MT MOUNT OPTIONS

SELECT THE TORO DINGO OR BOBCAT MT INTERFACE TO MATCH THE MACHINE’S ATTACHMENT MOUNT.

Description

Key Benefits

Technical Specs

Applications

Loflin Mini Rock Bucket Grapple

The Loflin Fabrication Mini Rock Bucket Grapple gives mini skid steers a dedicated attachment for rock sorting and compact-loader debris handling. A single upper grapple closes over a skeleton bucket to keep larger material contained while loose dirt falls through. Available working-width selections are 36", 42", 48", 50".

3/8 in. steel construction and 3.375 in. tine spacing define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

Single upper grapple; Greaseable pins; Toro Dingo or Bobcat MT mount options support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Mini Rock Bucket Grapple

  • 3/8 in. steel construction
  • 3.375 in. tine spacing
  • Single upper grapple
  • Greaseable pins
  • Toro Dingo or Bobcat MT mount options

Loflin Mini Rock Bucket Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: Mini Rock Bucket Grapple
  • Carrier group: mini skid steers
  • Power source: carrier hydraulic actuation
  • Grapple opening: 36 in.
  • Width options: 36", 42", 48", 50"
  • 3/8 in. steel construction
  • 3.375 in. tine spacing
  • Single upper grapple
  • Greaseable pins
  • Toro Dingo or Bobcat MT mount options
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0312006036: 36" MINI ROCK BUCKET GRAPPLE W/TORO DINGO MT
  • 0312008036: 36" MINI ROCK BUCKET GRAPPLE W/BOBCAT MT
  • 0312006042: 42" MINI ROCK BUCKET GRAPPLE W/TORO DINGO MT
  • 0312008042: 42" MINI ROCK BUCKET GRAPPLE W/BOBCAT MT
  • 0312006048: 48" MINI ROCK BUCKET GRAPPLE W/TORO DINGO MT
  • 0312008048: 48" MINI ROCK BUCKET GRAPPLE W/BOBCAT MT
  • 0312006050: 50" MINI ROCK BUCKET GRAPPLE W/TORO DINGO MT
  • 0312008050: 50" MINI ROCK BUCKET GRAPPLE W/BOBCAT MT

Loflin Mini Rock Bucket Grapple

  • Rock sorting and compact-loader debris handling.
  • Material transfer with a properly matched mini skid steer carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Mini Rock Bucket Grapple

BUILT TO HANDLE THE LOAD:

  • A single upper grapple closes over a skeleton bucket to keep larger material contained while loose dirt falls through.
  • 3/8 in. steel construction
  • 3.375 in. tine spacing
  • Single upper grapple
  • Greaseable pins

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for rock sorting and compact-loader debris handling.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for rock sorting and compact-loader debris handling with a suitable mini skid steer carrier.
  • 3/8 in. steel construction.
  • 3.375 in. tine spacing.
  • Single upper grapple.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
