Root Grapple

For Mini Skid Steers

34" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Mini Root Grapple For Mini Skid Steers

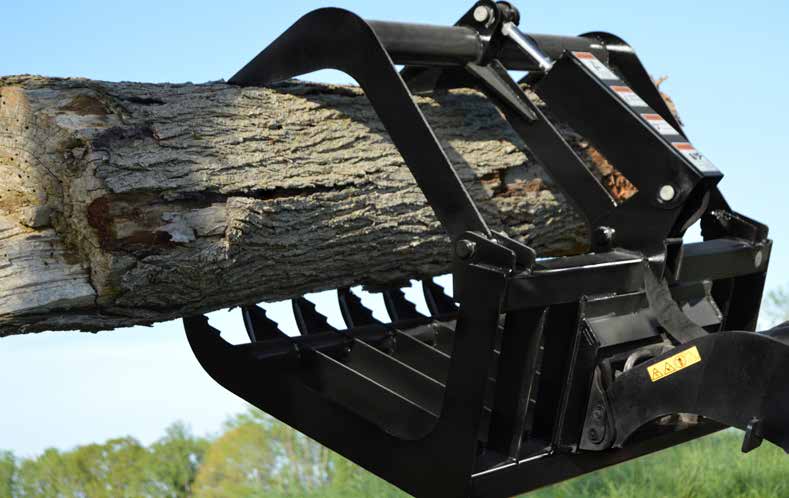

Loflin Fabrication Mini Root Grapple shown in manufacturer catalog

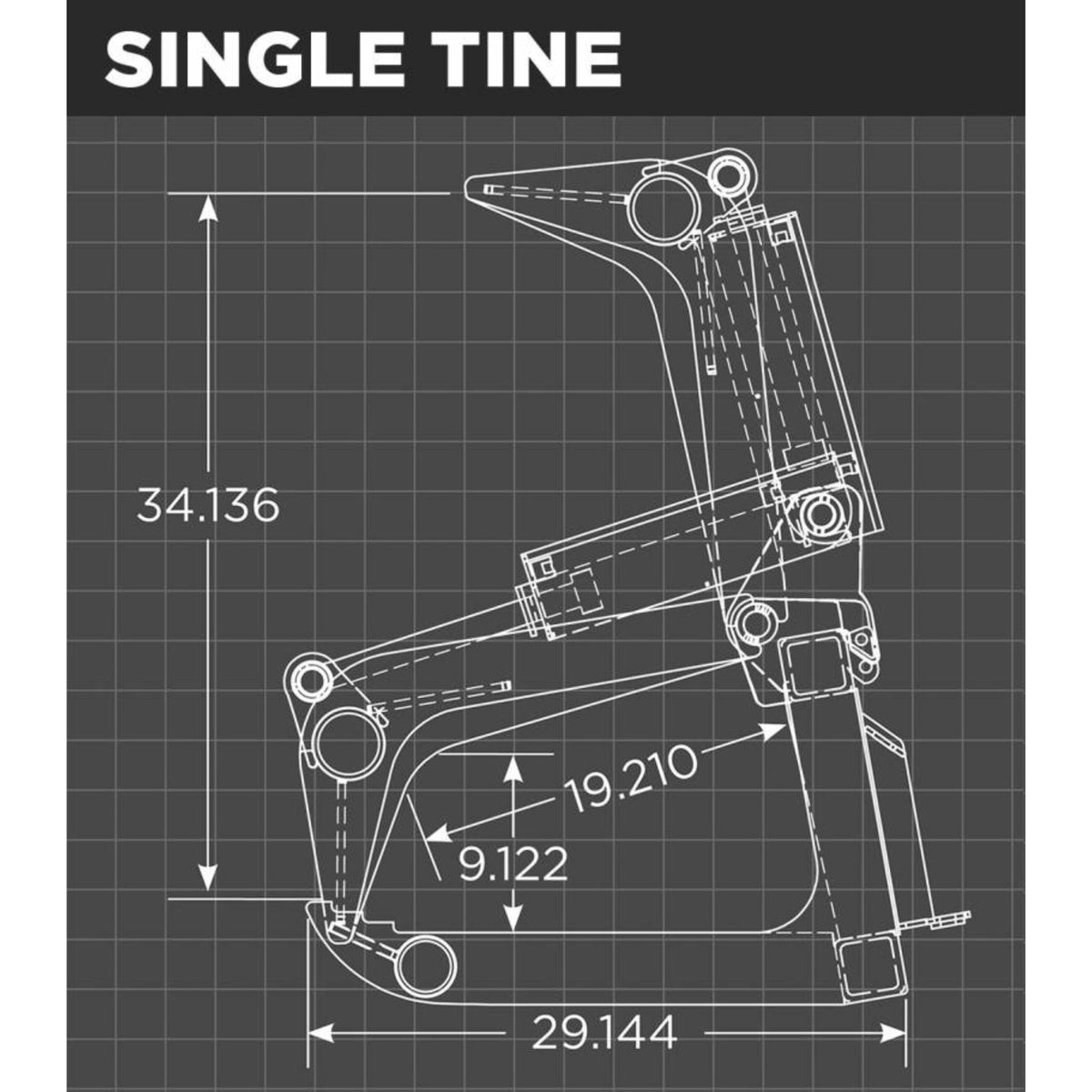

Loflin Fabrication Mini Root Grapple For Mini Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Mini Root Grapple shown in manufacturer catalogLoflin Fabrication Mini Root Grapple For Mini Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Mini Root Grapple For Mini Skid Steers

SKU: 0012006036 Currently In Stock

$1,864.73 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

SINGLE 3/8 IN. UPPER GRAPPLE TINE

A SINGLE UPPER GRAPPLE CLOSES TOWARD THE LOWER BODY TO RETAIN MATERIAL ON THE COMPACT ATTACHMENT.

2 X 10 IN. HYDRAULIC CYLINDER

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

COVERED CYLINDER AND PROTECTED HOSES

COVERS AND PROTECTED HOSE ROUTING REDUCE EXPOSURE OF THE HYDRAULIC COMPONENTS DURING MATERIAL HANDLING.

GREASEABLE HINGE POINTS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

TORO DINGO OR BOBCAT MT MOUNT OPTIONS

SELECT THE TORO DINGO OR BOBCAT MT INTERFACE TO MATCH THE MACHINE’S ATTACHMENT MOUNT.

Description

Key Benefits

Technical Specs

Applications

Loflin Mini Root Grapple

The Loflin Fabrication Mini Root Grapple gives mini skid steers a dedicated attachment for brush pickup and compact-access property cleanup. A single upper grapple closes over an open root-style bottom, allowing loose dirt to fall away. Available working-width selections are 36", 38", 42", 44", 48", 50".

Single 3/8 in. upper grapple tine and 2 x 10 in. hydraulic cylinder define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

Covered cylinder and protected hoses; Greaseable hinge points; Toro Dingo or Bobcat MT mount options support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Mini Root Grapple

  • Single 3/8 in. upper grapple tine
  • 2 x 10 in. hydraulic cylinder
  • Covered cylinder and protected hoses
  • Greaseable hinge points
  • Toro Dingo or Bobcat MT mount options

Loflin Mini Root Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: Mini Root Grapple
  • Carrier group: mini skid steers
  • Power source: carrier hydraulic actuation
  • Grapple opening: 34 in.
  • Width options: 36", 38", 42", 44", 48", 50"
  • Single 3/8 in. upper grapple tine
  • 2 x 10 in. hydraulic cylinder
  • Covered cylinder and protected hoses
  • Greaseable hinge points
  • Toro Dingo or Bobcat MT mount options
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0012006036: 36" MINI ROOT GRAPPLE W/TORO DINGO MT; weight 345 lb
  • 0012008036: 36" MINI ROOT GRAPPLE W/BOBCAT MT; weight 355 lb
  • 0012006038: 38" MINI ROOT GRAPPLE W/TORO DINGO MT; weight 360 lb
  • 0012008038: 38" MINI ROOT GRAPPLE W/BOBCAT MT; weight 370 lb
  • 0012006042: 42" MINI ROOT GRAPPLE W/TORO DINGO MT; weight 370 lb
  • 0012008042: 42" MINI ROOT GRAPPLE W/BOBCAT MT; weight 380 lb
  • 0012006044: 44" MINI ROOT GRAPPLE W/TORO DINGO MT; weight 375 lb
  • 0012008044: 44" MINI ROOT GRAPPLE W/BOBCAT MT; weight 385 lb
  • 0012006048: 48" MINI ROOT GRAPPLE W/TORO DINGO MT; weight 380 lb
  • 0012008048: 48" MINI ROOT GRAPPLE W/BOBCAT MT; weight 390 lb
  • 0012006050: 50" MINI ROOT GRAPPLE W/TORO DINGO MT; weight 395 lb
  • 0012008050: 50" MINI ROOT GRAPPLE W/BOBCAT MT; weight 405 lb

Loflin Mini Root Grapple

  • Brush pickup and compact-access property cleanup.
  • Material transfer with a properly matched mini skid steer carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Mini Root Grapple

BUILT TO HANDLE THE LOAD:

  • A single upper grapple closes over an open root-style bottom, allowing loose dirt to fall away.
  • Single 3/8 in. upper grapple tine
  • 2 x 10 in. hydraulic cylinder
  • Covered cylinder and protected hoses
  • Greaseable hinge points

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for brush pickup and compact-access property cleanup.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for brush pickup and compact-access property cleanup with a suitable mini skid steer carrier.
  • Single 3/8 in. upper grapple tine.
  • 2 x 10 in. hydraulic cylinder.
  • Covered cylinder and protected hoses.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
