LOFLIN FABRICATION

Hydraulic Auger Drive

For Mini Skid Steers

6–40 GPM Hydraulic Flow

Request QuoteAdd To Cart

Loflin Fabrication Hydraulic Auger Drive For Mini Skid Steers

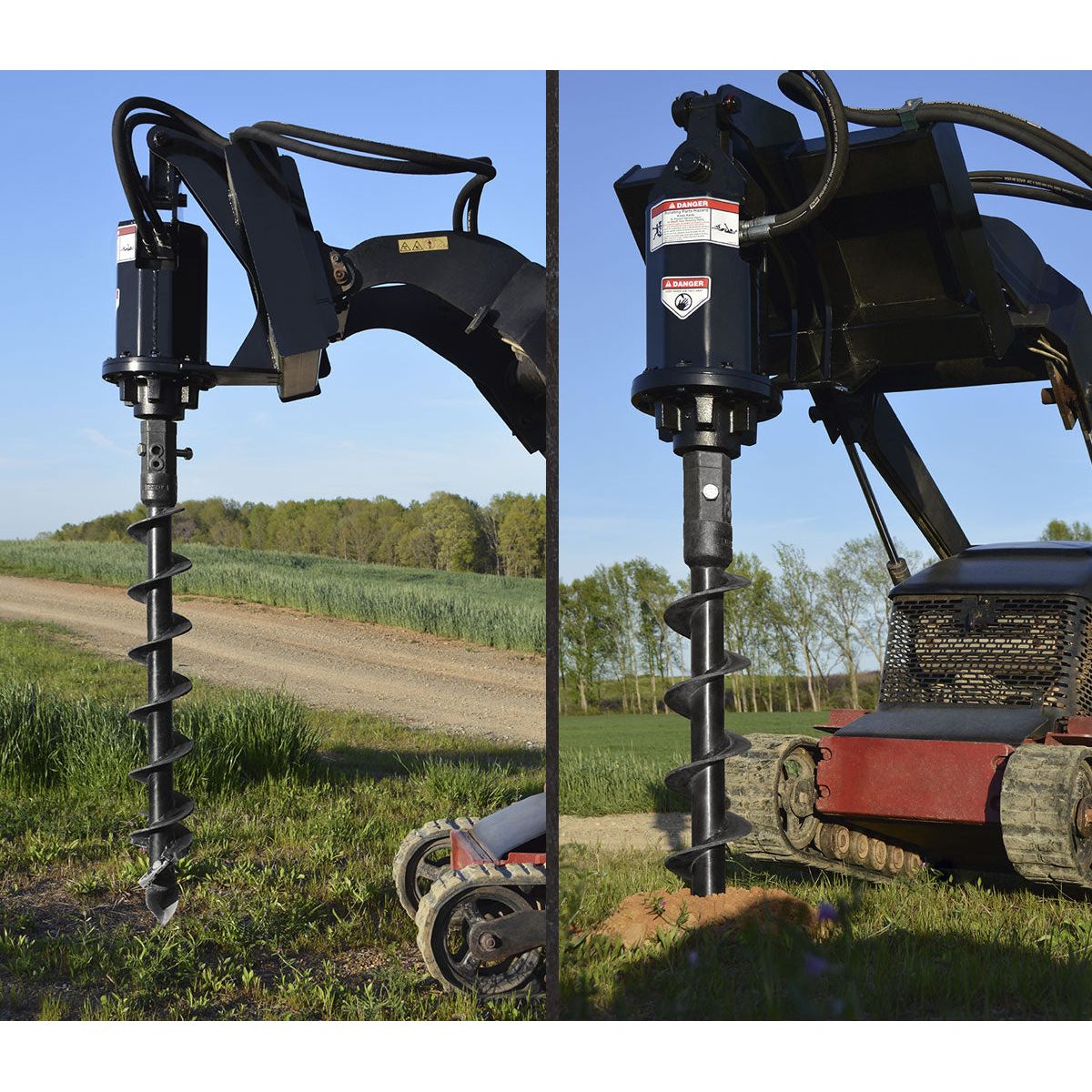

Loflin Fabrication Hydraulic Auger Drive For Mini Skid Steers; illustrated mounting or bit configuration may vary
Loflin Fabrication Hydraulic Auger Drive For Mini Skid Steers; illustrated mounting or bit configuration may vary
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Hydraulic Auger Drive For Mini Skid Steers; illustrated mounting or bit configuration may varyLoflin Fabrication Hydraulic Auger Drive For Mini Skid Steers; illustrated mounting or bit configuration may vary
Loflin Fabrication

Loflin Fabrication Hydraulic Auger Drive For Mini Skid Steers

SKU: 0362006000 Currently In Stock

$3,009.80 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

6–40 GPM FLOW RANGE

THE HYDRAULIC DRIVE OPERATES ACROSS A 6–40 GPM AUXILIARY FLOW RANGE.

AUBURN PLANETARY DRIVE

AN AUBURN PLANETARY DRIVE TRANSFERS HYDRAULIC MOTOR POWER TO THE DRILLING SHAFT.

2-INCH HEX OUTPUT

THE OUTPUT SHAFT USES A STANDARD 2-INCH HEX INTERFACE FOR COMPATIBLE AUGER BITS.

PARKER HYDRAULIC COMPONENTS

PARKER HOSES, FITTINGS, AND COUPLERS CONNECT THE DRIVE TO THE CARRIER’S AUXILIARY CIRCUIT.

MINI-LOADER MOUNT OPTIONS

SEPARATE TORO DINGO AND BOBCAT MT MOUNTING CONFIGURATIONS MATCH THE SELECTED MINI LOADER.

Description

Key Benefits

Technical Specs

Applications

Loflin Hydraulic Auger Drive

The Loflin Fabrication Hydraulic Auger Drive For Mini Skid Steers turns a compatible loader into a hydraulic earth-drilling machine for fence posts, footings, and planting holes. Drive attachment only; auger bits, extensions, and shaft adapters are sold separately.

An Auburn planetary drive transfers motor output to a standard 2-inch hex shaft. Parker hoses, fittings, and couplers connect the attachment to the loader’s auxiliary hydraulic circuit.

The drive operates at 6–40 GPM. Choose the Toro Dingo or Bobcat MT mounting configuration for your mini loader.

Choose a bit diameter for the soil conditions, required hole size, and available machine performance. Confirm the mounting interface, hydraulic connections, operating settings, attachment weight, and carrier handling capacity before use.

Loflin Hydraulic Auger Drive

  • The hydraulic drive operates across a 6–40 GPM auxiliary flow range.
  • An Auburn planetary drive transfers hydraulic motor power to the drilling shaft.
  • The output shaft uses a standard 2-inch hex interface for compatible auger bits.
  • Parker hoses, fittings, and couplers connect the drive to the carrier’s auxiliary circuit.
  • Separate Toro Dingo and Bobcat MT mounting configurations match the selected mini loader.

Loflin Hydraulic Auger Drive

  • Manufacturer: Loflin Fabrication
  • Product: Hydraulic Auger Drive For Mini Skid Steers
  • Included components: Drive attachment only; auger bits, extensions, and shaft adapters are sold separately.
  • 0362006000: MINI AUGER DRIVE W/TORO DINGO MT; 326 lb
  • 0362008000: MINI AUGER DRIVE W/BOBCAT MT; weight: confirm before ordering
  • Hydraulic flow: 6–40 GPM
  • Output: 2-inch hex
  • Drive: Auburn planetary
  • Operating pressure: confirm final hydraulic settings

Loflin Hydraulic Auger Drive

  • Fence, gate, and sign-post installation.
  • Footing and planting-hole preparation with a suitable drive and bit.
  • Select components for the intended soil, hole diameter, and machine capability.

Loflin Fabrication: Brand & Attachment Videos

Loflin Hydraulic Auger Drive

DRILLING SYSTEM DESIGN:

  • The hydraulic drive operates across a 6–40 GPM auxiliary flow range.
  • An Auburn planetary drive transfers hydraulic motor power to the drilling shaft.
  • The output shaft uses a standard 2-inch hex interface for compatible auger bits.
  • Parker hoses, fittings, and couplers connect the drive to the carrier’s auxiliary circuit.
  • Separate Toro Dingo and Bobcat MT mounting configurations match the selected mini loader.

MATCH THE DRILLING COMPONENTS:

  • Drive attachment only; auger bits, extensions, and shaft adapters are sold separately.
  • Match the drive output and bit hub.
  • Check the selected diameter or shaft connection.
  • Confirm securing hardware and component clearance.
  • Keep the complete drilling setup within the carrier and drive ratings.

READY FOR THE FIELD:

  • Inspect the drive mount, shaft engagement, and securing hardware.
  • Check the bit, flights, and cutting components for wear.
  • Match the hole size to the drive and ground conditions.
  • Confirm the work area and underground-service locations before drilling.
  • Follow the carrier and attachment operating procedures.
Request a Quote
