LOFLIN FABRICATION

Vertical Root Grapple

For Mini Skid Steers

33" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Mini Vertical Root Grapple For Mini Skid Steers

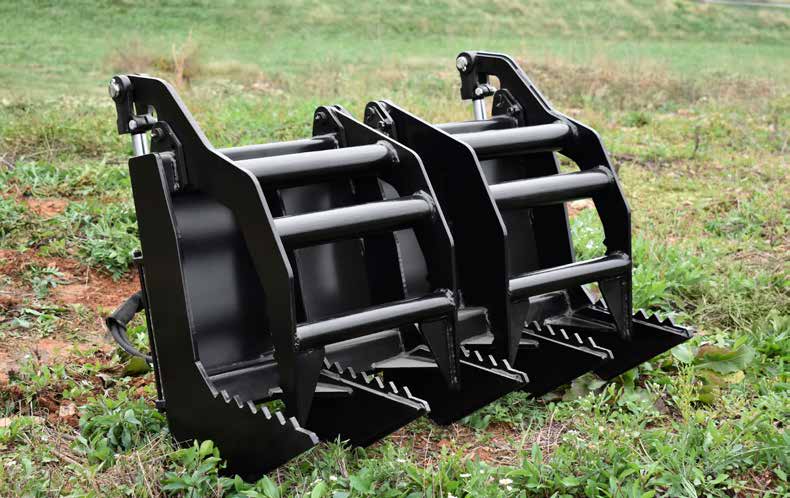

Loflin Fabrication Mini Vertical Root Grapple shown in manufacturer catalog

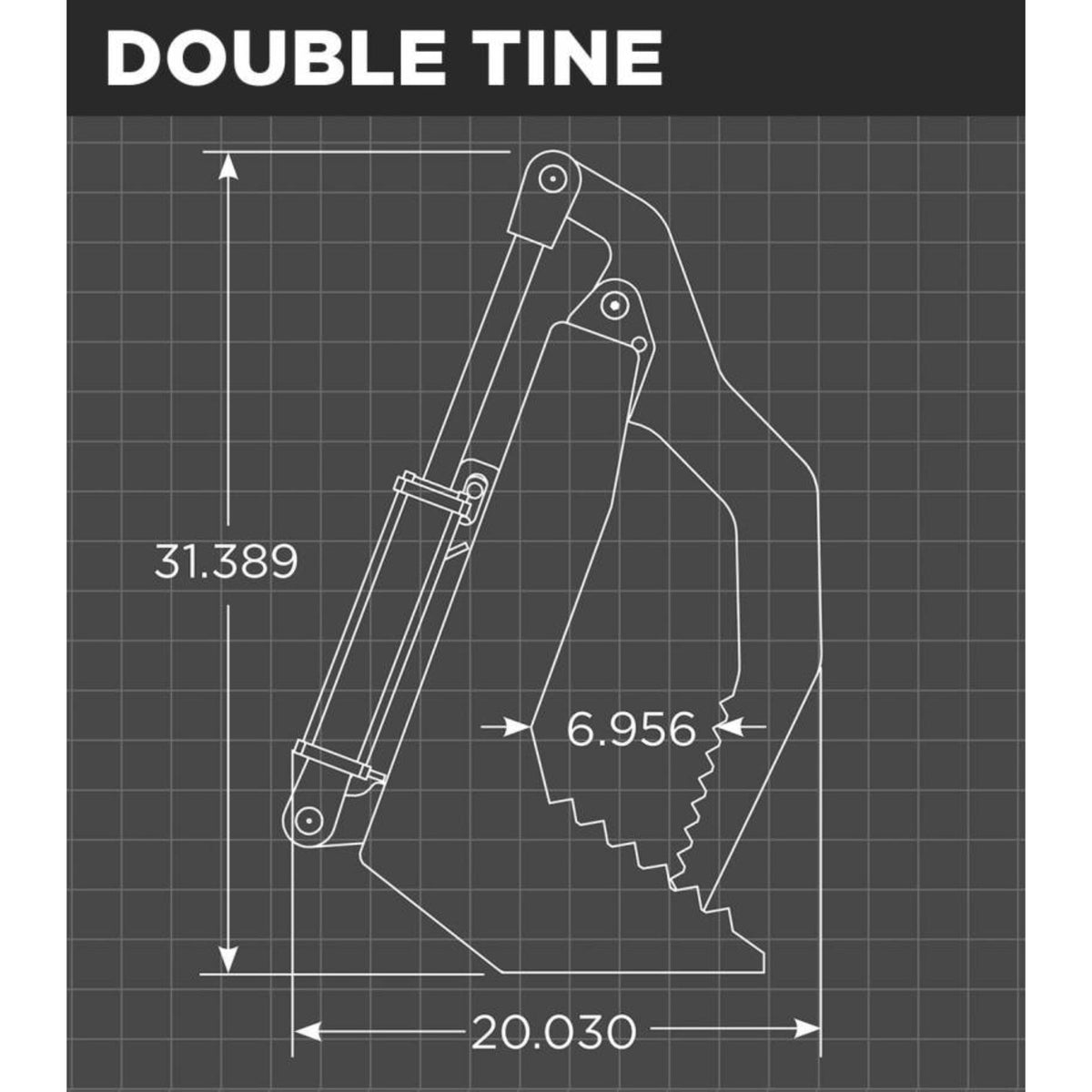

Loflin Fabrication Mini Vertical Root Grapple For Mini Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Mini Vertical Root Grapple shown in manufacturer catalogLoflin Fabrication Mini Vertical Root Grapple For Mini Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Mini Vertical Root Grapple For Mini Skid Steers

SKU: 0662006036 Currently In Stock

$1,864.73 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

INDEPENDENT GRAPPLE TINES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

2 X 8 IN. CYLINDERS

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

3/8 IN. STEEL TINES

STEEL TINES SUPPORT AND RETAIN THE GRAPPLE LOAD.

GREASEABLE HINGE POINTS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

PROTECTED HYDRAULIC HOSES

PROTECTED HOSE ROUTING KEEPS HYDRAULIC LINES AWAY FROM EXPOSED MATERIAL-CONTACT AREAS.

Description

Key Benefits

Technical Specs

Applications

Loflin Mini Vertical Root Grapple

The Loflin Fabrication Mini Vertical Root Grapple gives mini skid steers a dedicated attachment for raking and gathering brush in restricted access areas. Two upper tines close against an open vertical frame, collecting debris while allowing loose soil to fall through. Available working-width selections are 36", 42", 48".

Independent grapple tines and 2 x 8 in. cylinders define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

3/8 in. steel tines; Greaseable hinge points; Protected hydraulic hoses support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Mini Vertical Root Grapple

  • Independent grapple tines
  • 2 x 8 in. cylinders
  • 3/8 in. steel tines
  • Greaseable hinge points
  • Protected hydraulic hoses

Loflin Mini Vertical Root Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: Mini Vertical Root Grapple
  • Carrier group: mini skid steers
  • Power source: carrier hydraulic actuation
  • Grapple opening: 33 in.
  • Width options: 36", 42", 48"
  • Independent grapple tines
  • 2 x 8 in. cylinders
  • 3/8 in. steel tines
  • Greaseable hinge points
  • Protected hydraulic hoses
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0662006036: 36" MINI VERTICAL ROOT GRAPPLE W/TORO DINGO MT; weight 280 lb
  • 0662006042: 42" MINI VERTICAL ROOT GRAPPLE W/TORO DINGO MT; weight 340 lb
  • 0662006048: 48" MINI VERTICAL ROOT GRAPPLE W/TORO DINGO MT; weight 360 lb
  • 0662008048: 48" MINI VERTICAL ROOT GRAPPLE W/BOBCAT MT; weight 370 lb

Loflin Mini Vertical Root Grapple

  • Raking and gathering brush in restricted access areas.
  • Material transfer with a properly matched mini skid steer carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Mini Vertical Root Grapple

BUILT TO HANDLE THE LOAD:

  • Two upper tines close against an open vertical frame, collecting debris while allowing loose soil to fall through.
  • Independent grapple tines
  • 2 x 8 in. cylinders
  • 3/8 in. steel tines
  • Greaseable hinge points

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for raking and gathering brush in restricted access areas.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for raking and gathering brush in restricted access areas with a suitable mini skid steer carrier.
  • Independent grapple tines.
  • 2 x 8 in. cylinders.
  • 3/8 in. steel tines.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
