LOFLIN FABRICATION

Monster Root Grapple

For Skid Steers

51" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Monster Root Grapple For Skid Steers

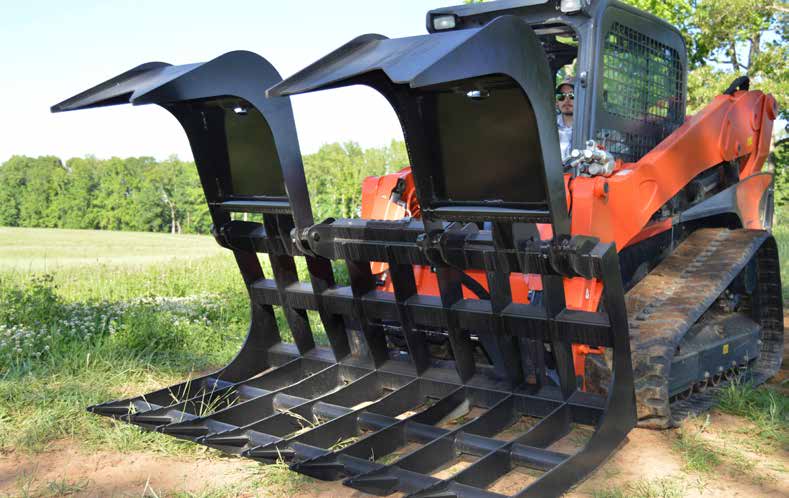

Loflin Fabrication Monster Root Grapple shown in manufacturer catalog

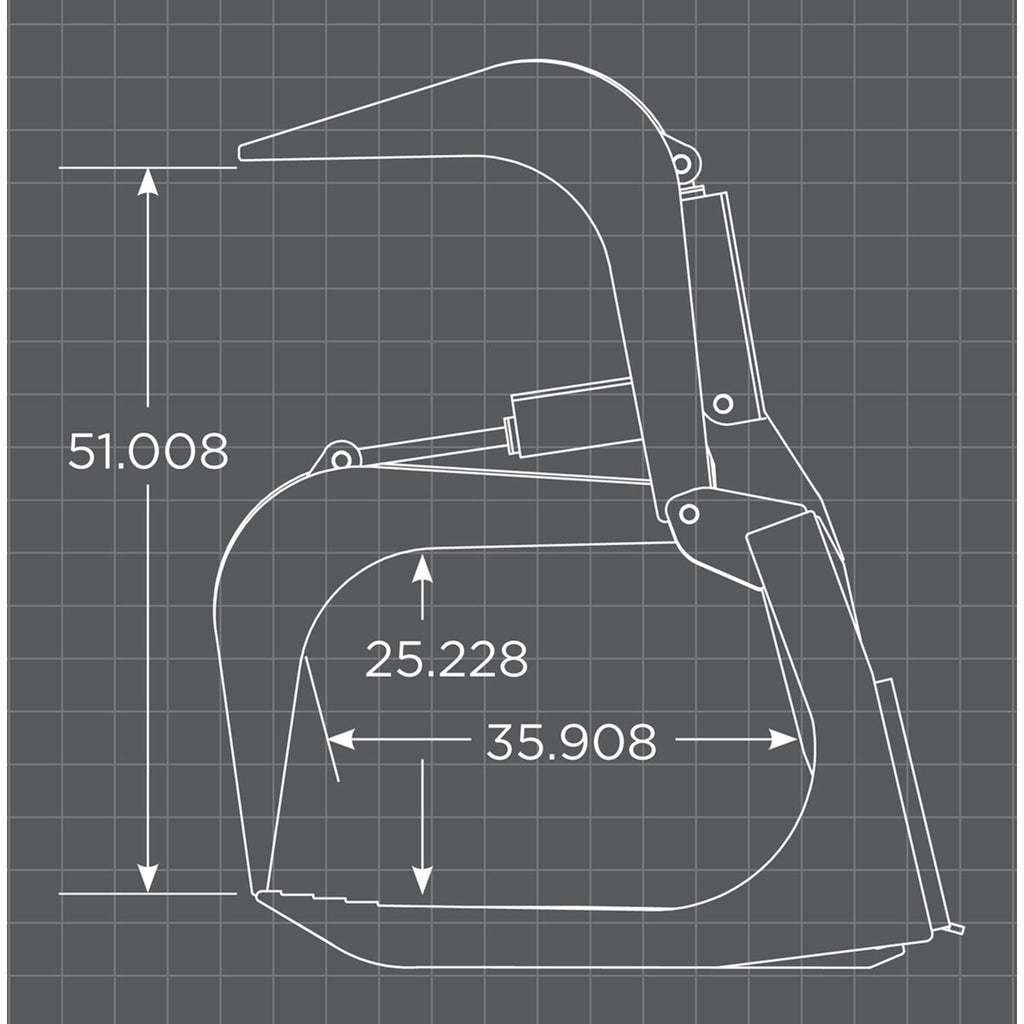

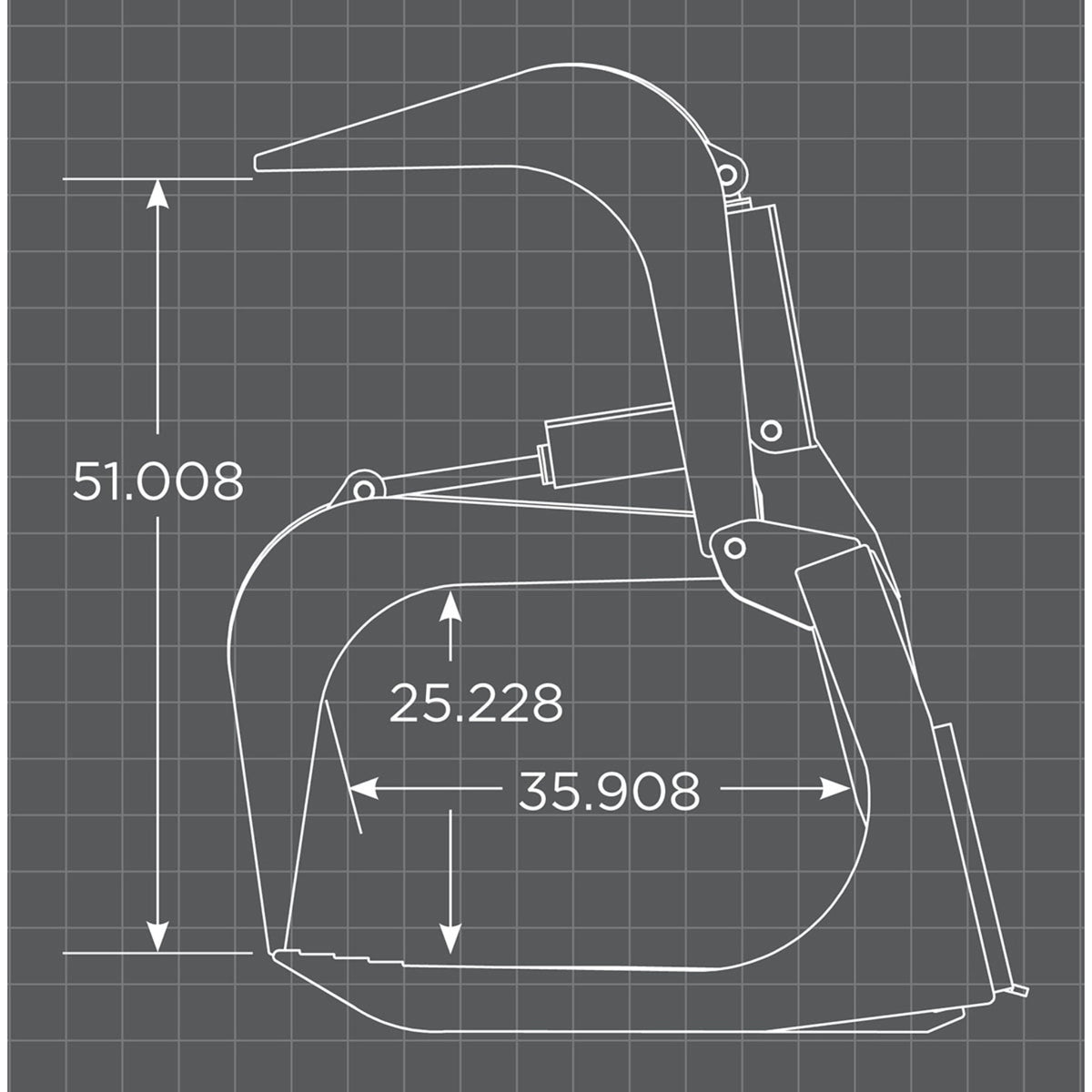

Loflin Fabrication Monster Root Grapple For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Monster Root Grapple shown in manufacturer catalogLoflin Fabrication Monster Root Grapple For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Monster Root Grapple For Skid Steers

SKU: 0010401072 Currently In Stock

$5,799.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

51 IN. GRAPPLE OPENING

THE GRAPPLE OPENING PROVIDES CLEARANCE FOR RECEIVING MATERIAL; LOAD CAPACITY DEPENDS ON THE CARRIER AND ATTACHMENT CONFIGURATION.

1/2 IN. STEEL TINES

STEEL TINES SUPPORT AND RETAIN THE GRAPPLE LOAD.

2 X 10 IN. CYLINDERS

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

INDEPENDENT GRAPPLE TINES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

REINFORCED TUBING STRUCTURE

REINFORCED TUBING FORMS THE SUPPORTING STRUCTURE BEHIND THE GRAPPLE’S MATERIAL-HANDLING SECTION.

Description

Key Benefits

Technical Specs

Applications

Loflin Monster Root Grapple

The Loflin Fabrication Monster Root Grapple gives skid steer loaders a dedicated attachment for bulky brush piles and irregular woody debris. The tall opening and reinforced frame provide more approach room for bulky material than a conventional root grapple. Available working-width selections are 72", 78", 84", 96".

51 in. grapple opening and 1/2 in. steel tines define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

2 x 10 in. cylinders; Independent grapple tines; Reinforced tubing structure support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Recommended carrier horsepower: 75 HP and below. Match the hydraulic circuit separately. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Monster Root Grapple

  • 51 in. grapple opening
  • 1/2 in. steel tines
  • 2 x 10 in. cylinders
  • Independent grapple tines
  • Reinforced tubing structure

Loflin Monster Root Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: Monster Root Grapple
  • Carrier group: skid steer loaders
  • Power source: carrier hydraulic actuation
  • Grapple opening: 51 in.
  • Width options: 72", 78", 84", 96"
  • Recommended carrier horsepower: 75 HP and below
  • 51 in. grapple opening
  • 1/2 in. steel tines
  • 2 x 10 in. cylinders
  • Independent grapple tines
  • Reinforced tubing structure
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0010401072: 72" MONSTER ROOT GRAPPLE; weight 1170 lb
  • 0010401078: 78" MONSTER ROOT GRAPPLE; weight 1194 lb
  • 0010401084: 84" MONSTER ROOT GRAPPLE; weight 1299 lb
  • 0010401096: 96" MONSTER ROOT GRAPPLE; weight 1394 lb

Loflin Monster Root Grapple

  • Bulky brush piles and irregular woody debris.
  • Material transfer with a properly matched skid steer loader carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Monster Root Grapple

BUILT TO HANDLE THE LOAD:

  • The tall opening and reinforced frame provide more approach room for bulky material than a conventional root grapple.
  • 51 in. grapple opening
  • 1/2 in. steel tines
  • 2 x 10 in. cylinders
  • Independent grapple tines

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for bulky brush piles and irregular woody debris.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for bulky brush piles and irregular woody debris with a suitable skid steer loader carrier.
  • 51 in. grapple opening.
  • 1/2 in. steel tines.
  • 2 x 10 in. cylinders.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
