LOFLIN FABRICATION

Quick Attach Plates

For Universal Skid Steer Fabrication

3/16–1/2-inch Steel Plate

Request QuoteAdd To Cart

Loflin Fabrication Quick Attach Plates

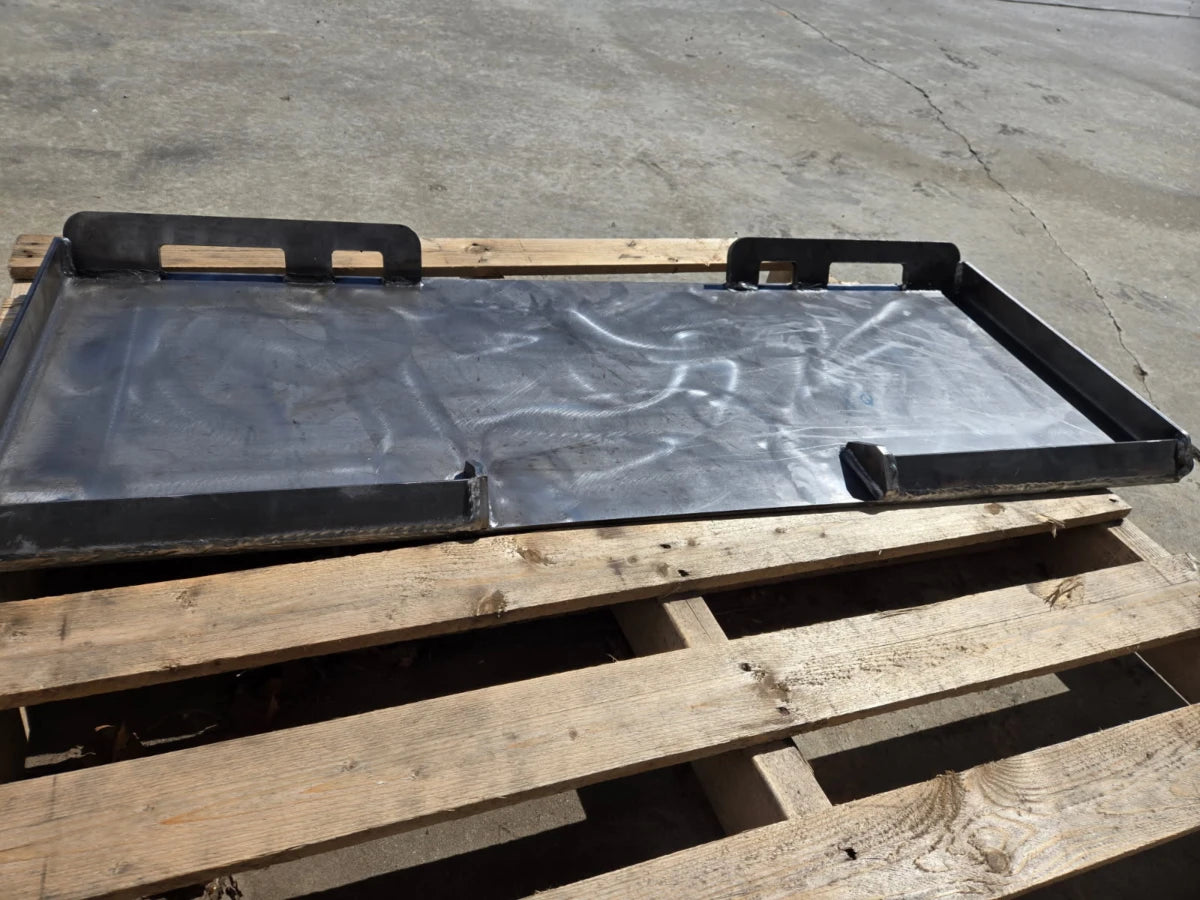

Loflin Fabrication Quick Attach Plates; manufacturer family image, configuration may differ.

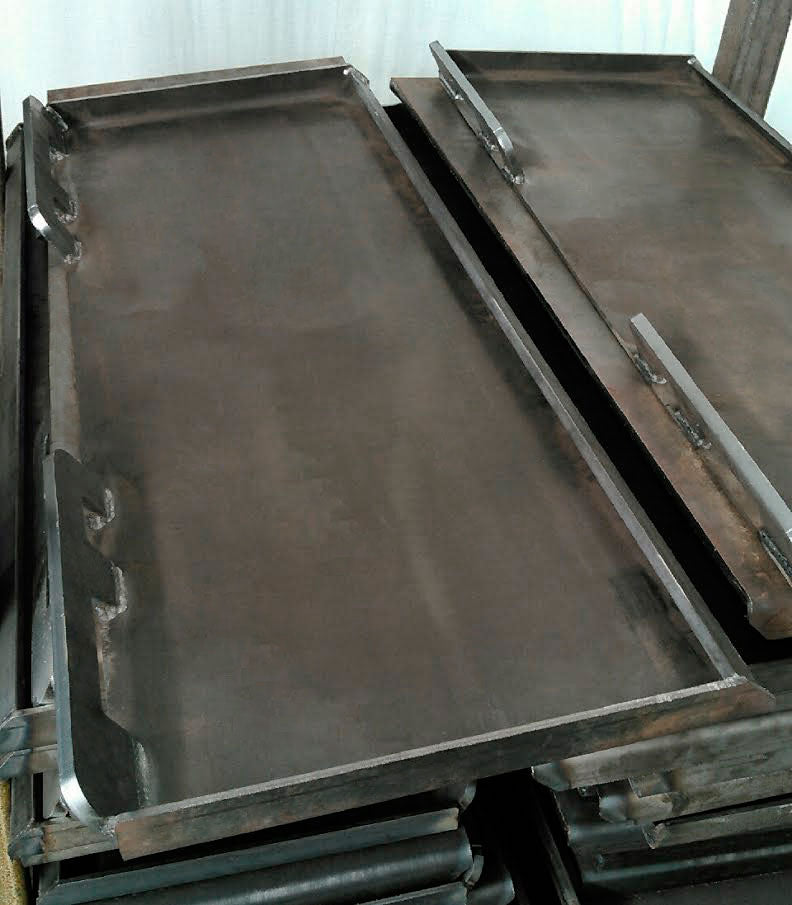

Loflin Fabrication Quick Attach Plates; manufacturer family image, configuration may differ.
Loflin Fabrication Quick Attach Plates; manufacturer family image, configuration may differ.
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Quick Attach Plates; manufacturer family image, configuration may differ.Loflin Fabrication Quick Attach Plates; manufacturer family image, configuration may differ.Loflin Fabrication Quick Attach Plates; manufacturer family image, configuration may differ.
Loflin Fabrication

Loflin Fabrication Quick Attach Plates

SKU: 0350301045 Currently In Stock

$1,689.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

THREE STEEL THICKNESSES

CHOOSE 3/16-INCH, 1/4-INCH, OR 1/2-INCH PLATE STEEL. THE THICKNESS SELECTION CHANGES THE MOUNTING-BASE WEIGHT AND STEEL SECTION FOR THE FABRICATION PROJECT.

45.750-INCH PLATE WIDTH

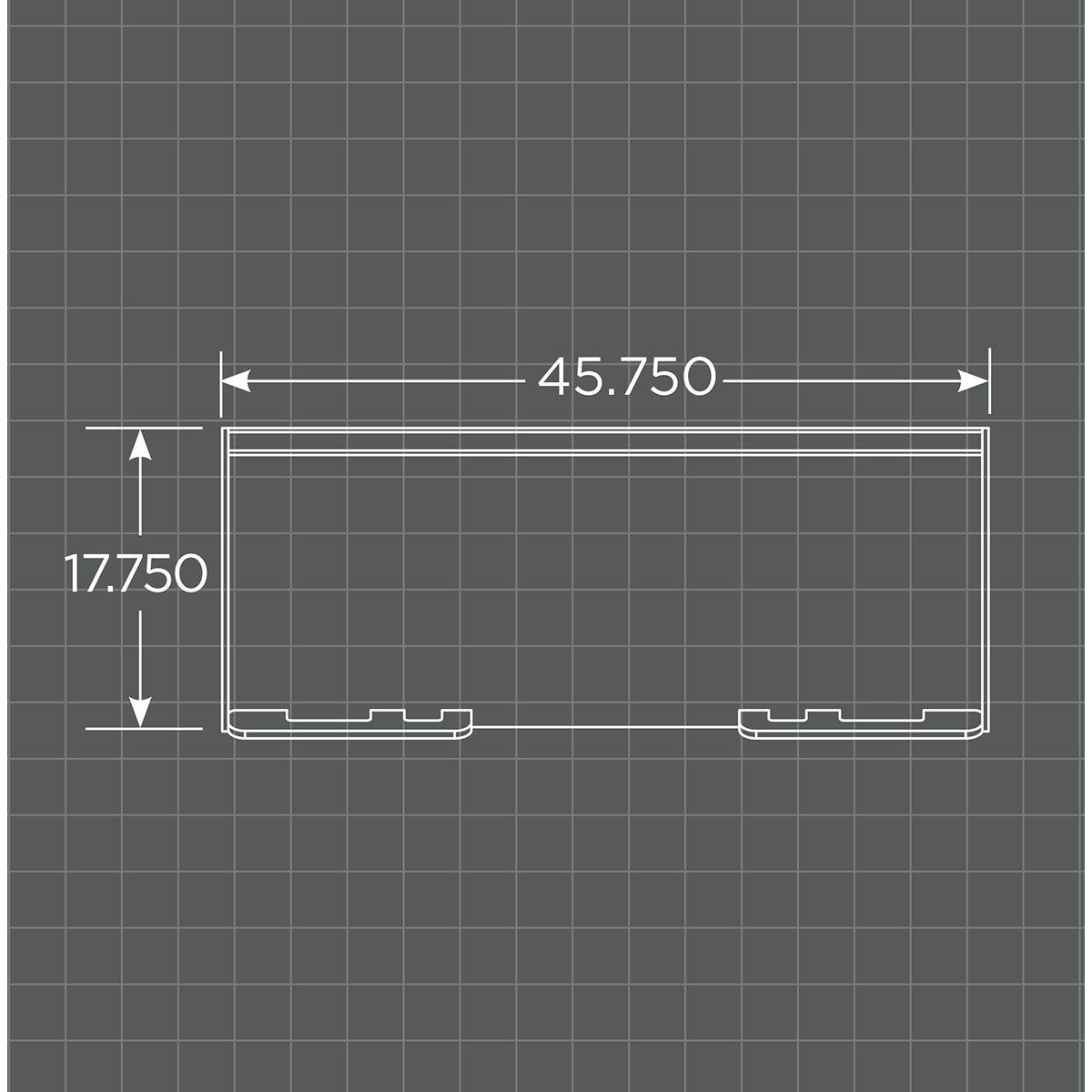

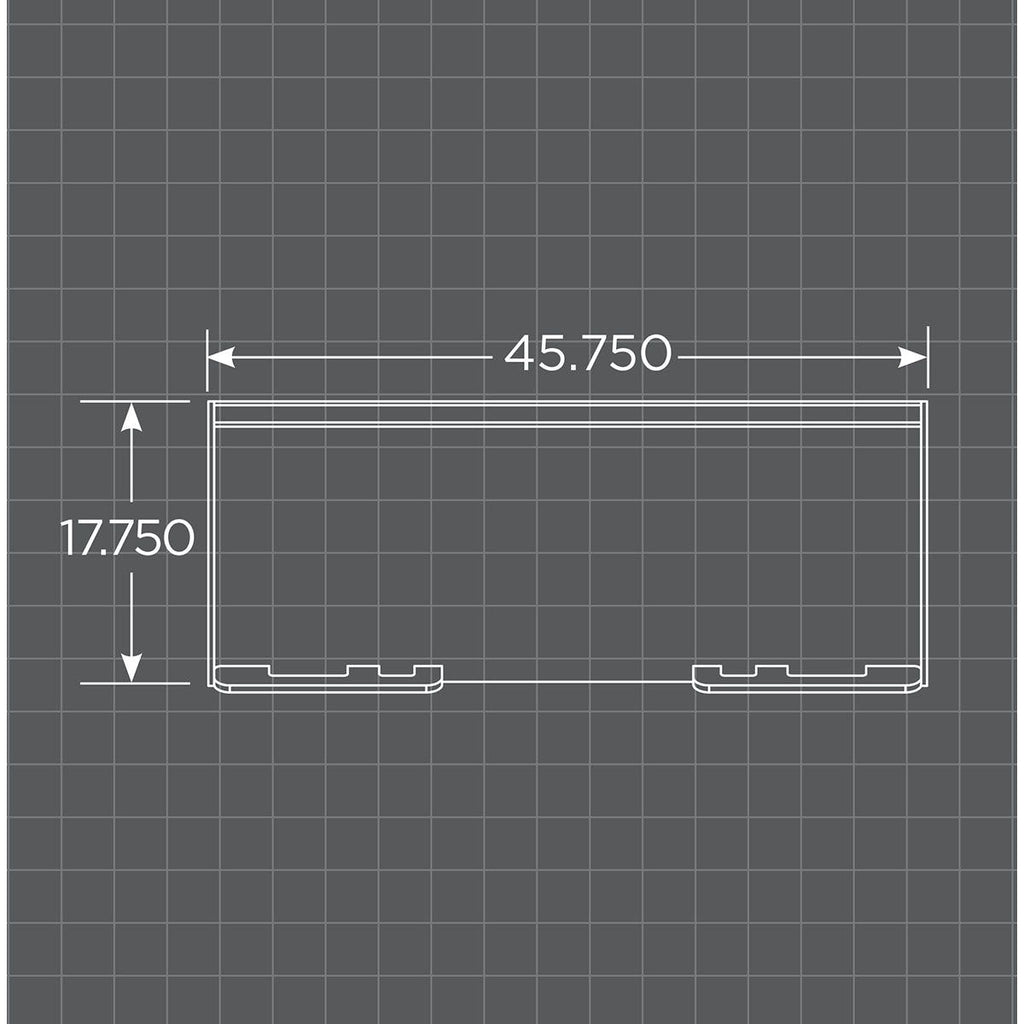

THE STANDARD MOUNTING PLATE OUTLINE MEASURES 45.750 INCHES ACROSS AND 17.750 INCHES HIGH. CHECK THE RECEIVING ATTACHMENT STRUCTURE AND CLEARANCES BEFORE POSITIONING IT FOR WELDING.

UNPAINTED FABRICATION BASE

THE PLATE IS AVAILABLE UNPAINTED FOR CUSTOM FABRICATION. PREPARE THE WELD AREAS AND APPLY AN APPROPRIATE FINISH AFTER COMPLETING THE STRUCTURAL WORK.

UNIVERSAL SKID STEER INTERFACE

THE MOUNTING FACE FOLLOWS THE UNIVERSAL SKID STEER ATTACHMENT ARRANGEMENT. CONFIRM THAT THE CARRIER LOCKING PINS SEAT FULLY IN THE FINISHED ASSEMBLY BEFORE USE.

62–135-POUND PLATE WEIGHTS

THE THREE PLATE THICKNESSES WEIGH 62, 76, AND 135 POUNDS RESPECTIVELY. INCLUDE THIS MOUNTING-BASE WEIGHT WHEN CALCULATING THE COMPLETE IMPLEMENT WEIGHT.

Description

Key Benefits

Technical Specs

Applications

Loflin Quick Attach Plates

The Loflin Fabrication Quick Attach Plate provides a steel mounting base for custom skid steer attachment builds and implement conversions. Choose the plate thickness that suits the attachment structure and the intended fabrication work.

Three steel thicknesses are available: 3/16 inch, 1/4 inch, and 1/2 inch. The mounting plate is offered unpainted for fabrication, with the final attachment geometry and load path established during installation.

The plate weighs 62 pounds in 3/16-inch steel, 76 pounds in 1/4-inch steel, and 135 pounds in 1/2-inch steel. The standard plate outline is 45.750 inches wide and 17.750 inches high.

Align the mounting face and locking pockets before final welding. Have a qualified fabricator complete the conversion and confirm full coupler engagement and clearance through the machine working range.

Loflin Quick Attach Plates

  • Choose 3/16-inch, 1/4-inch, or 1/2-inch plate steel. The thickness selection changes the mounting-base weight and steel section for the fabrication project.
  • The standard mounting plate outline measures 45.750 inches across and 17.750 inches high. Check the receiving attachment structure and clearances before positioning it for welding.
  • The plate is available unpainted for custom fabrication. Prepare the weld areas and apply an appropriate finish after completing the structural work.
  • The mounting face follows the universal skid steer attachment arrangement. Confirm that the carrier locking pins seat fully in the finished assembly before use.
  • The three plate thicknesses weigh 62, 76, and 135 pounds respectively. Include this mounting-base weight when calculating the complete implement weight.

Loflin Quick Attach Plates

  • Manufacturer: Loflin Fabrication
  • Steel thicknesses: 3/16, 1/4, and 1/2 inch
  • Plate outline: 45.750 × 17.750 inches
  • Weights by thickness: 62, 76, and 135 lb
  • Finish: available unpainted
  • Interface: universal skid steer attachment plate

Loflin Quick Attach Plates

  • Service application: universal skid steer attachments.
  • Match the installed part number and receiving interface.
  • Complete host equipment is separate from the selected component.

Loflin Fabrication: Brand & Attachment Videos

Loflin Quick Attach Plates

COMPONENT DETAILS:

  • Choose 3/16-inch, 1/4-inch, or 1/2-inch plate steel. The thickness selection changes the mounting-base weight and steel section for the fabrication project.
  • The standard mounting plate outline measures 45.750 inches across and 17.750 inches high. Check the receiving attachment structure and clearances before positioning it for welding.
  • The plate is available unpainted for custom fabrication. Prepare the weld areas and apply an appropriate finish after completing the structural work.
  • The mounting face follows the universal skid steer attachment arrangement. Confirm that the carrier locking pins seat fully in the finished assembly before use.
  • The three plate thicknesses weigh 62, 76, and 135 pounds respectively. Include this mounting-base weight when calculating the complete implement weight.

MATCH YOUR ASSEMBLY:

  • Steel thicknesses: 3/16, 1/4, and 1/2 inch
  • Plate outline: 45.750 × 17.750 inches
  • Weights by thickness: 62, 76, and 135 lb
  • Finish: available unpainted
  • Interface: universal skid steer attachment plate

READY FOR THE FIELD:

  • Confirm the original part number and equipment configuration.
  • Compare component dimensions and connection details.
  • Support the equipment and isolate stored energy before service.
  • Install using the host equipment procedure and correct hardware.
  • Inspect the completed assembly before returning it to work.
