LOFLIN FABRICATION

Removable Bucket Toothbars

For Smooth-Edge Low Profile Buckets

59–83-inch Nominal Bar Options

Request QuoteAdd To Cart

Loflin Fabrication Removable Bucket Toothbars

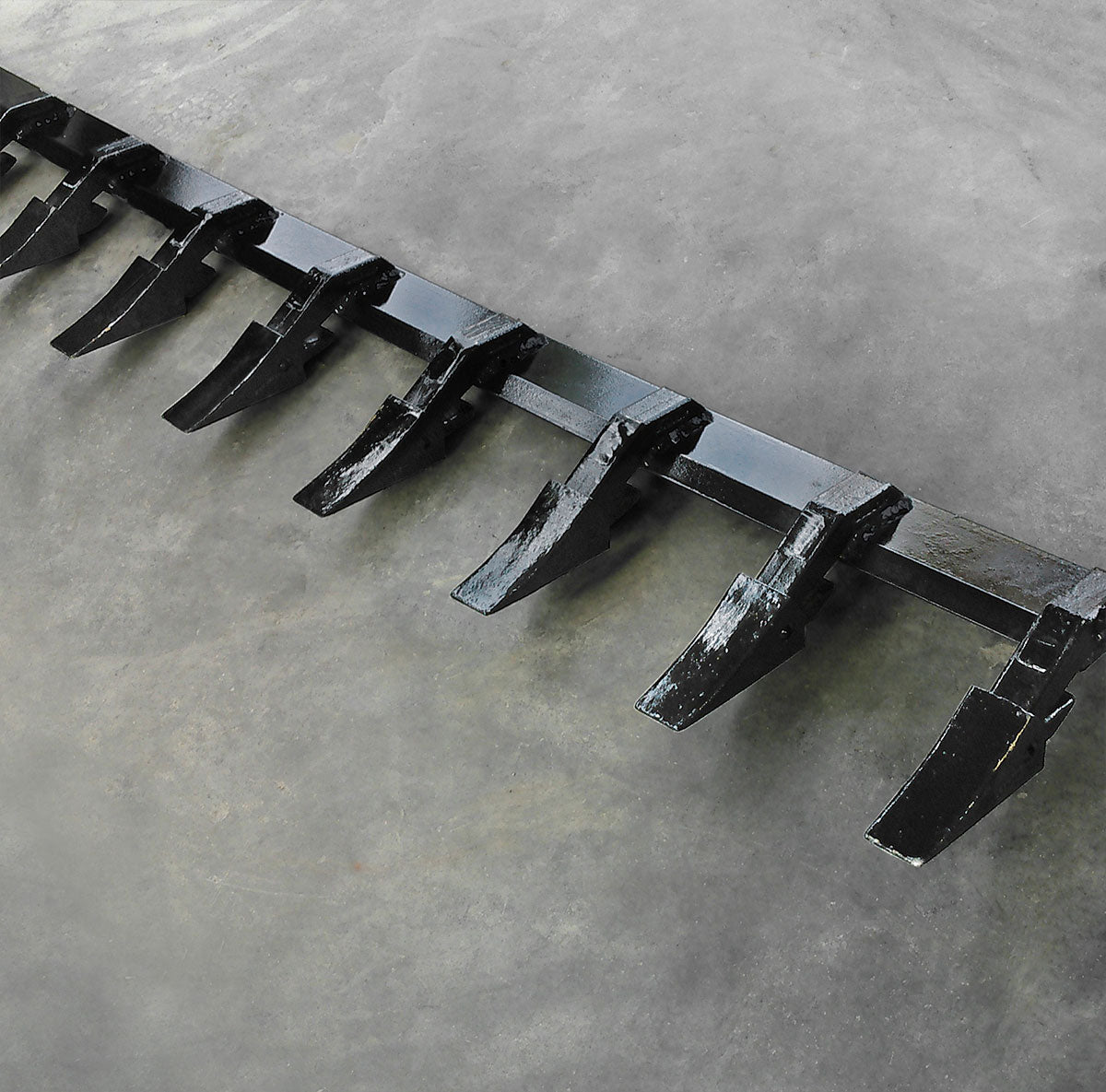

Loflin Fabrication Removable Bucket Toothbars; manufacturer family image, configuration may differ.
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Removable Bucket Toothbars; manufacturer family image, configuration may differ.
Loflin Fabrication

Loflin Fabrication Removable Bucket Toothbars

SKU: 0380100058.75 Currently In Stock

$1,889.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

REPLACEABLE PENGO 2300 TEETH

THE BAR USES REPLACEABLE PENGO 2300 SERIES TEETH FOR ITS GROUND-ENGAGING EDGE. INDIVIDUAL TEETH CAN BE SERVICED SEPARATELY FROM THE MAIN TOOTHBAR STRUCTURE.

1/2 × 4-INCH BASE EDGE

THE TEETH ATTACH TO A 1/2-INCH BY 4-INCH CUTTING-EDGE BASE. MATCH THIS BASE PROFILE TO THE RECEIVING BUCKET EDGE AND THE REQUIRED MOUNTING POSITION.

REMOVABLE BOLT-ON ASSEMBLY

THE COMPLETE TOOTHBAR ATTACHES USING THE INSTALLATION HARDWARE. REMOVING THE ASSEMBLY RESTORES ACCESS TO THE ORIGINAL SMOOTH BUCKET EDGE FOR OTHER WORK.

INSTALLATION HARDWARE INCLUDED

BOLTS AND INSTALLATION HARDWARE ARE INCLUDED WITH THE TOOTHBAR. ALIGN THE BAR TO THE BUCKET AND FOLLOW THE CORRECT FASTENING AND INSPECTION PROCEDURE.

INSIDE-BUCKET WIDTH SIZING

THE BAR IS SIZED AGAINST THE SPACE BETWEEN THE BUCKET INSIDE EDGES. CHOOSE THE ACTUAL LENGTH SHOWN IN THE OPTION; XHD BUCKET INSTALLATIONS ARE EXCLUDED.

Description

Key Benefits

Technical Specs

Applications

Loflin Removable Bucket Toothbars

The Loflin Fabrication Removable Bucket Toothbars add replaceable digging teeth to a matching smooth-edge low profile bucket. The removable assembly allows the bucket to return to a smooth-edge configuration when the toothbar is removed.

The toothbar uses replaceable Pengo 2300 series teeth on a 1/2-inch by 4-inch cutting edge. Bolts and installation hardware are included with the bar.

Measure between the bucket inside edges and select the exact bar length shown in the option. The nominal 59–83-inch family corresponds to actual bar lengths of 58-3/4, 64-3/4, 70-3/4, 76-3/4, and 82-3/4 inches.

These toothbars do not fit XHD buckets. Confirm the bucket edge geometry and mounting clearance before drilling or installing the supplied hardware.

Loflin Removable Bucket Toothbars

  • The bar uses replaceable Pengo 2300 series teeth for its ground-engaging edge. Individual teeth can be serviced separately from the main toothbar structure.
  • The teeth attach to a 1/2-inch by 4-inch cutting-edge base. Match this base profile to the receiving bucket edge and the required mounting position.
  • The complete toothbar attaches using the installation hardware. Removing the assembly restores access to the original smooth bucket edge for other work.
  • Bolts and installation hardware are included with the toothbar. Align the bar to the bucket and follow the correct fastening and inspection procedure.
  • The bar is sized against the space between the bucket inside edges. Choose the actual length shown in the option; XHD bucket installations are excluded.

Loflin Removable Bucket Toothbars

  • Manufacturer: Loflin Fabrication
  • Actual bar lengths are shown in the options; measure inside the bucket before ordering
  • Not compatible with XHD buckets
  • Mounting hardware included
  • Teeth: replaceable Pengo 2300 series
  • Toothbar base edge: 1/2 × 4 inches

Loflin Removable Bucket Toothbars

  • Service application: matching smooth-edge low profile buckets.
  • Match the installed part number and receiving interface.
  • Complete host equipment is separate from the selected component.

Loflin Fabrication: Brand & Attachment Videos

Loflin Removable Bucket Toothbars

COMPONENT DETAILS:

  • The bar uses replaceable Pengo 2300 series teeth for its ground-engaging edge. Individual teeth can be serviced separately from the main toothbar structure.
  • The teeth attach to a 1/2-inch by 4-inch cutting-edge base. Match this base profile to the receiving bucket edge and the required mounting position.
  • The complete toothbar attaches using the installation hardware. Removing the assembly restores access to the original smooth bucket edge for other work.
  • Bolts and installation hardware are included with the toothbar. Align the bar to the bucket and follow the correct fastening and inspection procedure.
  • The bar is sized against the space between the bucket inside edges. Choose the actual length shown in the option; XHD bucket installations are excluded.

MATCH YOUR ASSEMBLY:

  • Actual bar lengths are shown in the options; measure inside the bucket before ordering
  • Not compatible with XHD buckets
  • Mounting hardware included
  • Teeth: replaceable Pengo 2300 series
  • Toothbar base edge: 1/2 × 4 inches

READY FOR THE FIELD:

  • Confirm the original part number and equipment configuration.
  • Compare component dimensions and connection details.
  • Support the equipment and isolate stored energy before service.
  • Install using the host equipment procedure and correct hardware.
  • Inspect the completed assembly before returning it to work.
