LOFLIN FABRICATION

Grapple Bucket

For Skid Steers

31.4375" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Standard Duty Grapple Bucket For Skid Steers

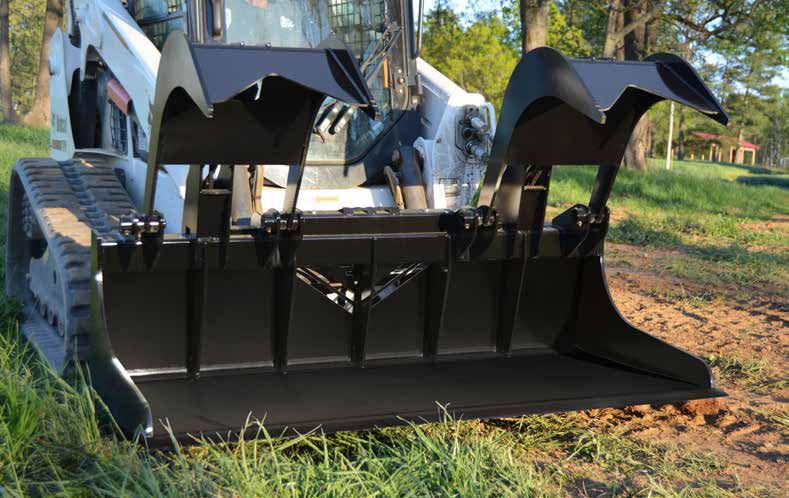

Loflin Fabrication Standard Duty Grapple Bucket shown in manufacturer catalog

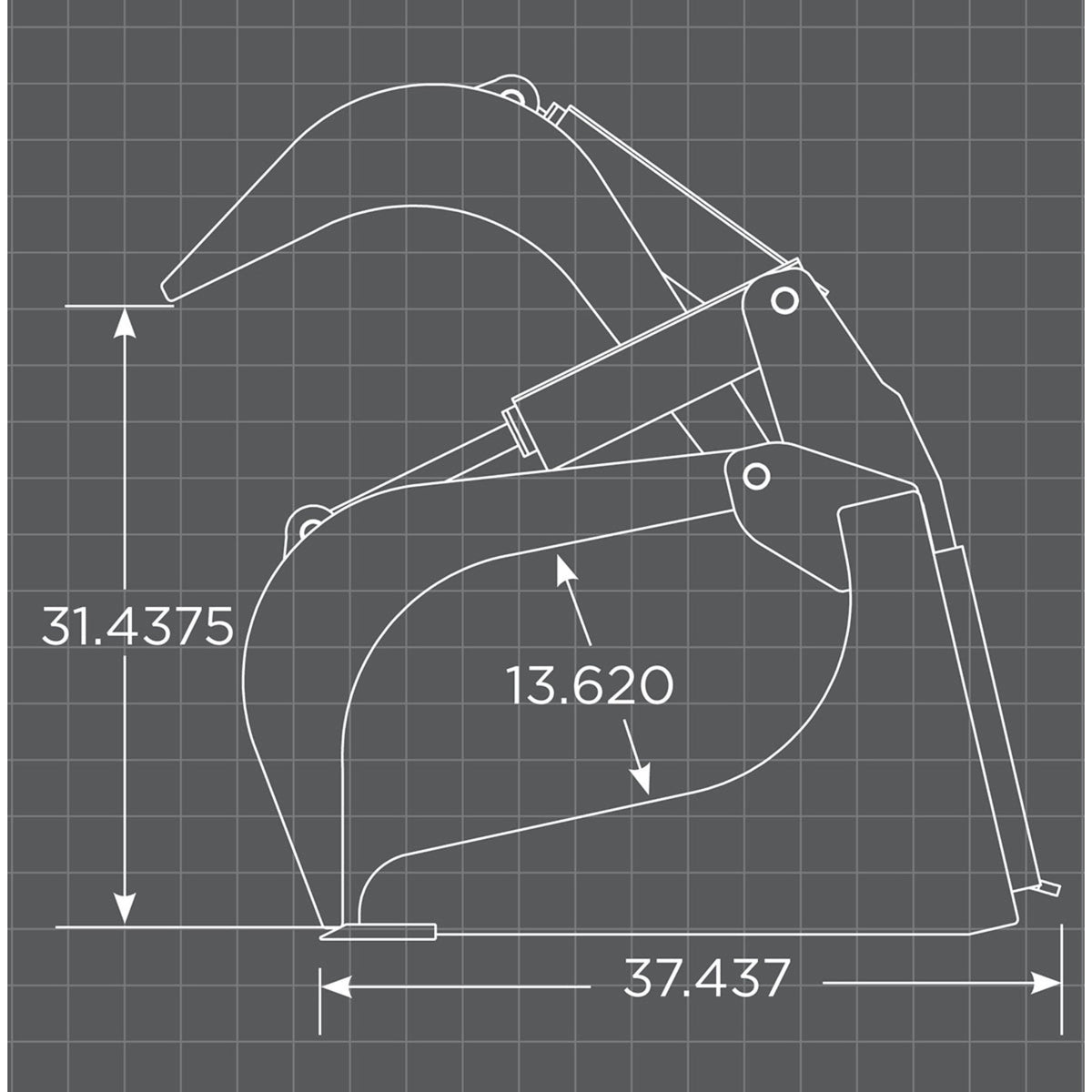

Loflin Fabrication Standard Duty Grapple Bucket For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Standard Duty Grapple Bucket shown in manufacturer catalogLoflin Fabrication Standard Duty Grapple Bucket For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Standard Duty Grapple Bucket For Skid Steers

SKU: 0150101060 Currently In Stock

$4,599.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

2 X 10 IN. CYLINDERS

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

INDEPENDENT UPPER GRAPPLES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

1/4 IN. REINFORCED BOTTOM

THE BUCKET BODY SUPPORTS LOOSE MATERIAL BENEATH THE UPPER GRAPPLE DURING LOADING AND TRANSFER.

3/4 X 6 IN. CUTTING EDGE

THE STATED CUTTING-EDGE DIMENSIONS DESCRIBE THE FRONT WORKING LIP OF THE GRAPPLE BUCKET.

1.25 IN. GREASEABLE PINS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

Description

Key Benefits

Technical Specs

Applications

Loflin Standard Duty Grapple Bucket

The Loflin Fabrication Standard Duty Grapple Bucket gives skid steer loaders a dedicated attachment for brush, debris, and general material handling. The solid floor supports loose material while independent grapple tines close around irregular piles. Available working-width selections are 60", 66", 72", 78", 84".

2 x 10 in. cylinders and independent upper grapples define the working arrangement. The attachment supports repeated pickup, transfer, and placement rather than manual handling. Keep material centered and account for the attachment's own weight when assessing the carrier's available lifting capacity.

1/4 in. reinforced bottom; 3/4 x 6 in. cutting edge; 1.25 in. greaseable pins support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Recommended carrier horsepower: 75 HP and below. Match the hydraulic circuit separately. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Standard Duty Grapple Bucket

  • 2 x 10 in. cylinders
  • Independent upper grapples
  • 1/4 in. reinforced bottom
  • 3/4 x 6 in. cutting edge
  • 1.25 in. greaseable pins

Loflin Standard Duty Grapple Bucket

  • Manufacturer: Loflin Fabrication
  • Product family: Standard Duty Grapple Bucket
  • Carrier group: skid steer loaders
  • Power source: carrier hydraulic actuation
  • Grapple opening: 31.4375 in.
  • Width options: 60", 66", 72", 78", 84"
  • Recommended carrier horsepower: 75 HP and below
  • 2 x 10 in. cylinders
  • Independent upper grapples
  • 1/4 in. reinforced bottom
  • 3/4 x 6 in. cutting edge
  • 1.25 in. greaseable pins
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0150101060: 60" GRAPPLE BUCKET; weight 804 lb
  • 0150101066: 66" GRAPPLE BUCKET; weight 837 lb
  • 0150101072: 72" GRAPPLE BUCKET; weight 881 lb
  • 0150101078: 78" GRAPPLE BUCKET; weight 922 lb
  • 0150101084: 84" GRAPPLE BUCKET; weight 953 lb
  • 0156001060: 60" GRAPPLE BUCKET W/PUNCHED EDGE; weight 804 lb
  • 0156001066: 66" GRAPPLE BUCKET W/PUNCHED EDGE; weight 837 lb
  • 0156001072: 72" GRAPPLE BUCKET W/PUNCHED EDGE; weight 881 lb
  • 0156001078: 78" GRAPPLE BUCKET W/PUNCHED EDGE; weight 922 lb
  • 0156001084: 84" GRAPPLE BUCKET W/PUNCHED EDGE; weight 953 lb
  • 0152801060: 60" GRAPPLE BUCKET W/BOLT ON EDGE; weight 859 lb
  • 0152801066: 66" GRAPPLE BUCKET W/BOLT ON EDGE; weight 897 lb
  • 0152801072: 72" GRAPPLE BUCKET W/BOLT ON EDGE; weight 947 lb
  • 0152801078: 78" GRAPPLE BUCKET W/BOLT ON EDGE; weight 993 lb
  • 0152801084: 84" GRAPPLE BUCKET W/BOLT ON EDGE; weight 1030 lb

Loflin Standard Duty Grapple Bucket

  • Brush, debris, and general material handling.
  • Material transfer with a properly matched skid steer loader carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Standard Duty Grapple Bucket

BUILT TO HANDLE THE LOAD:

  • The solid floor supports loose material while independent grapple tines close around irregular piles.
  • 2 x 10 in. cylinders
  • Independent upper grapples
  • 1/4 in. reinforced bottom
  • 3/4 x 6 in. cutting edge

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for brush, debris, and general material handling.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for brush, debris, and general material handling with a suitable skid steer loader carrier.
  • 2 x 10 in. cylinders.
  • Independent upper grapples.
  • 1/4 in. reinforced bottom.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
