LOFLIN FABRICATION

Root Grapple

For Skid Steers

34.25" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Standard Duty Root Grapple For Skid Steers

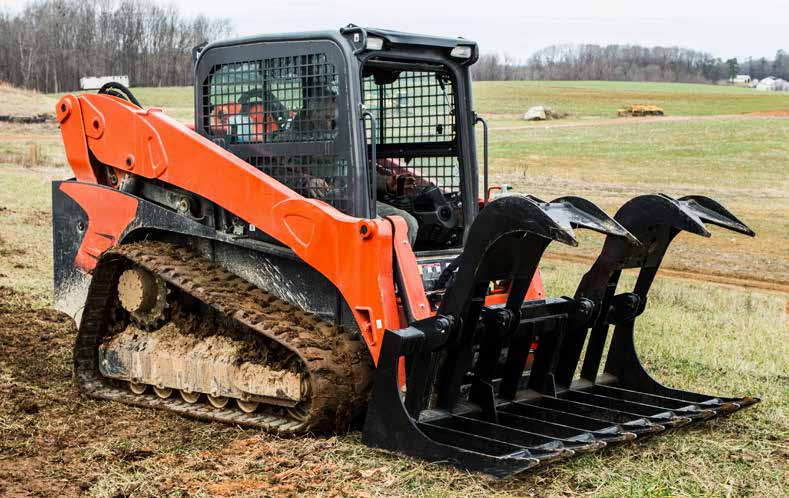

Loflin Fabrication Standard Duty Root Grapple shown in manufacturer catalog

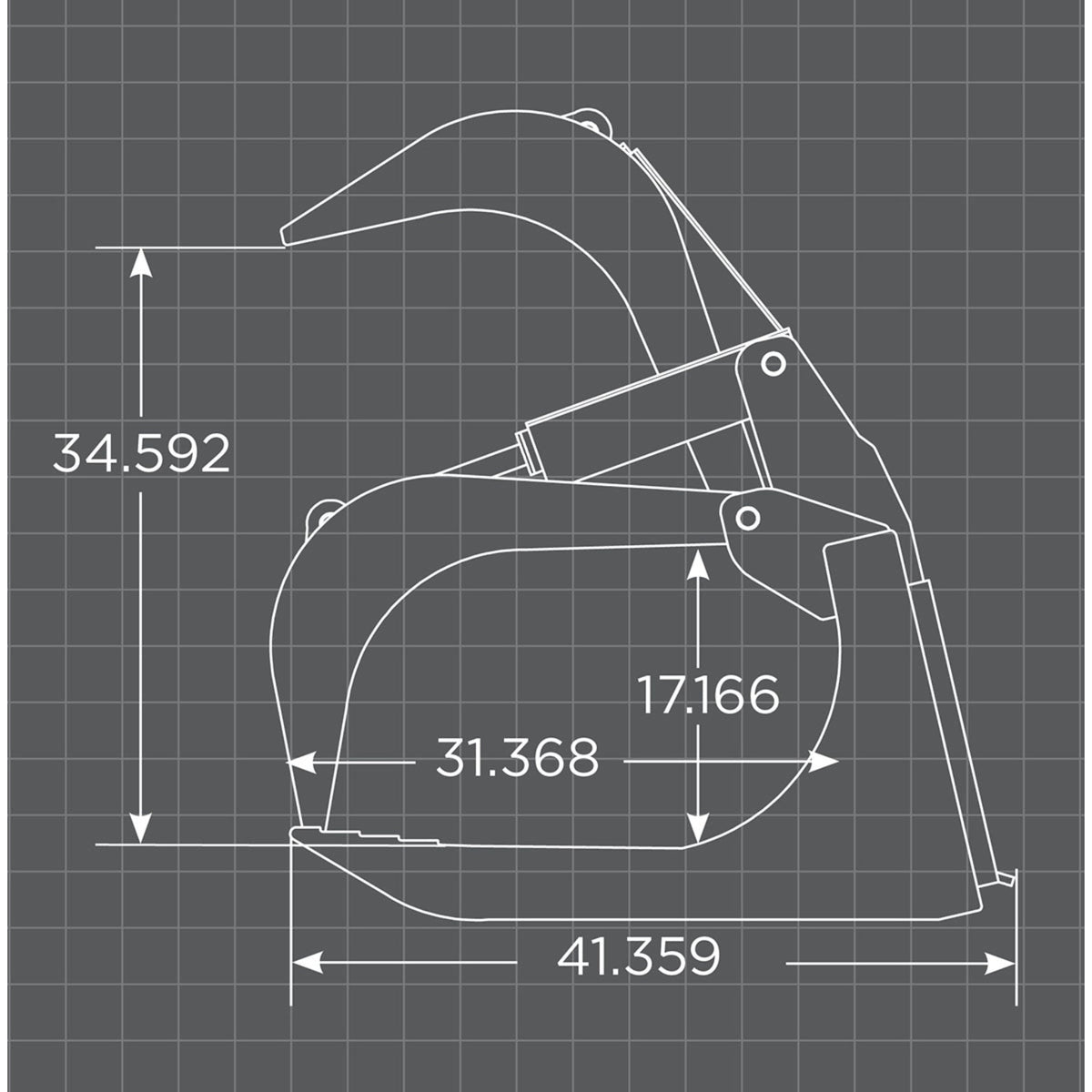

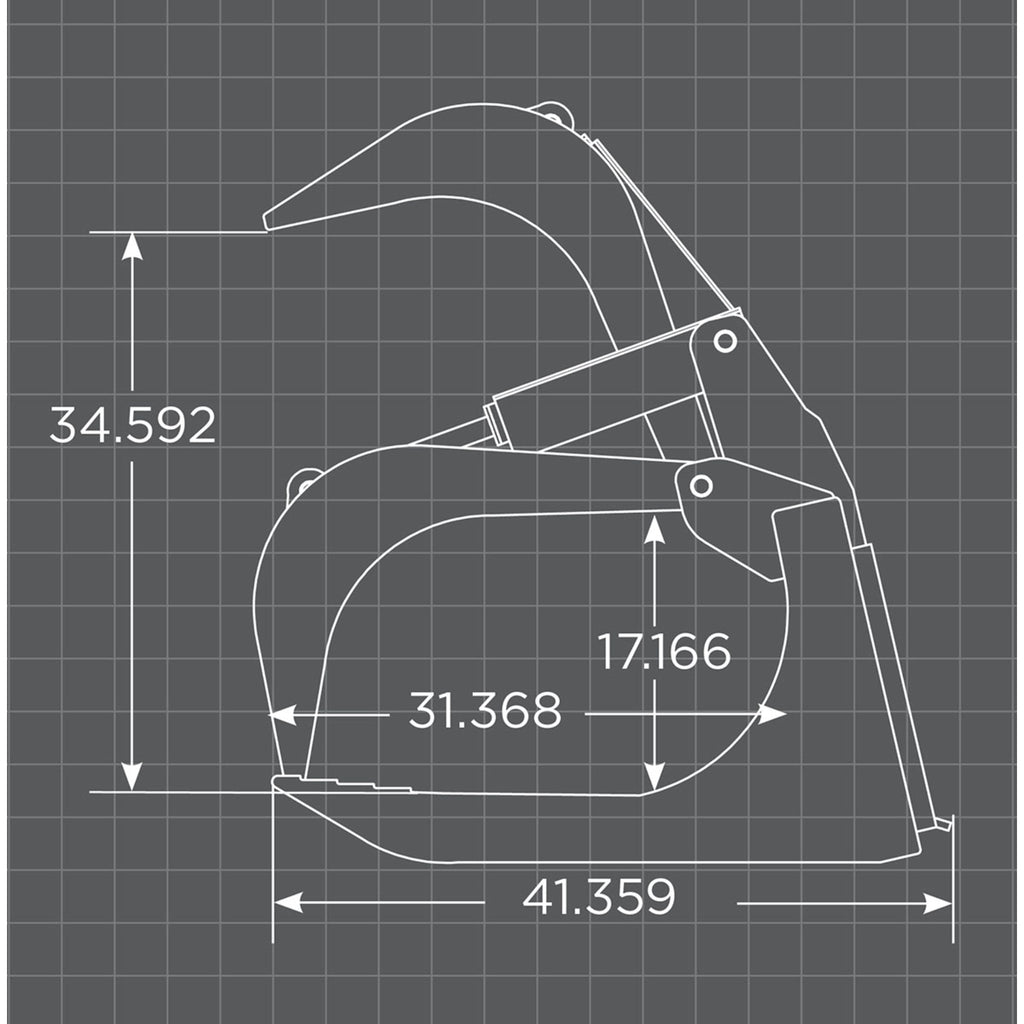

Loflin Fabrication Standard Duty Root Grapple For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Standard Duty Root Grapple shown in manufacturer catalogLoflin Fabrication Standard Duty Root Grapple For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication Standard Duty Root Grapple For Skid Steers

SKU: 0010101060 Currently In Stock

$4,599.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

2 X 10 IN. CYLINDERS

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

1/2 IN. STEEL TINES

STEEL TINES SUPPORT AND RETAIN THE GRAPPLE LOAD.

INDEPENDENT GRAPPLE TINES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

COVERED HYDRAULIC CYLINDERS

CYLINDER COVERS SHIELD THE ACTUATOR AREA FROM DIRECT CONTACT WITH THE MATERIAL BEING HANDLED.

1.25 IN. GREASEABLE PINS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

Description

Key Benefits

Technical Specs

Applications

Loflin Standard Duty Root Grapple

The Loflin Fabrication Standard Duty Root Grapple gives skid steer loaders a dedicated attachment for roots, brush, logs, and mixed land-clearing debris. The curved open bottom gathers material while allowing loose dirt to sift away during cleanup. Available working-width selections are 60", 66", 72", 78", 84".

2 x 10 in. cylinders and 1/2 in. steel tines define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

Independent grapple tines; Covered hydraulic cylinders; 1.25 in. greaseable pins support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Recommended carrier horsepower: 75 HP and below. Match the hydraulic circuit separately. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Standard Duty Root Grapple

  • 2 x 10 in. cylinders
  • 1/2 in. steel tines
  • Independent grapple tines
  • Covered hydraulic cylinders
  • 1.25 in. greaseable pins

Loflin Standard Duty Root Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: Standard Duty Root Grapple
  • Carrier group: skid steer loaders
  • Power source: carrier hydraulic actuation
  • Grapple opening: 34.25 in.
  • Width options: 60", 66", 72", 78", 84"
  • Recommended carrier horsepower: 75 HP and below
  • 2 x 10 in. cylinders
  • 1/2 in. steel tines
  • Independent grapple tines
  • Covered hydraulic cylinders
  • 1.25 in. greaseable pins
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0010101060: 60" ROOT GRAPPLE; weight 716 lb
  • 0010101066: 66" ROOT GRAPPLE; weight 764 lb
  • 0010101072: 72" ROOT GRAPPLE; weight 820 lb
  • 0010101078: 78" ROOT GRAPPLE; weight 826 lb
  • 0010101084: 84" ROOT GRAPPLE; weight 909 lb

Loflin Standard Duty Root Grapple

  • Roots, brush, logs, and mixed land-clearing debris.
  • Material transfer with a properly matched skid steer loader carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Standard Duty Root Grapple

BUILT TO HANDLE THE LOAD:

  • The curved open bottom gathers material while allowing loose dirt to sift away during cleanup.
  • 2 x 10 in. cylinders
  • 1/2 in. steel tines
  • Independent grapple tines
  • Covered hydraulic cylinders

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for roots, brush, logs, and mixed land-clearing debris.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for roots, brush, logs, and mixed land-clearing debris with a suitable skid steer loader carrier.
  • 2 x 10 in. cylinders.
  • 1/2 in. steel tines.
  • Independent grapple tines.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
