LOFLIN FABRICATION

Vertical Root Grapple

For Skid Steers

54" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication Standard Duty Vertical Root Grapple For Skid Steers

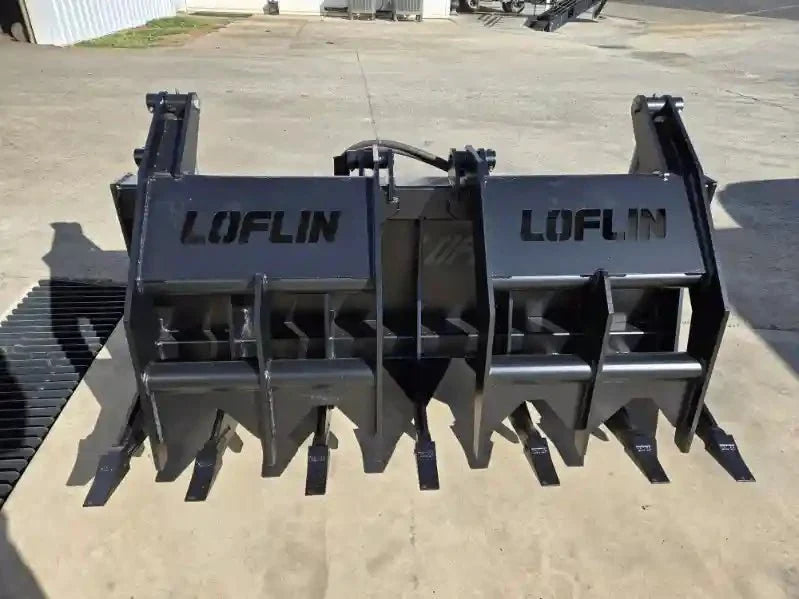

Loflin Fabrication Standard Duty Vertical Root Grapple For Skid Steers product view 1
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Standard Duty Vertical Root Grapple For Skid Steers product view 1
Loflin Fabrication

Loflin Fabrication Standard Duty Vertical Root Grapple For Skid Steers

SKU: 0660101060 Currently In Stock

$4,599.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

INDEPENDENT GRAPPLE TINES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

2 X 10 IN. CYLINDERS

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

REINFORCED QUICK ATTACH

THE REINFORCED MOUNTING AREA SUPPORTS THE CONNECTION BETWEEN THE GRAPPLE AND THE LOADER’S ATTACHMENT INTERFACE.

COVERED CYLINDERS

CYLINDER COVERS SHIELD THE ACTUATOR AREA FROM DIRECT CONTACT WITH THE MATERIAL BEING HANDLED.

PROTECTED HYDRAULIC HOSES

PROTECTED HOSE ROUTING KEEPS HYDRAULIC LINES AWAY FROM EXPOSED MATERIAL-CONTACT AREAS.

Description

Key Benefits

Technical Specs

Applications

Loflin Standard Duty Vertical Root Grapple

The Loflin Fabrication Standard Duty Vertical Root Grapple gives skid steer loaders a dedicated attachment for raking and moving mixed land-clearing debris. The vertical rake-style frame gathers debris while its wide opening accommodates uneven piles. Available working-width selections are 60", 66", 72", 80", 84".

Independent grapple tines and 2 x 10 in. cylinders define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

Reinforced quick attach; Covered cylinders; Protected hydraulic hoses support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Recommended carrier horsepower: 75 HP and below. Match the hydraulic circuit separately. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin Standard Duty Vertical Root Grapple

  • Independent grapple tines
  • 2 x 10 in. cylinders
  • Reinforced quick attach
  • Covered cylinders
  • Protected hydraulic hoses

Loflin Standard Duty Vertical Root Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: Standard Duty Vertical Root Grapple
  • Carrier group: skid steer loaders
  • Power source: carrier hydraulic actuation
  • Grapple opening: 54 in.
  • Width options: 60", 66", 72", 80", 84"
  • Recommended carrier horsepower: 75 HP and below
  • Independent grapple tines
  • 2 x 10 in. cylinders
  • Reinforced quick attach
  • Covered cylinders
  • Protected hydraulic hoses
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0660101060: 60" STANDARD VERTICAL ROOT GRAPPLE
  • 0660101066: 66" STANDARD VERTICAL ROOT GRAPPLES
  • 0660101072: 72" STANDARD VERTICAL ROOT GRAPPLES
  • 0660101080: 80" STANDARD VERTICAL ROOT GRAPPLES
  • 0660101084: 84" STANDARD VERTICAL ROOT GRAPPLES

Loflin Standard Duty Vertical Root Grapple

  • Raking and moving mixed land-clearing debris.
  • Material transfer with a properly matched skid steer loader carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin Standard Duty Vertical Root Grapple

BUILT TO HANDLE THE LOAD:

  • The vertical rake-style frame gathers debris while its wide opening accommodates uneven piles.
  • Independent grapple tines
  • 2 x 10 in. cylinders
  • Reinforced quick attach
  • Covered cylinders

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for raking and moving mixed land-clearing debris.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for raking and moving mixed land-clearing debris with a suitable skid steer loader carrier.
  • Independent grapple tines.
  • 2 x 10 in. cylinders.
  • Reinforced quick attach.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
