LOFLIN FABRICATION

Trench Filler With Packing Wheel

For Skid Steers & Track Loaders

47" Overall Width

Request QuoteAdd To Cart

Loflin Fabrication Trench Filler With Packing Wheel

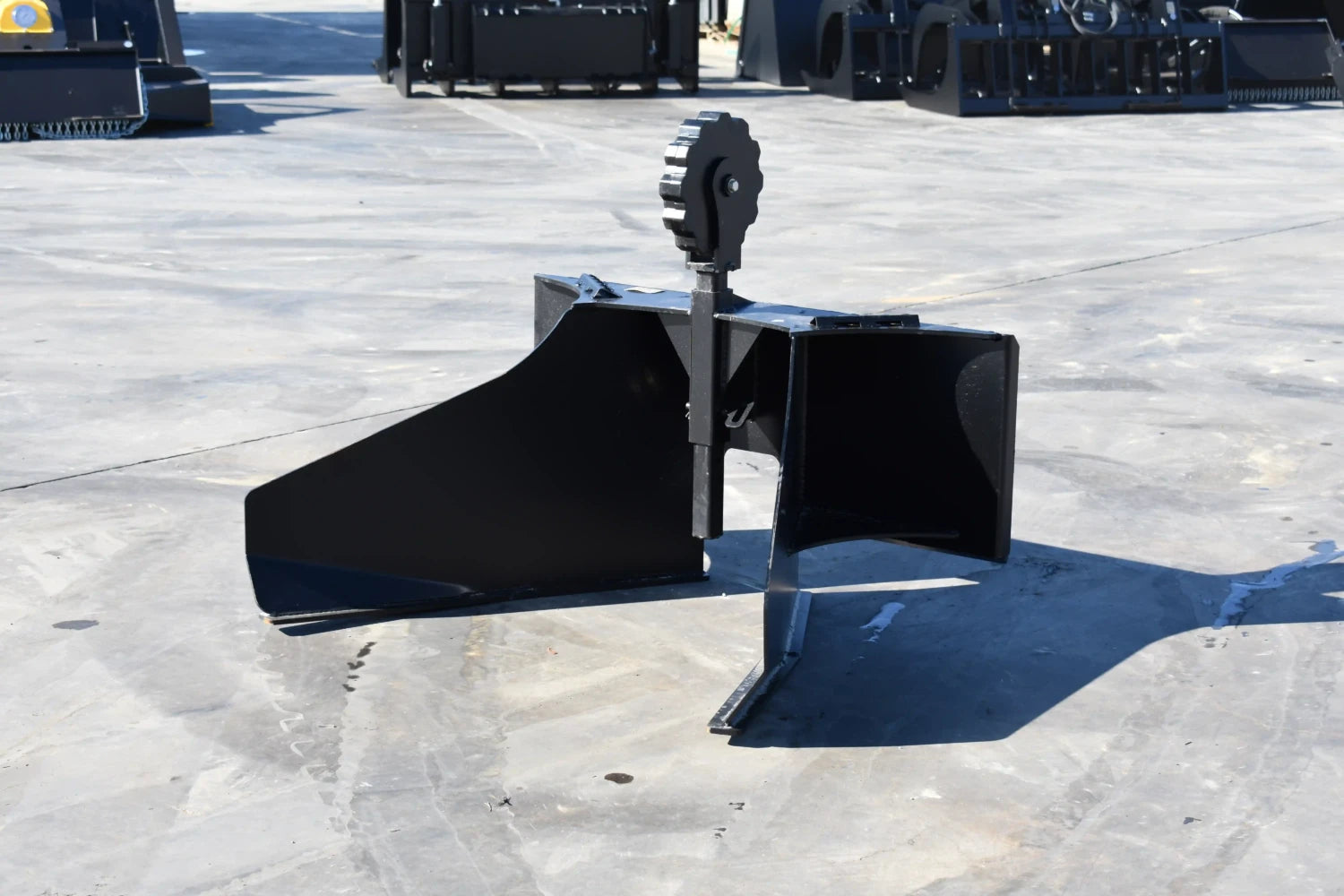

Loflin Fabrication Trench Filler With Packing Wheel; manufacturer family image, illustrated configuration may differ.

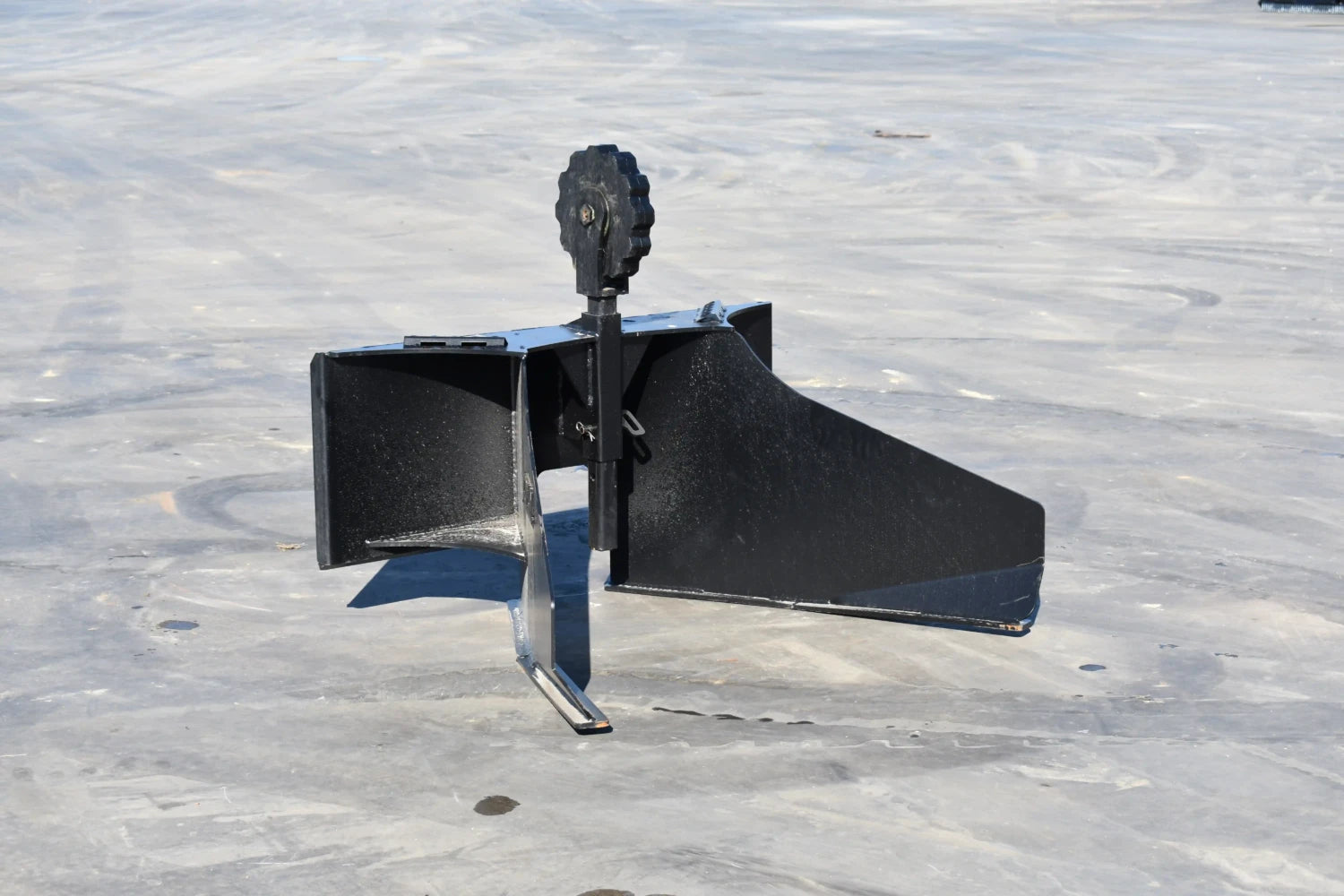

Loflin Fabrication Trench Filler With Packing Wheel; manufacturer family image, illustrated configuration may differ.

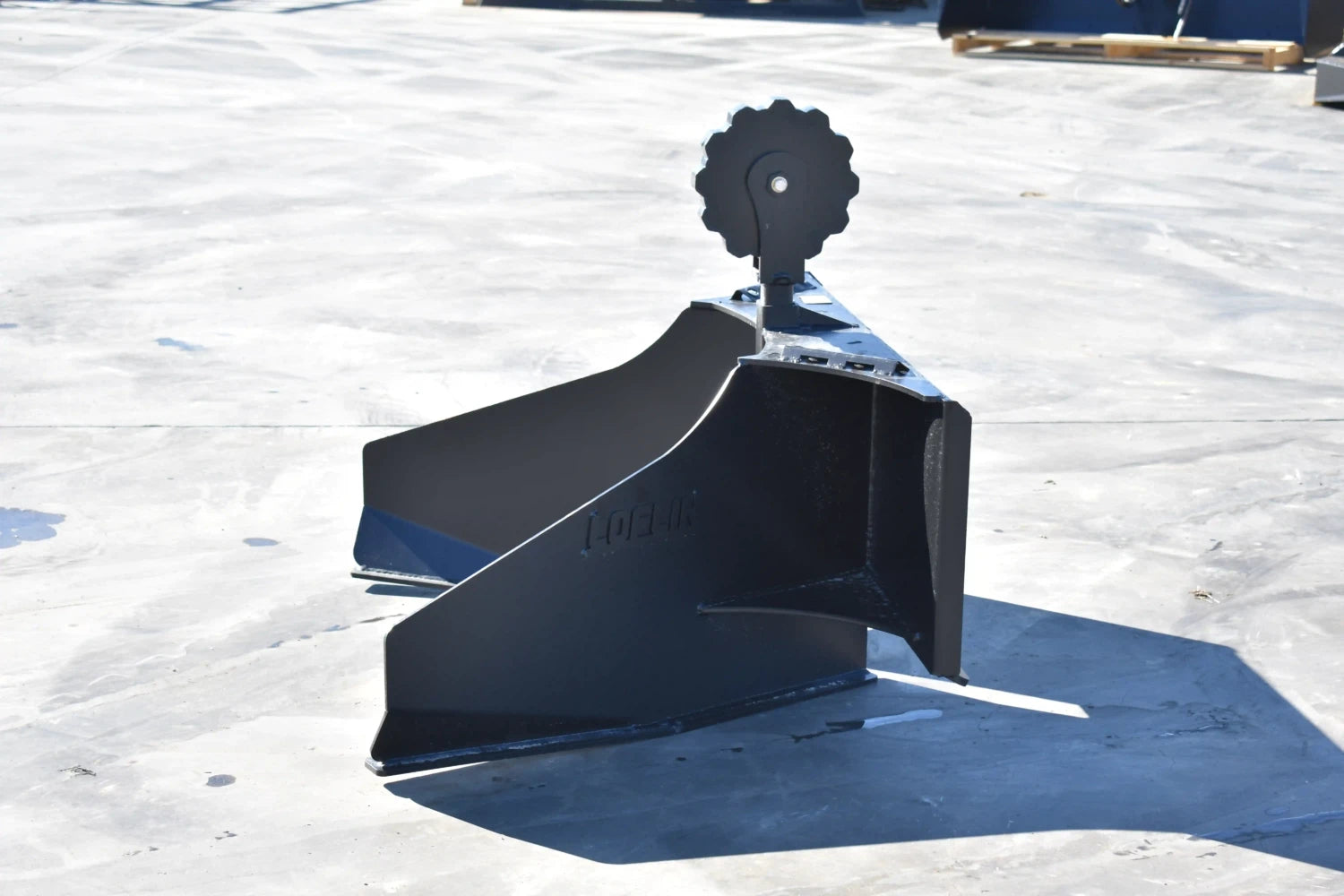

Loflin Fabrication Trench Filler With Packing Wheel; manufacturer family image, illustrated configuration may differ.

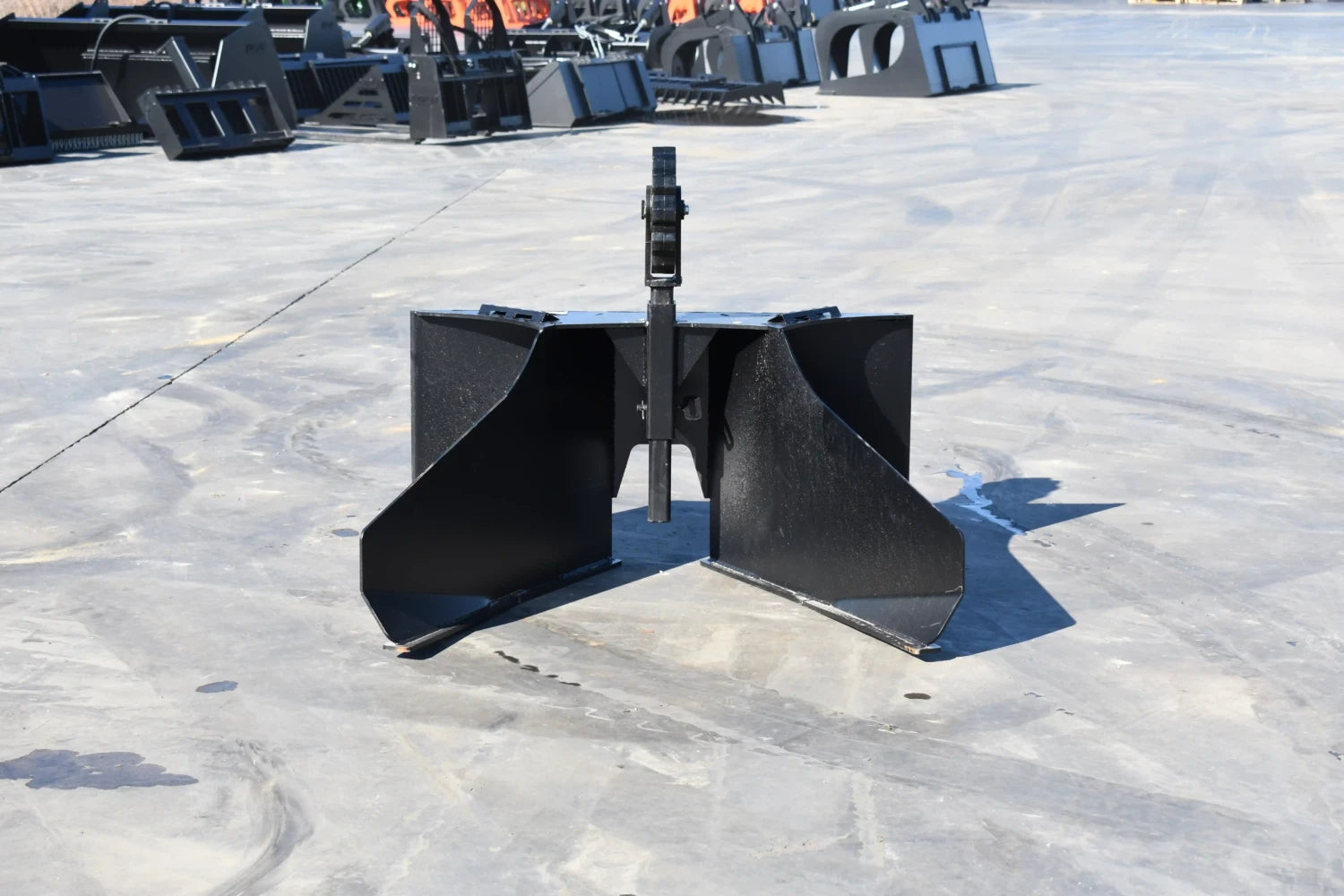

Loflin Fabrication Trench Filler With Packing Wheel; manufacturer family image, illustrated configuration may differ.
Roll over image to zoom in Click on image to zoom
Loflin Fabrication Trench Filler With Packing Wheel; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Trench Filler With Packing Wheel; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Trench Filler With Packing Wheel; manufacturer family image, illustrated configuration may differ.Loflin Fabrication Trench Filler With Packing Wheel; manufacturer family image, illustrated configuration may differ.
Loflin Fabrication

Loflin Fabrication Trench Filler With Packing Wheel

SKU: 0706301000 Currently In Stock

$1,986.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

47-INCH OVERALL WIDTH

THE TRENCH FILLER MEASURES 47 INCHES ACROSS THE COMPLETE ATTACHMENT. ITS WORKING ARRANGEMENT MOVES DISPLACED TRENCH SPOIL BACK TOWARD THE EXCAVATED LINE AS THE CARRIER TRAVELS.

INTEGRATED PACKING WHEEL

A PACKING WHEEL FOLLOWS THE BACKFILLING ARRANGEMENT ALONG THE TRENCH. THE WHEEL IS FORMED FROM TWO PIECES, 2 INCHES THICK, WITH AN 11-INCH HEIGHT.

REINFORCED STEEL SIDES

THE SIDE PLATES USE 1/4-INCH MATERIAL WITH 3/8-INCH GUSSETS. THE REINFORCEMENT SUPPORTS THE WORKING STRUCTURE THAT GUIDES LOOSE SPOIL TOWARD THE TRENCH.

PASSIVE BACKFILLING ACTION

THE CARRIER SUPPLIES TRAVEL AND POSITIONING MOVEMENT FOR THE ATTACHMENT. NO SEPARATE HYDRAULIC MOTOR OR PTO DRIVE IS NEEDED FOR THE BACKFILLING HEAD.

330-POUND ATTACHMENT

THE COMPLETE TRENCH FILLER WEIGHS 330 POUNDS. ACCOUNT FOR THE ATTACHMENT WEIGHT AND WORKING RESISTANCE WITHIN THE CARRIER OPERATING AND HANDLING LIMITS.

Description

Key Benefits

Technical Specs

Applications

Loflin Trench Filler With Packing Wheel

The Loflin Fabrication Trench Filler With Packing Wheel returns loose trench spoil to the excavated line after utility, irrigation, or drainage work. It combines a backfilling arrangement and packing wheel in a carrier-mounted attachment.

The assembly measures 47 inches wide, 41 inches long, and 33-5/8 inches high. Reinforced 1/4-inch side plates use 3/8-inch gussets, with 2-inch tubing in the supporting structure.

The two-piece packing wheel measures 11 inches high, with each piece 2 inches thick. The complete attachment weighs 330 pounds and uses carrier movement rather than an independent hydraulic motor.

Match the mounting interface and working arrangement to the carrier before operation. Return suitable spoil in controlled passes and complete any compaction testing or finishing required by the installation specification.

Loflin Trench Filler With Packing Wheel

  • The trench filler measures 47 inches across the complete attachment. Its working arrangement moves displaced trench spoil back toward the excavated line as the carrier travels.
  • A packing wheel follows the backfilling arrangement along the trench. The wheel is formed from two pieces, 2 inches thick, with an 11-inch height.
  • The side plates use 1/4-inch material with 3/8-inch gussets. The reinforcement supports the working structure that guides loose spoil toward the trench.
  • The carrier supplies travel and positioning movement for the attachment. No separate hydraulic motor or PTO drive is needed for the backfilling head.
  • The complete trench filler weighs 330 pounds. Account for the attachment weight and working resistance within the carrier operating and handling limits.

Loflin Trench Filler With Packing Wheel

  • Manufacturer: Loflin Fabrication
  • Overall width: 47 inches
  • Overall length: 41 inches
  • Overall height: 33-5/8 inches
  • Side plate: 1/4 inch
  • Gussets: 3/8 inch
  • Wheel: two pieces, 2 inches thick, 11 inches high
  • Weight: 330 lb

Loflin Trench Filler With Packing Wheel

  • Backfilling utility and irrigation trenches.
  • Returning loose spoil after excavation.
  • Finishing the trench line before final surface restoration.

Loflin Fabrication: Brand & Attachment Videos

Loflin Trench Filler With Packing Wheel

BUILT FOR THE WORK:

  • The trench filler measures 47 inches across the complete attachment. Its working arrangement moves displaced trench spoil back toward the excavated line as the carrier travels.
  • A packing wheel follows the backfilling arrangement along the trench. The wheel is formed from two pieces, 2 inches thick, with an 11-inch height.
  • The side plates use 1/4-inch material with 3/8-inch gussets. The reinforcement supports the working structure that guides loose spoil toward the trench.
  • The carrier supplies travel and positioning movement for the attachment. No separate hydraulic motor or PTO drive is needed for the backfilling head.
  • The complete trench filler weighs 330 pounds. Account for the attachment weight and working resistance within the carrier operating and handling limits.

MATCH YOUR WORKING SETUP:

  • Backfilling utility and irrigation trenches.
  • Returning loose spoil after excavation.
  • Finishing the trench line before final surface restoration.
  • Match the mounting or component interface to the installed equipment.
  • Account for attachment weight within carrier handling limits.

READY FOR THE FIELD:

  • Inspect working components and retaining hardware.
  • Secure the attachment or replacement part to the correct interface.
  • Inspect hydraulic connections where the assembly uses them.
  • Check the work area for obstructions and locate buried utilities.
  • Follow the carrier and attachment operating or service procedures.
