Loflin Fabrication XHD Root Grapple For Skid Steers

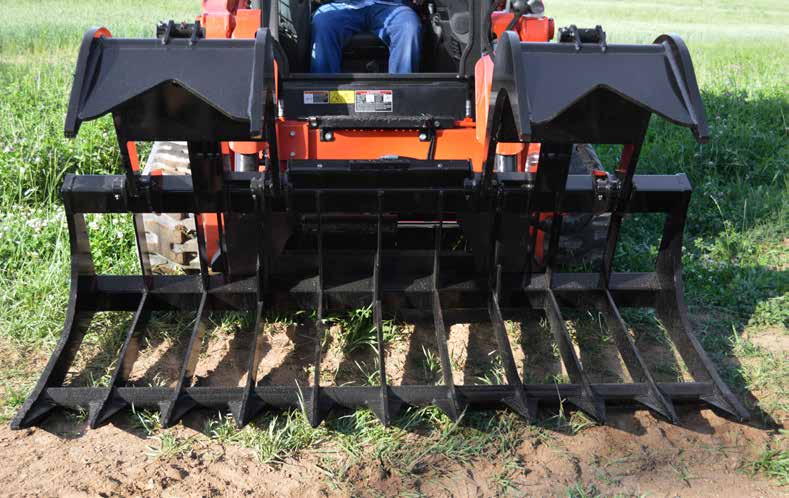

Loflin Fabrication XHD Root Grapple shown in manufacturer catalog

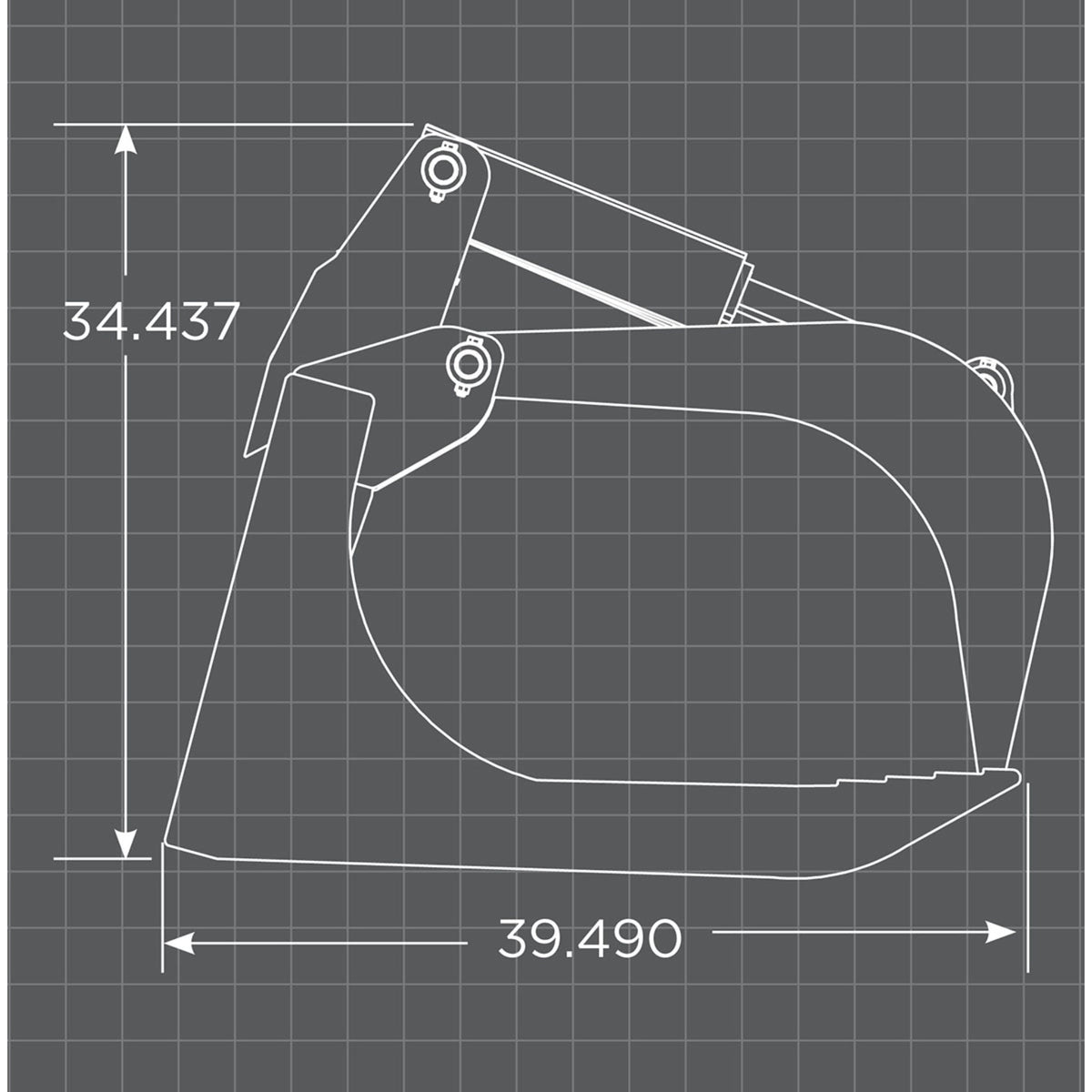

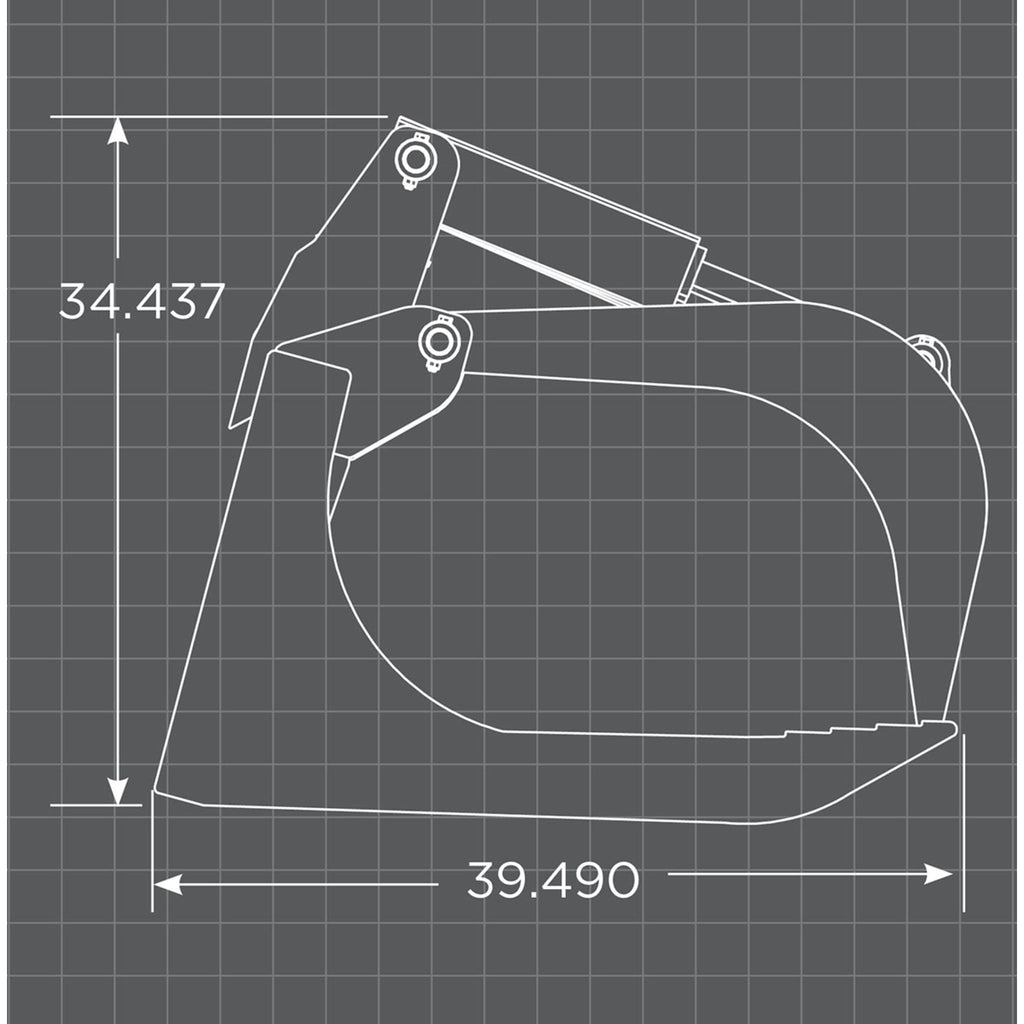

Loflin Fabrication XHD Root Grapple For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication XHD Root Grapple shown in manufacturer catalogLoflin Fabrication XHD Root Grapple For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication XHD Root Grapple For Skid Steers

SKU: 0010701066 Currently In Stock

$5,199.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

1 IN. INDEPENDENT UPPER GRAPPLE TINES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

1/2 IN. BOTTOM TINES WITH 1 IN. OUTSIDE TINES

THE LOWER TINES SUPPORT THE COLLECTED MATERIAL AND LEAVE AN OPEN FLOOR FOR LOOSE SOIL TO FALL THROUGH.

2 X 10 IN. CYLINDERS

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

COVERED CYLINDERS AND PROTECTED HOSES

COVERS AND PROTECTED HOSE ROUTING REDUCE EXPOSURE OF THE HYDRAULIC COMPONENTS DURING MATERIAL HANDLING.

1.25 IN. GREASEABLE PINS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

Description

Key Benefits

Technical Specs

Applications

Loflin XHD Root Grapple

The Loflin Fabrication XHD Root Grapple gives skid steer loaders a dedicated attachment for demanding brush and root handling. Heavier upper and outside tines reinforce the contact points used during repeated material handling. Available working-width selections are 66", 72", 78", 84".

1 in. independent upper grapple tines and 1/2 in. bottom tines with 1 in. outside tines define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

2 x 10 in. cylinders; Covered cylinders and protected hoses; 1.25 in. greaseable pins support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Recommended carrier horsepower: 110 HP and below. Match the hydraulic circuit separately. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin XHD Root Grapple

  • 1 in. independent upper grapple tines
  • 1/2 in. bottom tines with 1 in. outside tines
  • 2 x 10 in. cylinders
  • Covered cylinders and protected hoses
  • 1.25 in. greaseable pins

Loflin XHD Root Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: XHD Root Grapple
  • Carrier group: skid steer loaders
  • Power source: carrier hydraulic actuation
  • Grapple opening: 33.25 in.
  • Width options: 66", 72", 78", 84"
  • Recommended carrier horsepower: 110 HP and below
  • 1 in. independent upper grapple tines
  • 1/2 in. bottom tines with 1 in. outside tines
  • 2 x 10 in. cylinders
  • Covered cylinders and protected hoses
  • 1.25 in. greaseable pins
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0010701066: 66" XHD ROOT GRAPPLE
  • 0010701072: 72" XHD ROOT GRAPPLE; weight 1058 lb
  • 0010701078: 78" XHD ROOT GRAPPLE; weight 1063 lb
  • 0010701084: 84" XHD ROOT GRAPPLE; weight 1135 lb

Loflin XHD Root Grapple

  • Demanding brush and root handling.
  • Material transfer with a properly matched skid steer loader carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin XHD Root Grapple

BUILT TO HANDLE THE LOAD:

  • Heavier upper and outside tines reinforce the contact points used during repeated material handling.
  • 1 in. independent upper grapple tines
  • 1/2 in. bottom tines with 1 in. outside tines
  • 2 x 10 in. cylinders
  • Covered cylinders and protected hoses

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for demanding brush and root handling.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for demanding brush and root handling with a suitable skid steer loader carrier.
  • 1 in. independent upper grapple tines.
  • 1/2 in. bottom tines with 1 in. outside tines.
  • 2 x 10 in. cylinders.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
