LOFLIN FABRICATION

XHD Vertical Root Grapple

For Skid Steers

54" Grapple Opening

Request QuoteAdd To Cart

Loflin Fabrication XHD Vertical Root Grapple For Skid Steers

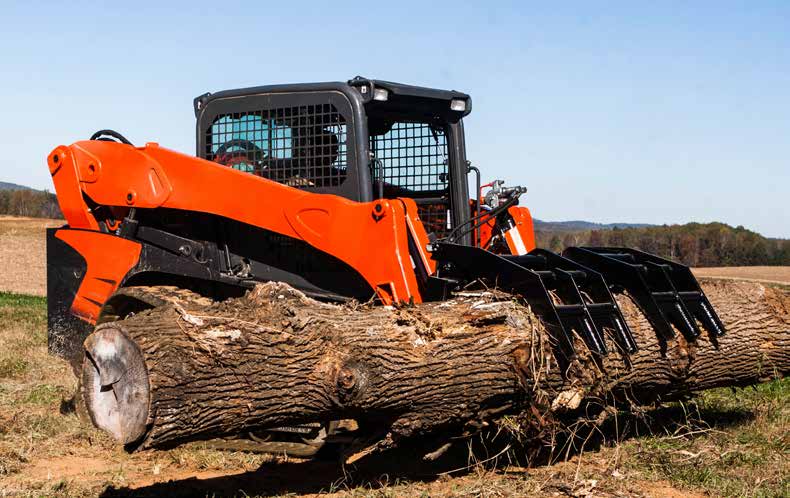

Loflin Fabrication XHD Vertical Root Grapple shown in manufacturer catalog

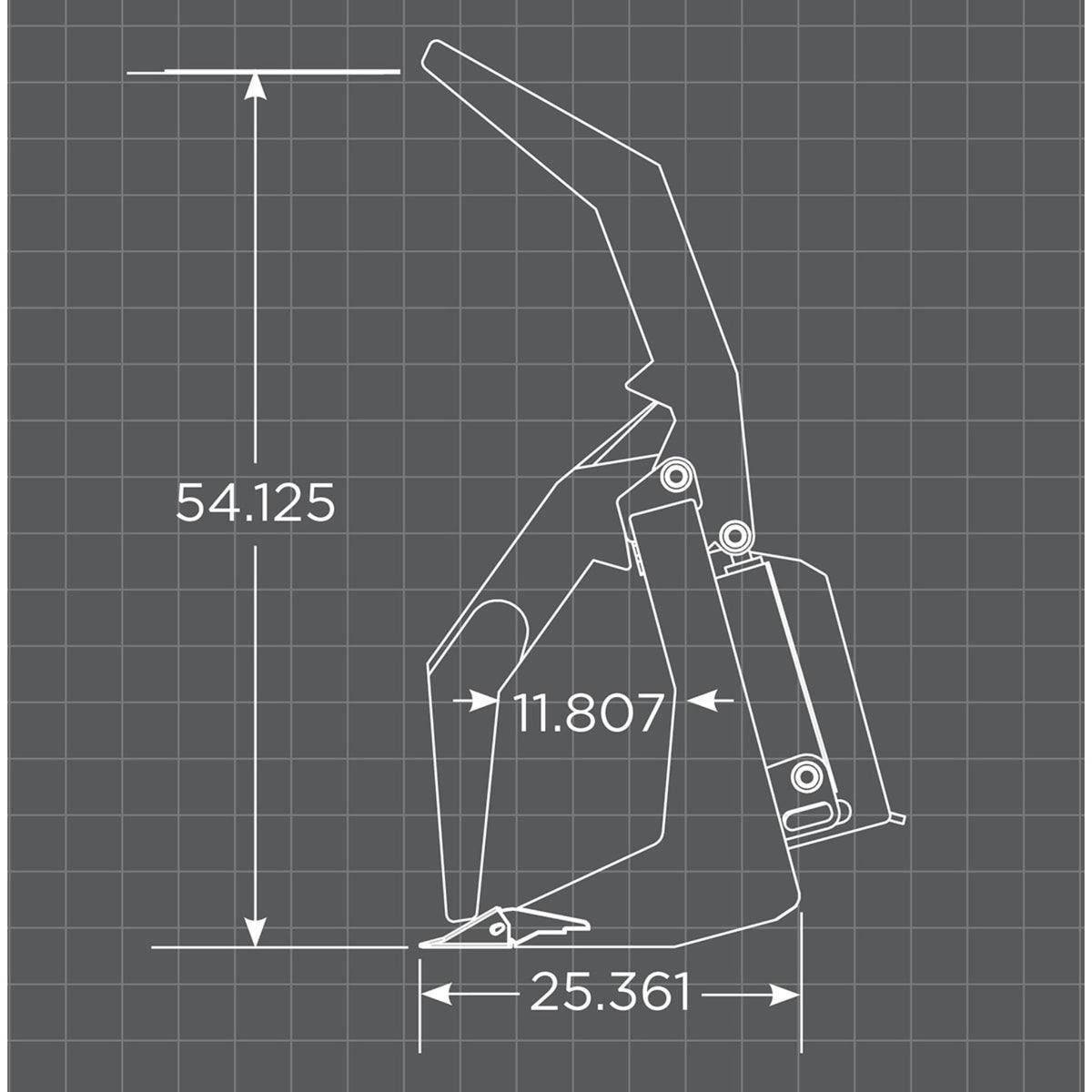

Loflin Fabrication XHD Vertical Root Grapple For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Roll over image to zoom in Click on image to zoom
Loflin Fabrication XHD Vertical Root Grapple shown in manufacturer catalogLoflin Fabrication XHD Vertical Root Grapple For Skid Steers manufacturer family dimensional illustration; confirm selected configuration
Loflin Fabrication

Loflin Fabrication XHD Vertical Root Grapple For Skid Steers

SKU: 0660701072 Currently In Stock

$5,399.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Catalog Parts & Support

MOST IMPORTANT FEATURES

1.5 IN. STEEL TINES

STEEL TINES SUPPORT AND RETAIN THE GRAPPLE LOAD.

2 X 10 IN. CYLINDERS

HYDRAULIC CYLINDERS OPEN AND CLOSE THE GRAPPLE JAWS USING THE CARRIER’S AUXILIARY CIRCUIT.

INDEPENDENT GRAPPLE TINES

INDEPENDENT UPPER GRAPPLES CAN CLOSE AGAINST UNEVEN MATERIAL RATHER THAN RELYING ON ONE CONTINUOUS UPPER JAW.

1.25 IN. GREASEABLE PINS

ACCESSIBLE LUBRICATION POINTS SUPPORT ROUTINE SERVICING OF THE GRAPPLE’S MOVING JOINTS.

COVERED CYLINDERS AND PROTECTED HOSES

COVERS AND PROTECTED HOSE ROUTING REDUCE EXPOSURE OF THE HYDRAULIC COMPONENTS DURING MATERIAL HANDLING.

Description

Key Benefits

Technical Specs

Applications

Loflin XHD Vertical Root Grapple

The Loflin Fabrication XHD Vertical Root Grapple gives skid steer loaders a dedicated attachment for heavy raking and bulky land-clearing debris. An upright rake-style frame combines with a 54-inch grapple opening. Available working-width selections are 72", 78", 84".

1.5 in. steel tines and 2 x 10 in. cylinders define the working arrangement. The open structure is useful when the goal is to move larger material while leaving loose soil behind. Work in controlled passes and balance each load within the loader's rated capacity.

Independent grapple tines; 1.25 in. greaseable pins; Covered cylinders and protected hoses support the attachment's intended use. Choose the width and any mounting or edge option before ordering. Check the dimensions, weight, and included components for your selected configuration.

The carrier’s auxiliary hydraulics operate the attachment. Confirm the auxiliary circuit, pressure limits, couplers, mounting interface, and rated handling capacity before installation.

Loflin XHD Vertical Root Grapple

  • 1.5 in. steel tines
  • 2 x 10 in. cylinders
  • Independent grapple tines
  • 1.25 in. greaseable pins
  • Covered cylinders and protected hoses

Loflin XHD Vertical Root Grapple

  • Manufacturer: Loflin Fabrication
  • Product family: XHD Vertical Root Grapple
  • Carrier group: skid steer loaders
  • Power source: carrier hydraulic actuation
  • Grapple opening: 54 in.
  • Width options: 72", 78", 84"
  • 1.5 in. steel tines
  • 2 x 10 in. cylinders
  • Independent grapple tines
  • 1.25 in. greaseable pins
  • Covered cylinders and protected hoses
  • Hydraulic flow and operating pressure: confirm with manufacturer for selected configuration
  • Mount/coupler fit: verify separately from PowerFit
  • 0660701072: 72" XHD VERTICAL ROOT GRAPPLE; weight 1117 lb
  • 0660701078: 78" XHD VERTICAL ROOT GRAPPLE; weight 1166 lb
  • 0660701084: 84" XHD VERTICAL ROOT GRAPPLE; weight 1215 lb

Loflin XHD Vertical Root Grapple

  • Heavy raking and bulky land-clearing debris.
  • Material transfer with a properly matched skid steer loader carrier.
  • Farm, landscape, and property-maintenance work within the selected configuration's capabilities.
  • Sorting and staging material with loads kept within the carrier's rating.

Loflin Fabrication: Grapple Demonstration & Brand Videos

Loflin XHD Vertical Root Grapple

BUILT TO HANDLE THE LOAD:

  • An upright rake-style frame combines with a 54-inch grapple opening.
  • 1.5 in. steel tines
  • 2 x 10 in. cylinders
  • Independent grapple tines
  • 1.25 in. greaseable pins

CONTROLLED MATERIAL HANDLING:

  • Purpose-built for heavy raking and bulky land-clearing debris.
  • Select the working width and configuration appropriate to the job.
  • Keep the load centered and within the carrier's rated handling capacity.
  • Account for attachment weight and load-center position.
  • Inspect hydraulic connections and mounting engagement before operation.

READY FOR THE FIELD:

  • Designed for heavy raking and bulky land-clearing debris with a suitable skid steer loader carrier.
  • 1.5 in. steel tines.
  • 2 x 10 in. cylinders.
  • Independent grapple tines.
  • Select the correct width and mounting configuration; confirm the carrier's hydraulic connections and rated handling capacity.
