- Capacity (Struck): 6.0 cu yd – 805 | 8.0 cu yd – 1105
- Capacity (Heaped): 8.0 cu yd – 805 | 11.0 cu yd – 1105
- Maximum Payload: 7,000 lbs – 805 | 7,000 lbs – 1105
- Overall Dimensions (W × L × H): 66” × 19’ 0” × 7’ 2” – 805 | 66” × 23’ 0” × 7’ 6” – 1105
- Body Width: 36”
- Empty Weight: 3,000 lbs – 805 | 3,500 lbs – 1105
- Apron Chain Type: #667 Pintle
- Minimum Hydraulic Flow: 14 GPM (Hydraulic) | Not required (PTO)
- Required Horsepower: 50 hp – 805 | 60 hp – 1105
- Drive Options: Tractor Hydraulic or PTO Hydraulic
- Heavy-duty construction built for high-capacity loads
- Precision discharge system for uniform mulch application
- Handles materials from fine sawdust to coarse bark

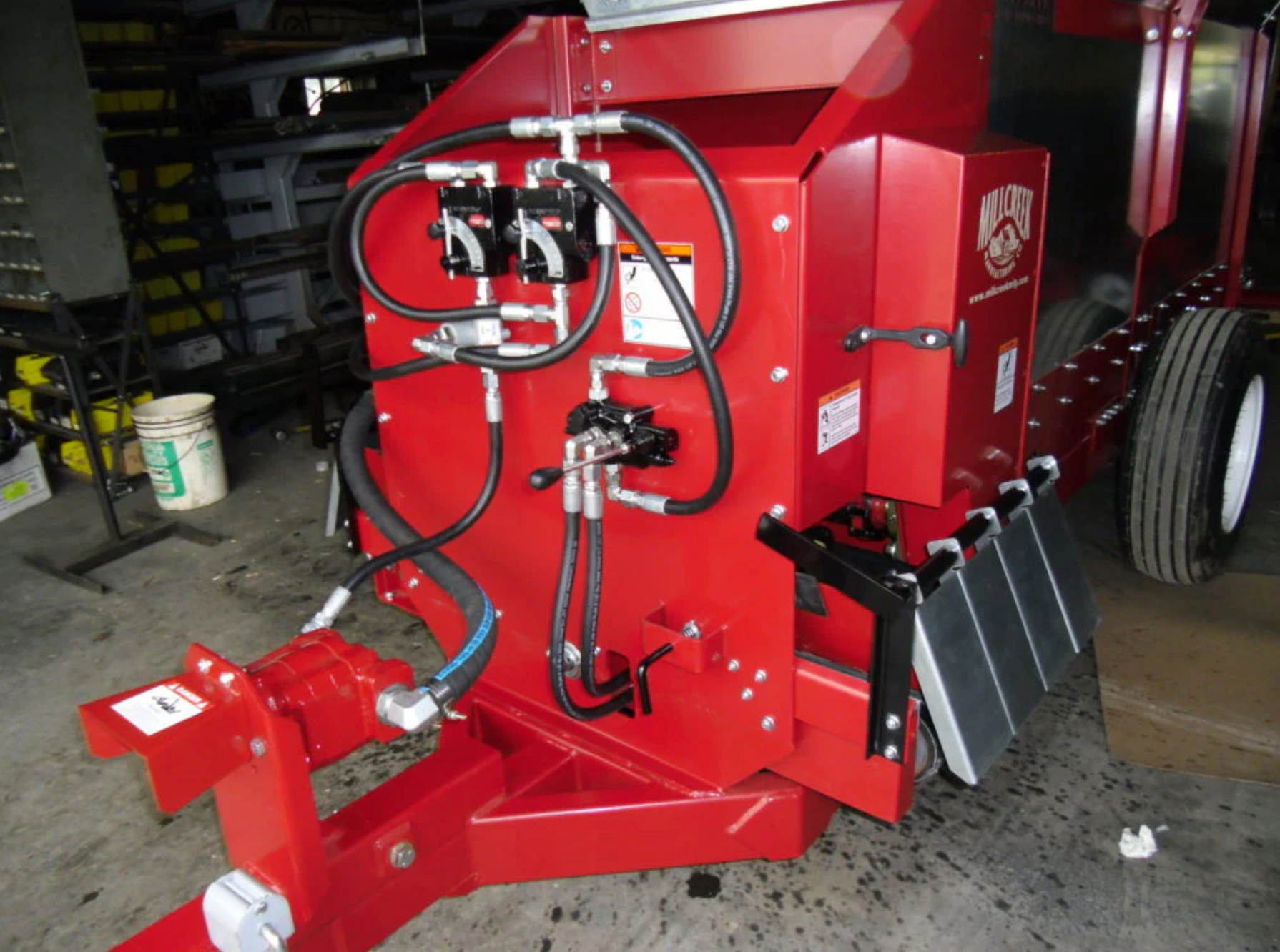

- Electric hydraulic controls available for in-cab adjustments
- Designed for orchards, vineyards, berry farms, and landscaping operations
Features
Specifications
Description
Shipping
Warranty
Specifications
Capacity (Struck)
Capacity (Heaped)
Maximum Payload
Overall Dimensions (W × L × H)
Body Width
Weight (Empty)
Apron Chain Type
Minimum Hydraulic Flow (GPM)
Required Horsepower
805
6.0 cubic yards
8.0 cubic yards
7,000 lbs of material
66″ × 19′ × 7′2″
36″
3,000 lbs
#667 Pintle
14 GPM (Hydraulic) | Not required (PTO)
50 hp
1105
8.0 cubic yards
11.0 cubic yards
7,000 lbs of material
66″ × 23′ × 7′6″
36″
3,500 lbs
#667 Pintle
14 GPM (Hydraulic) | Not required (PTO)
60 hp
