- Capacity (Struck): 5.8 cu yd – 588 | 10.2 cu yd – 1028
- Capacity (Heaped): 7.8 cu yd – 588 | 13.5 cu yd – 1028
- Maximum Payload: 6,000 lbs – 588 | 10,500 lbs – 1028
- Overall Dimensions (W × L × H): 85” × 17’ 0” × 6’ 6” – 588 | 85” × 23’ 0” × 6’ 10” – 1028
- Body Width: 54”
- Empty Weight: 3,200 lbs – 588 | 4,200 lbs – 1028
- Apron Chain Type: #667 Pintle
- Minimum Hydraulic Flow: 14 GPM (Hydraulic) | Not required (PTO)
- Required Horsepower: 40 hp – 588 | 80 hp – 1028
- Drive Options: Tractor Hydraulic or PTO Hydraulic Drive

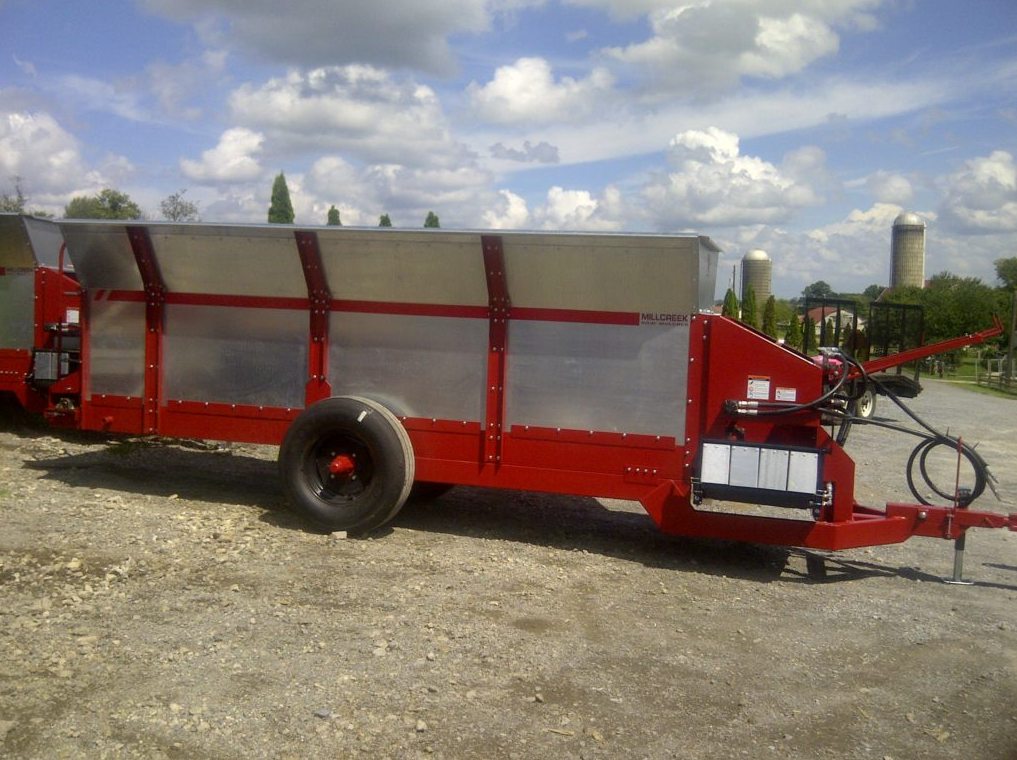

- Heavy-duty construction built for high-capacity loads

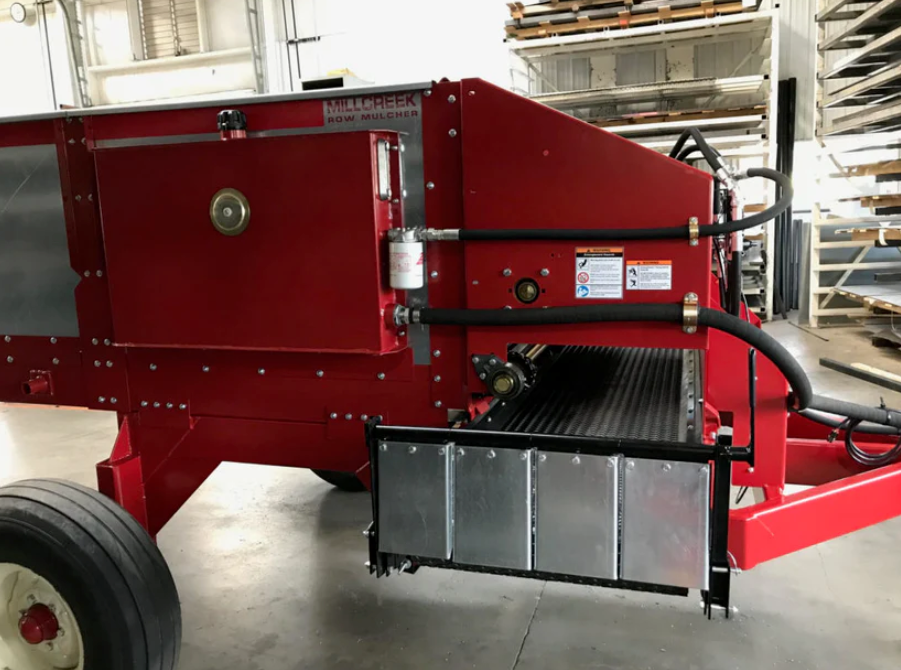

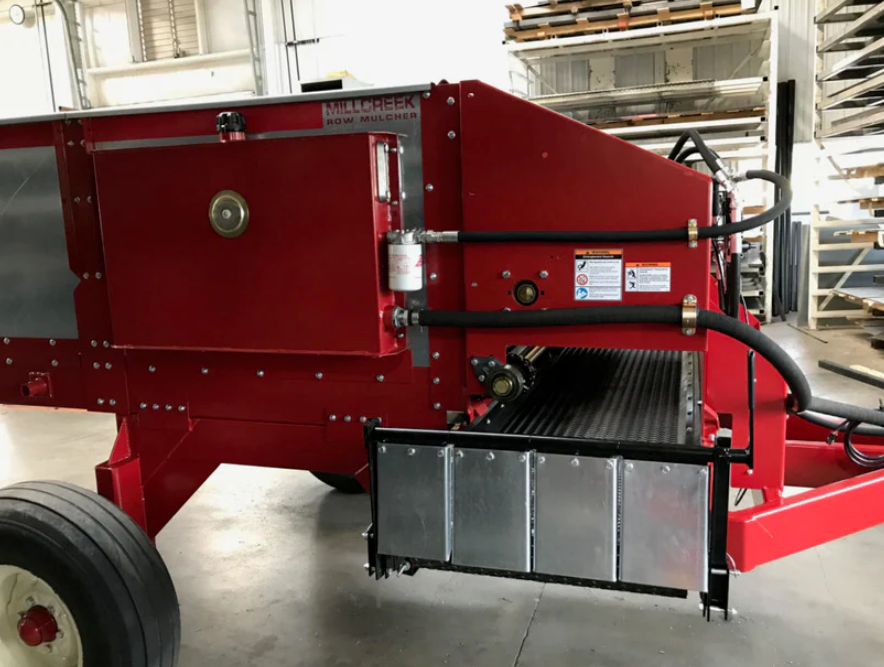

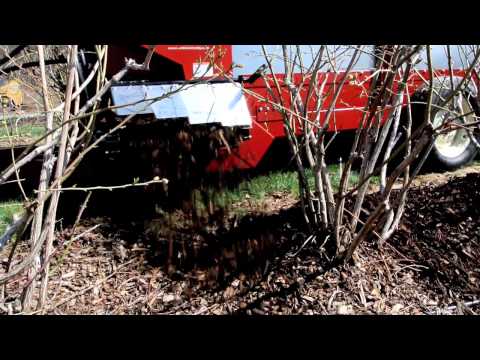

- Precision discharge system for uniform mulch application
- Handles materials from fine sawdust to coarse bark

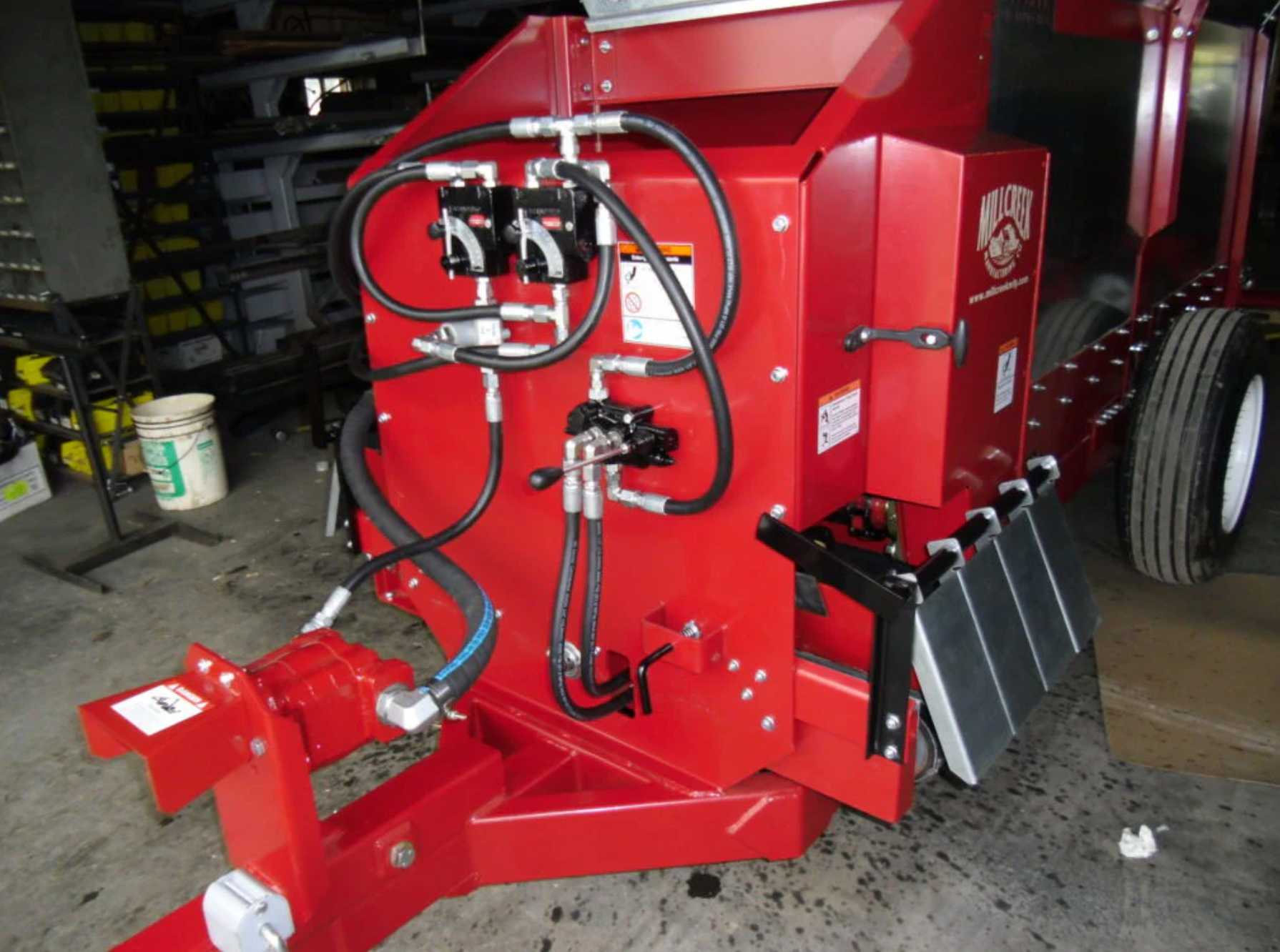

- Electric hydraulic controls available for in-cab adjustments

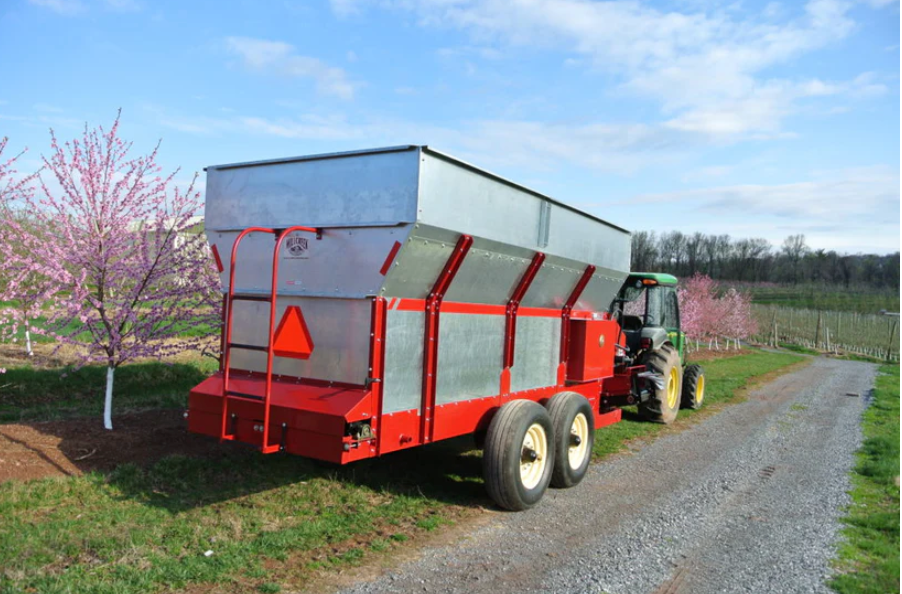

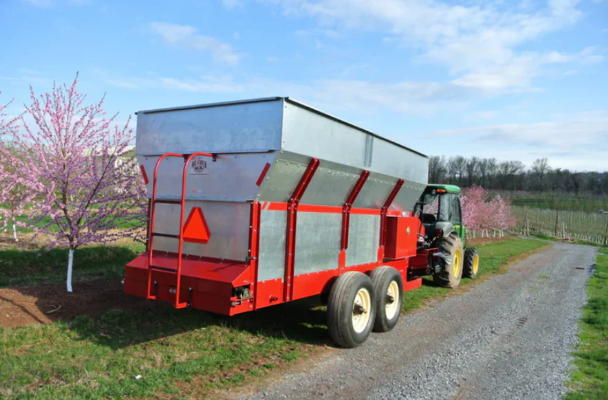

- Designed for orchards, vineyards, berry farms, and commercial landscaping

             Features

            Features

        Specifications
Description
Shipping
Warranty
Specifications

           Capacity (Struck)

           Capacity (Heaped)

           Maximum Payload

           Overall Dimensions (W × L × H)

           Body Width

           Weight (Empty)

           Apron Chain Type

           Minimum Hydraulic Flow (GPM)

           Required Horsepower

           588

           5.8 cubic yards

            7.8 cubic yards

           6,000 lbs of material

           85" W × 17' 0" L × 6' 6" H

           54"

           3,200 lbs

           #667 Pintle

           14 GPM (Hydraulic Drive Models)

           40 hp

           1028

          10.2 cubic yards

          13.5 cubic yards

           10,500 lbs of material

          85" W × 23' 0" L × 6' 10" H

          54"

          4,200 lbs

          #667 Pintle

          PTO drive only – no hydraulic flow required

          80 hp
