Heavy Duty Ramps

Trailer Ramps – Aluminum Trailer Loading Ramps - 23,500 lb Heavy Duty Step Deck Load Leveler Ramp System

SKU: 23-18-096-02-02-MLL-2 Currently In Stock

$3,399.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Need a Quote? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Request A Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

Most Important Features

INTEGRATED LOAD LEVELER KIT SYSTEM

ENGINEERED AS A COMPLETE LOADING SOLUTION COMBINING RAMPS, LOAD LEVELERS, SUPPORT STANDS, AND HARDWARE. DESIGNED TO CREATE A CONTROLLED, LEVEL TRANSITION FROM GROUND TO STEP DECK OR FLATBED TRAILERS.

KIT-BASED AXLE LOAD DISTRIBUTION

RAMP PAIRS WORK IN CONJUNCTION WITH ADJUSTABLE LOAD LEVELERS AND CENTER SUPPORT STANDS TO DISTRIBUTE AXLE LOADS UP TO 23,500 LBS PER AXLE, REDUCING POINT LOADING AND DECK EDGE STRESS DURING EQUIPMENT ASCENT.

ADJUSTABLE LOAD LEVELER GEOMETRY

LOAD LEVELERS CAN BE ORIENTED UPRIGHT FOR LOADING OR ROTATED FOR USE AS LEVELERS, ALLOWING HEIGHT COMPENSATION BASED ON STEP DECK HEIGHT AND EQUIPMENT WHEELBASE TO PREVENT HIGH-CENTERING.

PIN-LOCK STAND SUPPORT SYSTEM

PIN-ON RAMP ENDS SECURE INTO SKID SEAT AND ATTACHING BRACKETS WHILE ADJUSTABLE SUPPORT STANDS LOCK RAMPS IN POSITION, MAINTAINING ALIGNMENT AND PREVENTING SHIFTING UNDER HEAVY, SLOW-SPEED LOADS.

MODULAR KIT SCALABILITY

AVAILABLE AS 2-BUNK KITS, 4-BUNK KITS, AND MASTER KIT CONFIGURATIONS, WITH COMPONENTS DESIGNED TO BE ADDED OR RECONFIGURED AS TRAILER HEIGHTS, LOAD REQUIREMENTS, OR EQUIPMENT CHANGE OVER TIME.

Description

Key Benefits

Technical Specs

Applications

Step Deck Leveler Ramp Kit

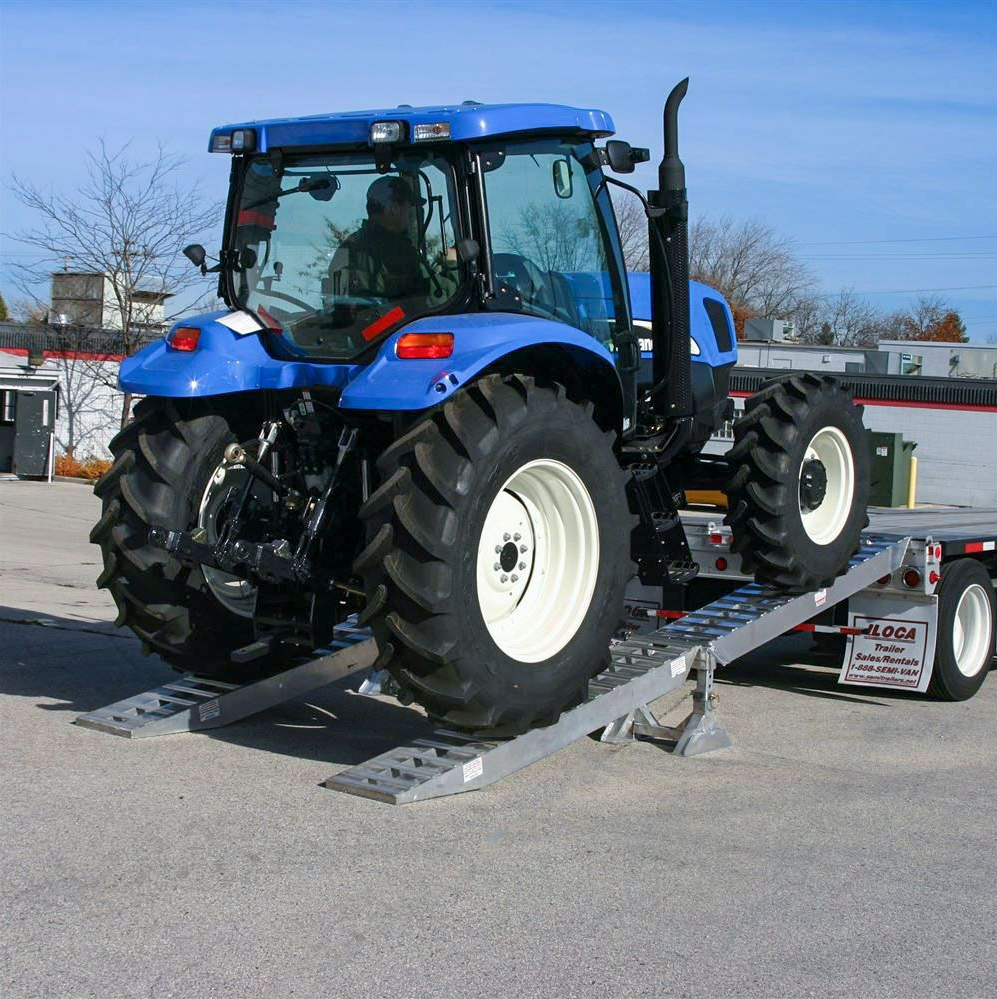

The Step Deck Trailer Load Leveler Ramp Kit for 18" step decks is a heavy-duty aluminum ramp system engineered for safely loading tractors, loaders, trucks, and heavy equipment onto step deck and flatbed trailers. Designed for commercial hauling environments, this modular system delivers increased axle load capacity, enhanced traction stability, and flexible configuration options to support heavier equipment and higher deck heights.

Each system is constructed from high-strength aluminum to provide exceptional structural rigidity while keeping handling weight manageable during setup and repositioning. Reinforced stubbed toe construction increases stiffness at the transition point, reducing ramp deflection under heavy loads and maintaining proper alignment as equipment ascends or descends the ramps. When configured for 18" step decks, the system supports up to 23,500 lb per axle, making it suitable for heavier machines and repeated loading cycles in demanding industrial and transportation applications.

The load leveler design incorporates adjustable center support stands and skid seat mounting brackets to fine-tune loading angles and maintain stability across uneven ground or dock conditions. Extra-wide, welded serrated traction rungs provide reliable grip for tires and tracked equipment, helping prevent slippage during controlled loading and unloading. Pin-on mounting points securely lock the ramps into compatible trailer or dock brackets, minimizing movement and improving overall loading safety.

This listing includes multiple configuration options, allowing buyers to select the system that best fits their operation:

  • 8' or 16' ramp lengths

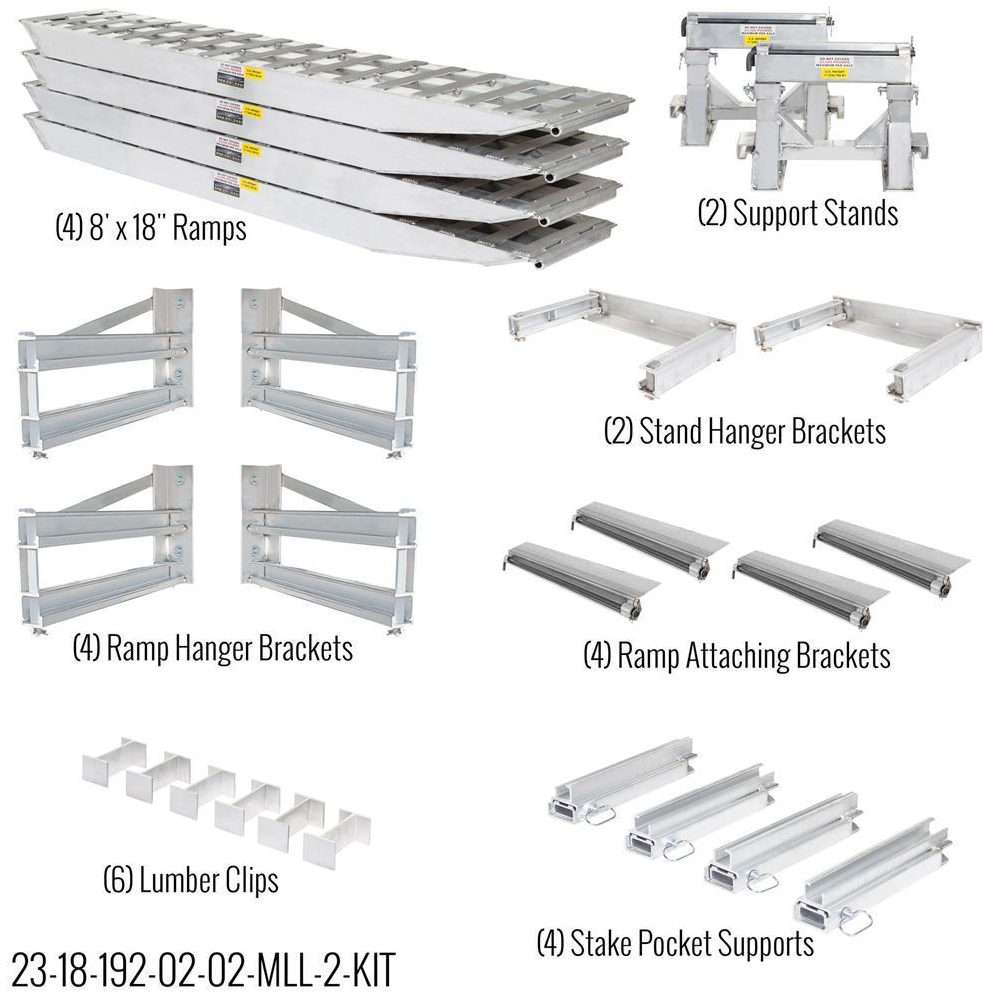

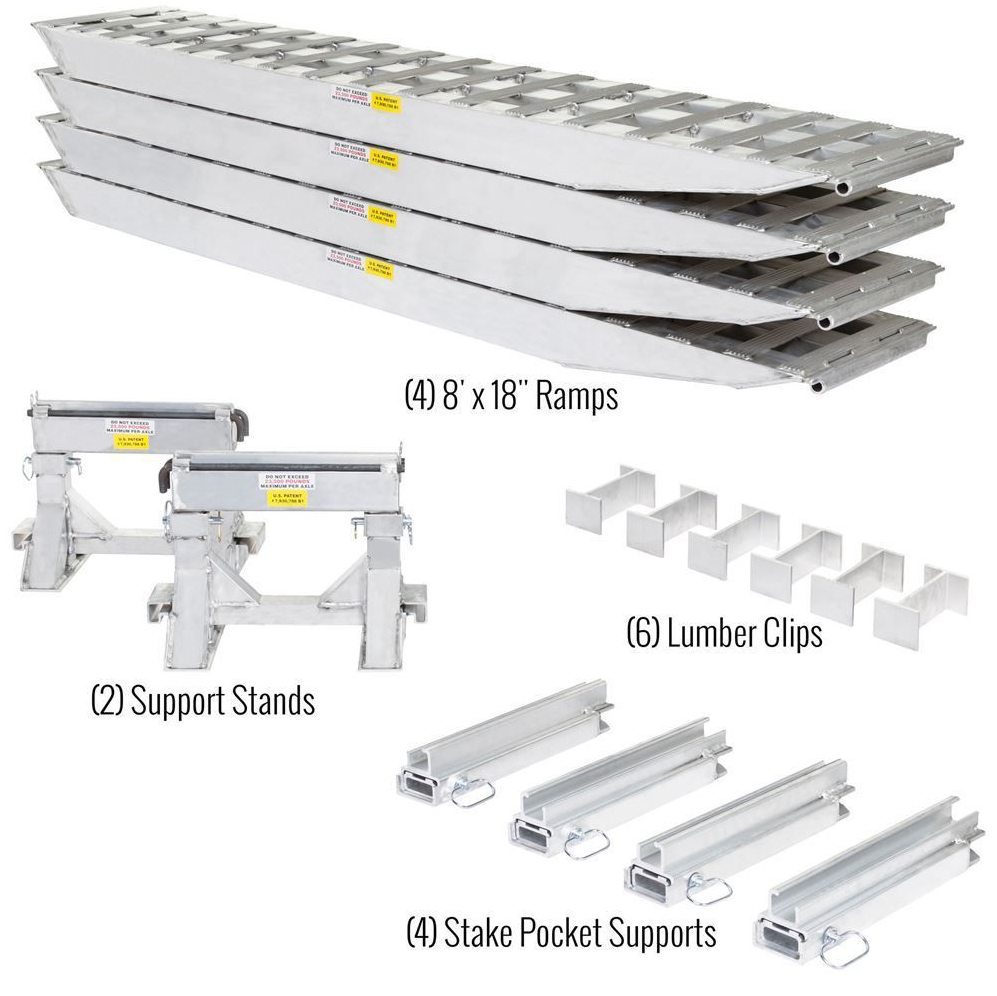

  • 2 bunk load leveler kits

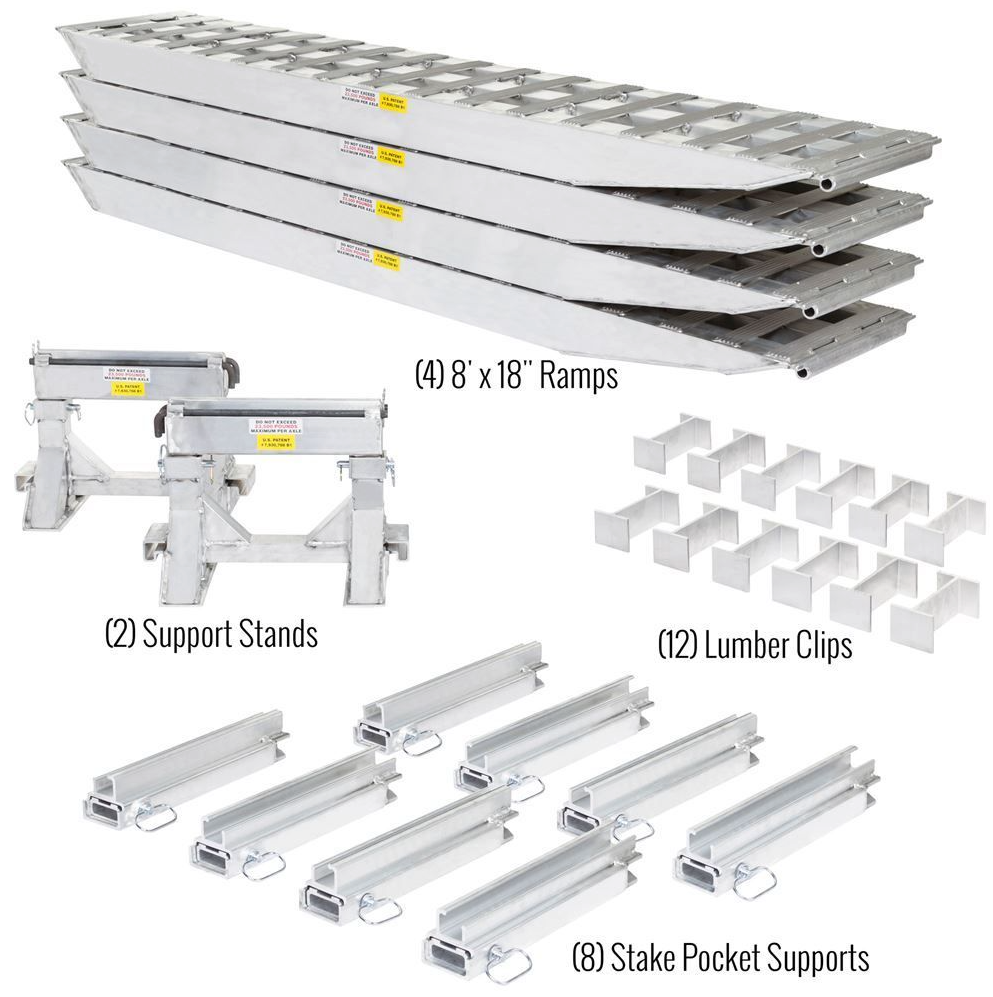

  • 4 bunk load leveler kits

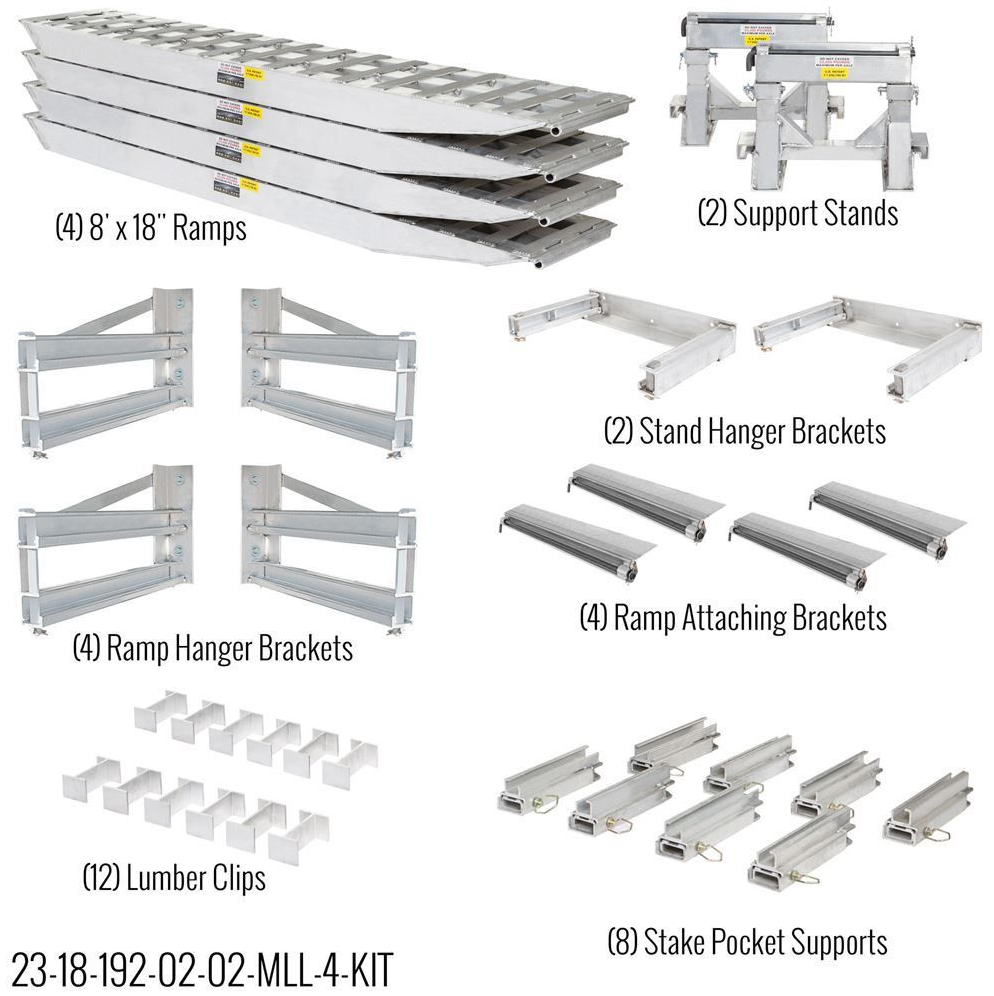

  • 4 bunk master kits for expanded modular capability

All configurations are designed to function as part of a cohesive modular ramp system, with optional accessories available separately for expanded storage, mounting, and transport flexibility.

Made in the USA, this ramp system is ideal for operators who require a professional-grade solution for 18" step deck trailers, offering higher capacity, dependable traction, and long-term durability in heavy-duty hauling applications.

Step Deck Leveler Ramp Kit

• High Load Capacity in a Lightweight Aluminum System
Engineered to support axle loads up to 23,500 lbs (kit-dependent) while remaining manageable for setup, repositioning, and transport.
• Modular Ramp & Load Leveler Functionality

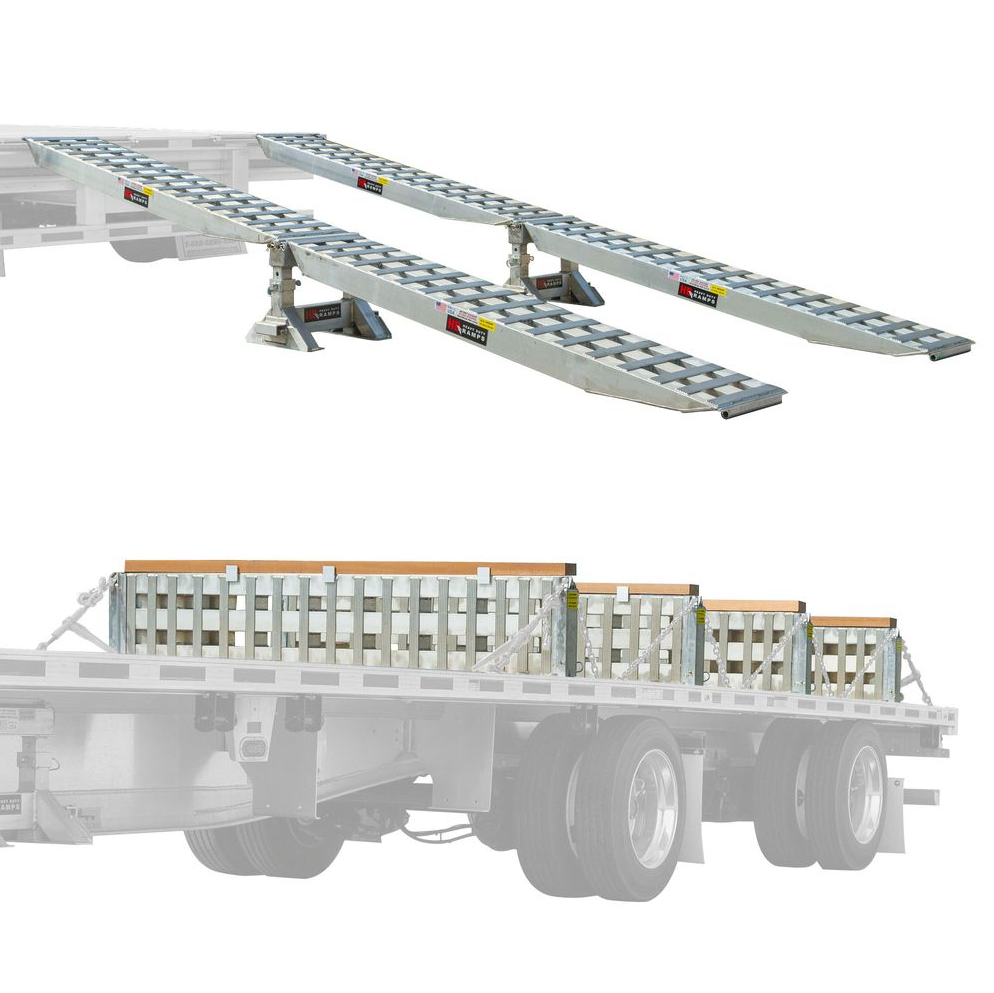

Designed to function as traditional loading ramps or rotated for use as load levelers, providing flexibility across step deck and flatbed applications.
• Reinforced Stubbed Toe for Structural Stability
Stubbed toe construction increases transition strength, minimizes deflection, and maintains ramp alignment under repeated heavy loading cycles.
• Welded Serrated Rungs for Reliable Traction
Extra-wide, welded serrated rungs deliver consistent grip for tires and tracked equipment during controlled ascent and descent.

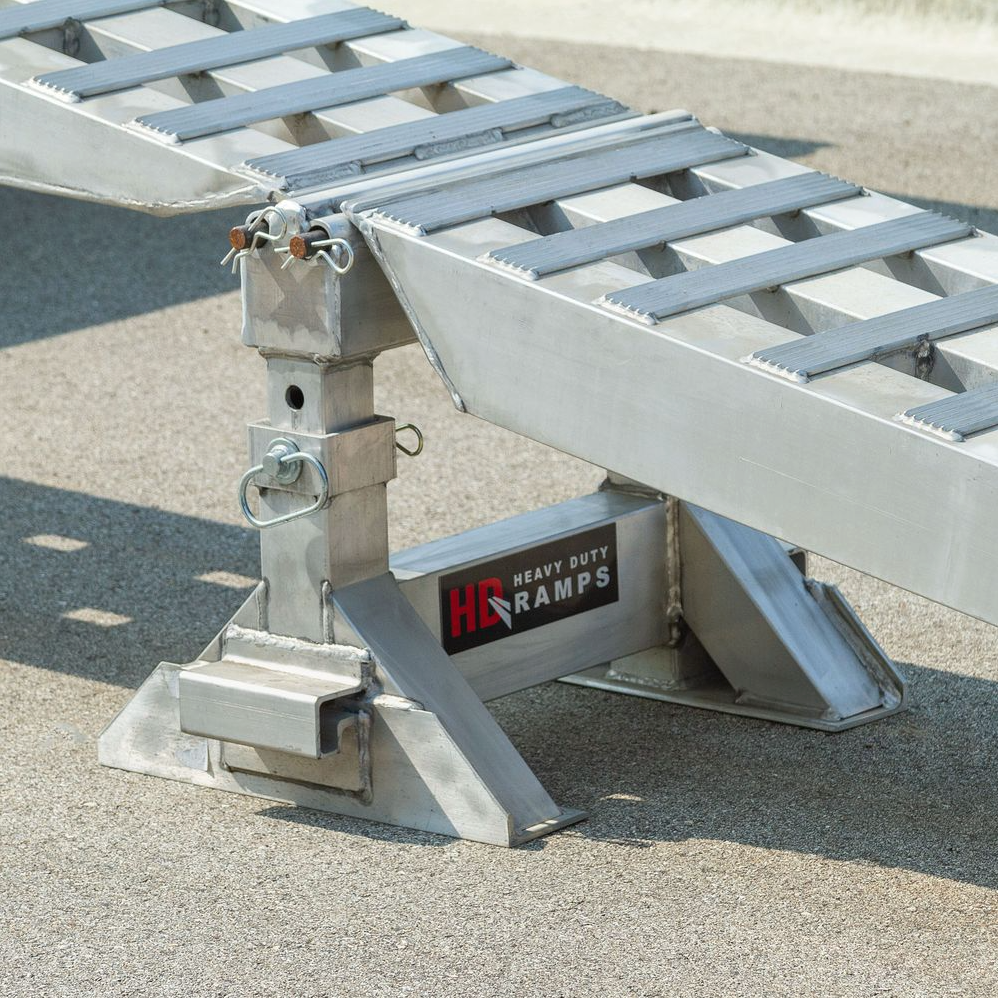

• Adjustable Support Stands for Improved Loading Angle
Included ramp support stands allow fine adjustment of loading angle to reduce high-centering on long wheelbase or low-clearance equipment.
• Modular System Design with Expandable Configurations
Compatible with 2-bunk, 4-bunk, and master kit configurations, allowing the system to scale with changing hauling needs.
• Secure Pin-On Mounting for Trailer Stability
Pin-on ramp ends lock into compatible skid seat or attaching brackets to prevent ramp movement and improve loading safety.

Step Deck Leveler Ramp Kit

• Ramp Length Options: 8 ft or 16 ft (variant-dependent)
• Ramp Width Options: 16 in, 18 in, or 20 in (variant-dependent)
• Maximum Capacity: Up to 23,500 lbs per axle (kit-dependent)
• Construction: High-strength welded aluminum
• Ramp Function: Dual-use ramps or load levelers (orientation-dependent)
• Ramp Surface: Extra-wide welded serrated rungs for traction
• Toe Design: Reinforced stubbed toe to reduce deflection under load
• Support System: Adjustable ramp support stands included (kit-dependent)
• Attachment Type: Pin-on ends for skid seat or attaching bracket mounting

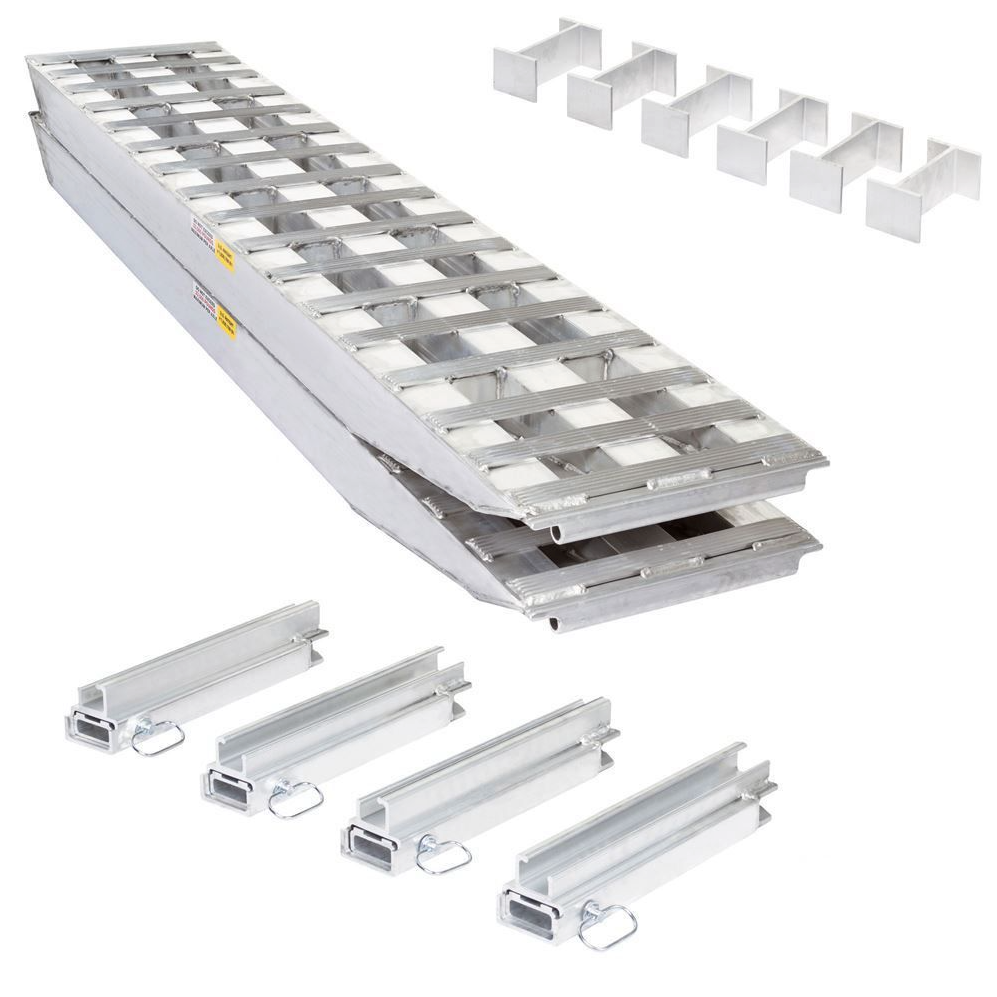

• Leveling Components: Load leveler spacers sized to step deck height
• Deck Protection: Lumber clips included to prevent trailer deck damage
• Configuration: Modular system; supports 2-bunk, 4-bunk, and master kits

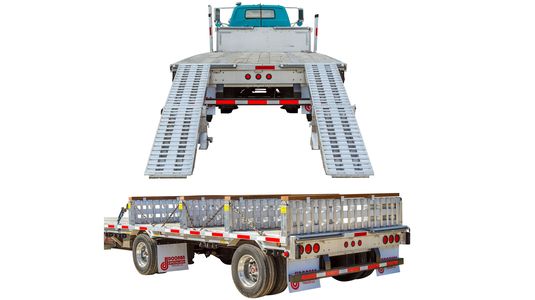

• Application: Designed for step deck and flatbed trailer loading

Step Deck Leveler Ramp Kit

Step Deck Leveler Ramp Kit

ENGINEERED FOR LOAD CAPACITY:

  • Heavy-duty aluminum ramps designed to function as ramps or load levelers, depending on orientation
  • Supports up to 23,500 lb per axle (configuration dependent) for tractors, loaders, trucks, and heavy equipment
  • Reinforced stubbed toe construction increases stiffness at transition points and limits deflection under load

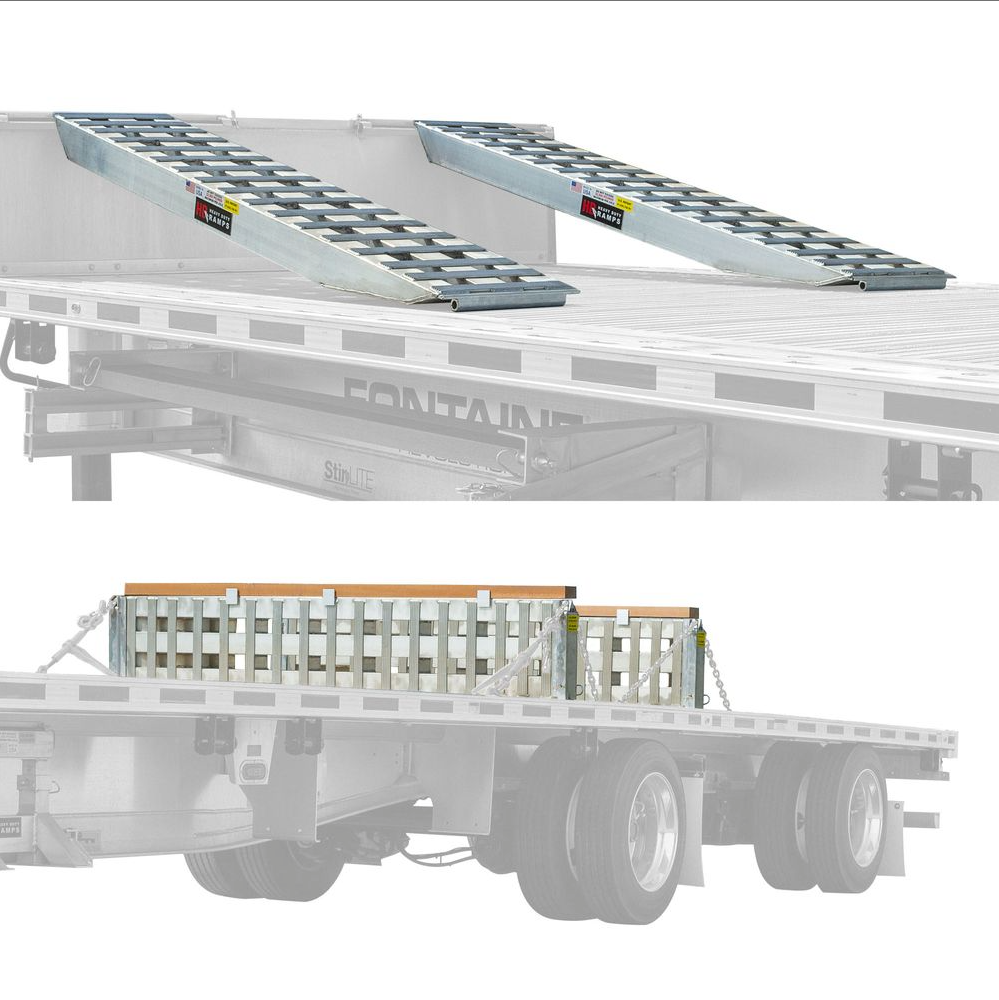

  • Modular system allows ramps to be used individually or as part of a complete load leveling setup
  • Designed for repeated commercial loading cycles on step deck and flatbed trailers

BUILT FOR TRACTION STABILITY:

  • Adjustable ramp support stands maintain proper loading angle and prevent high-centering on long wheelbase or low-clearance equipment
  • Welded, serrated traction rungs provide consistent grip for tires and tracked equipment during ascent and descent
  • Load leveler spacers are included where required to match step deck heights and ensure proper ramp geometry
  • System helps distribute weight evenly across ramps and supports for controlled, stable loading
  • Suitable for dry and variable site conditions where traction is critical

DESIGNED FOR SECURE INTEGRATION:

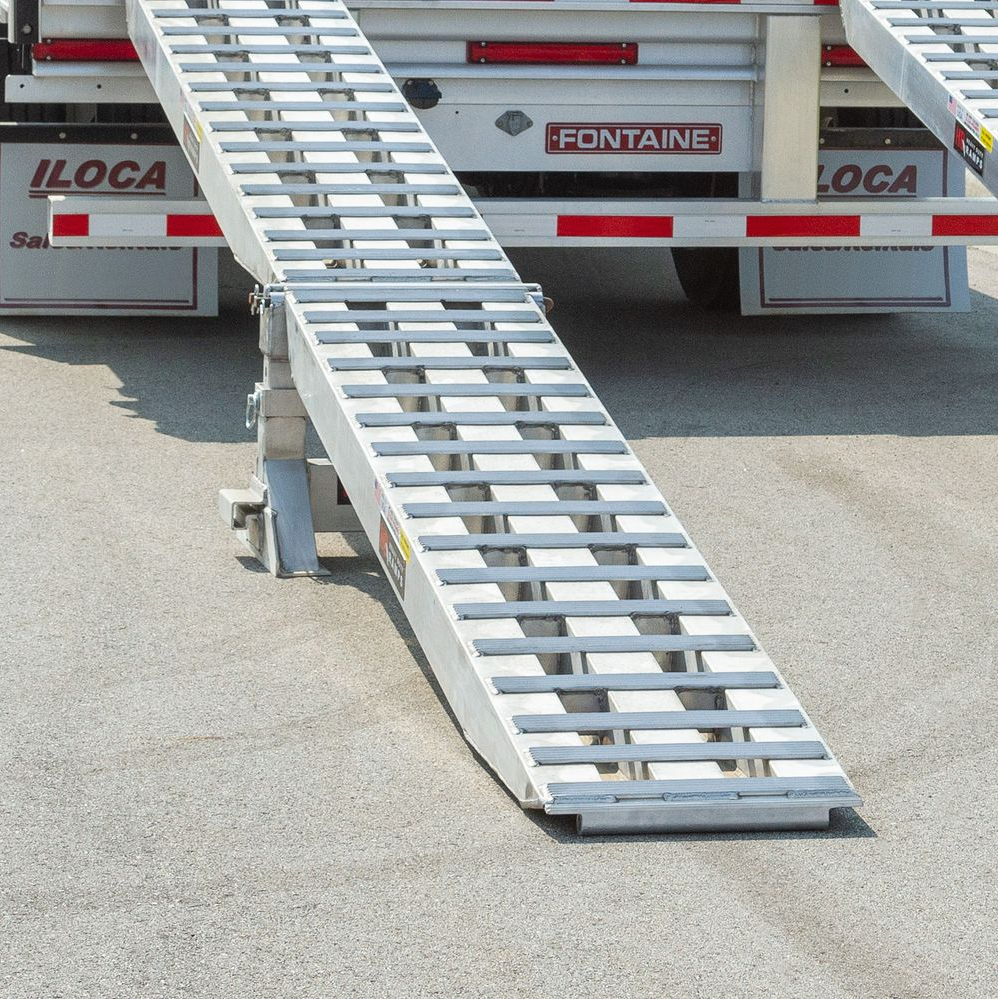

  • Pin-on ramp ends lock into compatible skid seat or attaching brackets to prevent ramp movement during loading

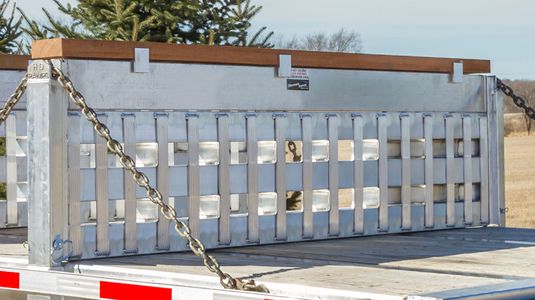

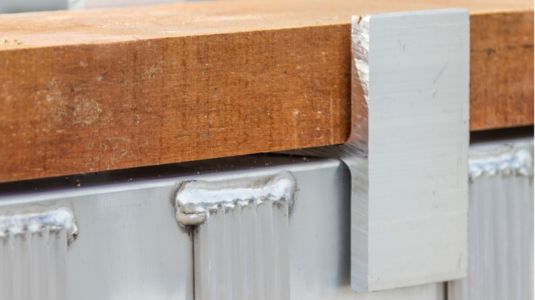

  • Lumber clips protect trailer decking and hold wood planks securely in place (3 clips per load leveler)
  • Stake pocket supports allow customizable placement and securement of load levelers for transport

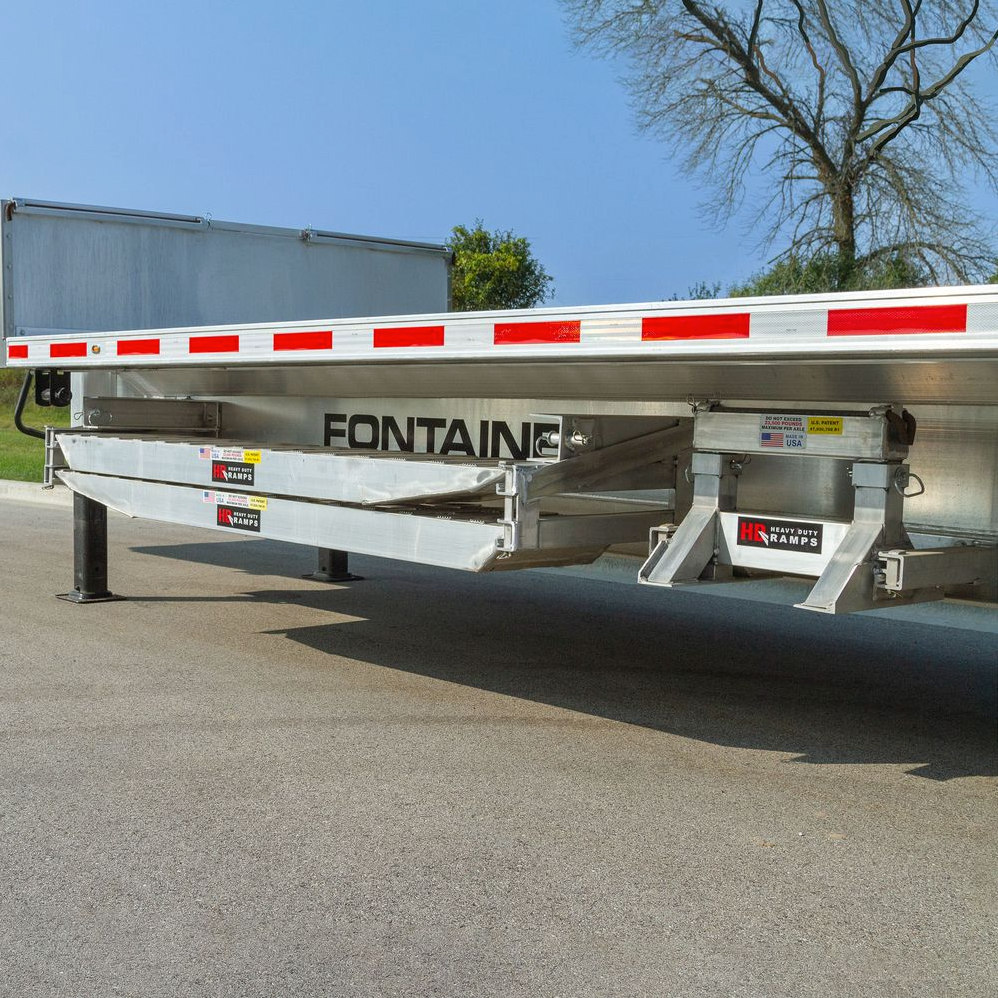

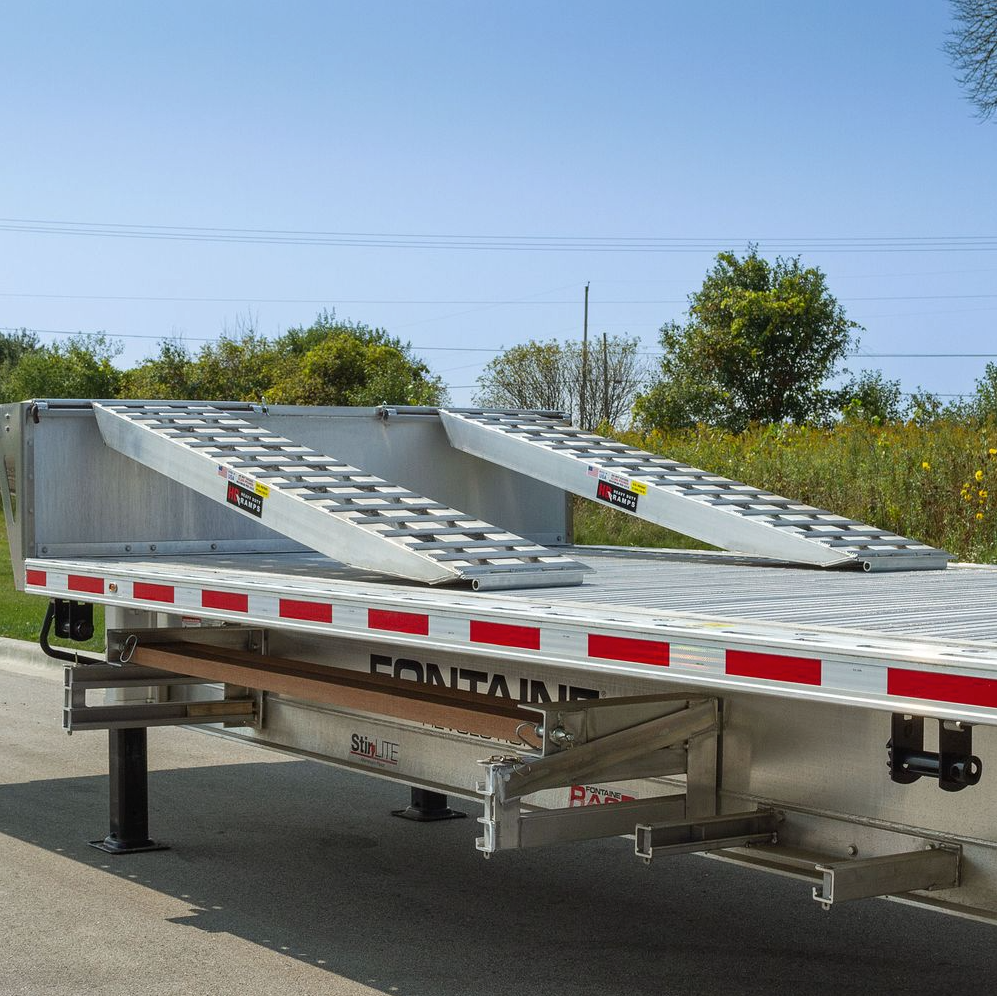

  • Optional ramp hanger and stand hanger brackets provide organized, under-trailer storage when not in use
  • All components are designed to work together as a cohesive, expandable system
