Heavy Duty Ramps

Aluminum Trailer Ramps

For Step Deck & Flatbed Trailers

23,500 lb Per-Axle Capacity

Request QuoteAdd To Cart

Trailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck Trailers

Trailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck Trailers
Trailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck Trailers
Trailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck Trailers
Trailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck Trailers
Trailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck Trailers
Trailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck Trailers
Trailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck Trailers
Roll over image to zoom in Click on image to zoom
Trailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck TrailersTrailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck TrailersTrailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck TrailersTrailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck TrailersTrailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck TrailersTrailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck TrailersTrailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck Trailers
Heavy Duty Ramps

Trailer Loading Ramps – Aluminum Trailer Ramps - Heavy Duty Modular Ramp System for Equipment & Step Deck Trailers

SKU: 20-16-192-02-02M Currently In Stock

$5,949.99 USD

Freight Shipping Available Nationwide

Delivered in 10 to 15 business days

✔ Need a Quote? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Request A Quote
(805)-334-5208 operations@currenhaus.com
Product Manual Find Parts

Most Important Features

HIGH AXLE LOAD CAPACITY

SUPPORTS UP TO 23,500 LBS PER AXLE. ENGINEERED FOR HEAVY EQUIPMENT LOADING WITHOUT DEFLECTION OR FATIGUE.

REINFORCED STUBBED TOE

STUBBED TOE DESIGN INCREASES TRANSITION STRENGTH, REDUCES BENDING, AND MAINTAINS RAMP ALIGNMENT UNDER LOAD.

WELDED SERRATED TRACTION

EXTRA-WIDE, WELDED SERRATED RUNGS DELIVER RELIABLE GRIP FOR TIRES AND TRACKED EQUIPMENT DURING ASCENT AND DESCENT.

SECURE PIN-ON MOUNTING

PIN-ON ENDS LOCK INTO COMPATIBLE SKID SEAT BRACKETS TO PREVENT MOVEMENT AND IMPROVE LOADING SAFETY.

MODULAR WIDTH OPTIONS

AVAILABLE IN 16″, 18″, AND 20″ WIDTHS TO MATCH TRAILER GEOMETRY AND EQUIPMENT TRACK WIDTH. CONFIGURABLE SYSTEM DESIGN.

Description

Key Benefits

Technical Specs

Applications

Step Deck Trailer Ramp

Heavy Duty Ramp's step deck trailer ramps are engineered for safely loading tractors, loaders, trucks, and heavy equipment onto step deck trailers, flatbed trailers, and loading docks. Built from high-strength aluminum, this step deck trailer ramp system delivers high capacity with reduced weight, making setup faster and safer for a single operator.

Designed as a modular step deck ramp system, each configuration can be used as full-length ramps or separated into 8-foot rear trailer ramps, depending on your loading application. Reinforced stubbed toes prevent ramp flex and bending under heavy axle loads, while the adjustable center support stand allows you to fine-tune loading angles for different trailer heights.

Available in multiple widths (16″, 18″, and 20″) and capacity ratings up to 23,500 lb per axle, these heavy-duty aluminum trailer ramps are ideal for commercial hauling, construction equipment, and agricultural machinery. Pin-on connections secure the ramps to skid seat brackets on trailers or docks, creating a stable and repeatable loading setup.

Each 16-foot side includes two 8-foot aluminum trailer ramps and one support stand, breaking down into manageable sections for easier handling and storage. Optional ramp hangers and stand hangers allow the system to be stored beneath the trailer when not in use.

Made in the USA, these step deck trailer ramps are built for professional operators who need durability, flexibility, and long-term reliability in a high-capacity loading solution.

Step Deck Trailer Ramp

  • High Load Capacity in a Lightweight Aluminum Ramp
    Engineered to support axle loads up to 23,500 lbs while remaining manageable for setup and repositioning without heavy handling equipment.
  • Reinforced Toe Design for Structural Stability
    Stubbed toe construction reduces deflection at the transition point, maintaining ramp alignment under repeated heavy loading cycles.
  • Welded Serrated Rungs for Reliable Traction
    Extra-wide, welded rungs provide consistent grip for tires and tracked equipment during controlled ascent and descent.
  • Secure Pin-On Attachment for Loading Safety
    Pin-on ends lock into compatible skid seat brackets to prevent ramp movement during loading operations.
  • Modular Configuration for Equipment and Trailer Matching
    Available width options allow ramp spacing and layout to be configured to trailer geometry and equipment track width.
  • Designed for Repeated Commercial Use
    Built for step deck trailers, flatbeds, and loading docks where durability, predictability, and repeat performance are required.

Step Deck Trailer Ramp

  • Ramp Length: 8 ft
  • Ramp Width Options: 16 in, 18 in, or 20 in (variant-dependent)
  • Maximum Capacity: Up to 23,500 lbs per axle (width-dependent)
  • Construction: High-strength welded aluminum
  • Ramp Surface: Extra-wide welded serrated rungs for traction
  • Toe Design: Reinforced stubbed toe for reduced deflection under load
  • Attachment Type: Pin-on ends for skid seat bracket mounting
  • Configuration: Individual ramp or matched pair; modular system compatible
  • Application: Step deck trailers, flatbeds, and loading docks
  • Country of Origin: Made in the USA

Step Deck Trailer Ramp

Step Deck Trailer Ramp

ENGINEERED FOR LOAD CAPACITY:

  • High-strength aluminum construction delivers maximum structural rigidity while keeping individual components manageable
  • Modular ramp sections distribute axle weight evenly across the full loading length
  • Reinforced stubbed toe design increases stiffness at transition points and reduces deflection under heavy equipment
  • Engineered to support axle loads up to 23,500 lbs, depending on selected ramp width
  • Designed for repeated commercial loading cycles on step deck trailers, flatbeds, and loading docks

BUILT FOR TRACTION STABILITY:

  • Welded serrated rungs provide consistent grip for tires and tracked equipment
  • Rung spacing optimized for large tire footprints and heavy machinery
  • Rigid side rails maintain lateral stability during alignment and ascent
  • Surface geometry supports controlled loading and unloading on step deck trailers
  • Suitable for dry and variable site conditions where traction is critical

DESIGNED FOR SECURE INTEGRATION:

  • System pins together to create a full-length step deck trailer ramp or separates into 8-foot rear trailer ramps

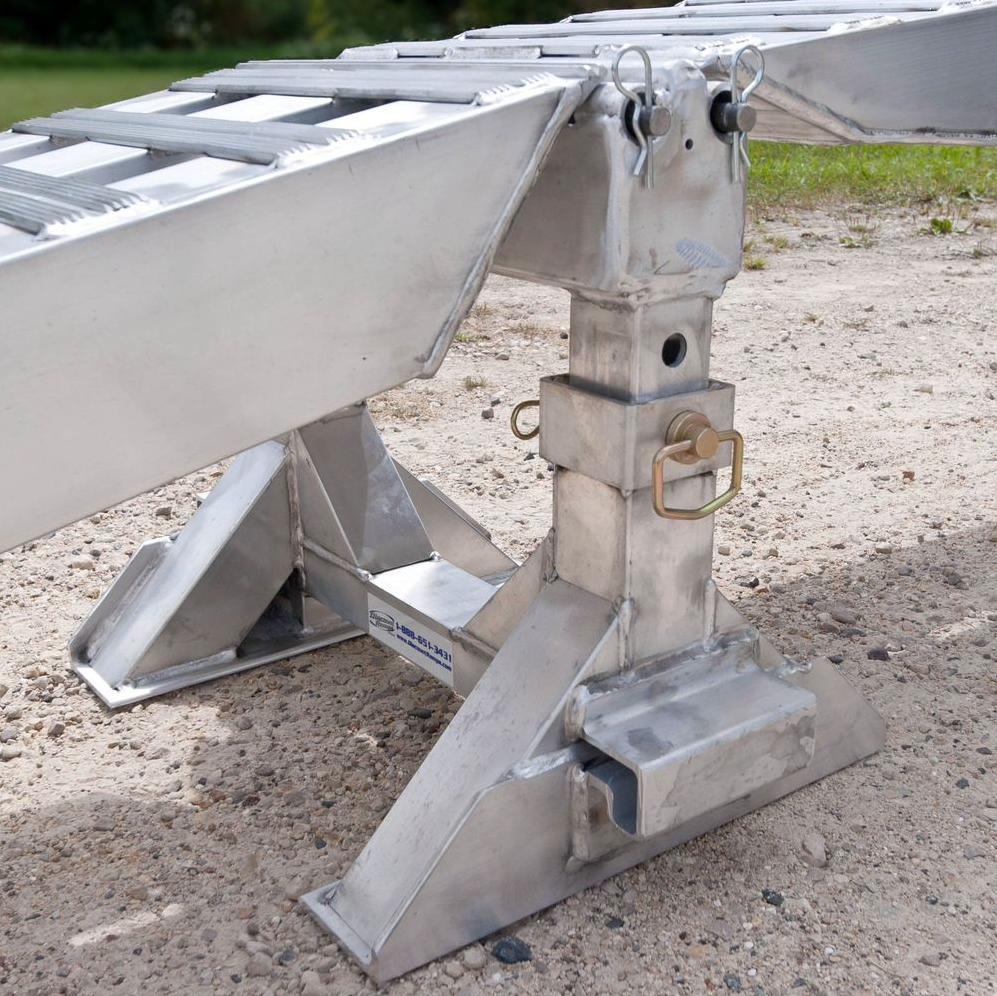

  • Adjustable center support stand allows loading angle compensation for varying trailer heights
  • Modular sections break down for faster setup, easier handling, and simplified storage
  • Compatible with skid seat brackets and optional ramp hangers for under-trailer storage
  • Designed for operators who need flexibility without sacrificing load capacity
Request a Quote
