TOMAHAWK

66-Inch Single-Cylinder Brush Grapple

For Skid Steers & Track Loaders

33.5-Inch Jaw Opening

Request QuoteAdd To Cart

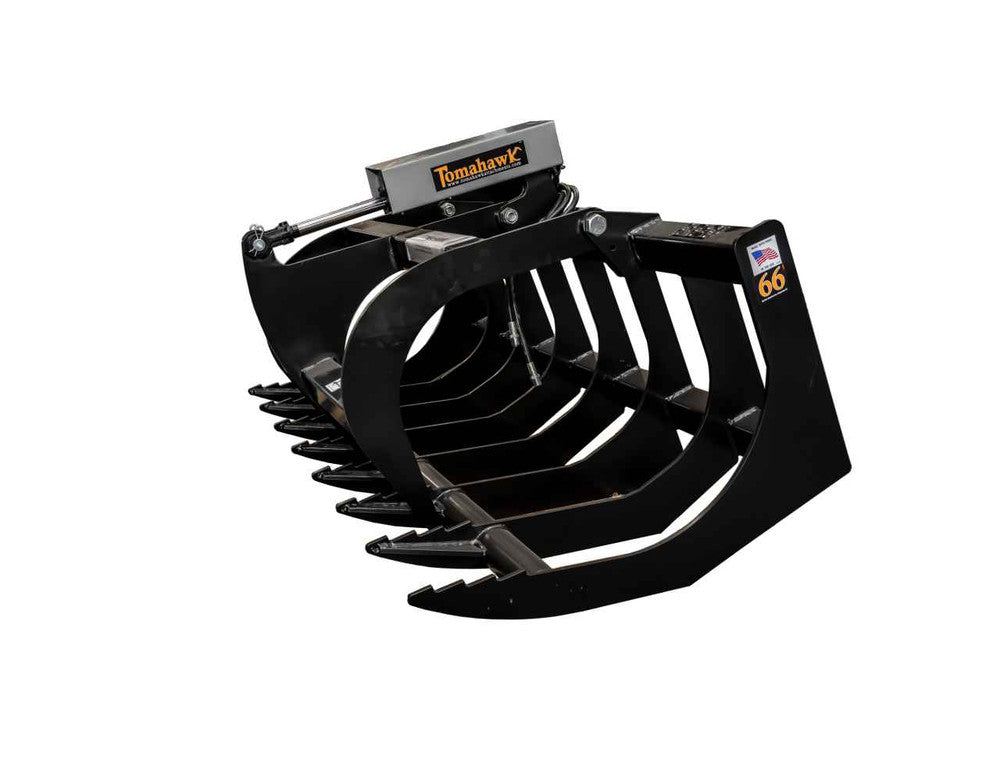

Tomahawk 66-Inch Single-Cylinder Brush Grapple

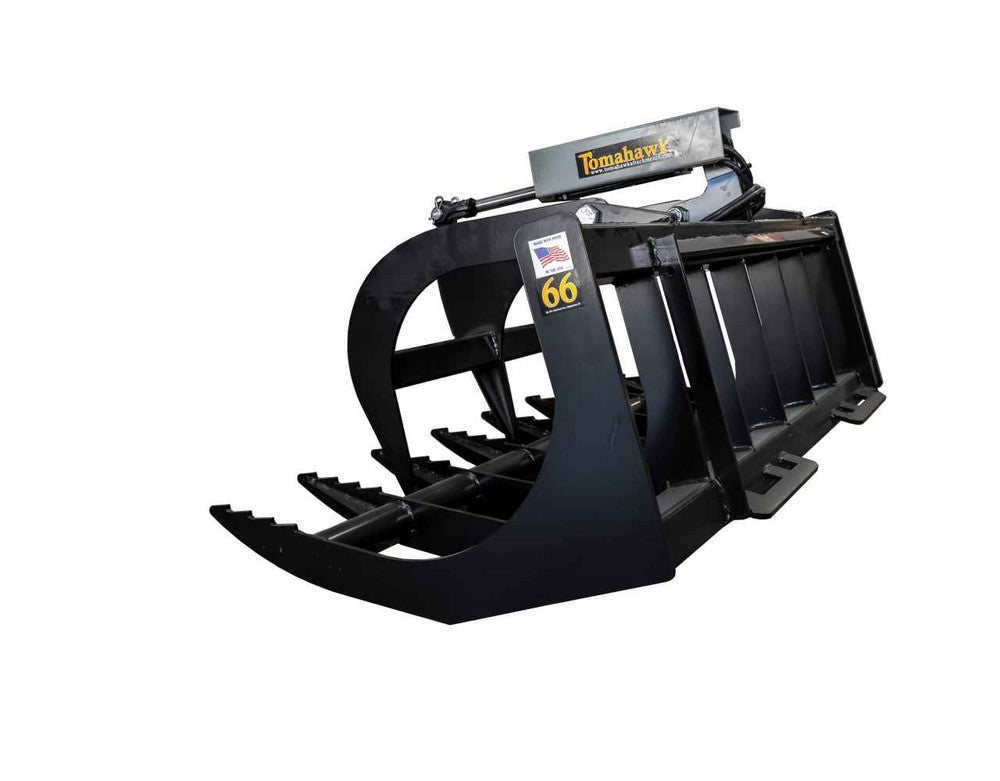

Tomahawk 66-Inch Single-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ

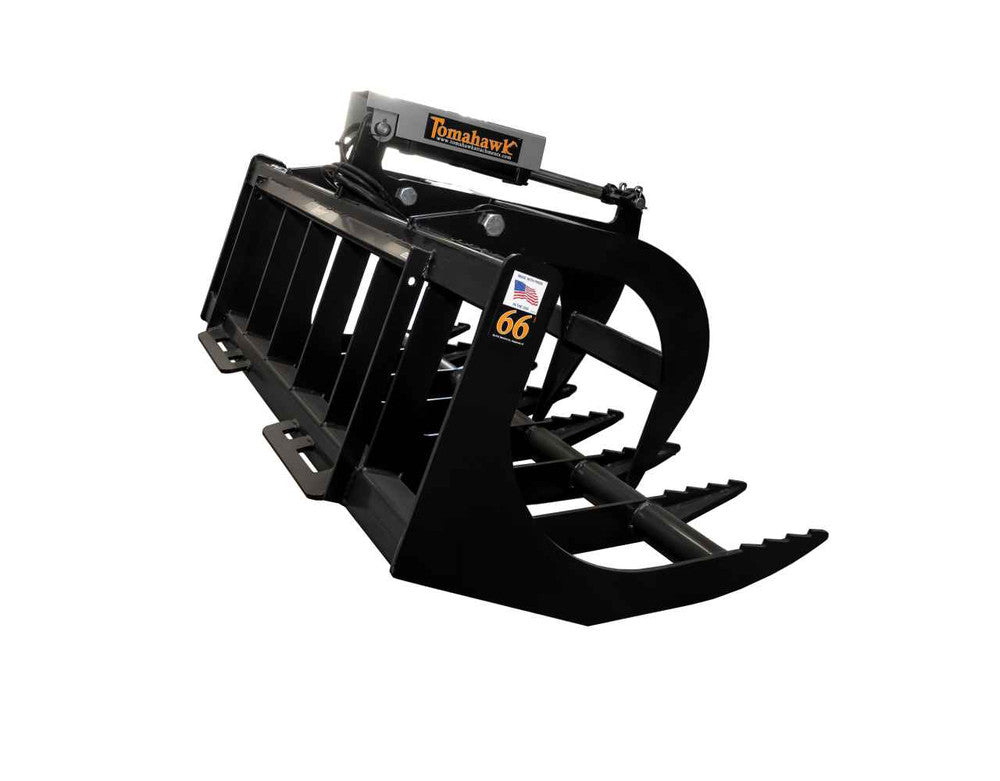

Tomahawk 66-Inch Single-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ

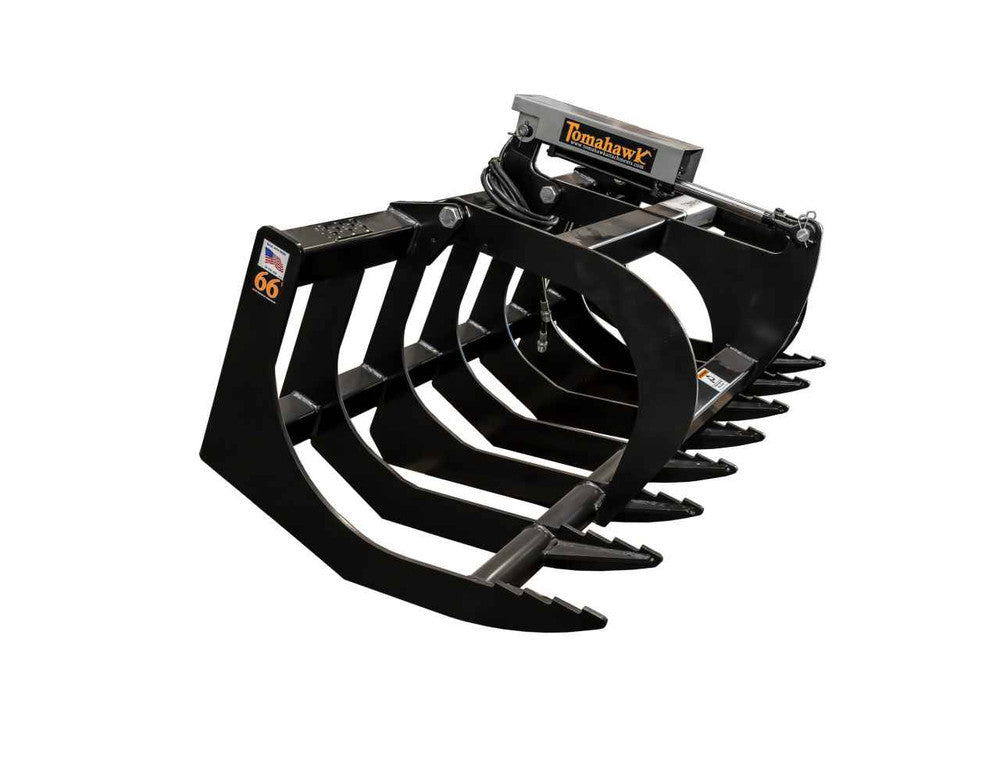

Tomahawk 66-Inch Single-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ

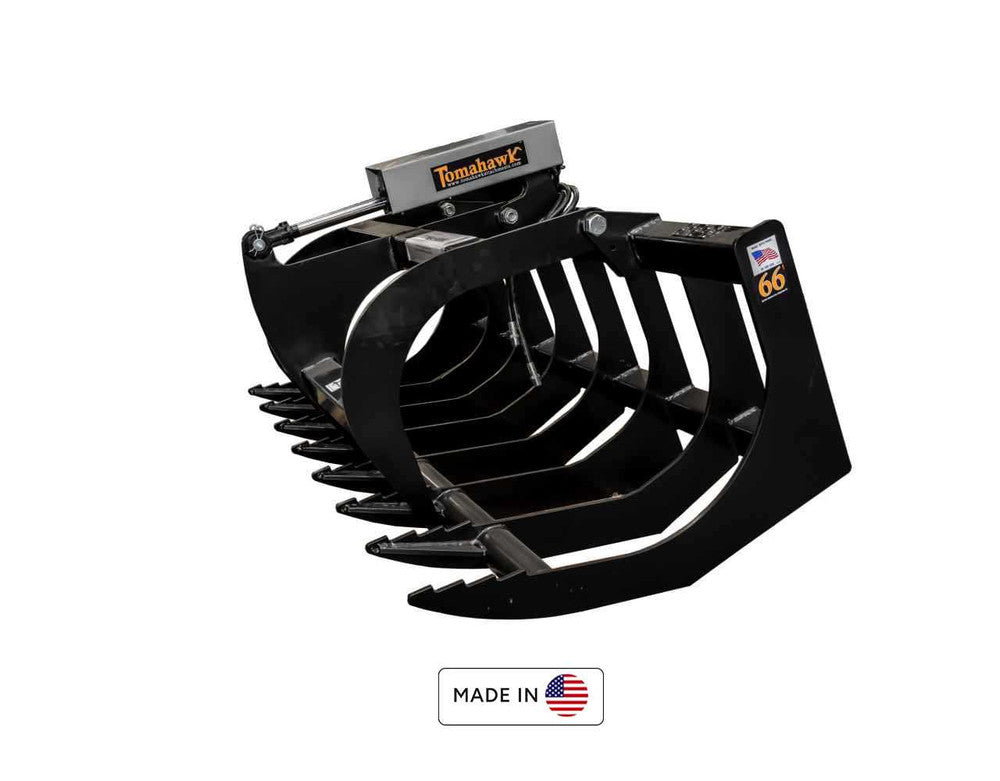

Tomahawk 66-Inch Single-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ
Tomahawk 66-Inch Single-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ
Roll over image to zoom in Click on image to zoom
Tomahawk 66-Inch Single-Cylinder Brush Grapple;manufacturer family image, selected configuration may differTomahawk 66-Inch Single-Cylinder Brush Grapple;manufacturer family image, selected configuration may differTomahawk 66-Inch Single-Cylinder Brush Grapple;manufacturer family image, selected configuration may differTomahawk 66-Inch Single-Cylinder Brush Grapple;manufacturer family image, selected configuration may differTomahawk 66-Inch Single-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ
Tomahawk

Tomahawk 66-Inch Single-Cylinder Brush Grapple

SKU: 3020 Availability confirmed before order

$3,018.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

SINGLE-CYLINDER CLAMP

A SINGLE HYDRAULIC CYLINDER OPERATES THE UPPER GRAPPLE. THE LOADER SUPPLIES AUXILIARY HYDRAULICS TO OPEN AND CLOSE THE CLAMP.

3/8-INCH TOP CLAMP

THE UPPER CLAMP USES 3/8-INCH STEEL. ITS SHAPE HOLDS BRUSH AND IRREGULAR MATERIAL AGAINST THE LOWER ATTACHMENT BODY.

33.5-INCH GRAPPLE OPENING

THE GRAPPLE OPENS TO 33.5 INCHES. POSITION THE ATTACHMENT AROUND THE LOAD BEFORE CLOSING THE CLAMP.

34-INCH BODY DEPTH

THE BODY MEASURES 34 INCHES DEEP AND 32 INCHES TALL. ITS 66-INCH WORKING WIDTH SUITS BRUSH AND MATERIAL CLEANUP.

1/2-INCH NPT HOSE FITTINGS

THE HYDRAULIC HOSES TERMINATE IN 1/2-INCH MALE NPT FITTINGS. QUICK COUPLERS ARE SOLD SEPARATELY FOR THESE DEALER CONFIGURATIONS.

Description

Key Benefits

Technical Specs

Applications

Tomahawk 66-Inch Single-Cylinder Brush Grapple

The Tomahawk 66-Inch Single-Cylinder Brush Grapple grips brush, logs, and irregular debris for controlled material handling. It connects through a Universal skid steer quick attach interface.

A single hydraulic cylinder operates the upper grapple. The loader supplies auxiliary hydraulics to open and close the clamp. The upper clamp uses 3/8-inch steel. Its shape holds brush and irregular material against the lower attachment body.

The grapple opens to 33.5 inches. Position the attachment around the load before closing the clamp. The body measures 34 inches deep and 32 inches tall. Its 66-inch working width suits brush and material cleanup.

The hydraulic hoses terminate in 1/2-inch male NPT fittings. Quick couplers are sold separately for these dealer configurations. Account for attachment weight, payload, load position, and the carrier’s rated capacity before lifting or transporting material. Quick couplers are sold separately for this dealer configuration.

Tomahawk 66-Inch Single-Cylinder Brush Grapple

  • A single hydraulic cylinder operates the upper grapple. The loader supplies auxiliary hydraulics to open and close the clamp.
  • The upper clamp uses 3/8-inch steel. Its shape holds brush and irregular material against the lower attachment body.
  • The grapple opens to 33.5 inches. Position the attachment around the load before closing the clamp.
  • The body measures 34 inches deep and 32 inches tall. Its 66-inch working width suits brush and material cleanup.
  • The hydraulic hoses terminate in 1/2-inch male NPT fittings. Quick couplers are sold separately for these dealer configurations.

Tomahawk 66-Inch Single-Cylinder Brush Grapple

  • Brand: Tomahawk
  • Product: 66-Inch Single-Cylinder Brush Grapple
  • Mount: Universal skid steer quick attach
  • Working action: hydraulic cylinder actuation
  • Body: 34 inches deep × 32 inches tall
  • Quick couplers excluded
  • 3020: 415 lb
  • Maximum jaw opening: 33.5 inches

Tomahawk 66-Inch Single-Cylinder Brush Grapple

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.

Tomahawk: Grapple Demonstrations

Tomahawk 66-Inch Single-Cylinder Brush Grapple

BUILT FOR MATERIAL HANDLING:

  • A single hydraulic cylinder operates the upper grapple. The loader supplies auxiliary hydraulics to open and close the clamp.
  • The upper clamp uses 3/8-inch steel. Its shape holds brush and irregular material against the lower attachment body.
  • The grapple opens to 33.5 inches. Position the attachment around the load before closing the clamp.
  • The body measures 34 inches deep and 32 inches tall. Its 66-inch working width suits brush and material cleanup.
  • The hydraulic hoses terminate in 1/2-inch male NPT fittings. Quick couplers are sold separately for these dealer configurations.

MATCH YOUR WORKING SETUP:

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.
  • Mount:Universal skid steer quick attach.
  • Check carrier lifting capacity at the actual load position.

READY FOR THE FIELD:

  • Inspect the grapple tines, working edges, pins, and retaining hardware.
  • Engage the loader attachment locks before connecting hydraulics.
  • Connect the correct hoses and couplers with hydraulic pressure relieved.
  • Check jaw movement and any rotation controls in a clear area.
  • Keep the load low during travel and remain within all handling limits.
