TOMAHAWK

72-Inch Single-Cylinder Rock Bucket Grapple

For Skid Steers & Track Loaders

36-Inch Jaw Opening

Request QuoteAdd To Cart

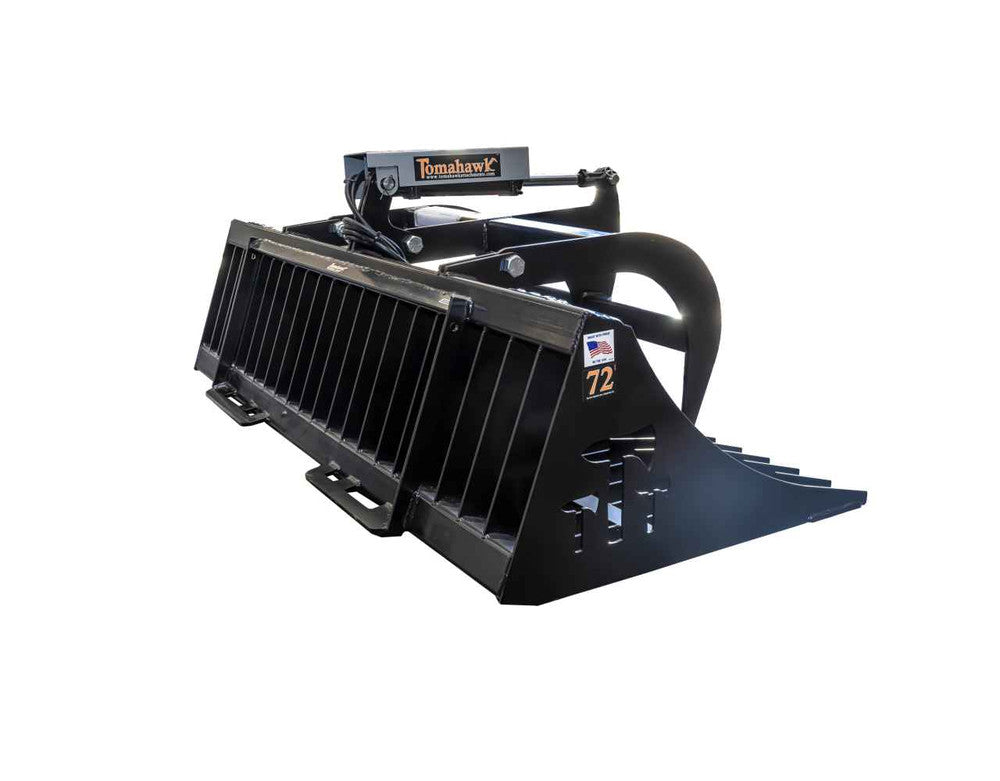

Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple

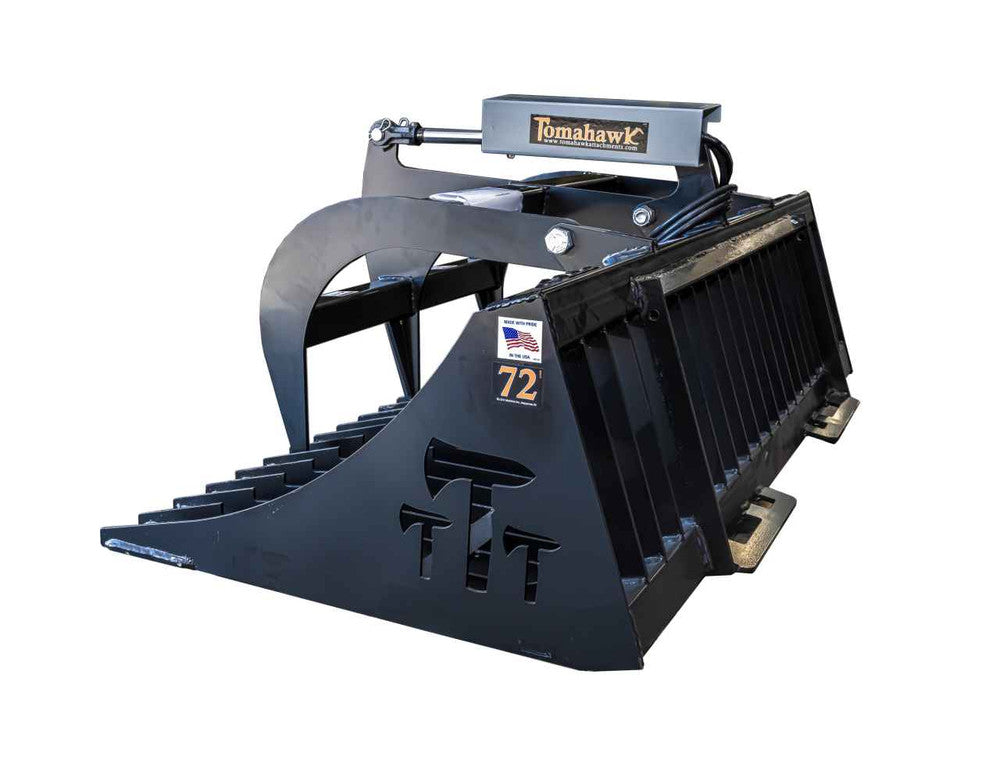

Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differ

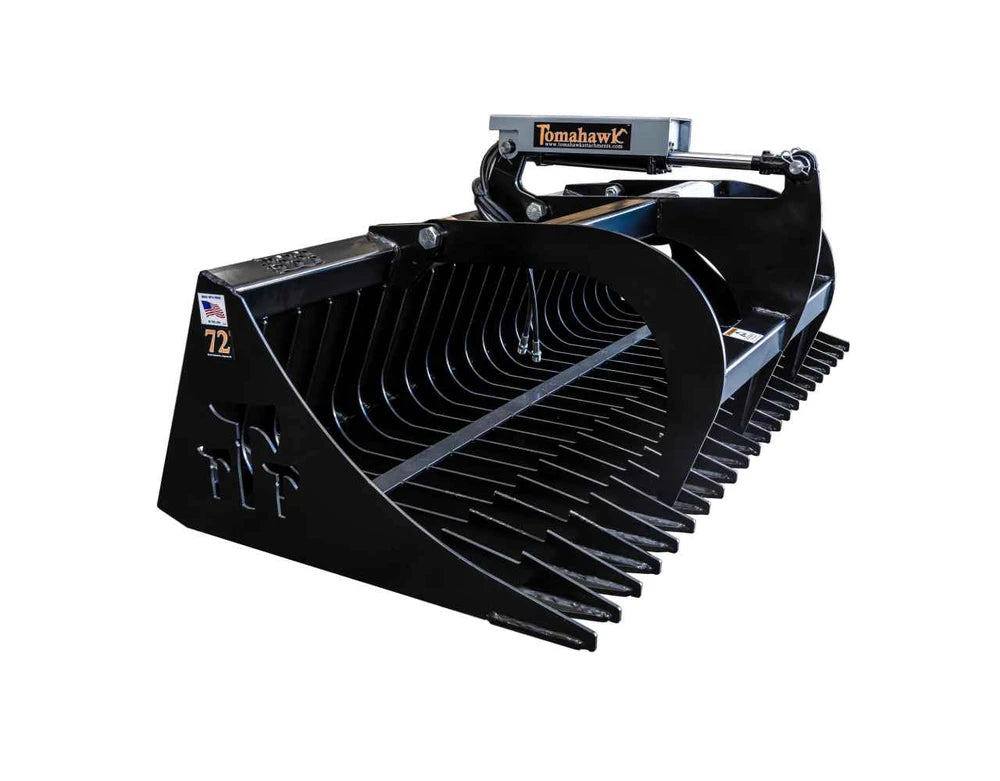

Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differ

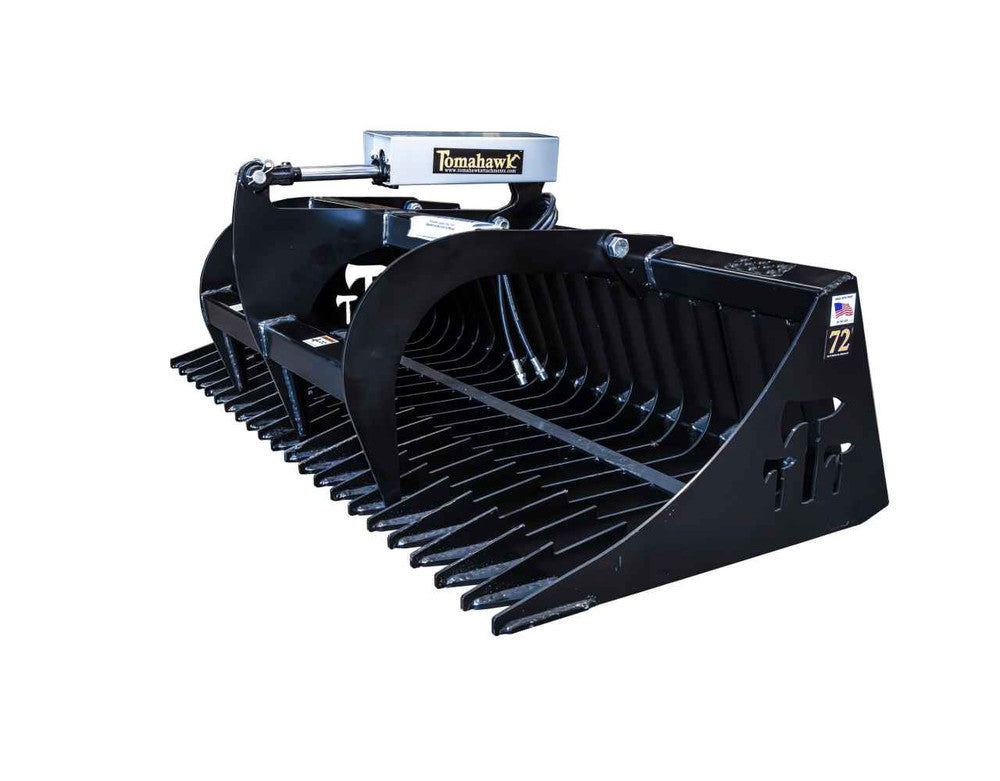

Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differ
Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differ
Roll over image to zoom in Click on image to zoom
Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differTomahawk 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differTomahawk 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differTomahawk 72-Inch Single-Cylinder Rock Bucket Grapple;manufacturer family image, selected configuration may differ
Tomahawk

Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple

SKU: 3028 Availability confirmed before order

$3,354.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

GRADE 50 LOWER TEETH

THE LOWER TEETH USE 1/3-INCH GRADE 50 HIGH-TENSILE STEEL. THEIR OPEN ARRANGEMENT SUPPORTS SORTING ROCK AND LOOSE MATERIAL.

3/8-INCH UPPER CLAMP

THE HYDRAULIC TOP CLAMP USES 3/8-INCH STEEL. IT RETAINS LARGER MATERIAL AGAINST THE LOWER ROCK-BUCKET BODY.

3-INCH TOOTH SPACING

THE LOWER TEETH HAVE 3-INCH SPACING. FINER MATERIAL CAN FALL THROUGH WHILE LARGER ROCKS REMAIN IN THE ATTACHMENT.

36-INCH GRAPPLE OPENING

THE UPPER CLAMP OPENS TO 36 INCHES. THE BUCKET BODY IS 34 INCHES DEEP AND 18 INCHES TALL.

1/2-INCH NPT HOSE FITTINGS

THE HYDRAULIC HOSES TERMINATE IN 1/2-INCH MALE NPT FITTINGS. QUICK COUPLERS ARE SOLD SEPARATELY FOR THESE DEALER CONFIGURATIONS.

Description

Key Benefits

Technical Specs

Applications

Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple

The Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple collects and retains rock and debris while finer material falls through. It connects through a Universal skid steer quick attach interface.

The lower teeth use 1/3-inch Grade 50 high-tensile steel. Their open arrangement supports sorting rock and loose material. The hydraulic top clamp uses 3/8-inch steel. It retains larger material against the lower rock-bucket body.

The lower teeth have 3-inch spacing. Finer material can fall through while larger rocks remain in the attachment. The upper clamp opens to 36 inches. The bucket body is 34 inches deep and 18 inches tall.

The hydraulic hoses terminate in 1/2-inch male NPT fittings. Quick couplers are sold separately for these dealer configurations. Account for attachment weight, payload, load position, and the carrier’s rated capacity before lifting or transporting material. Quick couplers are sold separately for this dealer configuration.

Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple

  • The lower teeth use 1/3-inch Grade 50 high-tensile steel. Their open arrangement supports sorting rock and loose material.
  • The hydraulic top clamp uses 3/8-inch steel. It retains larger material against the lower rock-bucket body.
  • The lower teeth have 3-inch spacing. Finer material can fall through while larger rocks remain in the attachment.
  • The upper clamp opens to 36 inches. The bucket body is 34 inches deep and 18 inches tall.
  • The hydraulic hoses terminate in 1/2-inch male NPT fittings. Quick couplers are sold separately for these dealer configurations.

Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple

  • Brand: Tomahawk
  • Product: 72-Inch Single-Cylinder Rock Bucket Grapple
  • Mount: Universal skid steer quick attach
  • Working action: hydraulic cylinder actuation
  • Body: 34 inches deep × 18 inches tall
  • Quick couplers excluded
  • 3028: 455 lb
  • Maximum jaw opening: 36 inches

Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.

Tomahawk: Grapple Demonstrations

Tomahawk 72-Inch Single-Cylinder Rock Bucket Grapple

BUILT FOR MATERIAL HANDLING:

  • The lower teeth use 1/3-inch Grade 50 high-tensile steel. Their open arrangement supports sorting rock and loose material.
  • The hydraulic top clamp uses 3/8-inch steel. It retains larger material against the lower rock-bucket body.
  • The lower teeth have 3-inch spacing. Finer material can fall through while larger rocks remain in the attachment.
  • The upper clamp opens to 36 inches. The bucket body is 34 inches deep and 18 inches tall.
  • The hydraulic hoses terminate in 1/2-inch male NPT fittings. Quick couplers are sold separately for these dealer configurations.

MATCH YOUR WORKING SETUP:

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.
  • Mount:Universal skid steer quick attach.
  • Check carrier lifting capacity at the actual load position.

READY FOR THE FIELD:

  • Inspect the grapple tines, working edges, pins, and retaining hardware.
  • Engage the loader attachment locks before connecting hydraulics.
  • Connect the correct hoses and couplers with hydraulic pressure relieved.
  • Check jaw movement and any rotation controls in a clear area.
  • Keep the load low during travel and remain within all handling limits.
