TOMAHAWK

66-Inch Two-Cylinder Brush Grapple

For Skid Steers & Track Loaders

33.5-Inch Jaw Opening

Request QuoteAdd To Cart

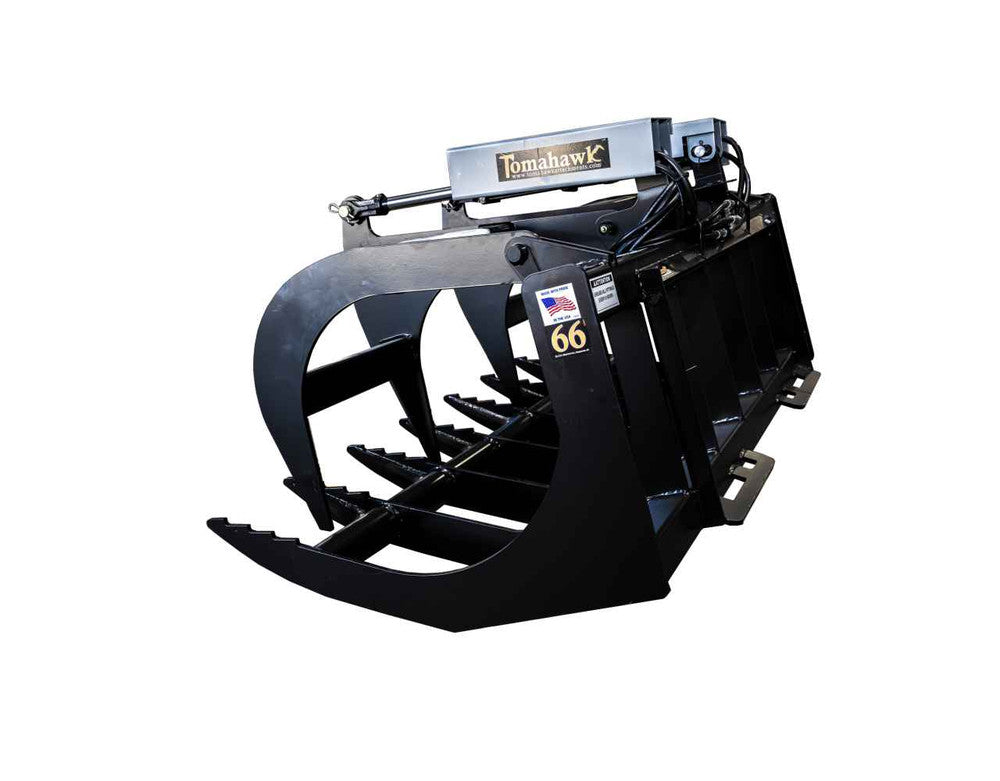

Tomahawk 66-Inch Two-Cylinder Brush Grapple

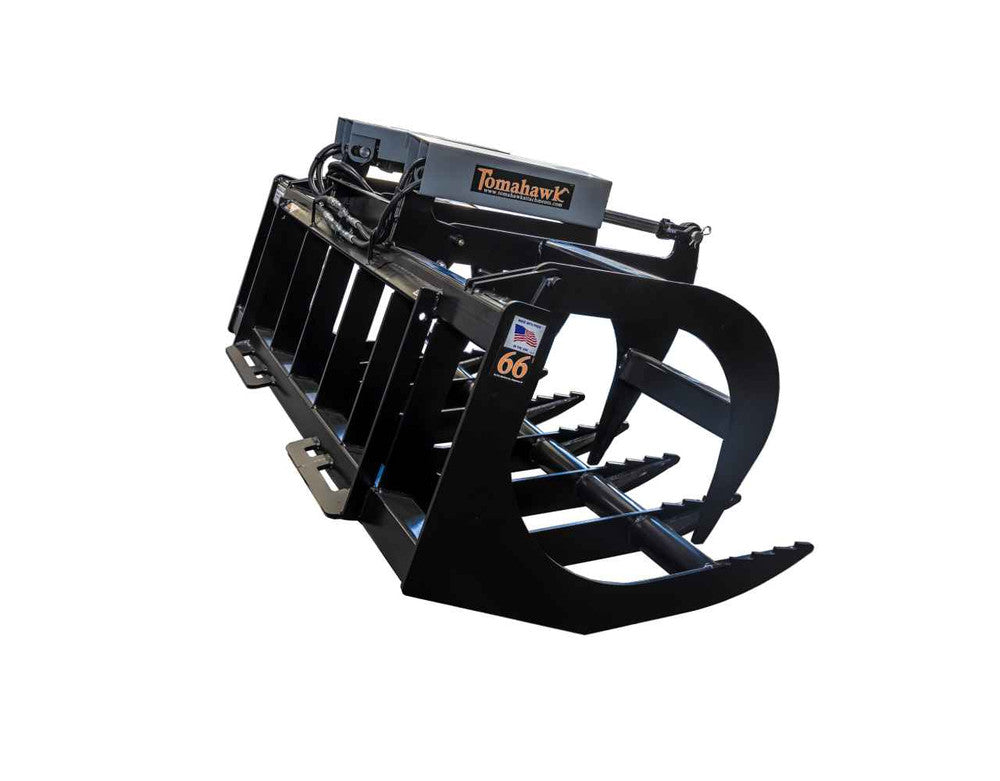

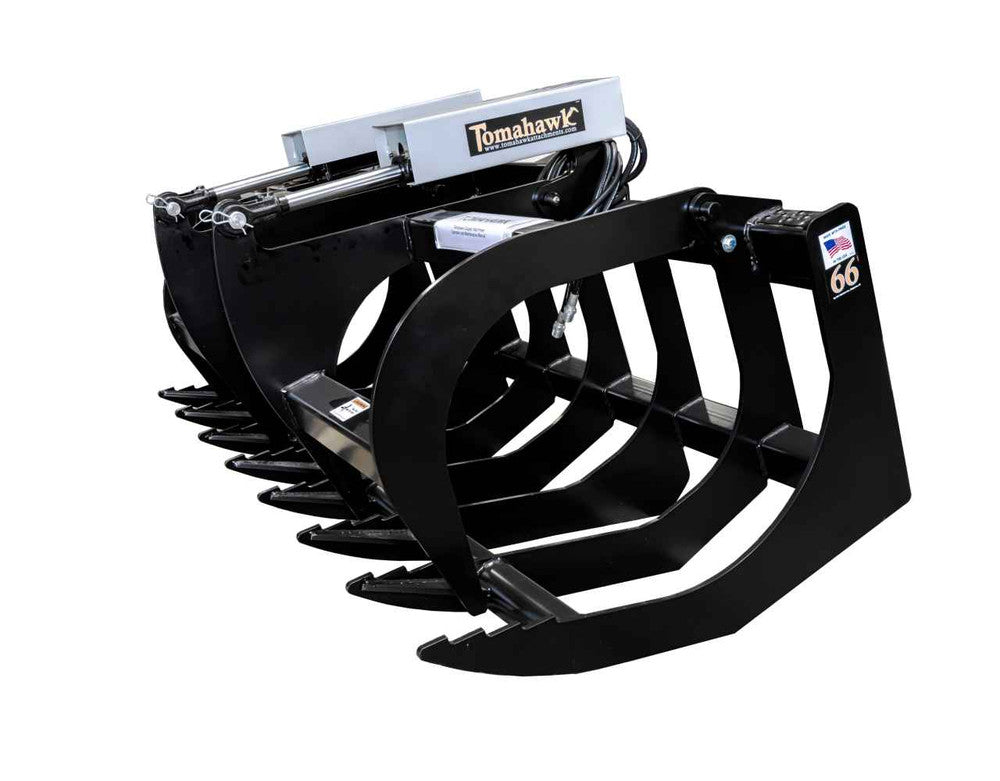

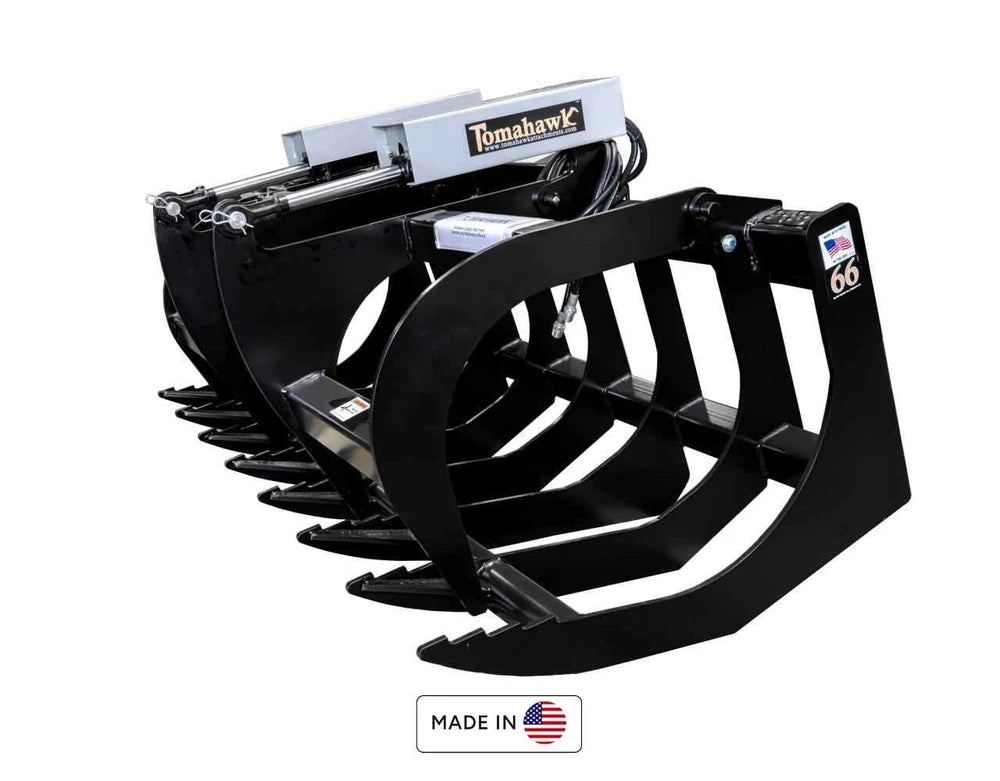

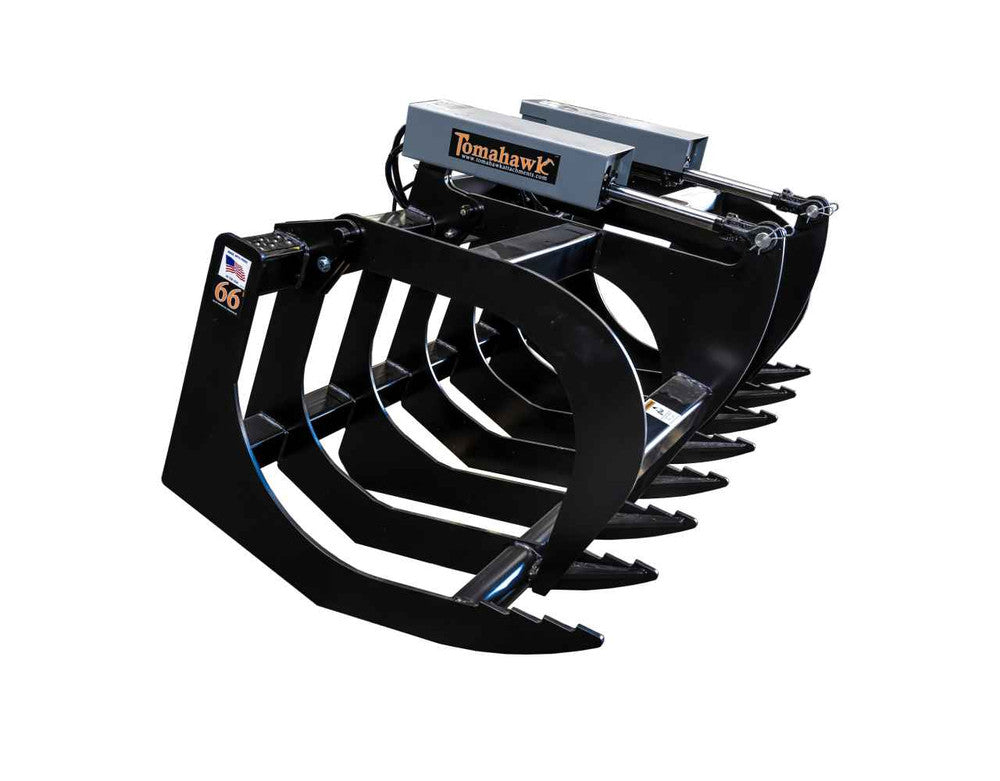

Tomahawk 66-Inch Two-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ
Tomahawk 66-Inch Two-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ
Tomahawk 66-Inch Two-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ
Tomahawk 66-Inch Two-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ
Tomahawk 66-Inch Two-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ
Roll over image to zoom in Click on image to zoom
Tomahawk 66-Inch Two-Cylinder Brush Grapple;manufacturer family image, selected configuration may differTomahawk 66-Inch Two-Cylinder Brush Grapple;manufacturer family image, selected configuration may differTomahawk 66-Inch Two-Cylinder Brush Grapple;manufacturer family image, selected configuration may differTomahawk 66-Inch Two-Cylinder Brush Grapple;manufacturer family image, selected configuration may differTomahawk 66-Inch Two-Cylinder Brush Grapple;manufacturer family image, selected configuration may differ
Tomahawk

Tomahawk 66-Inch Two-Cylinder Brush Grapple

SKU: 3021 Availability confirmed before order

$3,354.99 USD

Freight $100 flat freight to the contiguous U.S.

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

DUAL TOP CLAMPS

TWO HYDRAULIC CYLINDERS OPERATE THE DUAL UPPER CLAMPS. THE SEPARATE CLAMP LAYOUT HELPS HOLD UNEVEN BRUSH AND DEBRIS.

3/8-INCH STEEL CONSTRUCTION

THE ATTACHMENT USES 3/8-INCH CONSTRUCTION WITH 3/8-INCH UPPER CLAMPS. THE OPEN LOWER TINE ARRANGEMENT SUPPORTS DEBRIS HANDLING.

8-INCH TOOTH SPACING

THE LOWER TEETH HAVE 8-INCH SPACING. FINER LOOSE MATERIAL CAN PASS THROUGH THE OPEN STRUCTURE.

33.5-INCH GRAPPLE OPENING

THE CLAMPS OPEN TO 33.5 INCHES. THE BODY MEASURES 34 INCHES DEEP AND 32 INCHES TALL.

GREASEABLE PIVOT POINTS

GREASEABLE PIVOTS SUPPORT THE MOVING GRAPPLE COMPONENTS. MAINTAIN LUBRICATION AND INSPECT THE HINGE POINTS DURING REGULAR ATTACHMENT CARE.

Description

Key Benefits

Technical Specs

Applications

Tomahawk 66-Inch Two-Cylinder Brush Grapple

The Tomahawk 66-Inch Two-Cylinder Brush Grapple grips brush, logs, and irregular debris for controlled material handling. It connects through a Universal skid steer quick attach interface.

Two hydraulic cylinders operate the dual upper clamps. The separate clamp layout helps hold uneven brush and debris. The attachment uses 3/8-inch construction with 3/8-inch upper clamps. The open lower tine arrangement supports debris handling.

The lower teeth have 8-inch spacing. Finer loose material can pass through the open structure. The clamps open to 33.5 inches. The body measures 34 inches deep and 32 inches tall.

Greaseable pivots support the moving grapple components. Maintain lubrication and inspect the hinge points during regular attachment care. Account for attachment weight, payload, load position, and the carrier’s rated capacity before lifting or transporting material. Quick couplers are sold separately for this dealer configuration.

Tomahawk 66-Inch Two-Cylinder Brush Grapple

  • Two hydraulic cylinders operate the dual upper clamps. The separate clamp layout helps hold uneven brush and debris.
  • The attachment uses 3/8-inch construction with 3/8-inch upper clamps. The open lower tine arrangement supports debris handling.
  • The lower teeth have 8-inch spacing. Finer loose material can pass through the open structure.
  • The clamps open to 33.5 inches. The body measures 34 inches deep and 32 inches tall.
  • Greaseable pivots support the moving grapple components. Maintain lubrication and inspect the hinge points during regular attachment care.

Tomahawk 66-Inch Two-Cylinder Brush Grapple

  • Brand: Tomahawk
  • Product: 66-Inch Two-Cylinder Brush Grapple
  • Mount: Universal skid steer quick attach
  • Working action: hydraulic cylinder actuation
  • Hose fittings: male 1/2-inch NPT
  • Quick couplers excluded
  • Body: 34 inches deep × 32 inches tall
  • 3021: 480 lb
  • Maximum jaw opening: 33.5 inches

Tomahawk 66-Inch Two-Cylinder Brush Grapple

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.

Tomahawk: Grapple Demonstrations

Tomahawk 66-Inch Two-Cylinder Brush Grapple

BUILT FOR MATERIAL HANDLING:

  • Two hydraulic cylinders operate the dual upper clamps. The separate clamp layout helps hold uneven brush and debris.
  • The attachment uses 3/8-inch construction with 3/8-inch upper clamps. The open lower tine arrangement supports debris handling.
  • The lower teeth have 8-inch spacing. Finer loose material can pass through the open structure.
  • The clamps open to 33.5 inches. The body measures 34 inches deep and 32 inches tall.
  • Greaseable pivots support the moving grapple components. Maintain lubrication and inspect the hinge points during regular attachment care.

MATCH YOUR WORKING SETUP:

  • Brush and debris cleanup.
  • Landscape clearing and material staging.
  • Loading and transporting supported material within carrier and attachment limits.
  • Mount:Universal skid steer quick attach.
  • Check carrier lifting capacity at the actual load position.

READY FOR THE FIELD:

  • Inspect the grapple tines, working edges, pins, and retaining hardware.
  • Engage the loader attachment locks before connecting hydraulics.
  • Connect the correct hoses and couplers with hydraulic pressure relieved.
  • Check jaw movement and any rotation controls in a clear area.
  • Keep the load low during travel and remain within all handling limits.
