- Tractor Compatibility: 20–50 HP (compact and utility tractors)
- Hopper Capacity: 0.5–1.5 cubic yards (depending on model)
- Spreading Width: 36–60 in adjustable
- Spreading Thickness: 0.1–2 in variable control
- Application Rate: 0.25–2.5 tons per acre (adjustable by gate and belt speed)
- Material Types: Sand, compost, soil, peat, organic amendments, topsoil blends
- Drive Type: PTO-driven belt and brush system
- Conveyor System: Heavy-duty endless belt with variable speed control
- Spreading Mechanism: Brush or spinner system for even distribution
- Tire Size: Turf-friendly flotation tires for low ground pressure
- Operating Speed: 3–8 mph (field conditions dependent)
- Empty Weight: ~800–1,200 lbs (depending on model)
- Construction: Powder-coated steel frame with corrosion resistance
- Applications: Golf courses, sports fields, residential lawns, landscaping, commercial grounds maintenance
Features
Specifications
Description
Shipping
Warranty
Details
Capacity (heaped)
Capacity w/ extension sides
Max payload
Material Compatibility
Hydraulic controls
Belt system
Body
Dimensions (L × W × H)
Bucket loading width

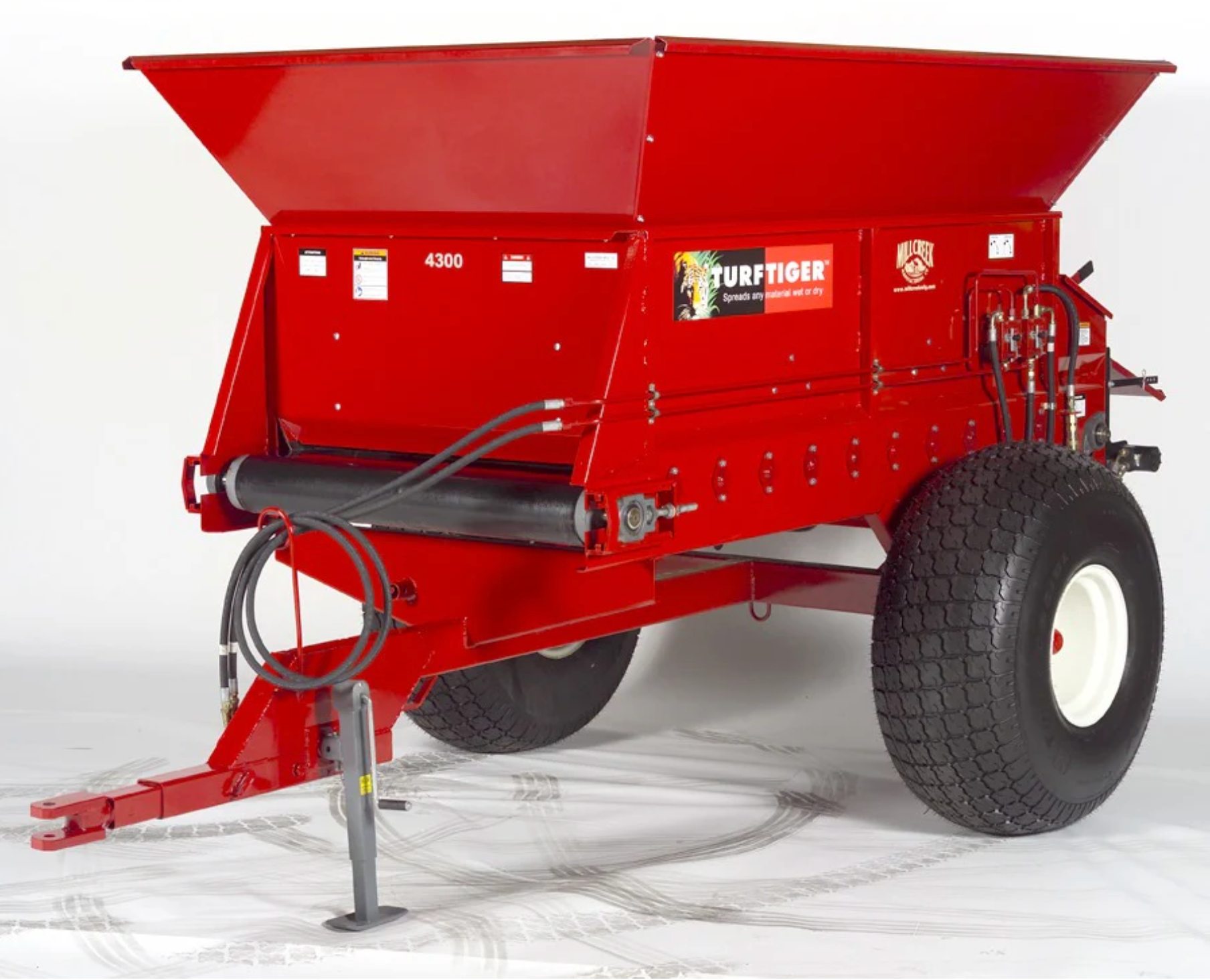

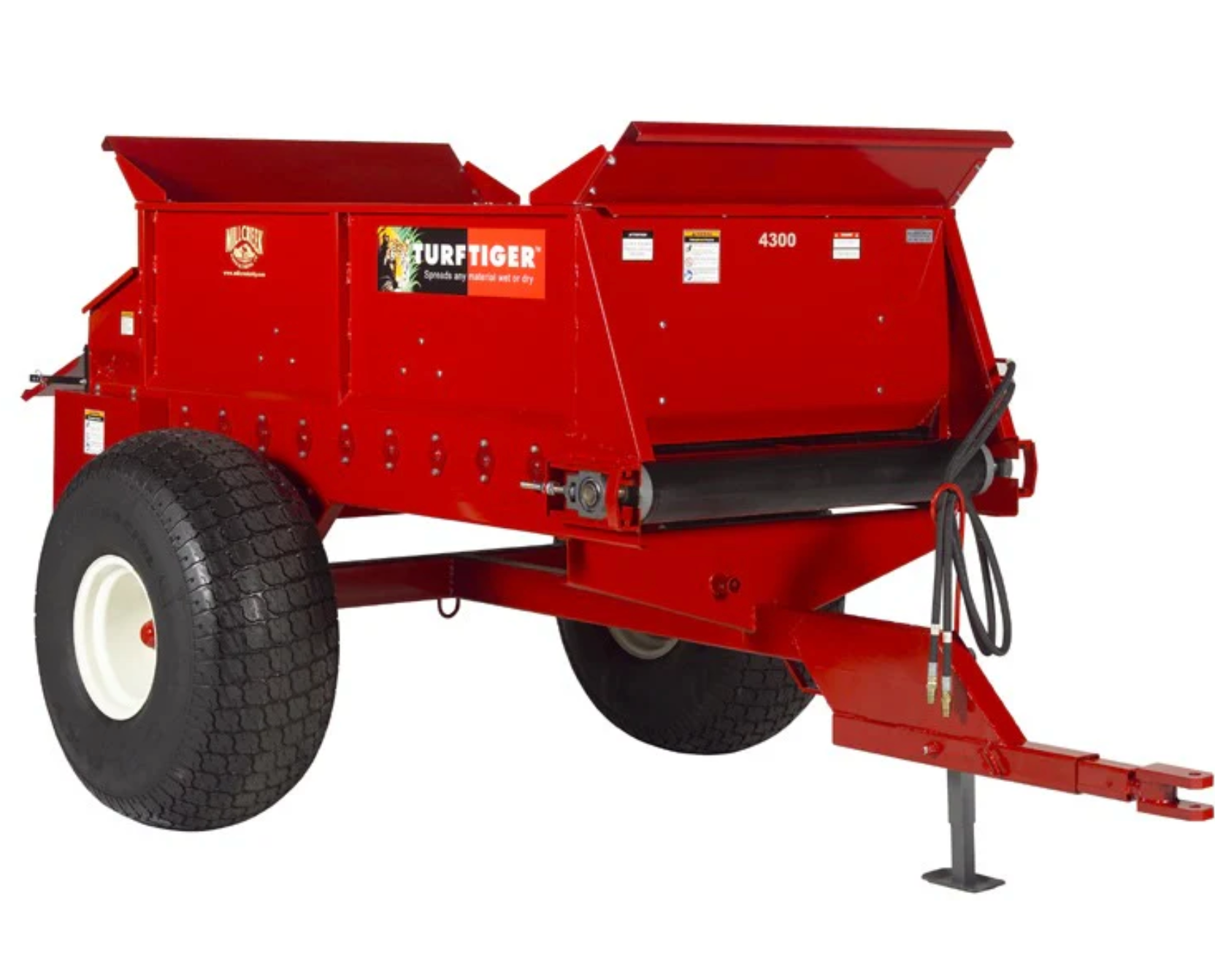

4300 Model
3.2 cu yd
5.25 cu yd
7,500 lb
Wet/dry sand, compost, infill, mixes
Dual controls for belt & attachment speed
Self-aligning V-track
11-gauge steel
12′-8″ × 7′-9″ × 65″
8′-2″
