UTILITOUGH

UT1200 HYDRAULIC BREAKER

For Excavators

1,200 ft-lb Impact Energy Class

Utilitough

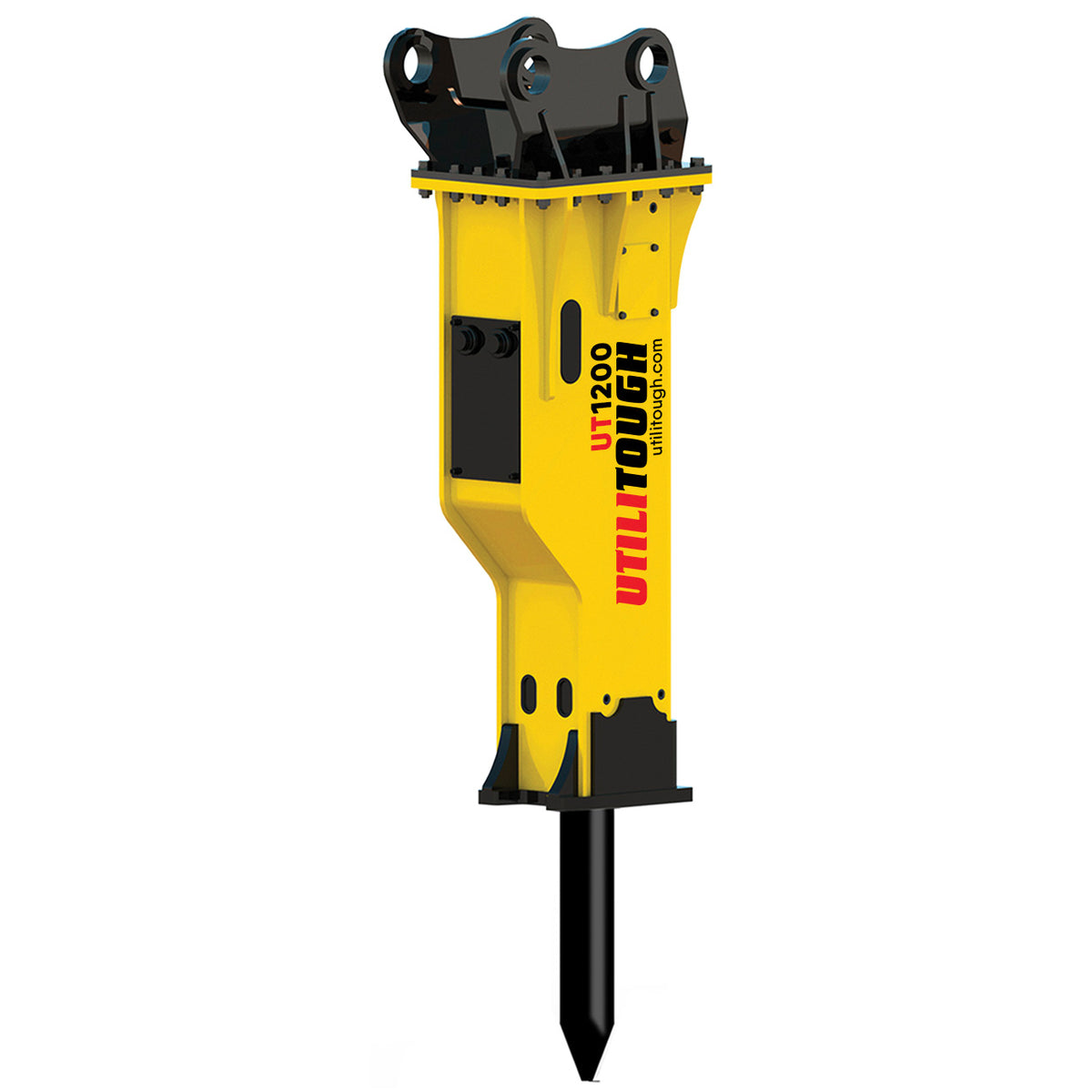

UtiliTough UT1200 Hydraulic Breaker for Excavators

SKU: UT-EX-HB-1200 Currently In Stock

Sale price$14,500.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

1,200 FT-LB ENERGY CLASS

Impact energy class for breaking concrete, stone, and rock with a correctly sized excavator.

FLOATING POWER CELL

Enclosed power cell helps reduce vibration transfer and noise during repeated breaking.

STANDARD AUTO-LUBE

Hydraulic auto-lube supports tool lubrication during operation. Use the specified chisel paste.

ENCLOSED HOUSING

Enclosed housing and dust protection help shield internal components from jobsite debris.

COMPLETE BREAKER PACKAGE

Includes a common excavator bracket, hoses and fittings, two working tools, and service equipment.

Description

Key Benefits

Technical Specs

Applications

UtiliTough UT1200

The UtiliTough UT1200 Whisper Series hydraulic breaker puts a 1,200 ft-lb impact energy class to work on concrete, rock, and masonry. Sized for excavators in the 13,228–22,046 lb carrier range, it provides a dedicated breaking attachment for demolition, trenching, and site preparation.

A floating power cell inside the enclosed housing helps reduce vibration transfer and operating noise. The internal valve design simplifies service, while heat-treated working tools, large tool pins, and dust protection support repeated use in demanding material.

Hydraulic auto-lube is standard, and the work mode selector lets operators adapt striking performance to the application. The UT1200 requires 11–25 GPM at 1,991–2,418 PSI; the excavator’s breaker circuit must be adjusted to the attachment requirements.

The package includes a common excavator pin-on or quick-attach mounting bracket, appropriate hydraulic hoses and fittings, two working tools, a gas charging kit, a repair toolbox, and documentation. A three-year warranty excludes wear parts. Provide the excavator model and coupler details so the mounting configuration can be matched before shipment.

UtiliTough UT1200

  • Enclosed, floating power cell helps reduce noise and vibration
  • Internal valve can be serviced on site
  • Heat-treated tooling and large tool pins support wear life
  • Standard auto-lube simplifies routine tool lubrication
  • Dedicated excavator mounting configuration matched to the machine

UtiliTough UT1200

  • Model: UT1200 excavator Whisper Series
  • Impact energy class: 1,200 ft-lb
  • Published operating weight: 1,245 lb; actual weight varies with mounting configuration
  • Required hydraulic oil flow: 11–25 GPM
  • Operating pressure: 1,991–2,418 PSI
  • Second-relief setting pressure: 2,500 PSI; this is separate from the operating pressure
  • Suitable carrier weight: 13,228–22,046 lb
  • Long-stroke blow rate: 370–900 BPM
  • Short-stroke blow rate: 480–1,000 BPM
  • Working tool diameter: 3.54 inches
  • Hydraulic auto-lube: standard
  • Mounting: machine-specific common pin-on or quick-attach bracket
  • Carrier weight is a sizing guide. Verify auxiliary output, breaker circuit settings, lifting capacity, and machine-specific installation before use.

UtiliTough UT1200

  • Concrete, slab, and foundation demolition
  • Rock breaking for excavation and site preparation
  • Trenching and utility work in hard material
  • Masonry and pavement removal
  • Secondary breaking of oversized stone

UtiliTough UT1200

ENGINEERED FOR POWER:

  • 1,200 ft-lb impact energy class for rock and concrete breaking
  • Hydraulic operating range of 11–25 GPM at 1,991–2,418 PSI
  • Internal valve design provides a direct hydraulic flow path
  • Work mode selector adapts striking performance to the application
  • Large-capacity accumulator helps manage hydraulic pulsation

BUILT FOR PRECISION:

  • Floating power cell helps reduce vibration transfer
  • Enclosed housing supports lower-noise breaking
  • Vertical tool alignment supports controlled positioning on material
  • Long-stroke frequency of 370–900 BPM
  • Follow operating instructions to maintain tool contact and avoid blank firing

READY FOR THE FIELD:

  • Common excavator mounting bracket and appropriate hydraulic hoses and fittings included
  • Two working tools, gas charging kit, repair toolbox, and documentation included
  • Standard hydraulic auto-lube supports regular tool lubrication
  • Use dedicated chisel paste and follow the manufacturer’s operating and maintenance instructions
  • Three-year warranty, excluding wear parts
