VIRNIG

Angle Broom

For Skid Steers & Track Loaders

60-96″ Widths

Request QuoteAdd To Cart

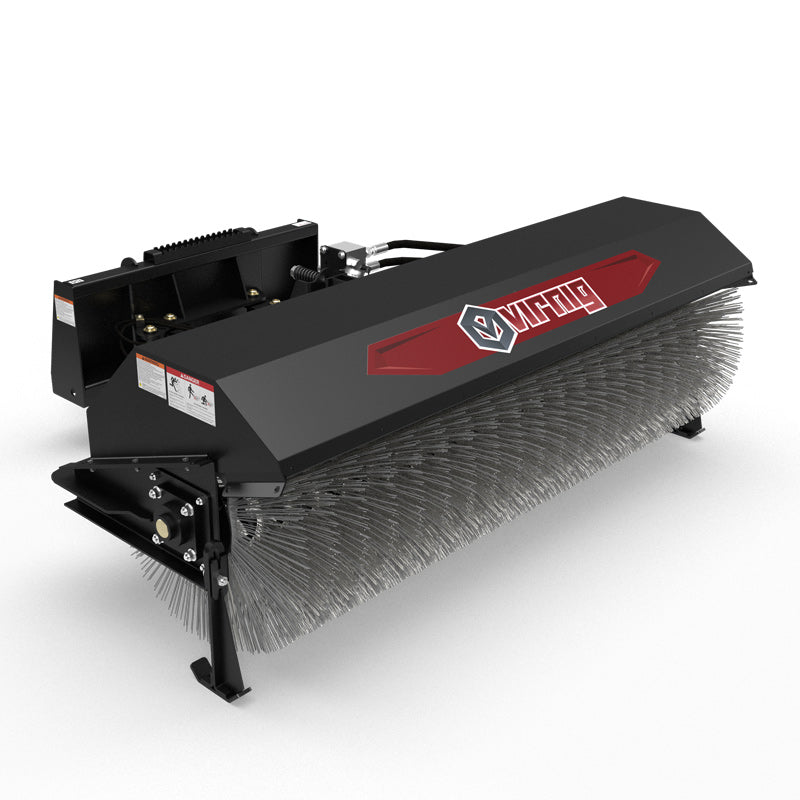

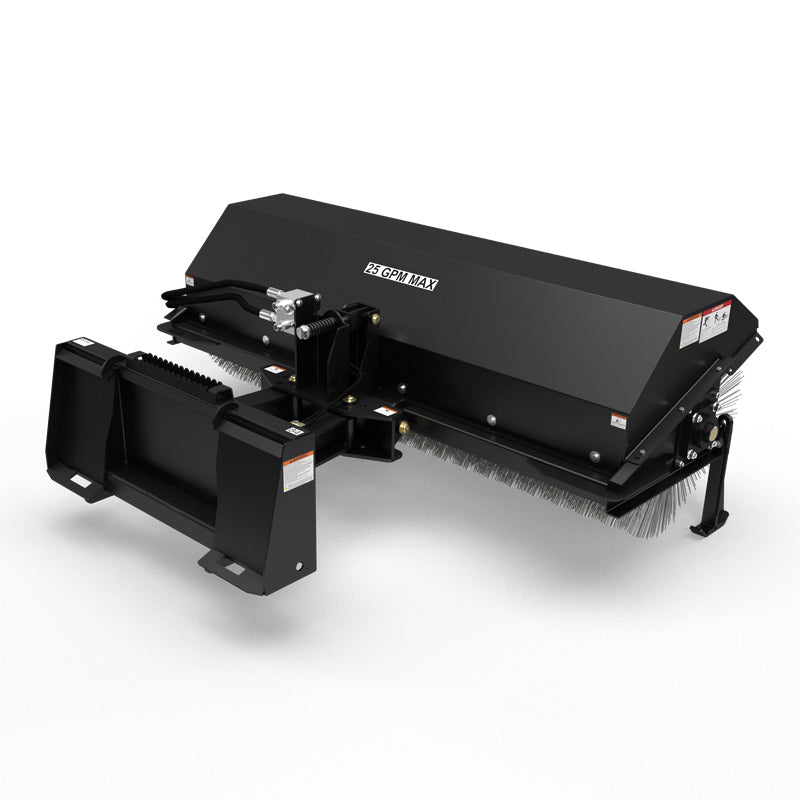

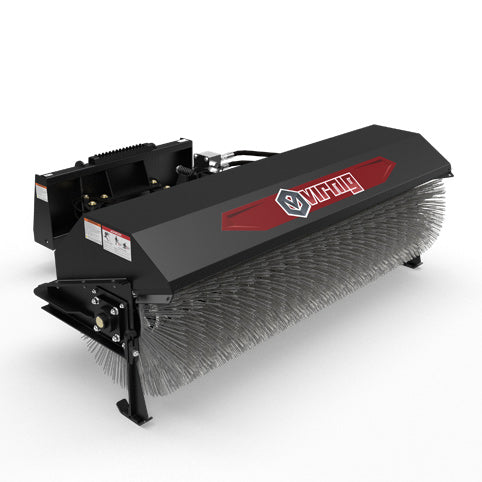

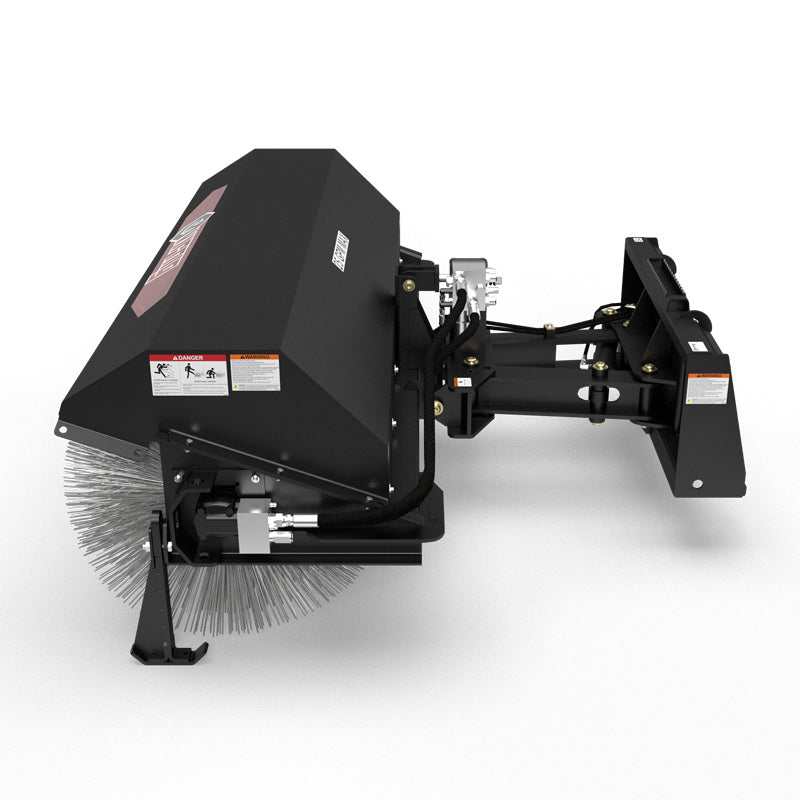

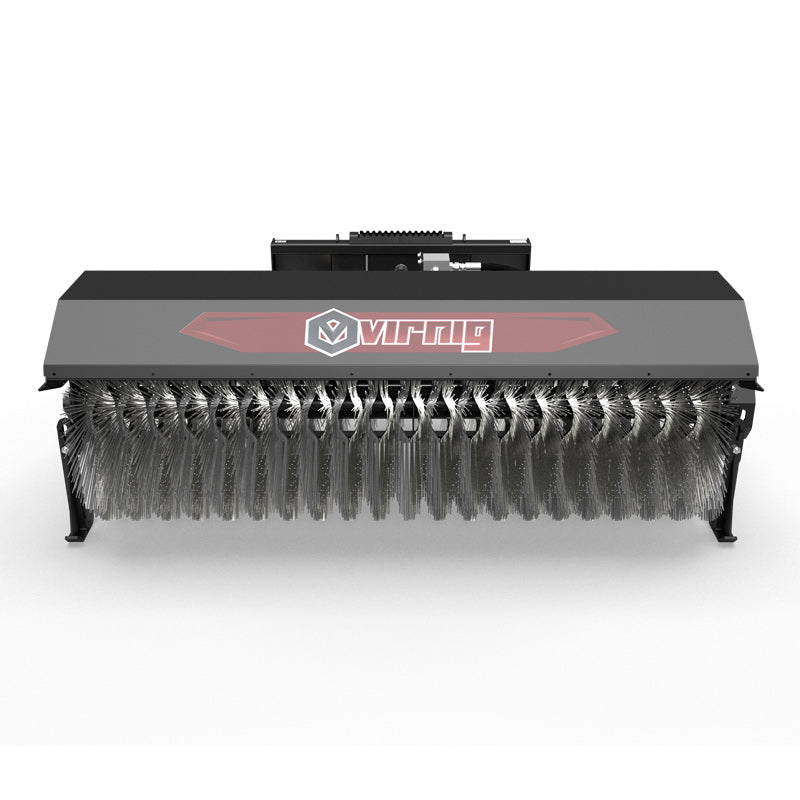

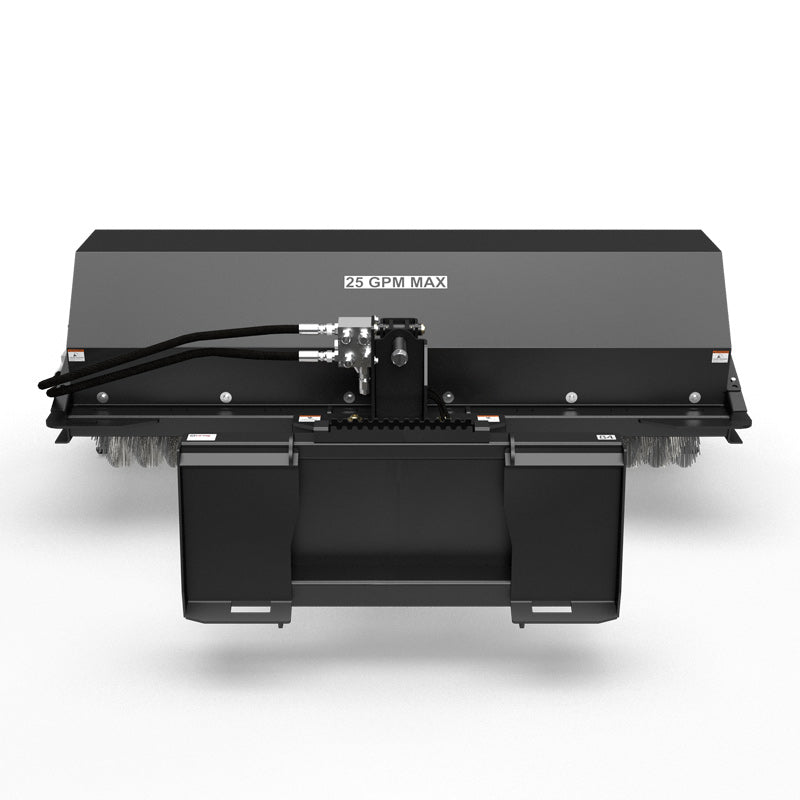

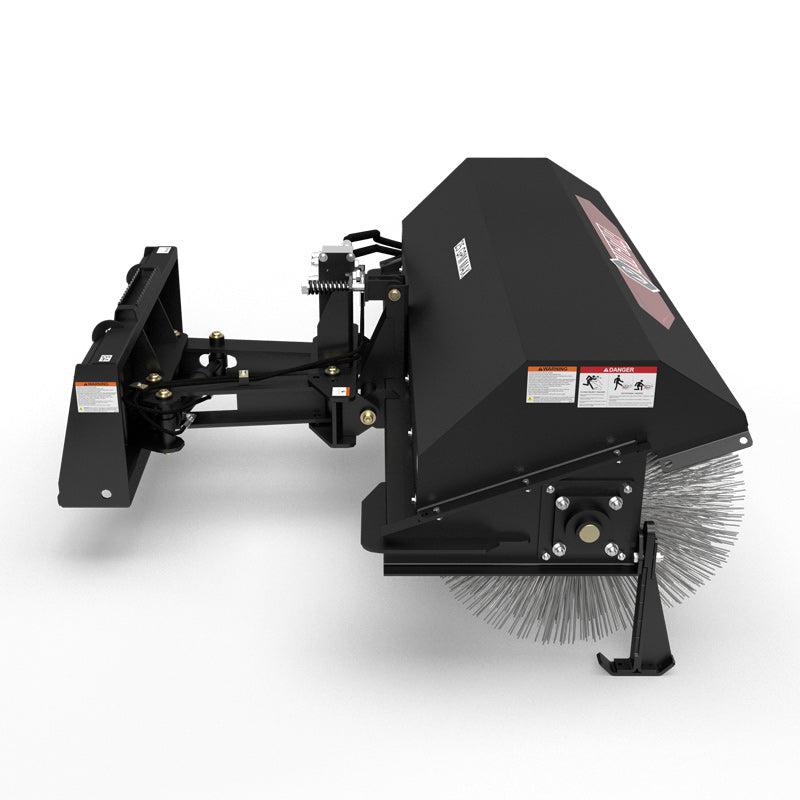

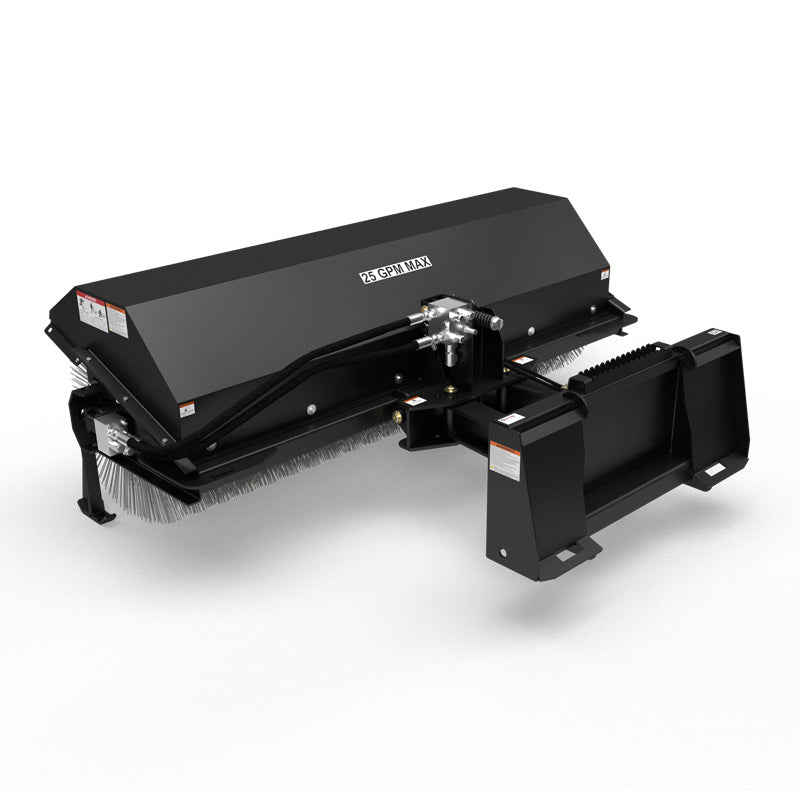

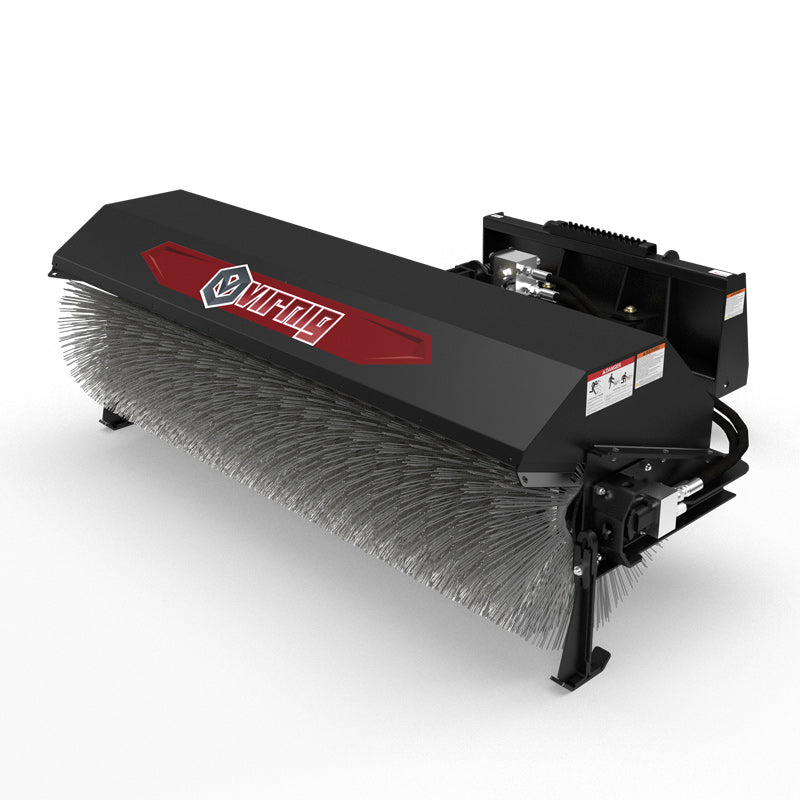

Virnig Angle Broom

Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Virnig Angle Broom; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differVirnig Angle Broom; manufacturer family image, configuration may differ
Virnig

Virnig Angle Broom

SKU: VAB60 Currently In Stock

$9,360.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

SELF-CENTERING LINKAGE

THE SWING LINKAGE SELF-CENTERS THE BROOM AS IT ANGLES FOR CONSISTENT SWEEPING CONTROL.

GUARDED DRIVE

A RECESSED MOTOR AND PROTECTIVE GUARD HELP SHIELD THE DRIVE FROM JOBSITE CONTACT.

GREASEABLE BEARING

AN OVERSIZED, GREASEABLE 2″ BEARING SUPPORTS THE BROOM AND PROVIDES A SERVICE POINT.

SERVICEABLE BRISTLES

REPLACE WAFERS EASILY WITHOUT DISCONNECTING HOSES. STANDARD WITH POLY/WIRE WAFERS.

BRISTLE STORAGE SUPPORT

FLIP-DOWN STANDS KEEP THE BRISTLES OFF THE GROUND WHILE THE BROOM IS STORED.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

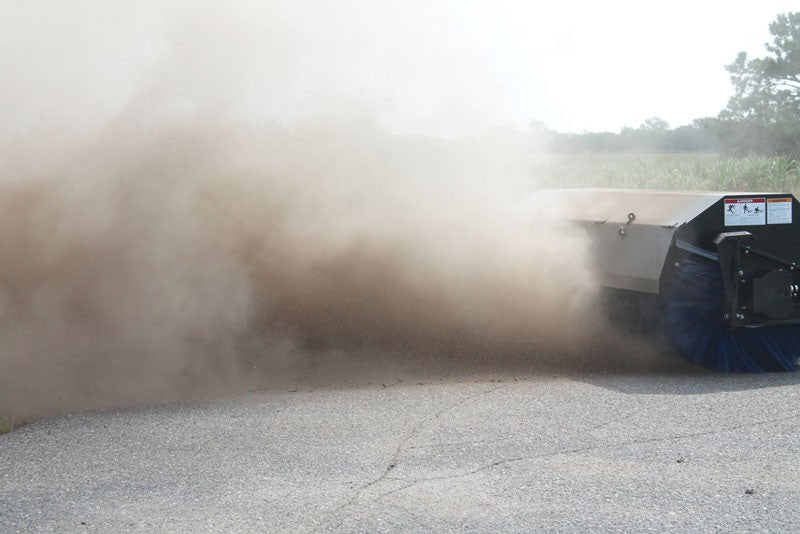

The Virnig Angle Broom sweeps loose material to the side, helping clear paved work areas without first collecting every pass in a bucket. Its swing linkage self-centers the broom when angled, giving the operator a sweeping arrangement that follows the selected direction as material is moved out of the travel path.

A recessed, guarded motor drives the brush, while an oversized 2″ greasable bearing supports the rotating assembly. Standard poly/wire wafers provide the working bristles. The wafers can be replaced without disconnecting the hydraulic hoses, making routine brush service more straightforward when the bristles reach the end of their useful life.

Flip-down stands support the attachment during storage and keep the bristles from carrying its resting weight. Choose a broom width that suits the loader and the area being maintained, then match the hydraulic requirements to the carrier. This angle broom windrows material to the side; choose a pick-up broom when collection in a bucket is needed.

KEY BENEFITS

  • Swing linkage system self-centers broom when angled.
  • Recessed and guarded motor.
  • Oversized 2″ greasable bearing.
  • Replace wafers easily without disconnecting hoses. Standard with poly/wire wafers.
  • Stands flip down to protect bristles during storage.

TECHNICAL SPECIFICATIONS

  • Models: VAB60 VAB72 VAB84 VAB96
  • Sweeping Width, Straight (in.): VAB60: 60.0; VAB72: 72.0; VAB84: 84.0; VAB96: 96.0
  • Sweeping Width, Full Angle (in.): VAB60: 53.5; VAB72: 64.2; VAB84: 74.8; VAB96: 85.5
  • Loader Track Width Coverage, Full Angle (in.): VAB60: 48.6; VAB72: 59.3; VAB84: 70.0; VAB96: 80.7
  • Overall Width (in.): VAB60: 69.1; VAB72: 81.1; VAB84: 93.1; VAB96: 105.1
  • Overall Width, Full Angle (in.): VAB60: 73.4; VAB72: 83.9; VAB84: 94.3; VAB96: 105.4
  • Overall Height/Depth, Straight (in.): 34.0 / 74.0
  • Broom Angle (degrees): 27
  • Number of 32 Inch Diameter Wafers: VAB60: 29; VAB72: 35; VAB84: 41; VAB96: 47
  • Recommended Flow Rate (GPM): 15-25 Standard Flow Only
  • Approximate Weight (lbs): VAB60: 970; VAB72: 1035; VAB84: 1095; VAB96: 1160
  • Recommended Loader Capacity: Greater than 1500 lbs
  • Base manual adjustment is included. Hydraulic angle or rotation upgrades and required electrical controls are available by quote and are not included.

APPLICATIONS

  • Roadside sweeping
  • Paved site cleanup

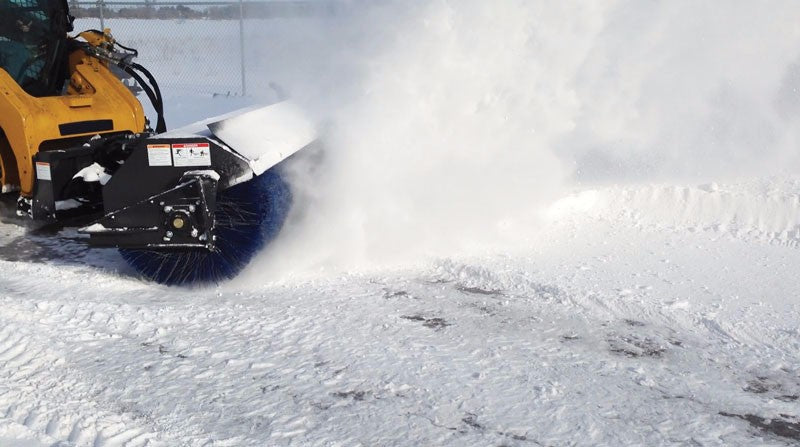

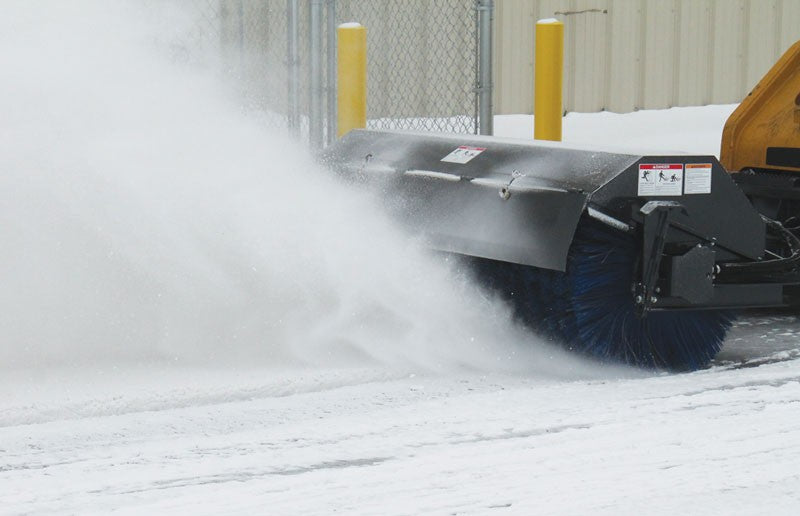

  • Light snow sweeping

VIRNIG ANGLE BROOM

WORKING DESIGN

  • Swing linkage system self-centers broom when angled.
  • Recessed and guarded motor.
  • Oversized 2″ greasable bearing.
  • Replace wafers easily without disconnecting hoses. Standard with poly/wire wafers.
  • Stands flip down to protect bristles during storage.

CONFIGURATION AND SPECIFICATIONS

  • Models: VAB60 VAB72 VAB84 VAB96
  • Sweeping Width, Straight (in.): VAB60: 60.0; VAB72: 72.0; VAB84: 84.0; VAB96: 96.0
  • Sweeping Width, Full Angle (in.): VAB60: 53.5; VAB72: 64.2; VAB84: 74.8; VAB96: 85.5
  • Loader Track Width Coverage, Full Angle (in.): VAB60: 48.6; VAB72: 59.3; VAB84: 70.0; VAB96: 80.7
  • Overall Width (in.): VAB60: 69.1; VAB72: 81.1; VAB84: 93.1; VAB96: 105.1
  • Overall Width, Full Angle (in.): VAB60: 73.4; VAB72: 83.9; VAB84: 94.3; VAB96: 105.4
  • Overall Height/Depth, Straight (in.): 34.0 / 74.0
  • Broom Angle (degrees): 27
  • Number of 32 Inch Diameter Wafers: VAB60: 29; VAB72: 35; VAB84: 41; VAB96: 47

READY FOR THE FIELD

  • Swing linkage system self-centers broom when angled.
  • Recessed and guarded motor.
  • Oversized 2″ greasable bearing.
  • Replace wafers easily without disconnecting hoses. Standard with poly/wire wafers.
  • Stands flip down to protect bristles during storage.
