VIRNIG

Big Bale Grapple

For Skid Steers & Track Loaders

73.4″ Jaw Opening

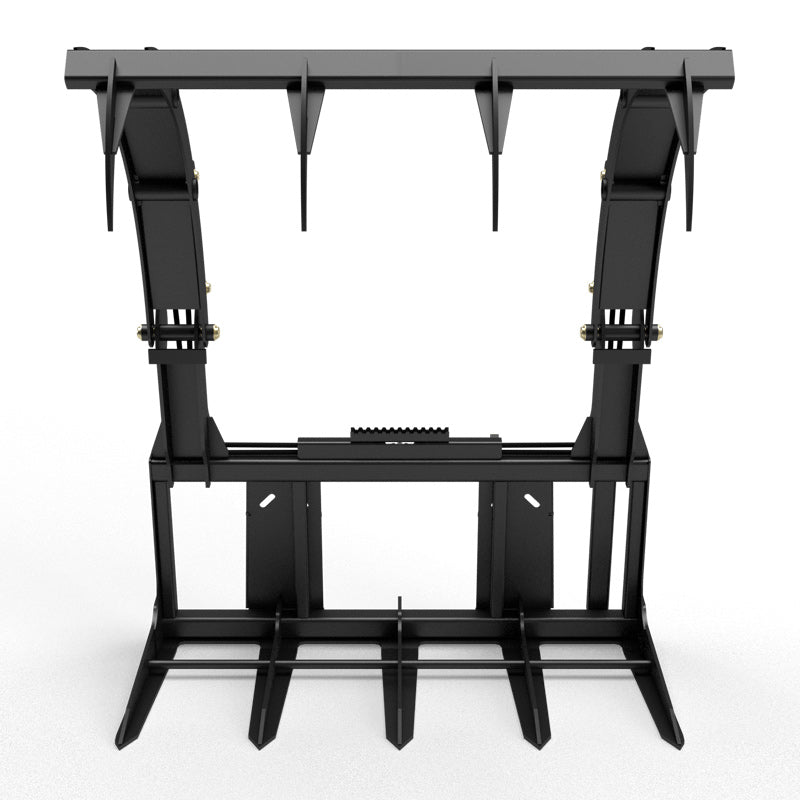

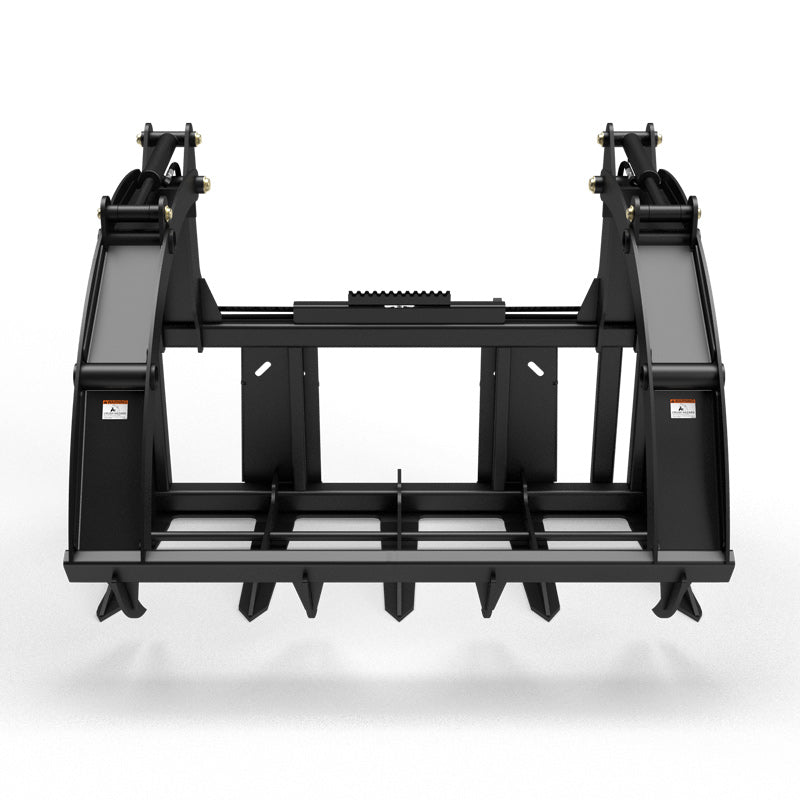

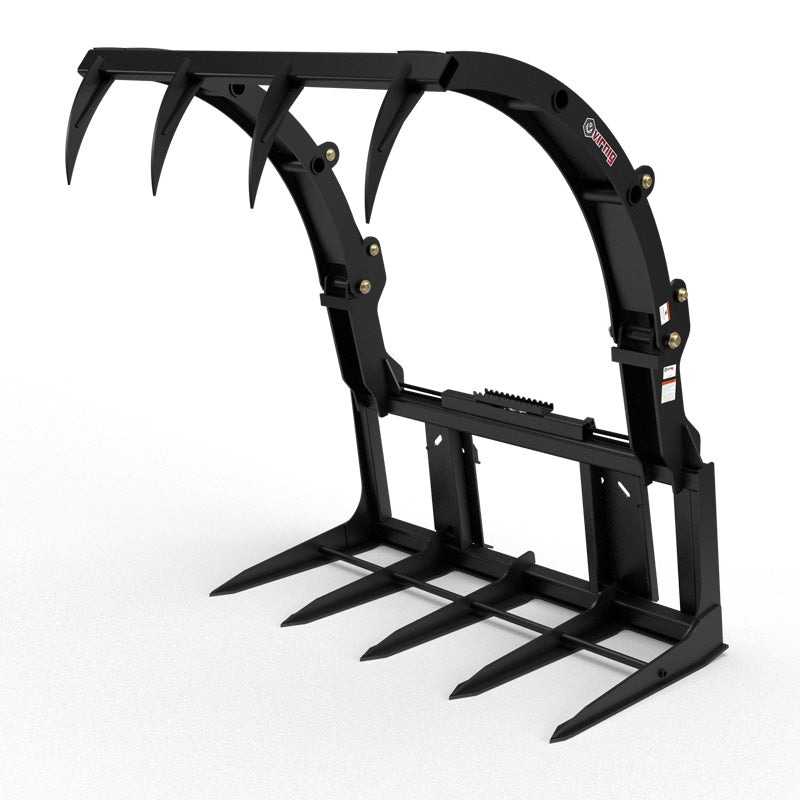

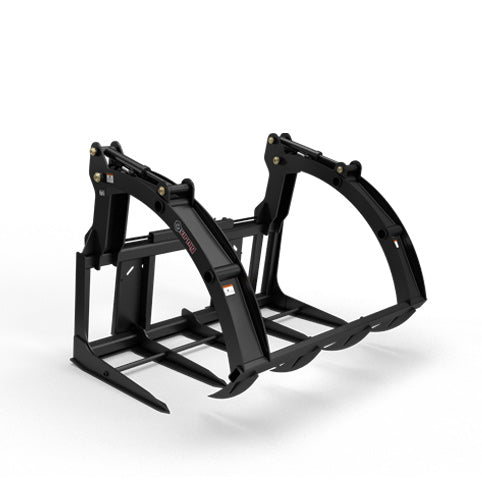

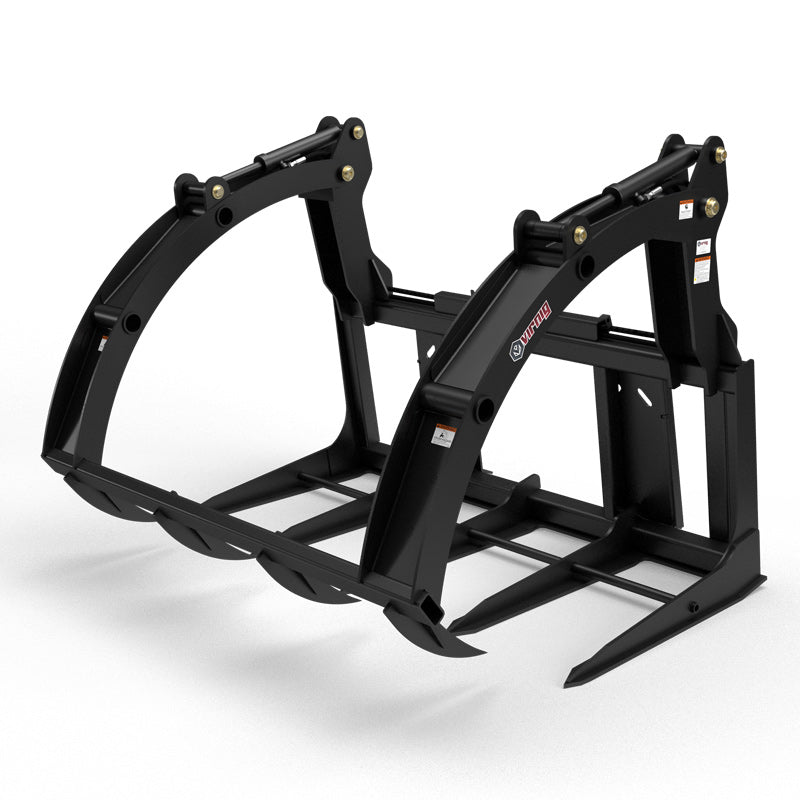

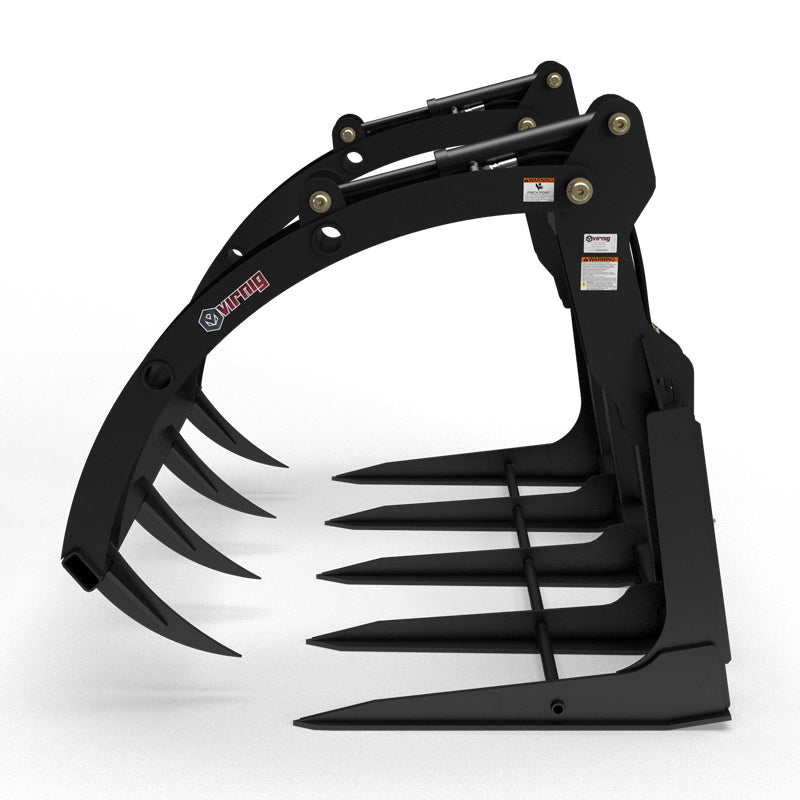

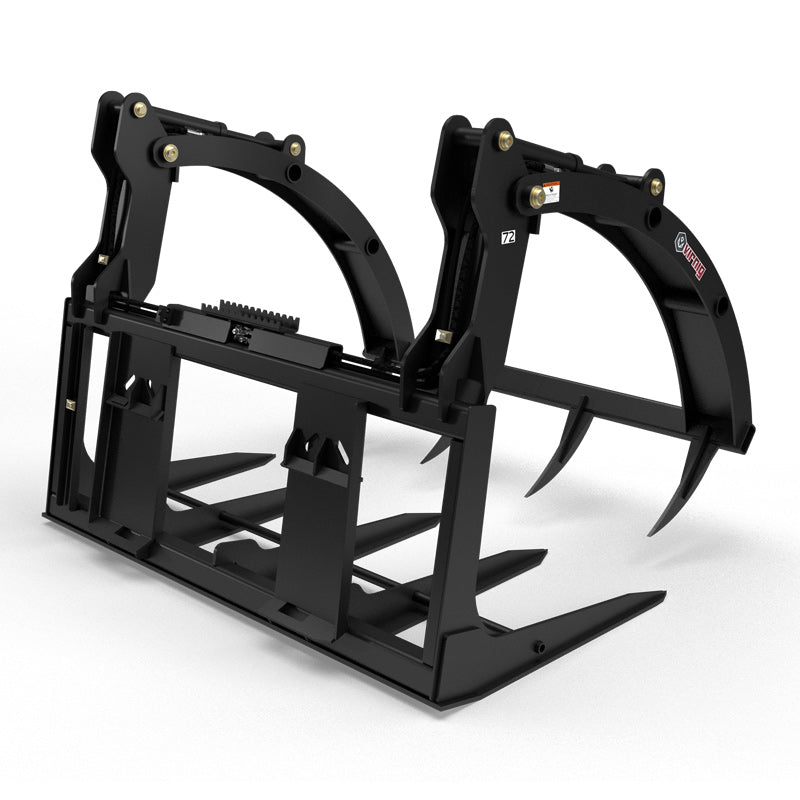

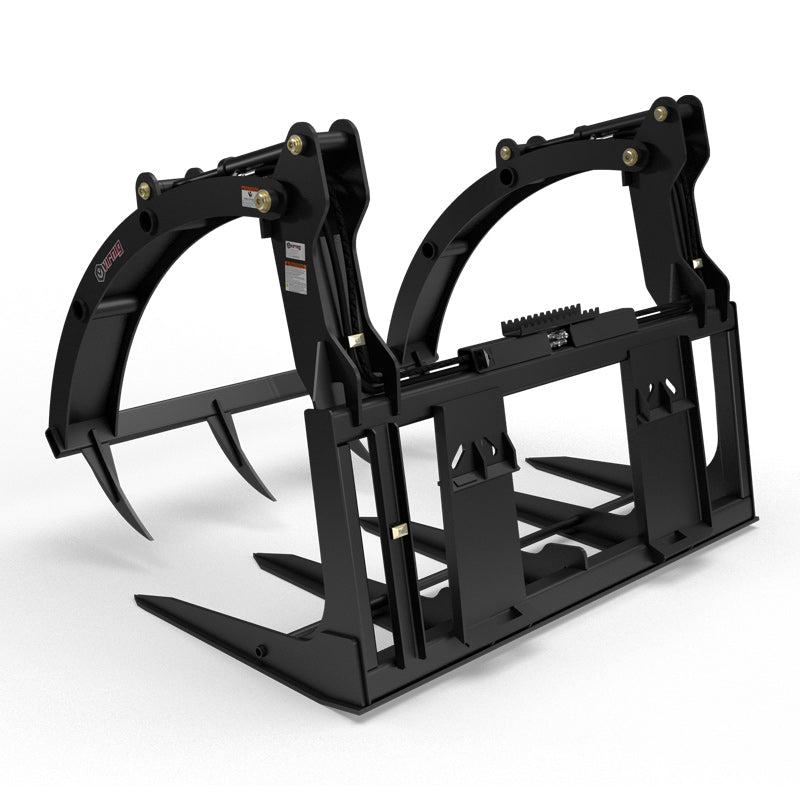

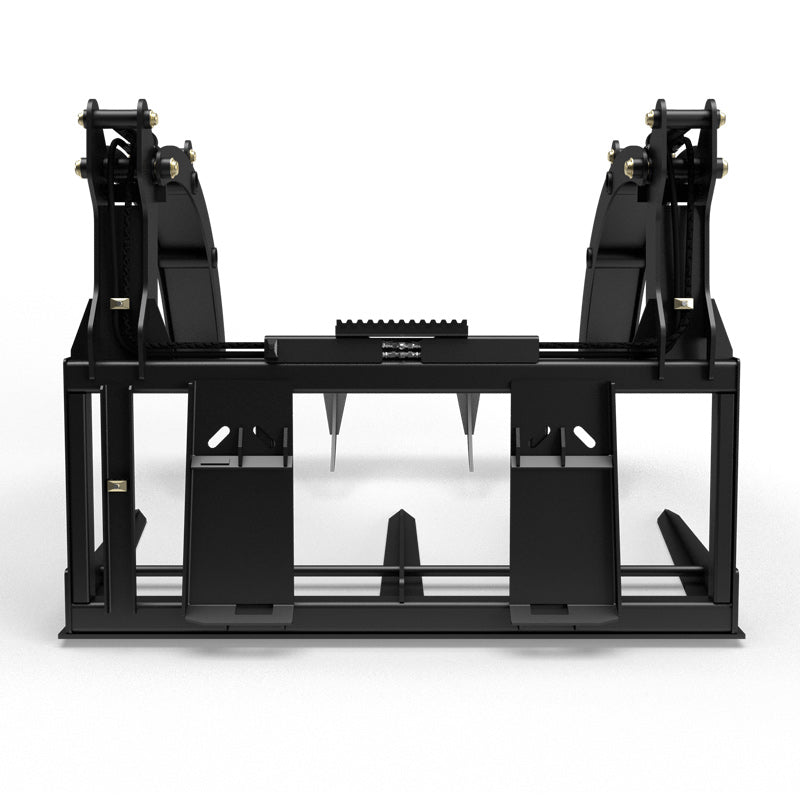

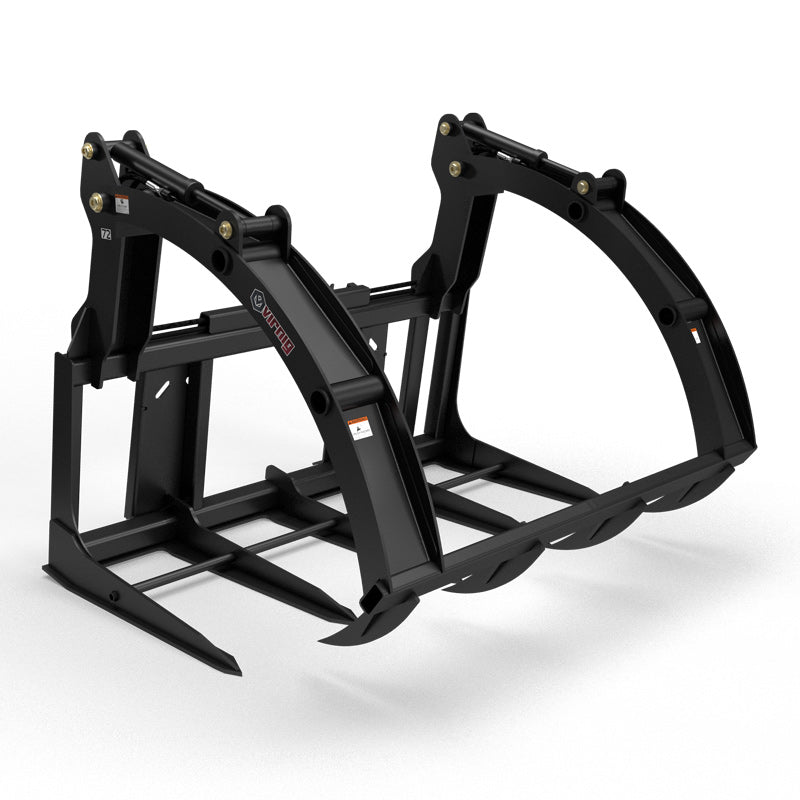

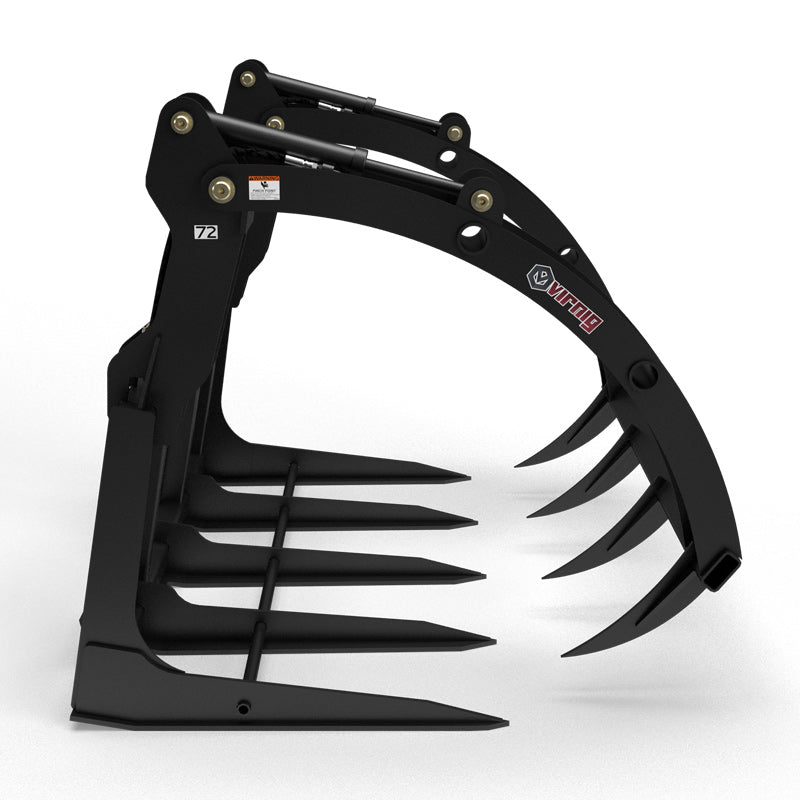

Virnig Big Bale Grapple

Virnig

Virnig Big Bale Grapple

SKU: BG54 Currently In Stock

Sale price$6,445.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

ROUND BALE TRANSPORT

VIRNIG BIG BALE GRAPPLE HANDLES ROUND BALES, LOOSE HAY, AND OTHER LIGHT AGRICULTURAL MATERIALS.

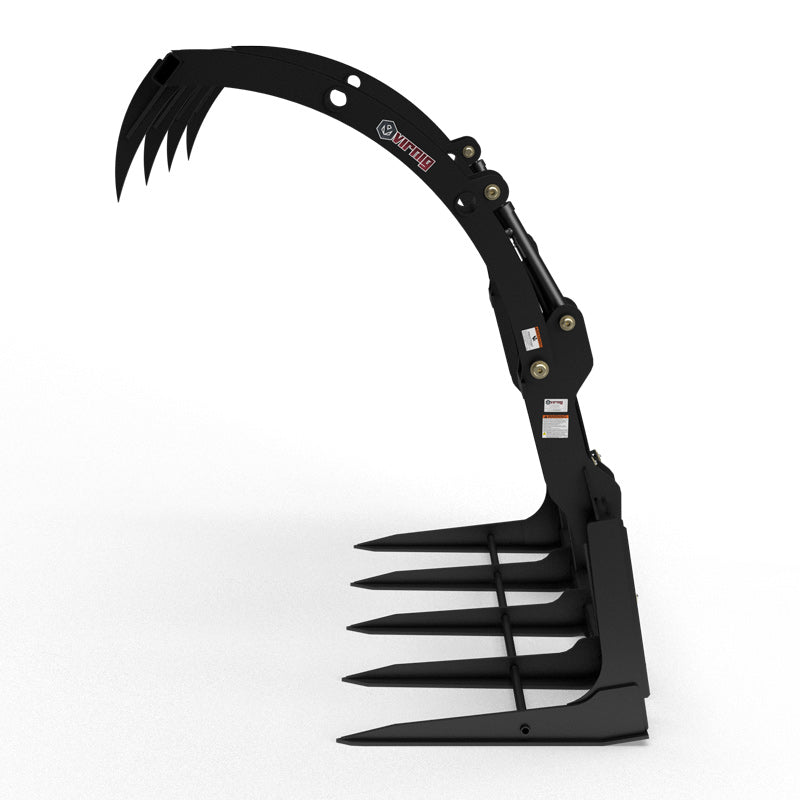

GRAPPLE JAW OPENING

THE 73.4″ JAW OPENING PROVIDES CLEARANCE TO GATHER ROUND BALES AND LOOSE HAY.

WIDTH OPTIONS

MULTIPLE FRAME WIDTHS LET YOU MATCH BALE HANDLING TO THE LOADER AND WORK AREA.

BALE-HANDLING PROFILE

A 57.5″ OVERALL HEIGHT AND 30.5″ BUCKET HEIGHT DEFINE THE GRAPPLE'S LOAD-HANDLING PROFILE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Big Bale Grapple gathers round bales, loose hay, and other light agricultural materials with an open lower frame and a large hydraulic jaw. Its 73.4″ jaw opening provides room for bulky material, making it useful when the load needs to be gathered and held rather than supported on a narrow spear alone.

Half-inch Grade 80 steel tines form the lower support, while NitroSteel® cylinder rods and Teflon®-coated bushings equip the hydraulic pivots. The open arrangement supports the material without the solid floor of a bucket. Available model widths let the grapple be matched to the loader and the size of the bales or loose loads being handled.

The BG54, BG72, and BG84 models differ in width and attachment weight, so choose the complete configuration around the carrier's capacity. Virnig recommends a loader capacity greater than 2,400 lb for this family. Account for attachment weight and the bale's position when planning the lift, rather than treating the grapple opening as a lifting rating.

KEY BENEFITS

  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Virnig big bale grapple handles round bales, loose hay, and other light agricultural materials.
  • Grapple jaw opening (in.): 73.4
  • Overall width (in.): 56.0 | 74.0 | 86.0
  • Height: overall / bucket (in.): 57.5 / 30.5

TECHNICAL SPECIFICATIONS

  • Models: BG54 BG72 BG84
  • Overall Width (in.): BG54: 56.0; BG72: 74.0; BG84: 86.0
  • Height: Overall / Bucket (in.): 57.5 / 30.5
  • Overall Depth (in.): 40.8
  • Number of Bucket Tines (w/ sides): BG54: 3; BG72: 5; BG84: 6
  • Space Between Tines (in.): BG54: 26.5; BG72: 17.5; BG84: 16.3
  • Bucket Tine Thickness (in.): 0.5¹
  • Number of Grapple Tines: BG54: 3; BG72: 4; BG84: 4
  • Space Between Grapple Tines (in.): BG54: 20.0; BG72: 19.3; BG84: 19.3
  • Grapple Jaw Opening (in.): 73.4
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Approximate Weight (lbs): BG54: 900; BG72: 1050; BG84: 1150
  • Recommended Loader Capacity: Greater than 2400 lbs
  • ¹Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Round bale transport
  • Loose hay handling
  • Farm material loading

VIRNIG BIG BALE GRAPPLE

WORKING DESIGN

  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.

CONFIGURATION AND SPECIFICATIONS

  • Models: BG54 BG72 BG84
  • Overall Width (in.): BG54: 56.0; BG72: 74.0; BG84: 86.0
  • Height: Overall / Bucket (in.): 57.5 / 30.5
  • Overall Depth (in.): 40.8
  • Number of Bucket Tines (w/ sides): BG54: 3; BG72: 5; BG84: 6
  • Space Between Tines (in.): BG54: 26.5; BG72: 17.5; BG84: 16.3
  • Bucket Tine Thickness (in.): 0.5¹
  • Number of Grapple Tines: BG54: 3; BG72: 4; BG84: 4
  • Space Between Grapple Tines (in.): BG54: 20.0; BG72: 19.3; BG84: 19.3

READY FOR THE FIELD

  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Virnig big bale grapple handles round bales, loose hay, and other light agricultural materials.
  • Grapple jaw opening (in.): 73.4
  • Overall width (in.): 56.0 | 74.0 | 86.0
  • Height: overall / bucket (in.): 57.5 / 30.5
