VIRNIG

Bolt-On Grapple

For Skid Steers & Track Loaders

Fits Select 60-84″ Virnig Buckets

Request QuoteAdd To Cart

Virnig Bolt-On Grapple

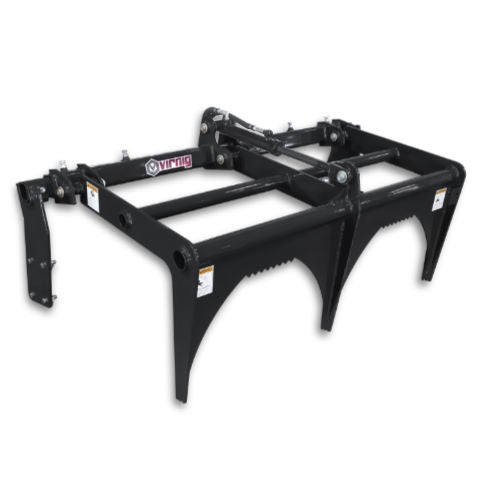

Virnig Bolt-On Grapple; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig Bolt-On Grapple; manufacturer family image, configuration may differ
Virnig

Virnig Bolt-On Grapple

SKU: BOGV6084 Currently In Stock

$2,075.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

TELESCOPING MOUNT

THE TELESCOPING MOUNT ADAPTS TO SELECT 60-84″ VIRNIG BUCKETS; CONFIRM THE BUCKET MODEL.

BRUSH LOADING

ADD HYDRAULIC GRAPPLE HANDLING TO A COMPATIBLE BUCKET; SOME MODELS REQUIRE DRILLING OR WELDING.

APPROXIMATE JAW OPENING

AN APPROXIMATE 42″ JAW OPENING ADDS CLAMPING REACH; ACTUAL OPENING VARIES BY BUCKET.

GRAPPLE FRAME

THE 52″ GRAPPLE FRAME ADDS A CLAMPING ASSEMBLY TO SELECT COMPATIBLE VIRNIG BUCKETS.

COMPACT ASSEMBLY

THE 29″ ASSEMBLY DEPTH DEFINES THE GRAPPLE'S FOOTPRINT; CHECK CLEARANCE ON THE BUCKET.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Bolt-On Grapple adds hydraulic load retention to a compatible Virnig bucket without cutting or welding the bucket structure. It is a practical way to hold brush and other bulky material against an existing bucket when a loose load would otherwise be difficult to keep together during movement.

A telescoping mount fits select Virnig buckets from 60-84″ wide. The grapple assembly is approximately 52″ wide and weighs about 270 lb, so it adds a dedicated clamping function while retaining the host bucket for support. The mounting arrangement must match the bucket rather than being treated as a universal fit for any make or model.

The approximately 42″ jaw opening varies with the host bucket and installation. Confirm the exact bucket model and mounting configuration before ordering, and account for the added assembly weight when checking loader capacity. This listing is for the grapple attachment; the existing bucket is not included.

KEY BENEFITS

  • Telescoping mount fits various 60-84″ Virnig buckets.
  • Virnig bolt-on grapple adds grapple handling to compatible Virnig buckets without cutting or welding.
  • Approximate jaw opening (in.): 42.0**
  • Overall width (in.): 52.0
  • Overall depth (in.): 29.0

TECHNICAL SPECIFICATIONS

  • Models: BOGV6084
  • Overall Width (in.): 52.0
  • Overall Depth (in.): 29.0
  • Bucket Width: Min / Max (in.): 60.0* / 84.0*
  • Approximate Jaw Opening (in.): 42.0**
  • Cylinder Bore / Stroke (in.): 1.5 / 8.0
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.0 / 1.0
  • Approximate Weight (lbs): 270
  • Recommended Loader Capacity: Less than 1800 lbs
  • **Jaw Opening Varies with Type of Bucket and Installation. *Mount Tubes Telescope to Fit Various Width Buckets.
  • V40 Low Profile Dirt Bucket installation requires additional drilling or welding. Compatibility is limited to the listed Virnig bucket families; other brands are not guaranteed.

APPLICATIONS

  • Brush loading
  • Securing bulky debris
  • Converting a compatible bucket

VIRNIG BOLT-ON GRAPPLE

WORKING DESIGN

  • Telescoping mount fits various 60-84″ Virnig buckets.

CONFIGURATION AND SPECIFICATIONS

  • Models: BOGV6084
  • Overall Width (in.): 52.0
  • Overall Depth (in.): 29.0
  • Bucket Width: Min / Max (in.): 60.0* / 84.0*
  • Approximate Jaw Opening (in.): 42.0**
  • Cylinder Bore / Stroke (in.): 1.5 / 8.0
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.0 / 1.0

READY FOR THE FIELD

  • Telescoping mount fits various 60-84″ Virnig buckets.
  • Virnig bolt-on grapple adds grapple handling to compatible Virnig buckets without cutting or welding.
  • Approximate jaw opening (in.): 42.0**
  • Overall width (in.): 52.0
  • Overall depth (in.): 29.0
